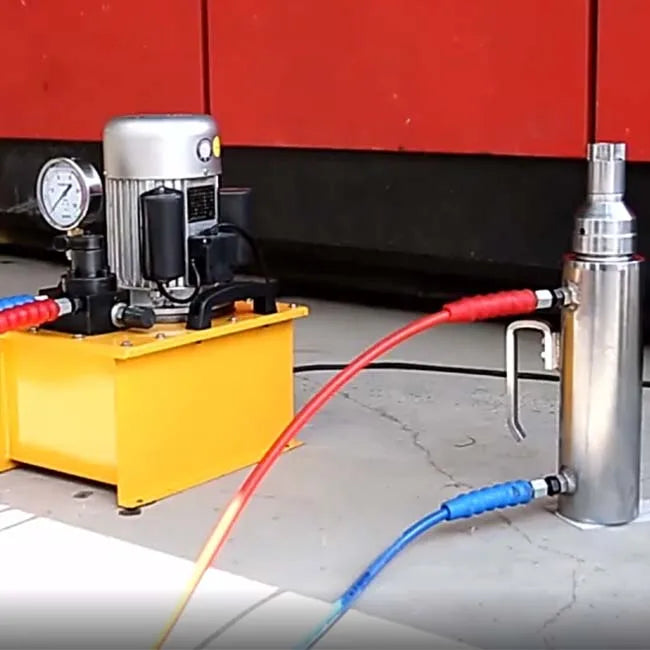

70 Mpa Hydraulic Pump Station Pressure Test Station Jack Lifting Power Pump
Save -53%
Rs. 263,982.61
Rs. 565,373.91
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
PROFILE

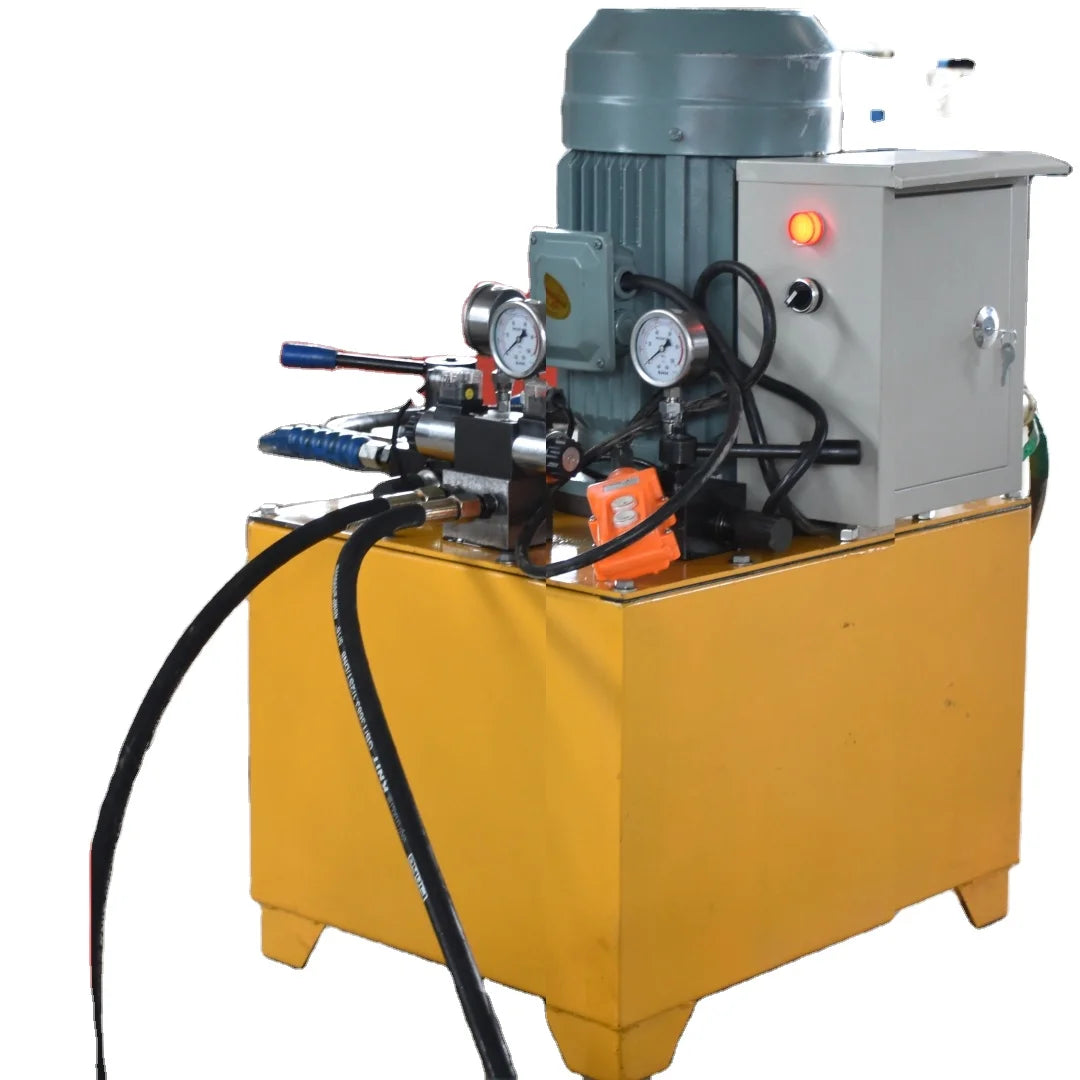

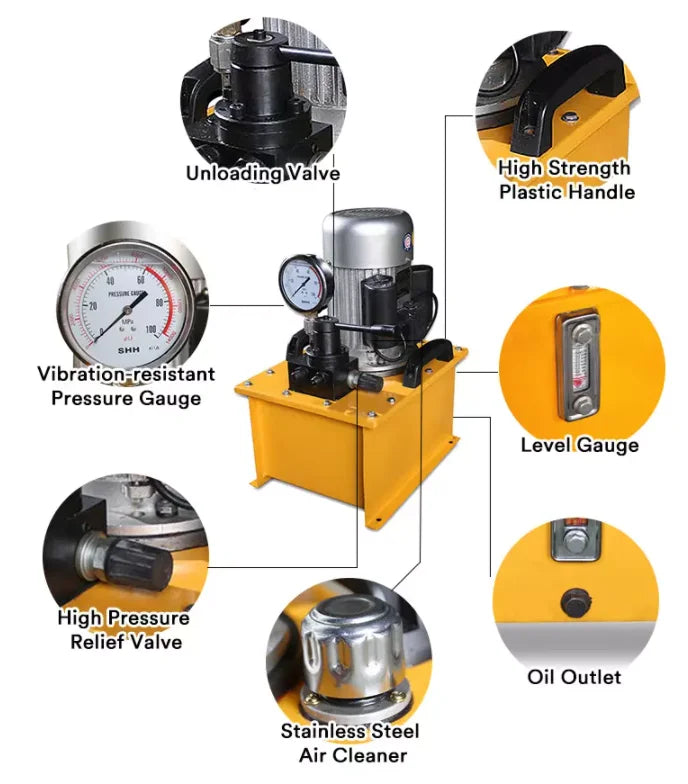

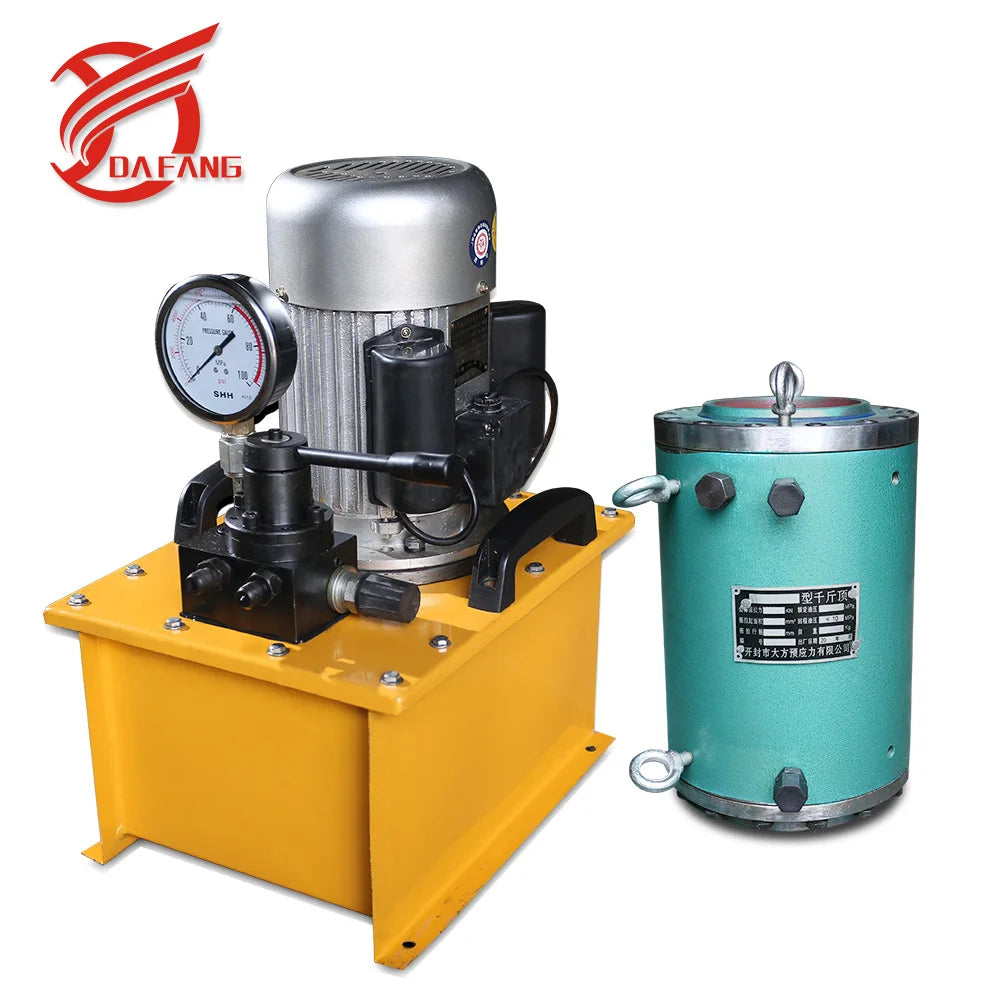

DBDF Series electric pump is a complete hydraulic pump station includes oil pump, control valve, oil tank, motor, oil gauge, etc.
DBDF Series hydraulic power pack can achieve high & low pressure supply and output large flow at the same time. When high pressure, the low pressure pump will automatically return oil without load, reduce the power loss of the motor, also features shutting down with maintaining pressure and reversing under pressure.
DBDF Series hydraulic power pack can achieve high & low pressure supply and output large flow at the same time. When high pressure, the low pressure pump will automatically return oil without load, reduce the power loss of the motor, also features shutting down with maintaining pressure and reversing under pressure.
|
Max Pressure
|
Min Pressure
|
High pressure flow
|
Motor Power
|
Voltage
|
Capacity of Tank
|
Suitable for jack’s tonnage
|
|
70Mpa
|
2Mpa
|
1L/min
|
0.75kw
|
380V/220V
Or Customized |
14L
|
＜100T
|
|
2L/min
|
1.5kw
|
14L/16L
|
100-200T
|
|||
|
2L/min
|
2.2kw
|
16L
|
200-300T
|
|||
|
3L/min
|
3kw
|
40/L
|
300-500T
|
|||
|
4L/min
|
4kw
|
50/L
|
500-600T
|

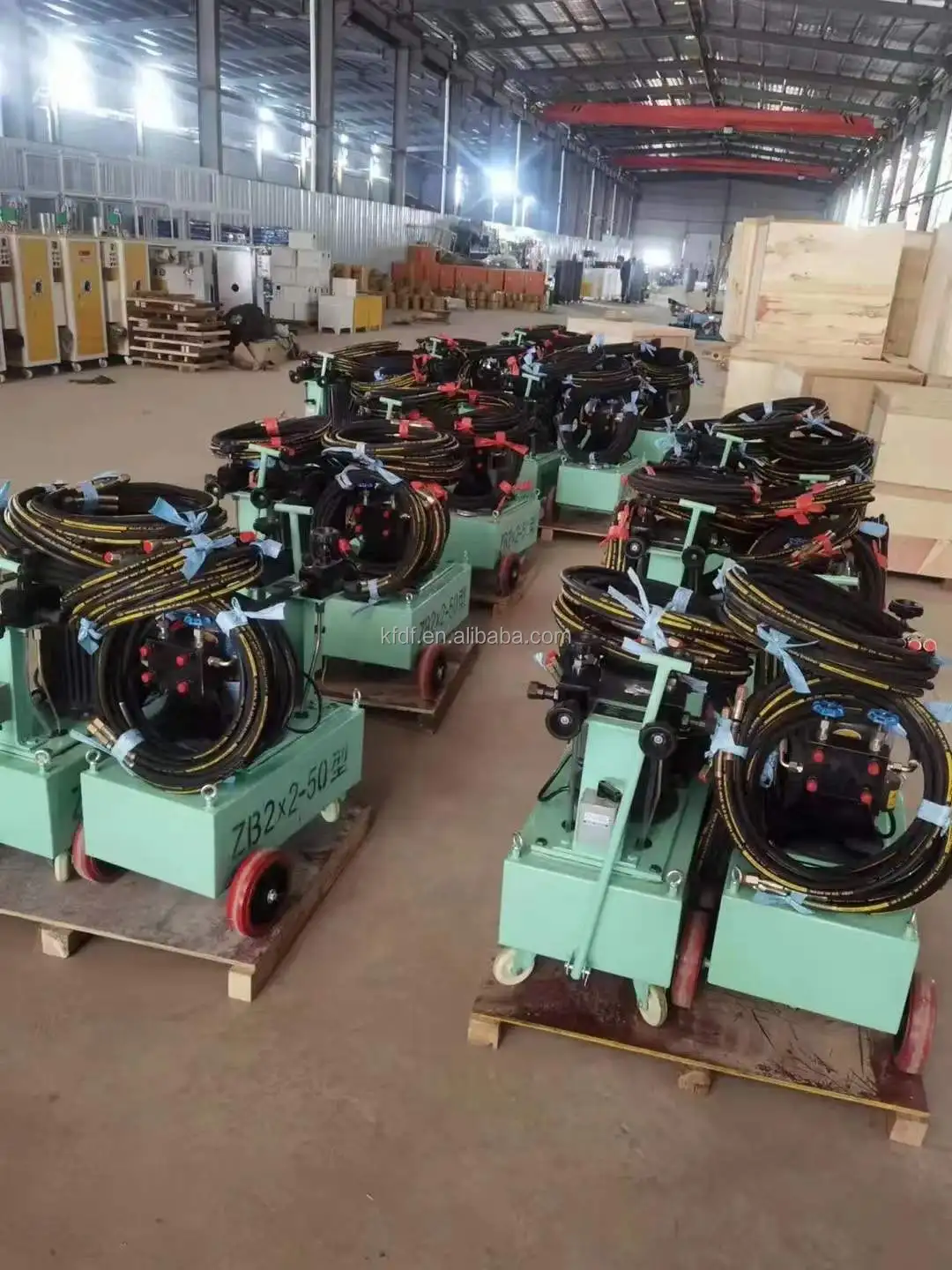

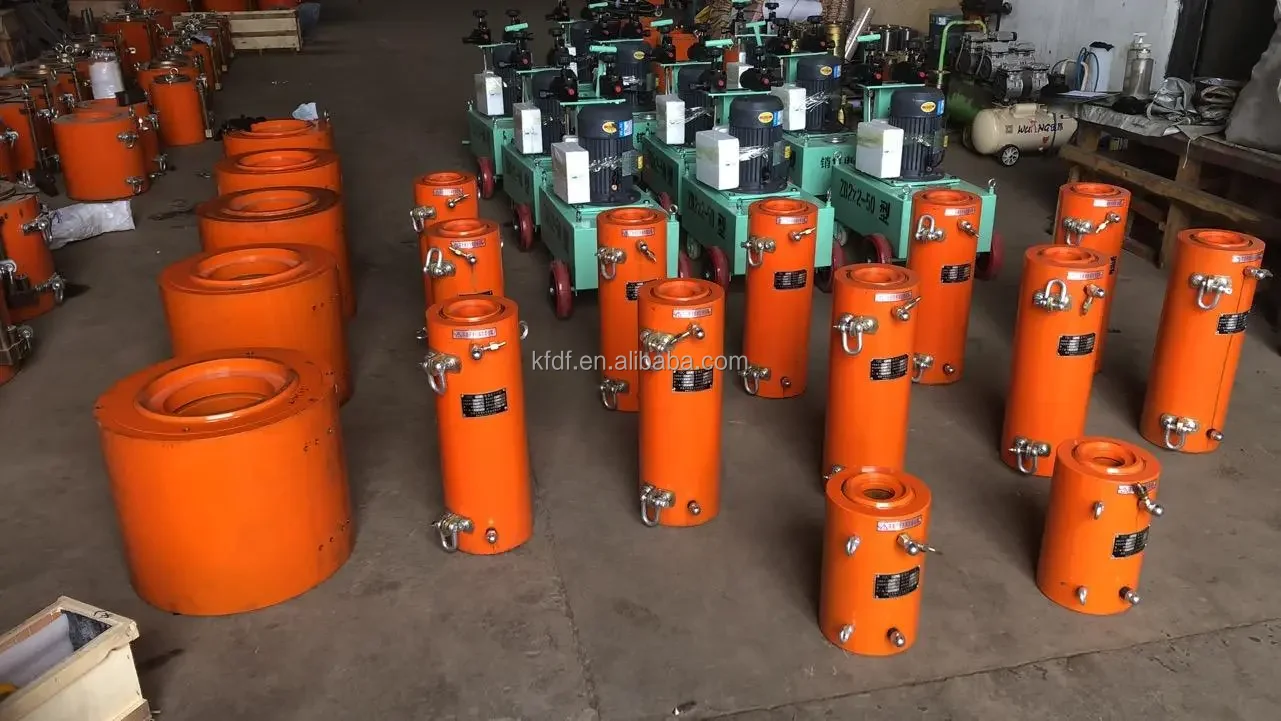

Warehouse

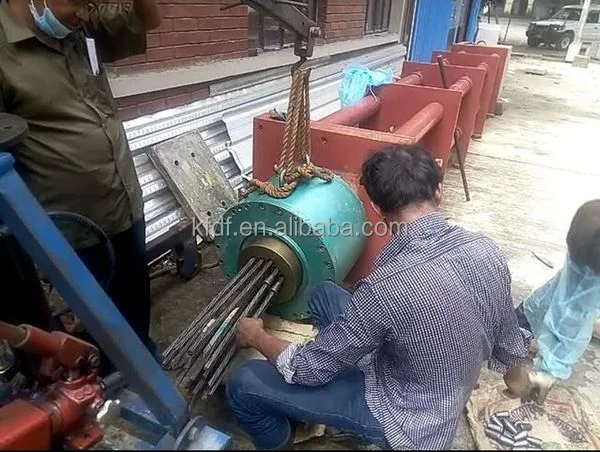

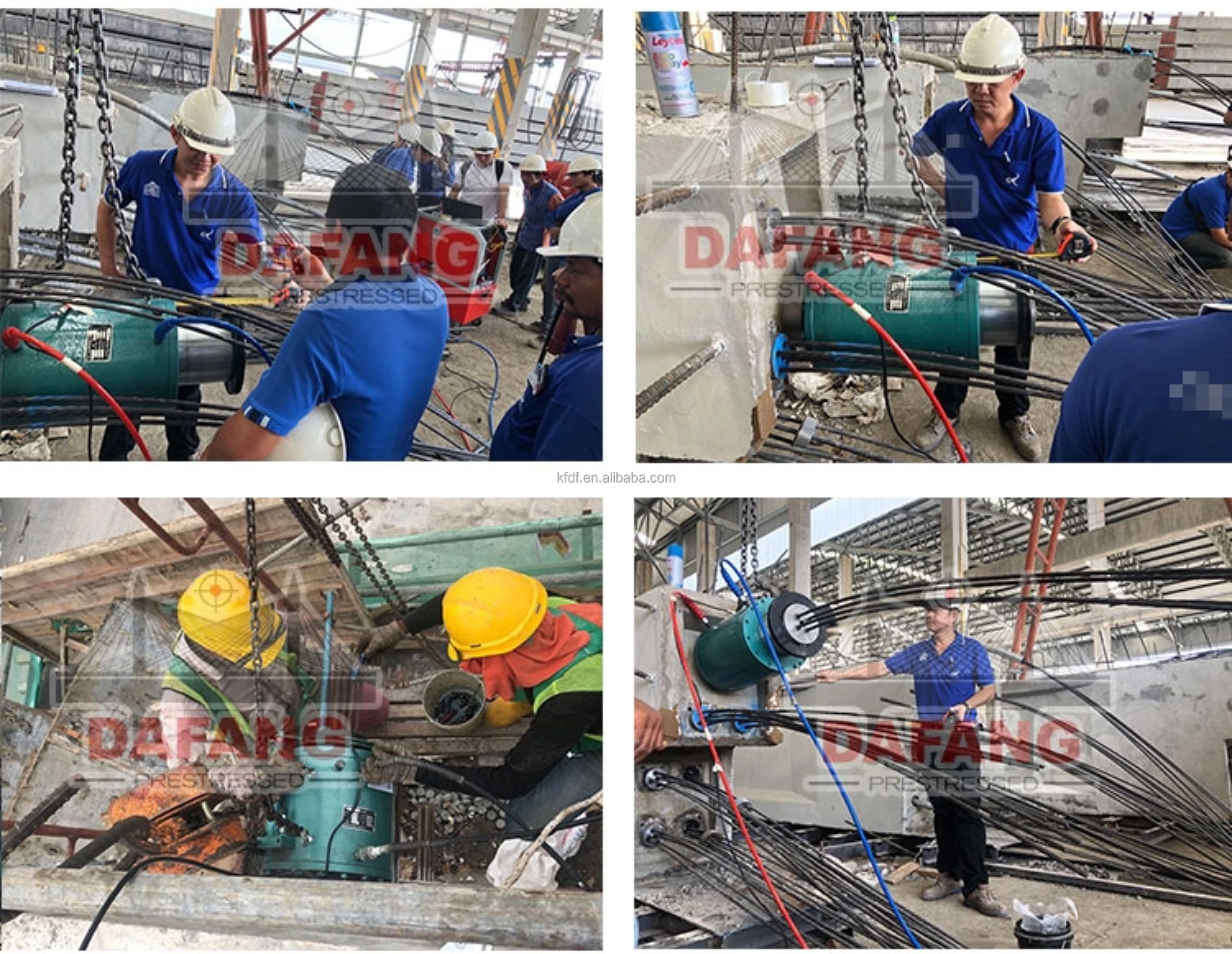

Applications

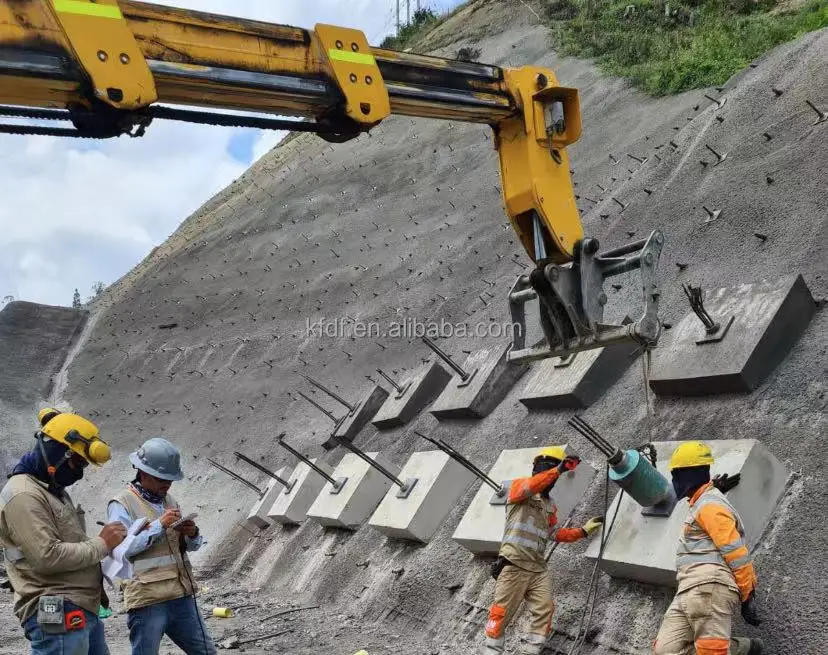

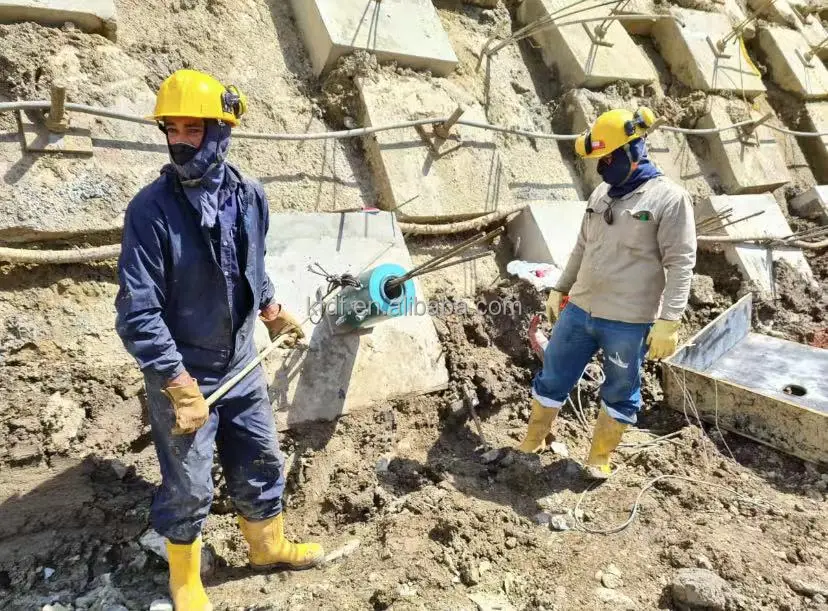

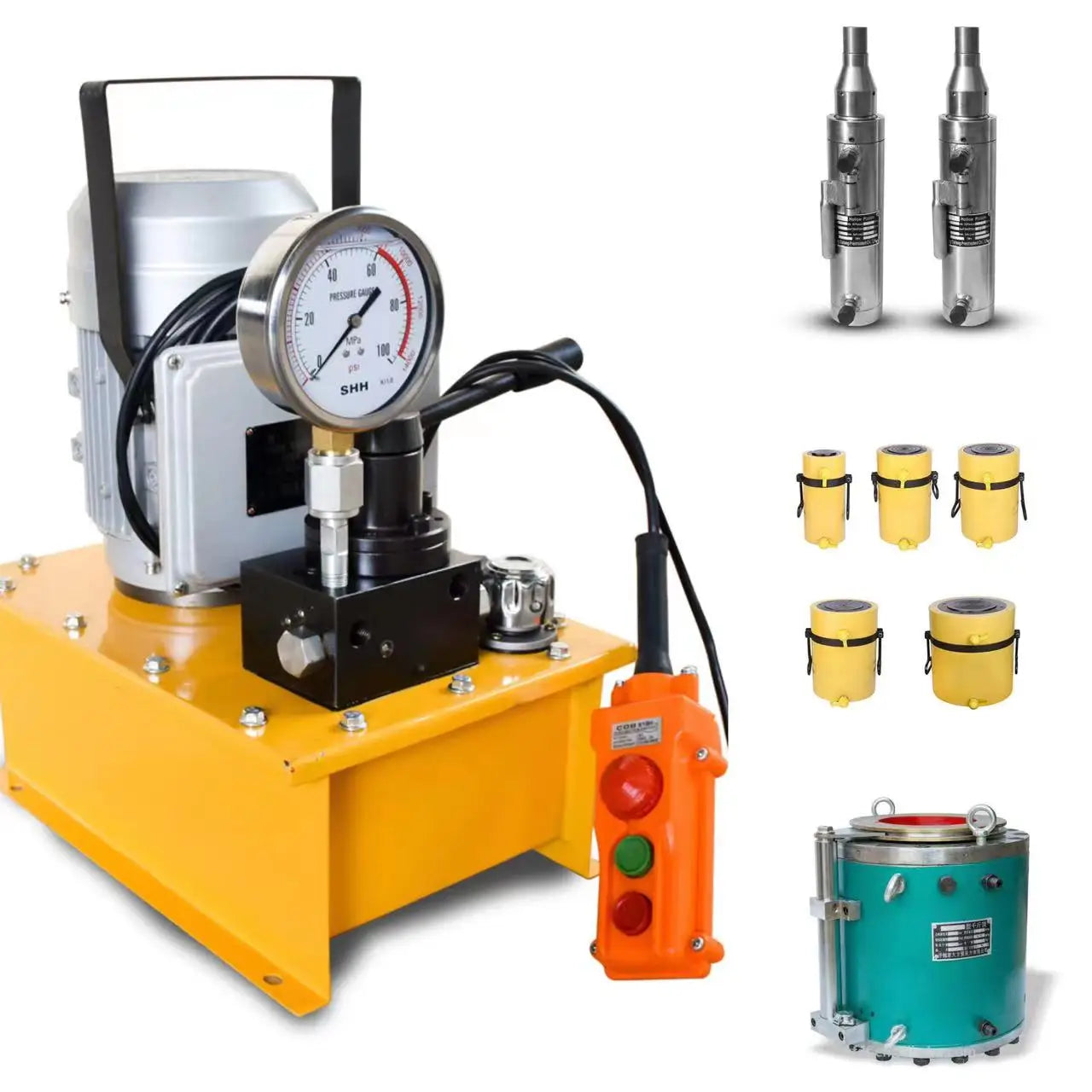

Hydraulic Jack Can Be Used For Lifting Heavy Machine, Bridge Project, Hydraulic Engineering, Harbour Construction And Other Equipment, It Can Match With Our High Pressure Oil Pump. It Can Reach Jack, Push, Pull And Extrusion And Kinds Of Working.
1.Synchronous Hydraulic Jack: Sync Lifting Support Construction For A Long Time And Synchronous Moving Of Bridges.
1.Synchronous Hydraulic Jack: Sync Lifting Support Construction For A Long Time And Synchronous Moving Of Bridges.
2. PileFoundation Test: Used For Large-Tonnage Pile Foundation Testing.
3. Bridge Top Push, Move: Synchronous Displacement Of Bridges.
3. Bridge Top Push, Move: Synchronous Displacement Of Bridges.
