8CH 1080P HD MDVR Precise positioning 4G GPS hot spot hard drive car adas camera

Write a review

Save -49% Rs. 89,452.17 ~~Rs. 175,964.61~~

Brand : Shanvis

Collection : Action Camera - Sports Camera - Water Camera

SKU : 6527543013089_106561609

Availability : 0 In Stock Sold Out 0

Memory Capacity128GB

Color Black

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Product Description

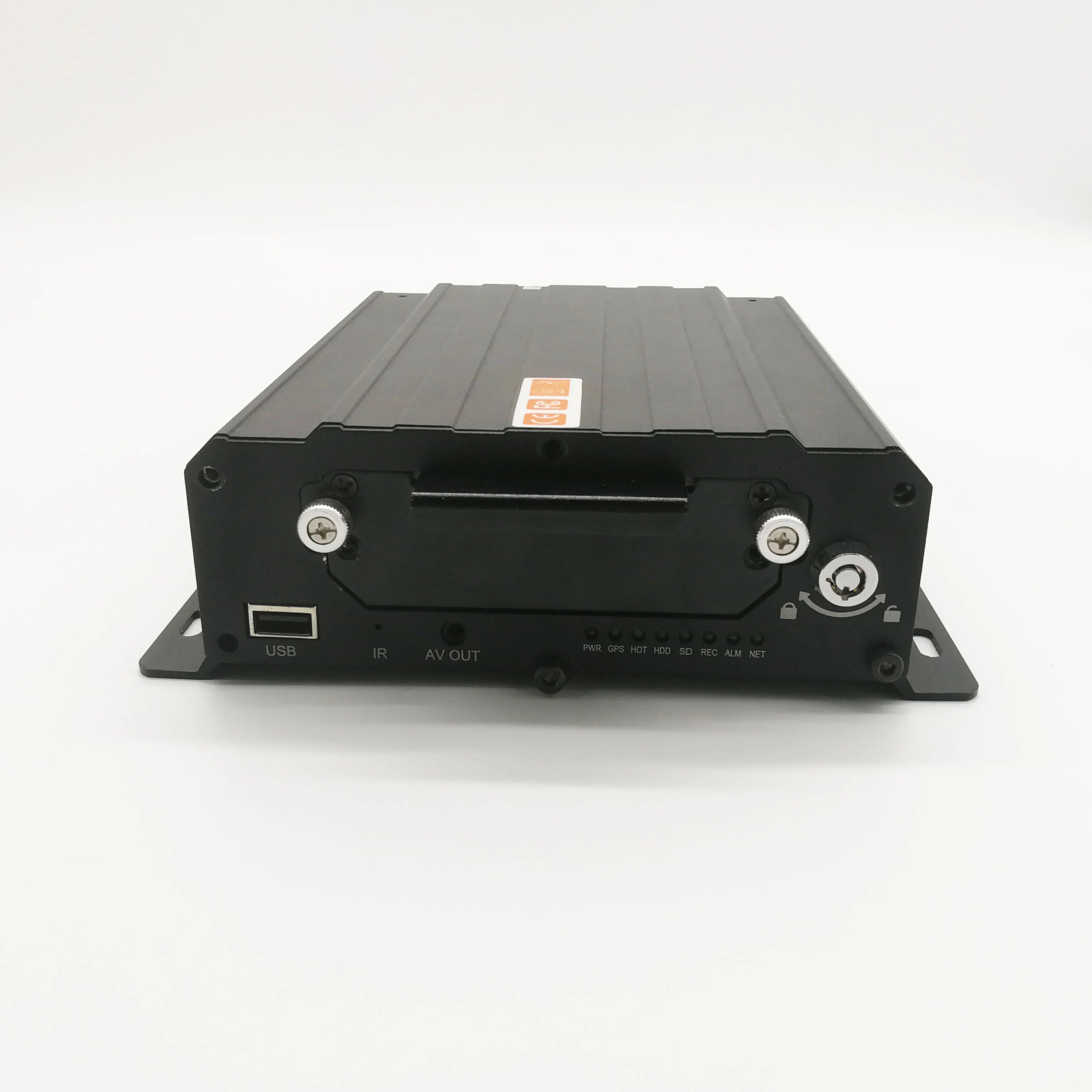

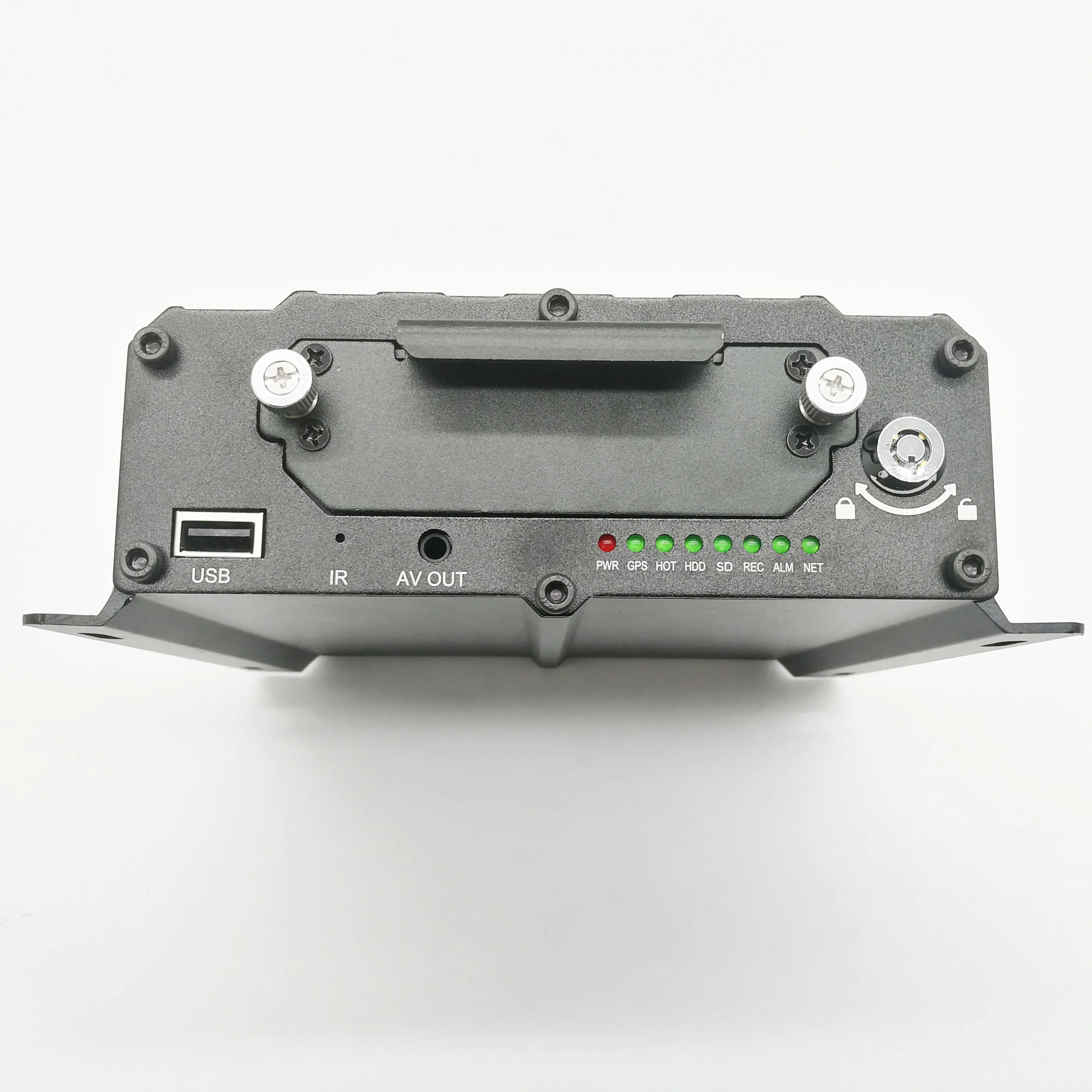

Front Panel

1-HDD Lock, it's used for unload hard disk. Device will power off automatically if power on when HDD lock is open 2-HDD Fixed Screw. Please manually tighten screw after installing hard disk drive, to prevent HDD slip out 3-status Indicator LED. Details as below Pwr-power Indicator LED, LED light means system has powered on. GPS-GPS/BD Status indicator light. LED On-positioning success LED FLASH-IN positioning, LED OFF-NO GPS Module. Hot-hard disk heating LED LED ON-HDD is heating, LED OFF-HDD doesn't open heating. SD-SD card Indicator LED. LED On-card is recording, LED FLASH-CARD exists but not recording, LED Off-card does not exist HDD-HDD card Indicator LED LED ON-HDD is recording, LED FLASH-HDD exists but not recording, LED OFF-HDD does not exist Rec-video Recording Indicator LED LED ON-IN the recording: ALM-ALARM Indicator LED, LED ON-IN the alarm Net-network Indicator LED. It changes based on dial-up connection status, details as below: LED OFF-NO communication module LED INTERMITTENT FLASH-SIM CARD does not exist LED QUICK FLASH (1: 1)-device is dialing, LED SLOW FLASH (3: 1-server connection is not OK: LED On-server connection is successful 4-SIM Card and SD Card Slot: (When installation gap towards inside, metal touch spot face down) 5-front audio and video output interface; (Reserved 6-infrared remote control receiving hole, It's used to receive remote controller signal 7-USB Interface It's used to import or export data or upgrade Status LED will alternate loop flash when device power on, it will quick loop flash when device is upgrading Built-in UPS, after devce Power of, PWR LED will be continuously on ten more seconds

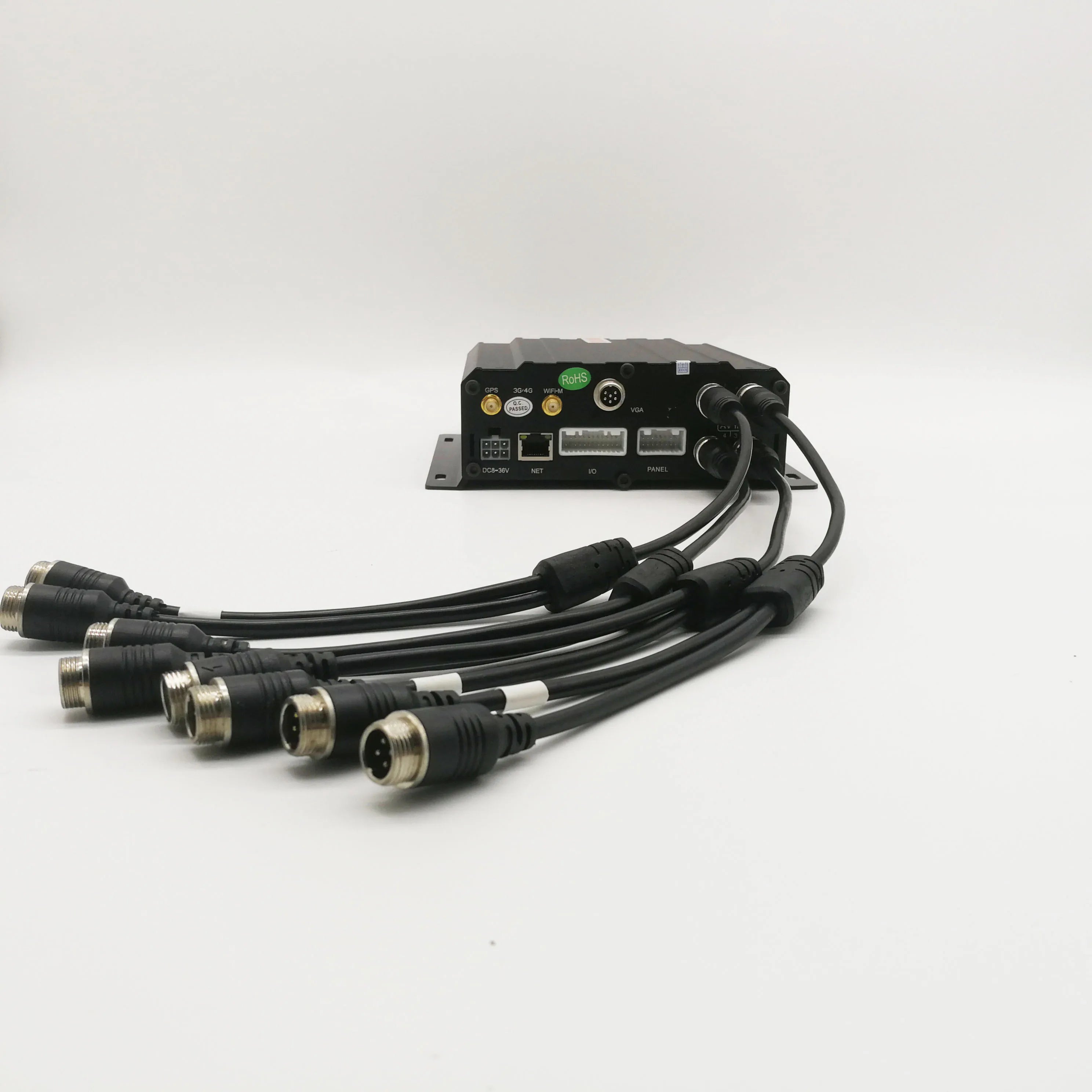

Back Panel

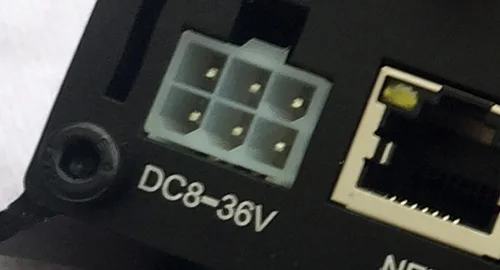

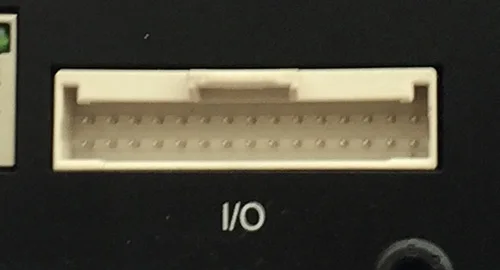

1-video&Audio Input interface, 1-4channels or 1-8channels, with DC 12V output 2-24 PIN Extension Port, With alarm input&output, serial port etc, More detailed definition see addenda 3-RJ45 Ethernet port, with print serial port, Can only connect 4PIN net cable when connect net 4-power Input interface, Input Voltage DC 8-36V Red cable connect power positive, Black cable connect power negative; Yellow line ACC signal cable. 5,6,7-3G/4G、 WIFI.、 GPS Antenna Port; 8-VGA high definition output port. (Analog output port is standard definition output) Attention: Audio/Video analog output port is inside the device 16PIN PANEL port When net cable directly connect to the device, only can use 4PIN definition cable, otherwise it will lead device dead

Product Features

1.

H.265 Compression, saves storage costs, smoothly live streaming, clear picture quality, multi-stream recording.

2.

Support one HDD(Max 4TB) and one SD Card (Max 256GB) Storage, completely protect the data from damage.

3.

Watchdog abnormal restart function protection, Better machine and data protection.

4.

Flameout delay recording function, ACC Delay off,can set 24 hours.

5.

On board UPS 8~10 seconds delay power-off for data protection.

6.

Support remote management, voice intercom, fuel monitoring, cut engine remotely function.

7.

Designed with RS232/RS485 and RJ45 peripheral interface.

8.

Allow to integared with Fuel Sensor,Temperature & Humidity Sensor, RFID card-reader,Tire pressure monitor and so on.

9.

8V~36V wide voltage power supply, Overload/ undervoltage/ short circuit protection, low voltage automatic shutdown.

10.

Al-aluminum profile design, small size, fast heat dissiption, dustproof, shockproof.

1080 AHD HDD Mobile DVR Working Diagram

8CH 1080P HD MDVR Precise positioning 4G / GPS hot spot hard drive car adas camera

Monitor screen

8CH 1080P HD MDVR Precise positioning 4G / GPS hot spot hard drive car adas camera

Product Advantages

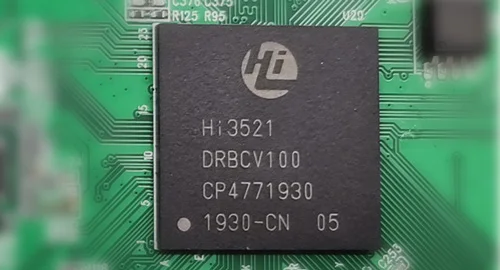

1.The original Haith chip

Further Video Recorder, each of which uses the original industrial-grade Heise chip, can ensure stable operation in the severe cold and heat environment.

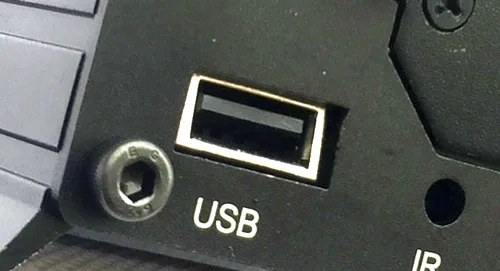

2. Humanized USB Interface

Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.

3. Support screen switching

Supporting reverse screen enlargement, four-way video switching, providing technical support.

4. Wide Voltage Design

Vehicle broadband power supply can work steadily in the range of DC8V-36V voltage.

Products for vehicles

Product Applications:Bus ,Coach ,School Bus, Truck ,Tanker, Harvester

DVR installed in bus

8CH 1080P HD MDVR Precise positioning 4G / GPS hot spot hard drive car adas camera

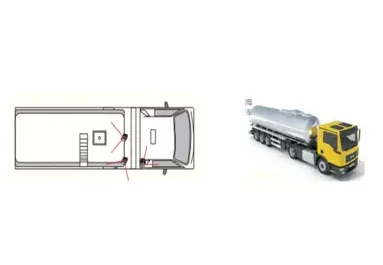

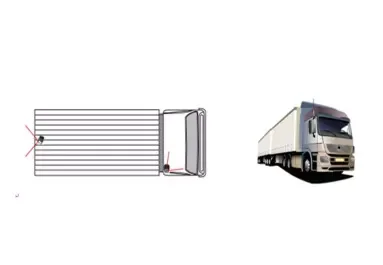

DVR installed in oil truck

DVR installed in taxi

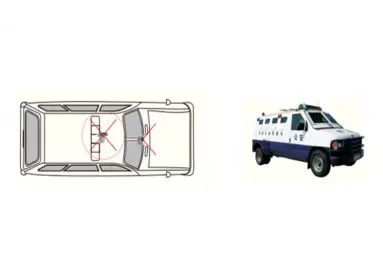

DVR installed in police car

DVR installed in logistics vehicle

Vehicle Survilliance Solutions

8CH 1080P HD MDVR Precise positioning 4G / GPS hot spot hard drive car adas camera

Four-channel simultaneous recording, smooth picture quality

Support parallel preview and return visit of different channels under multi-screen splitting

Loop recording, automatic coverage

When it detects that the hard disk space is insufficient, the system intelligently deletes the early unlocked screens, without manual operation, you can cycle the recording

3G/4G remote real-time monitoring

Insert a 3G/4G phone card, download the client, you can support multi-device terminal viewing, real-time sharing, remote download,real-time video you want to watch

GPS (Beidou) positioning

Carrying out vehicle positioning through GPS, knowing the location and driving trajectory of the vehicle, realizing the real-time scheduling of the vehicle and improving efficiency

Product Paramenters

Main processor	Hi3521D V100 chipset	High performance chipset
System	Language	Chinese, English, Russian (customerized)
		Operation interface	OSD menu
		Password security	User Password and Administrator Password
CUI	Image OSD	Can be connected to an external AV display and VGA display, Remocontrol operation setting system parameters
CUI				Interface
Audio and video	Video input	4/8-channel video input, 4pin interface, 1.0Vp-p, 750Ω
		Video output	1 channel AV composite audio and video output, 4pin interface, 1.0Vp-p, 750, 1 channelVGA output
		Audio input/output	4/8 input, 1 output,4pin interface
		Compression Format	Encoding format: G726 40KBPS, Sampling rate: 8000 sample bit width, 16bit Sampling points: 320;
		Preview	1/2/4/6/8/9 screen split preview, support manual/event trigger full screen display function
		Resolution	Support 1080P/960P/720P/D1/HD1/CIF, MAX:8 channels 1080p
		Video Quality	1-8 levels, 1 is the highest level, 8 is the lowest level.
		Video Standard	PAL: 100 frames/s, CCIR625 line, 50 games NTSC: 120frames/s, CCIRS25 line,60Games; 1080P:1536Kbps~ 8Mbps, Multi-level image quality optional 720P:1000 Kbps ~ 6Mbps, Multi-level image quality optional Di: 800Kbps ~ 3Mbps, Multi-level image quality optional HD1: 600Kbps ~ 2.5Mbps, Multi-level image quality optional CIF: 256Kbps ~ 1.5Mbps, Multi-level image quality optional
		Video mode	The default: auto recording after power on. Ignition recording, alarm trigger recording and manual recording are supported.
Videostorage	File format	H.265
		File system	Special file system or FAT32
		SD CARD	Support 1xHard Disk( Max 4TB) and 2xSD card(Max 256GB), cyclic recording
		Upgrade method	Support USB flash disk updating 1 SD card upgrade
		Video playback	Search video and video files by recording time, recording mode, etc. Supports up to 4 channels of synchronized playback, pauses, fast forwards, rewinds, supports 2, 4, 8, 16 times faster forward of backward
Alarm	Alarm input	8-channel alarm input with alarm linkage function
		Alarm Output	2-Channel alarm output
		G-Sensor	Support built-in G-SENSOR acceleration sensor, alarm linkage trigger
Port	RS232	2*RS232
		RS485	1*RS485
		RJ45	1*RJ45
		USB	1*USB
Module	3G(Optional)	Built-in 3G module (WCDMA/EVDO/TD-SCDMA)
		4G(Optional)	Built-in 4G module (TD-LTE/FDD-LTE)
		WIFI(Optional)	Built-in WIFI module (2.4G)
		GPS(Optional)	Support Dual Module GPS/BD
Software	CMSV6 Client	4G remote real-time monitoring GPS positioning, remot management, recording, playback, intercom, monitoring, track playback alarm processing.
		Mobile phone terminal	Remote real-time monitoring, GPS positioning. recording playback, intercom, monitoring,and alarm prompts are available anytime and anywhere.
		PC playback	Video playback track playback and analysis
Power	Power management	Wide voltagepower supply Overload 1 undervoltage I shor circuit protection, low voltage automatic shutdown, Support timer switch, delay shutdown function.
		Input voltage	DC:+8V ~ +36V
		output voltage	+12V@1A, +5V@1A
Working environment	Temperature	-20'C to +70"C
Working environment		Humidity	20% to 80%
Size	Machine	200mmx187mmx62mm

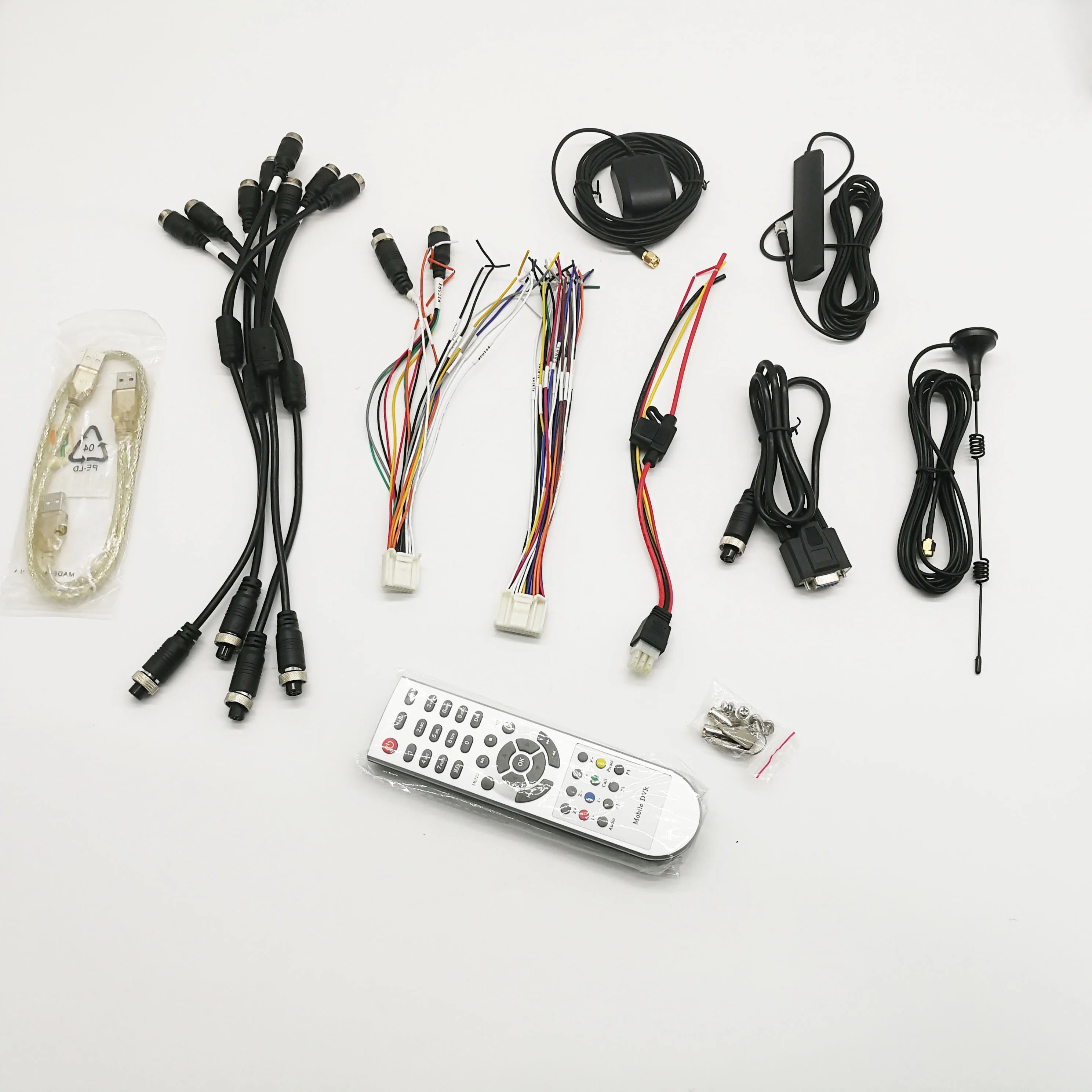

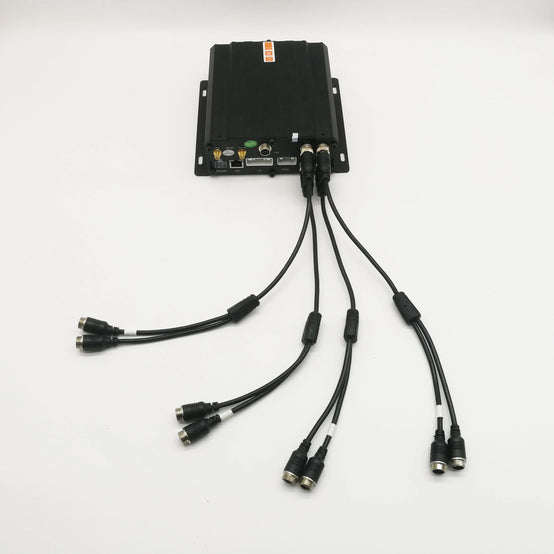

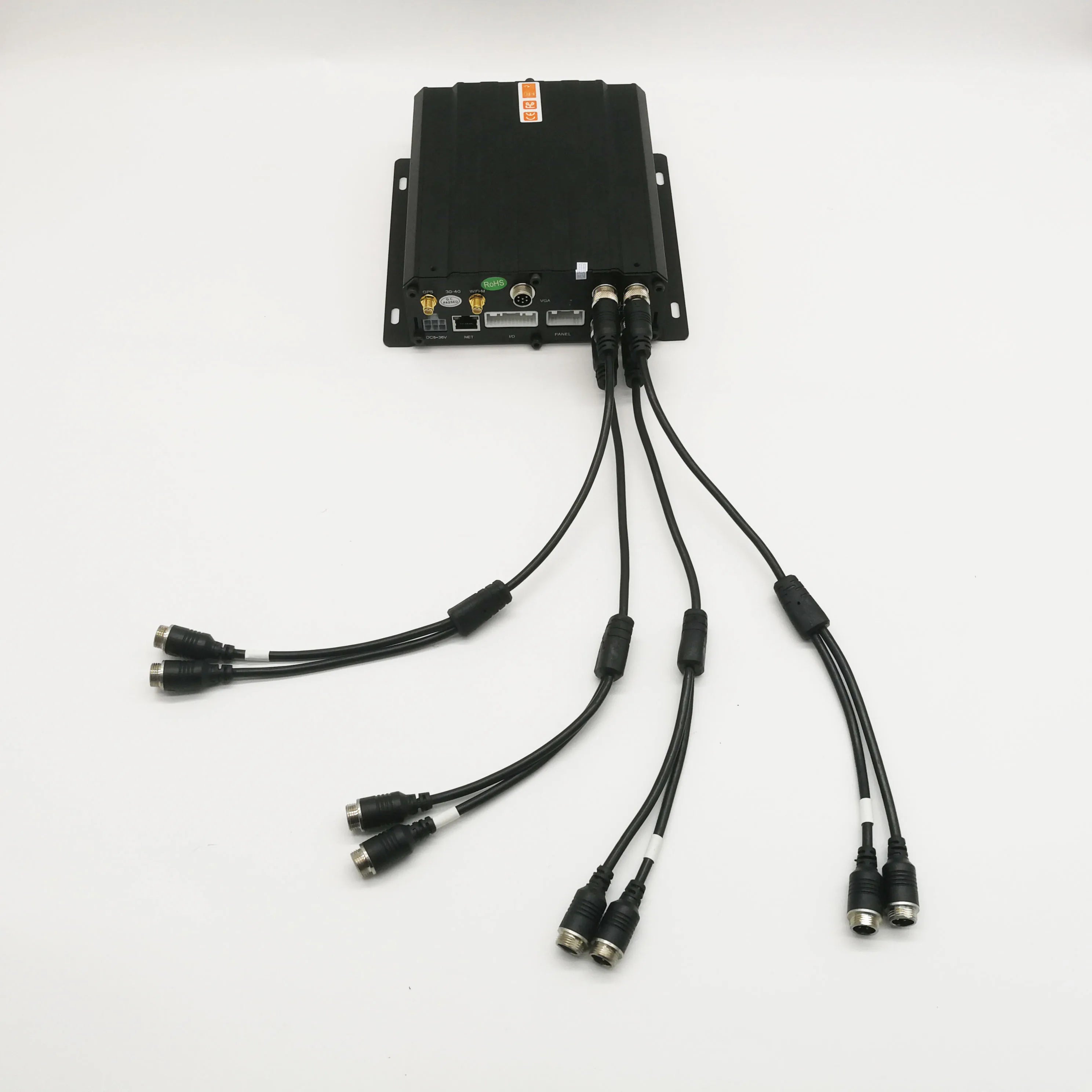

MDVR and accessories

8CH 1080P HD MDVR Precise positioning 4G / GPS hot spot hard drive car adas camera

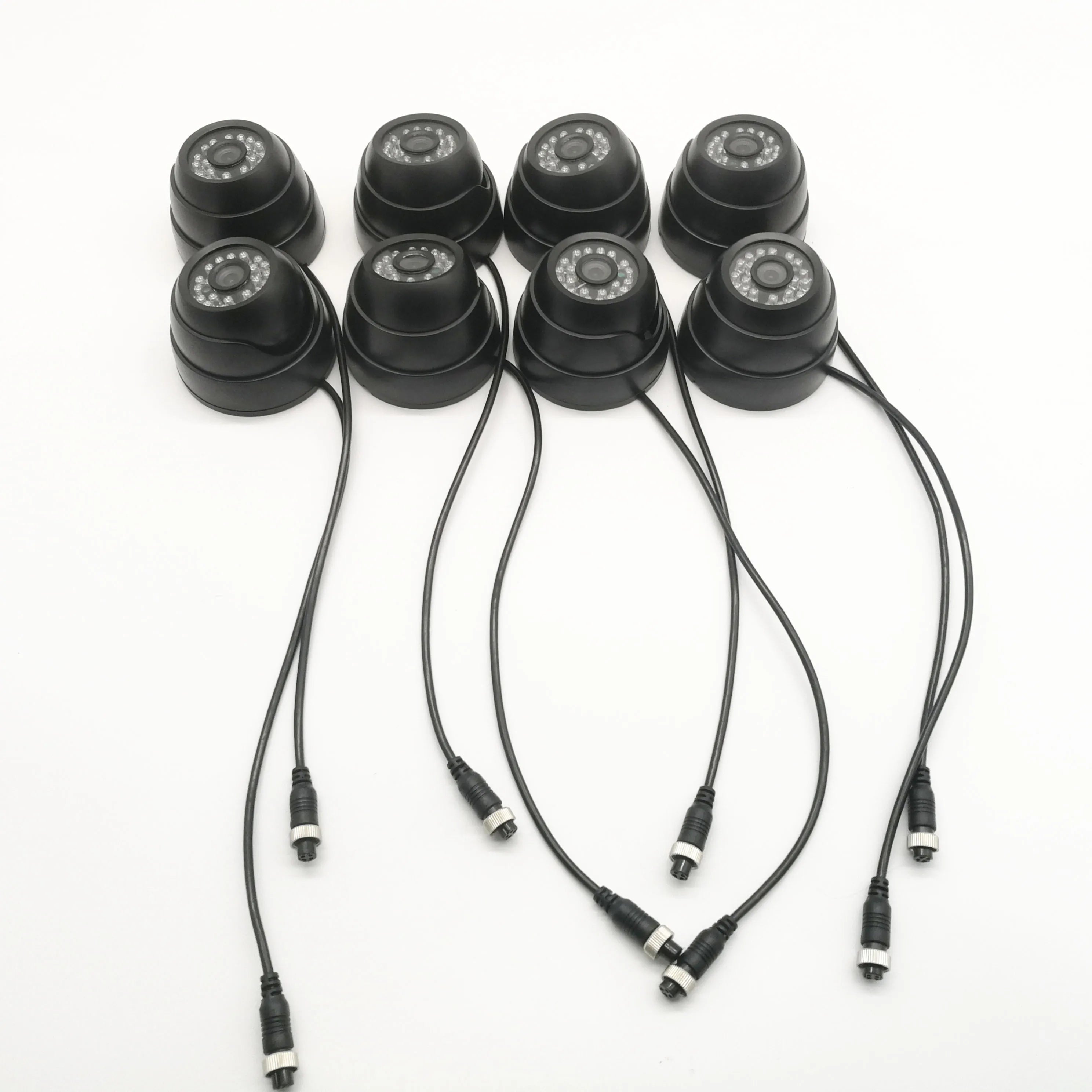

Cameras for mobile dvr(optional)

8CH 1080P HD MDVR Precise positioning 4G / GPS hot spot hard drive car adas camera
