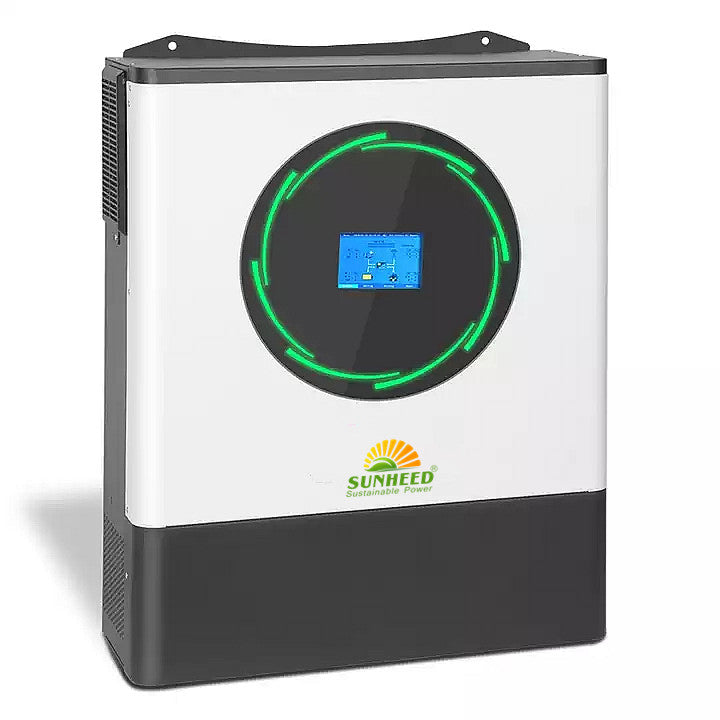

8KW Hybrid Solar Inverter with wifi and RGB Light Off grid MPPT Pure Sine Wave Inverter for Solar Home System

Write a review

Save -55% Rs. 252,426.91 ~~Rs. 561,283.08~~

Brand : Shanvis

Collection : Home&TechAcc

SKU : 182155013013089_91405757

Availability : 9999 In Stock Sold Out 9999 9999 9999

HURRY ! ONLY 9999 LEFT IN STOCK.

System Energy8000W

ApplicationOn-Grid Solar SystemOff-Grid Solar SystemHybrid Solar System

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Before order,Please Read Clearly!

Which solar power system is suitable for me?
Sunheed solar systems can be used in homes, offices, villas, hospitals, churches, etc.
Sunheed solar power is from 300w to 100MW,

you can choose according to your own needs.

if you don’t know which model system is suitable for you,

you can Send us an inquiry.
Our 10 years experience sale manager will help you configure the system in 12hrs.

How to chose the suitable solar system?

★1.Chose solar system base on Installation area;
★2.Chose solar system base on your electricity bill;
★3.Chose solar system base on your home appliance capacity;
★4.Chose solar system base on your money/budget.

Send an inquiry, we can design a set of solar customized system that suits you best.

Product Description

8KW Off-grid Hybrid Inverter 120A MPPT 48Vdc Prue Sine Wave WITH CE CB IEC LCD+LED Display Solar FOR Power System Home

Main Features

1. 120A MPPT solar charger inside, max pv input 8kw+ (2/18A )

2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 6 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and off grid solar inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc),
support no battery working during the day time.

10.Smart battery management, reserved communication port for BMS

About the details and price ,feel free to contact with Customer service staff.Click Here.

Model No.	SUNPOLO 8KW
Basical information
Max. PV Input Power	8000W
Rated AC Output Power	8000W
Grid-Tie Operation
PV Input (DC)
Max DC Voltage	450VDC
Start-up Voltage/Initial Feeding Voltage	120VDC
MPPT Voltage Range	120-450VDC
No. of MPPT Tracker/Max. Input Current	2/18A(4000W*2)
Grid Output (AC)
Nominal Output Volt	230VAC/230VAC/240VAC, Single Phase (dual AC output)
Output Voltage Range	184V-265Vac or 195-253V (Selectable)
Nominal Output Current	34.8A
Power Factor	>0.9
Efficiency
Max. Conversion Efficiency (DC/AC)	96%
Off-Grid Operation
AC Input (AC)
AC Start-up Voltage/Auto Restart Volt.	120Vac-140Vac/180Vac
Acceptable Input Voltage Range	90-280Vac or 170-280Vac
Max. AC Input Current	63A
Battery Mode Output
Nominal Output Volt	220Vac/230Vac/240Vac (dual AC output)
DC output	1pc*12Vdc/10A Max
Waveform	Pure sine wave
Efficiency(DC to AC)	93%
Battery Mode Output
Nominal Output Volt	220Vac/230Vac/240Vac (dual AC output)
Waveform	Pure sine wave
Efficiency(DC to AC)	93%
Battery & Charger
Battery Type Supported	Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4
Nominal Battery Voltage	48Vdc
Max Solar Charge Current	120A
Max AC Charge Current	120A
Max Total Charge Current	120A
General
Physical
Products Dimension,D X W X H (mm)	552422152
Product Net Weight(kgs)	18.4
Packing Dimension,D X W X H (mm)	700mm510mm*240mm,1PC/CTN
Gross Weight(kgs)	21
Parallel functions Optional	Yes, optional, max 6pcs
Communication Interface	RS232,USB,RS485,WIFI
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10℃ to 50℃
Storage Temperature	-15℃ to 60℃
*Product specifications are subject to change without further notice

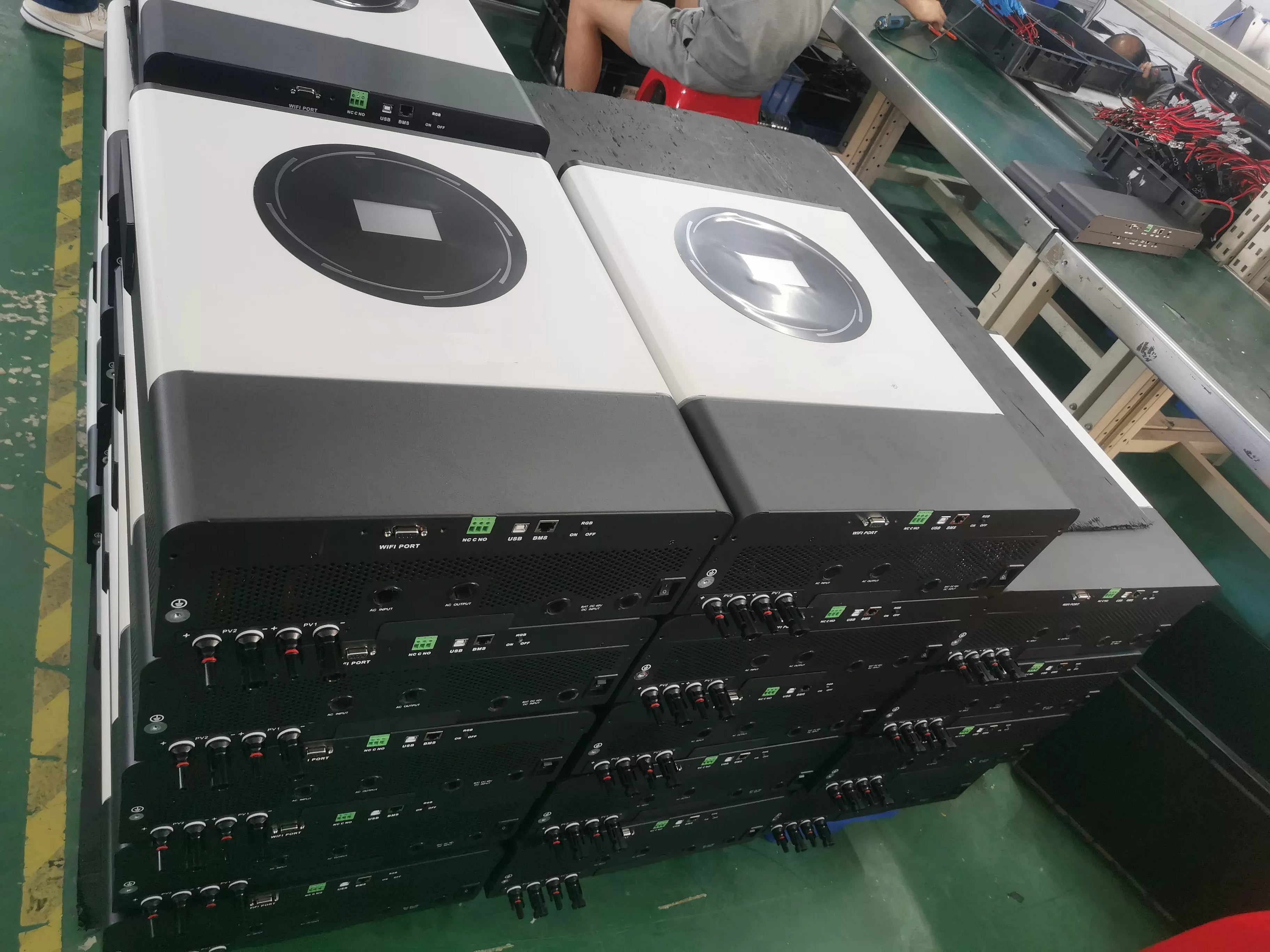

Production & QC

1.3IN1

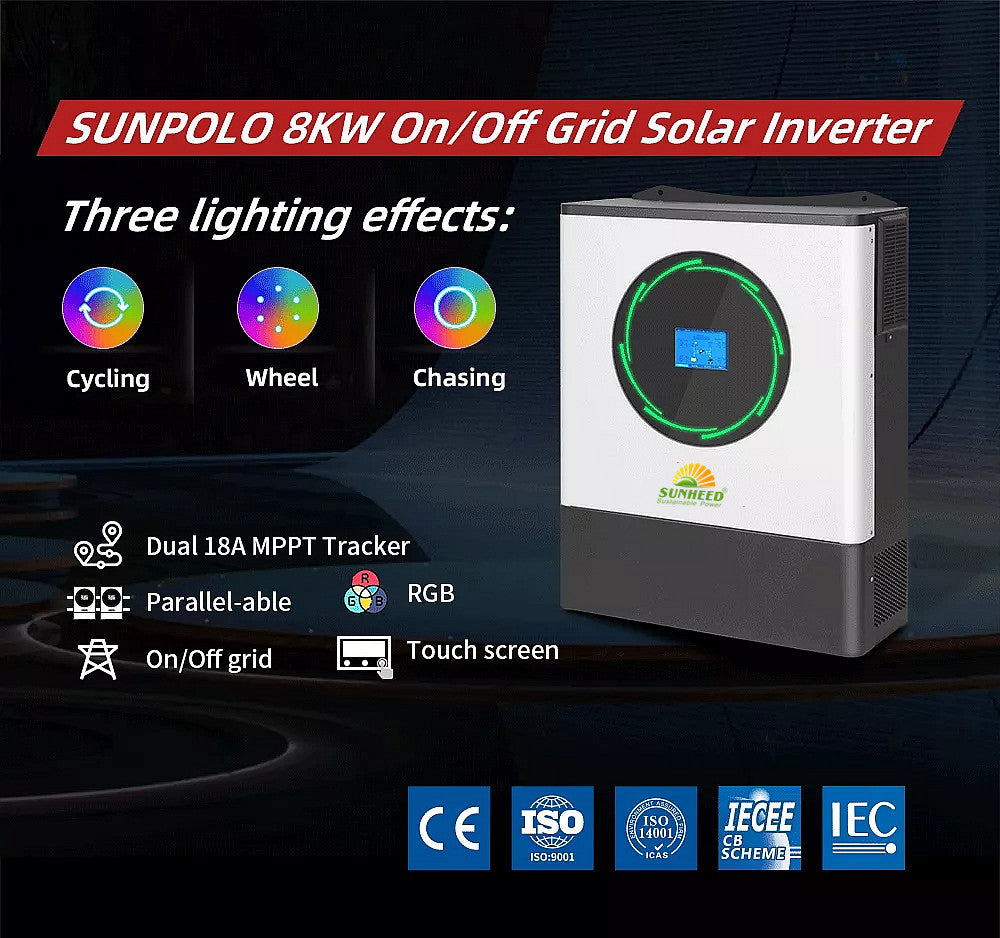

MPPT INVERTER, ON GRID/OFF GRID/HYBRID.

Communication optional: USB/RS232/RS485/Dry-Contact/WIFI

2.Dual MPPT

Dual MPPT tracker inside (2pcs*18A), max PV input 8000W

Real hybrid can feed-in to grid Works with & without battery

Parallel up to 6pcs optional

Smart battery management, reserved communication port for BMS

3. Bigger size LCD Display

*MFD（multi- founction display ）setting

*AC+Solar charging biggest current 50A

*Display PV information

4. International Certification Examining

Authoritative certification companies conduct rigorous testing to ensure that product quality meets first-class international
certification.

Please according to your demands to choose and DIY your own power supply system
