ATNJ New dual band mini smart 900/1800MHz mobile booster 2G+4G cellular signal repeater amplifier

Write a review

Save -51% Rs. 34,990.79 ~~Rs. 71,188.15~~

Brand : Shanvis

Collection : Mobiles & Accessories

SKU : 6087932013089_96027533

Availability : 999 In Stock Sold Out 999

HURRY ! ONLY 999 LEFT IN STOCK.

Specification520*240*160mm

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Product Description

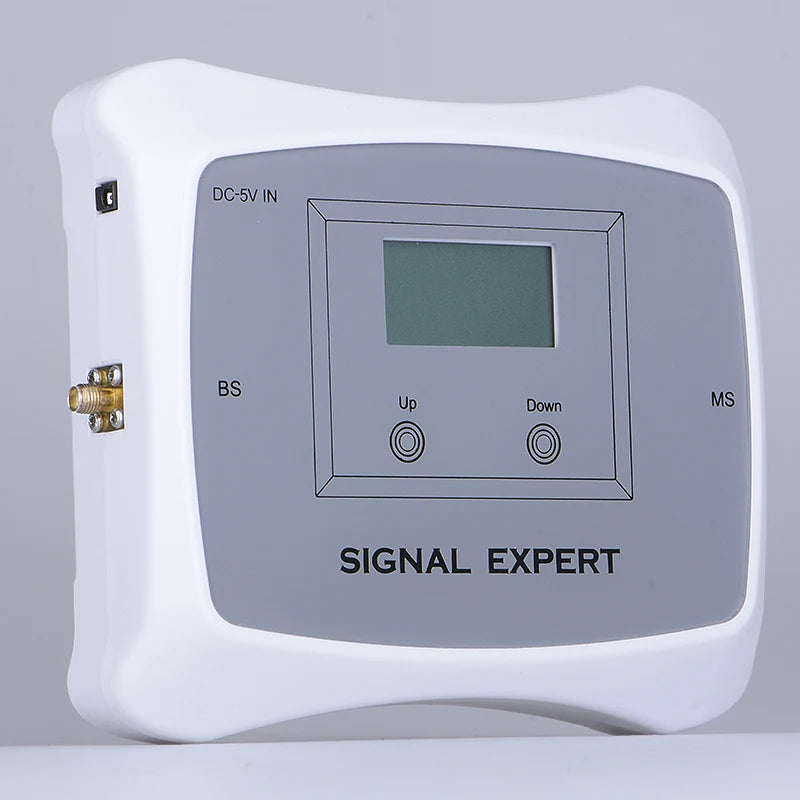

ATNJ Dual band 900/1800MHz mobile signal repeater

ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data
communication, aiming to provide a more cost-effective solution for signal. Our repeater is easy to install and maintain,
which could help customer get fast solution.

Selling Point

①Intelligent to guide the installation with LCD .②Real time display the signal strength .
Automatic dormancy when no user make the calling .③Automatic alarm when installation mistake and provide the according solution .
④Automatic adjust the system gain to avoid the repeater self-excitation .
⑤Initiative reminding when the device was damaged .
⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .Supports 5G bandwidth,40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

SPECIFICATIONS			PARAMETERS
Frequency Range			GSM 900	890-915MHz/935-960MHz
				LTE 1800	1710-1785MHz/1805-1880MHz
Band Width			GSM 900	25MHz
				LTE 1800	75MHz
Gain			67±3
Automatic Gain Control			31dB
MGC (Step Attenuation)			31dB@ 1dB/Step
Output Power			17±2dBm
Spurious Emission	9 kHz -150 kHz/1kHz	≤-36dBm @1kHz
		150 kHz - 30 MHz/10kHz	≤-36dBm@10kHz
		30 MHz - 1 GHz/100kHz	≤-36dBm@100kHz
		1 GHz- 12.75 GHz/1MHz	≤-30dBm@1kHz
ACPR			Uplink Fully comply with 3GPP 36.106
				Downlink Fully comply with 3GPP 36.106
Unwanted emissions			Fully comply with 3GPP 36.106
VSWR			≤2
Ripple	GSM 900	≤5dB
		LTE 1800	≤5dB
Noise Figure			≤9dB
Delay			≤3μs
I/O Impedance			50Q
RF Connector(Customers to Choose)			SMA-Type (Female)
Operating Temperature			-25°~+55°
Power Supply			DC 5V2A
Power consumption			≤15W
Environment Conditions			IP43
Humidity			≤90%
Weight			0.5kg
Size			205×170×38mm

Product Usage

- How It Works

Wireless network signal travels through the air in the form of waves. The outdoor antenna is designed to receive the good signal
from the outdoor and transmit it to the indoor booster. The booster amplifies the signal based on its frequency and emits the
amplified signal through the indoor antenna making it available for use.
