BOYEE Automatic Label Dispenser X-130 Manual Sticker dispenser Semi-Automatic Label Stripping Machine Label peeling
Share
Performance characteristics:
1. Low failure rate, easy to use, small size and easy to put on hold.
2, electronic control system, fully automatic stripping, flat label, no wrinkles.
3, the operation is simple, one machine for more than one person.

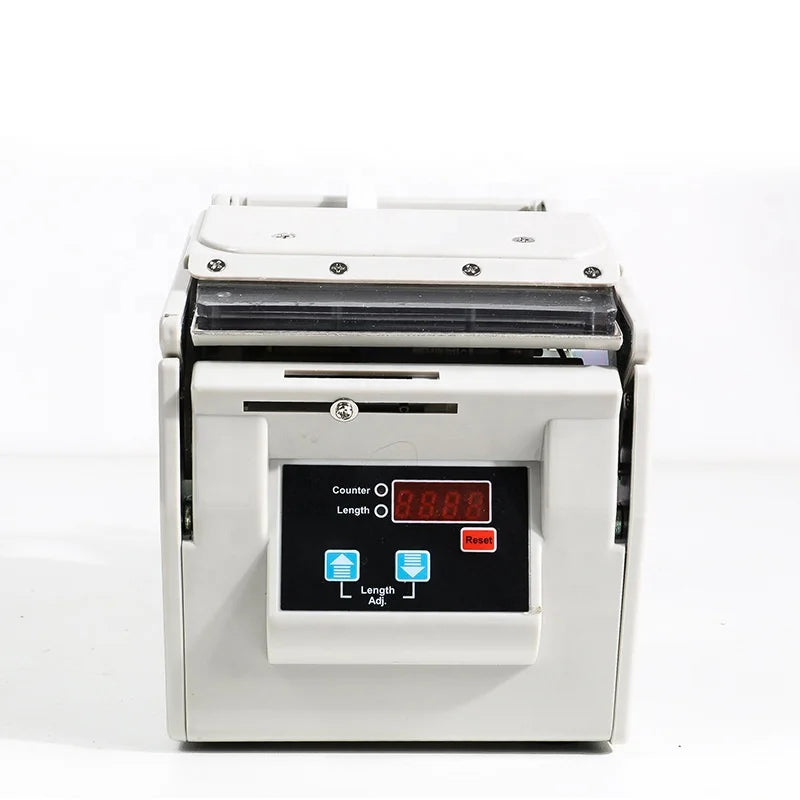

4, automatic counting 0-999999, convenient production management automation.
5, label type: self-adhesive label, barcode, anti-counterfeiting, laser, package label, etc.
6. Applicable industries: electronic manufacturing industry, chemical pharmaceutical industry, food processing industry, logistics and distribution industry.
Instructions:

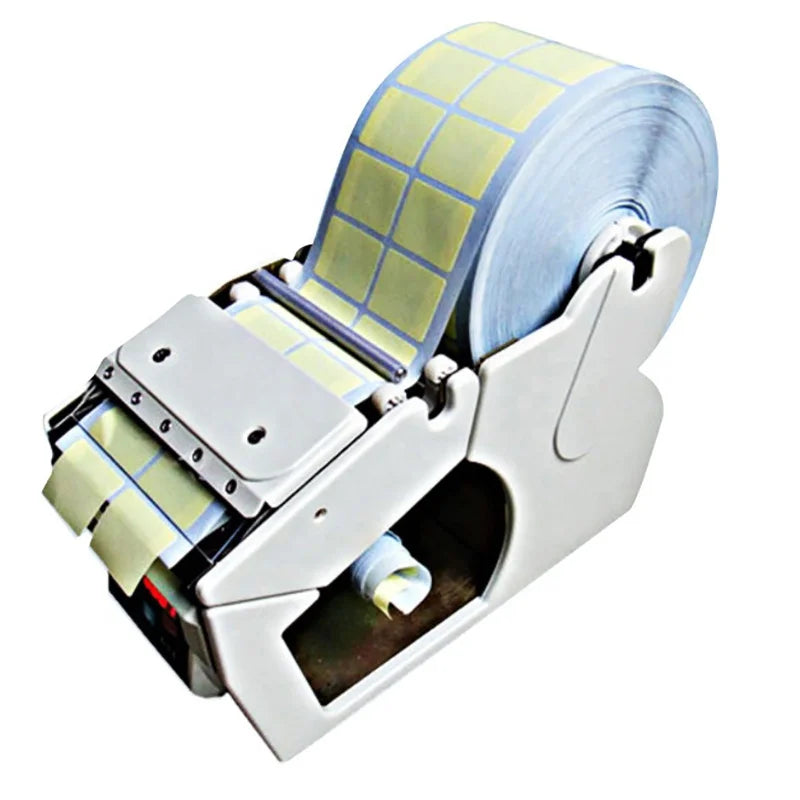

1. Hang the label roll. Hang the label roll on the label hanging plate and fix it with the positioning plate.
2. Clamp the guide. Clamp the label paper between the middle rods of the paper guide, in a U shape, and adjust the guide according to the width of the label.

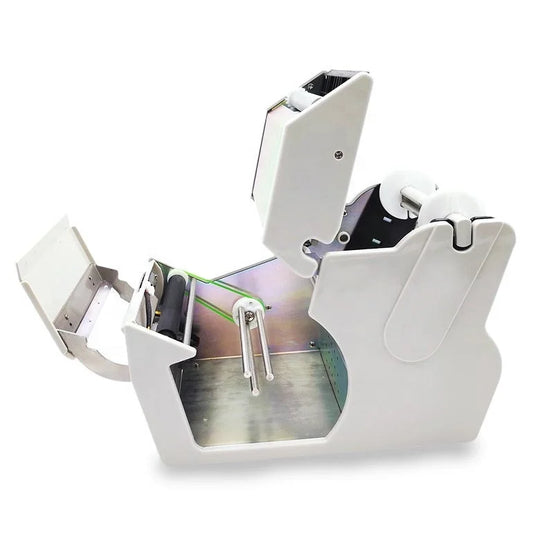

3. Hang the label paper to the reel. Open the upper unit and hang the label in the 3 struts of the reel.
4. Cover the interlocking lever. Press the interlock lever until the sound of the lock is released.

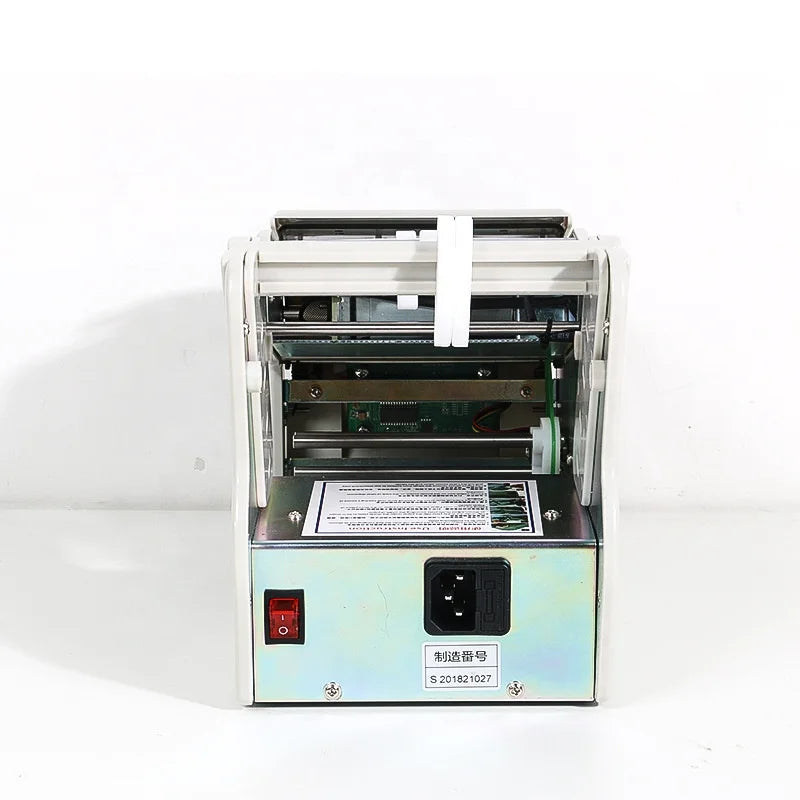

5. Power switch. Turn on the power switch on the right rear.
6. When using. Please peel off from the bottom when removing the label.
Automatic label stripping machine product parameters:
| model: | specification:(W×H×L) | speed: | Label width: | The maximum diameter: | power supply: | weight: |
| X-180 | 216×174×280mm | 130mm/Sec | 5-180mm | 250mm | 110/220V 50/60Hz | 6.1kg |
| X-130 | 166×174×280mm | 130mm/Sec | 5-130mm | 250mm | 110/220V 50/60Hz | 4.1kg |

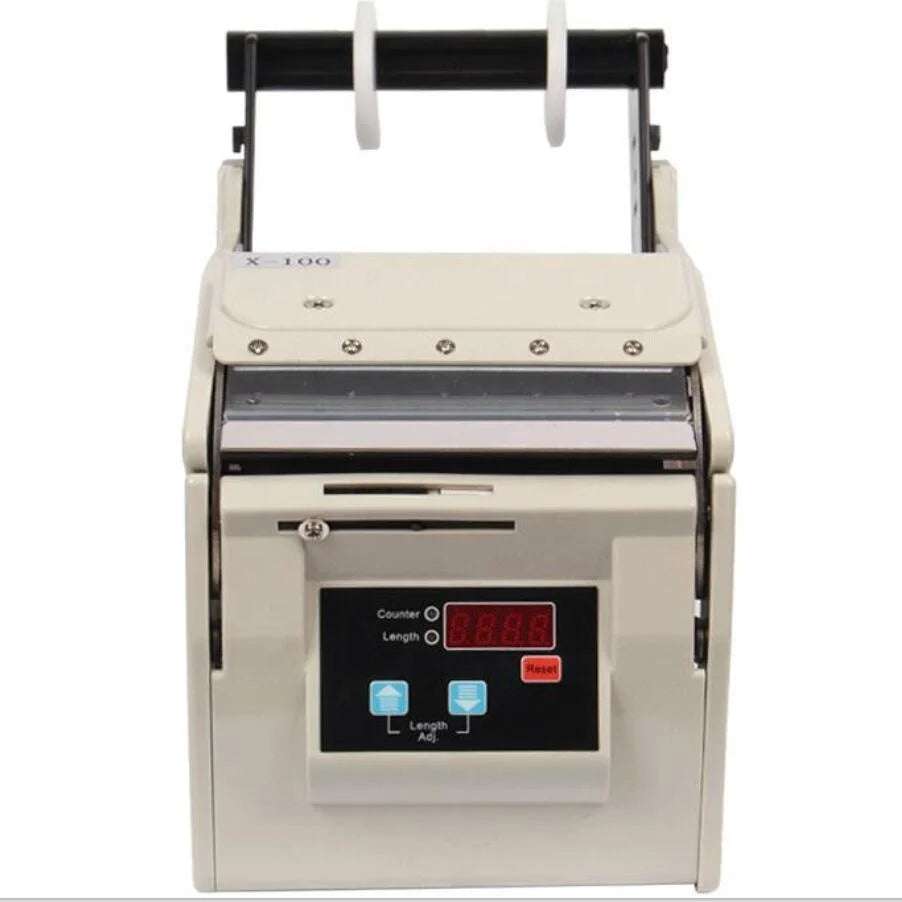

| X-100 | 136×174×280mm | 130mm/Sec | 5-100mm | 250mm | 110/220V 50/60Hz | 3.6kg |
Automatic label stripping machine usage:
1. Hang the label paper roll. As shown in the figure, the label reel is hung on the label hanging plate and fixed by the positioning plate.
2. Clamp the guide. Clamp the label paper between the middle rods of the paper guide. As shown in the figure, adjust the guide according to the width of the label.
3. Hang the label paper on the reel. Open the upper unit and hang the label as shown in the three struts of the reel.
4. Cover the interlocking lever. Press the interlock lever until the sound of the lock is released.
5, the power switch. Turn on the power switch on the right rear of the automatic label peeler.
6, use the map. When peeling off the label, peel it off from the bottom up.
Remarks: If you pull the label, the label bottom paper will block the sensor, please pay more attention.
Part name:
1.Roll hanging rod
2. Roll hanging board
3. Positioning
4. Guide plate
5. Paper press plat
6. Interlock lever
7. Upper device
8. Handle plate
9. Label sensor
10. Roll paper
