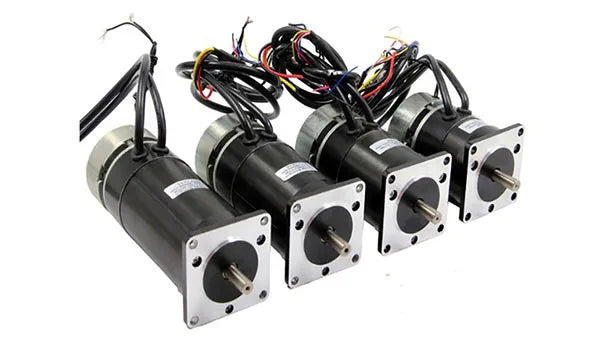

brushless dc motor with brake 24v 100w 3000rpm bldc motor engine
Share

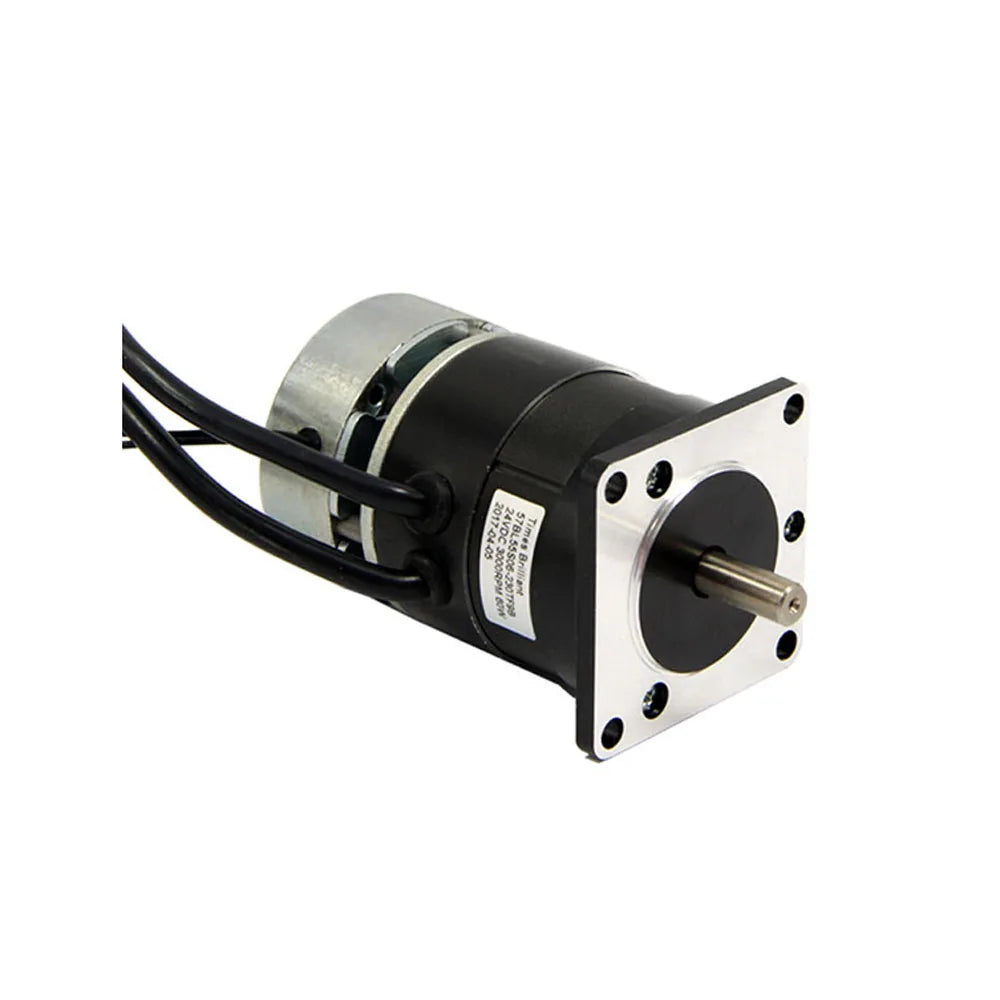

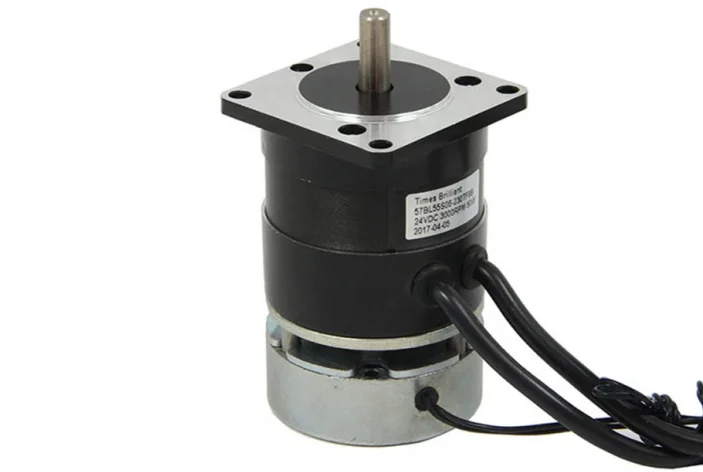

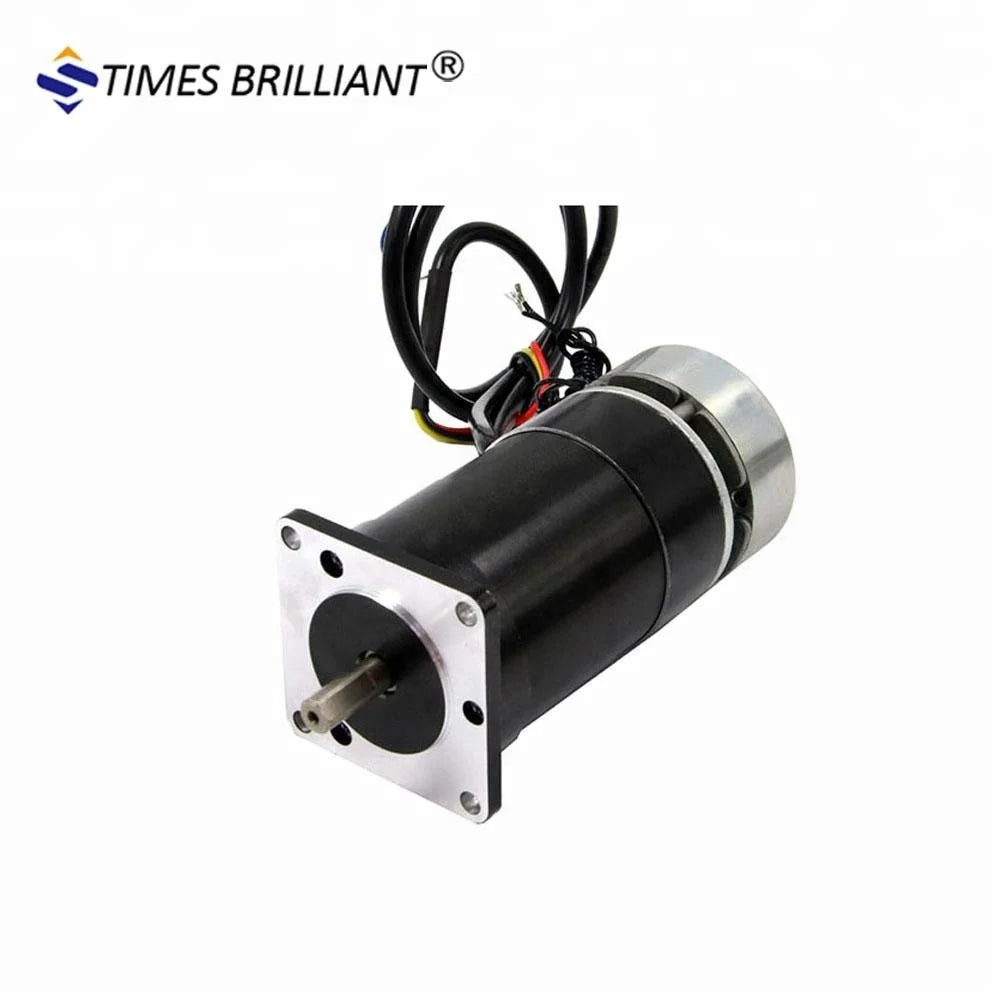

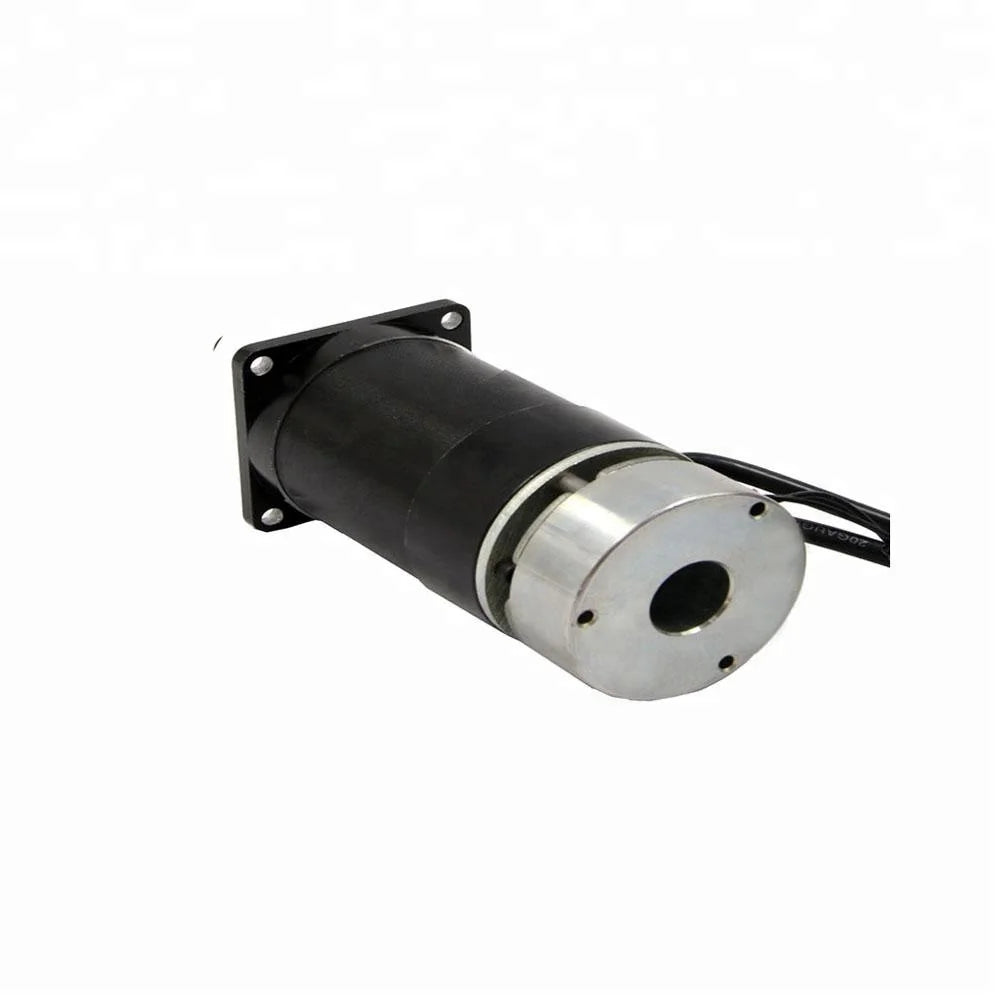

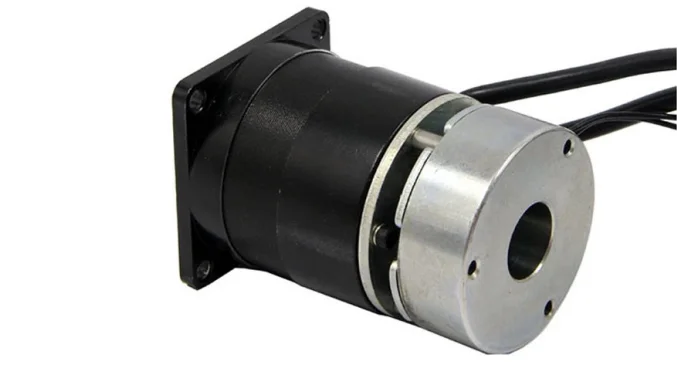

braked 24V 100W 3000rpm Brushless electric dc motor
| Model | Voltage
V |
Rated Power W |
Rated Torque N.M |
Rated Speed rpm |
No Load Speed rmp |
Rated Current A |
No Load Current A |
Poles |
| 57BL55S02-212 | 24 | 22 | 0.175 | 1200 | 2000 | 1.4 | 0.2 | 4 |
| 57BL55S06-230 | 24 | 60 | 0.18 | 3000 | 4800 | 3.3 | 0.3 | 2 |
| 57BL75S10-225 | 24 | 100 | 0.38 | 2500 | 3500 | 5.9 | 0.8 | 4 |

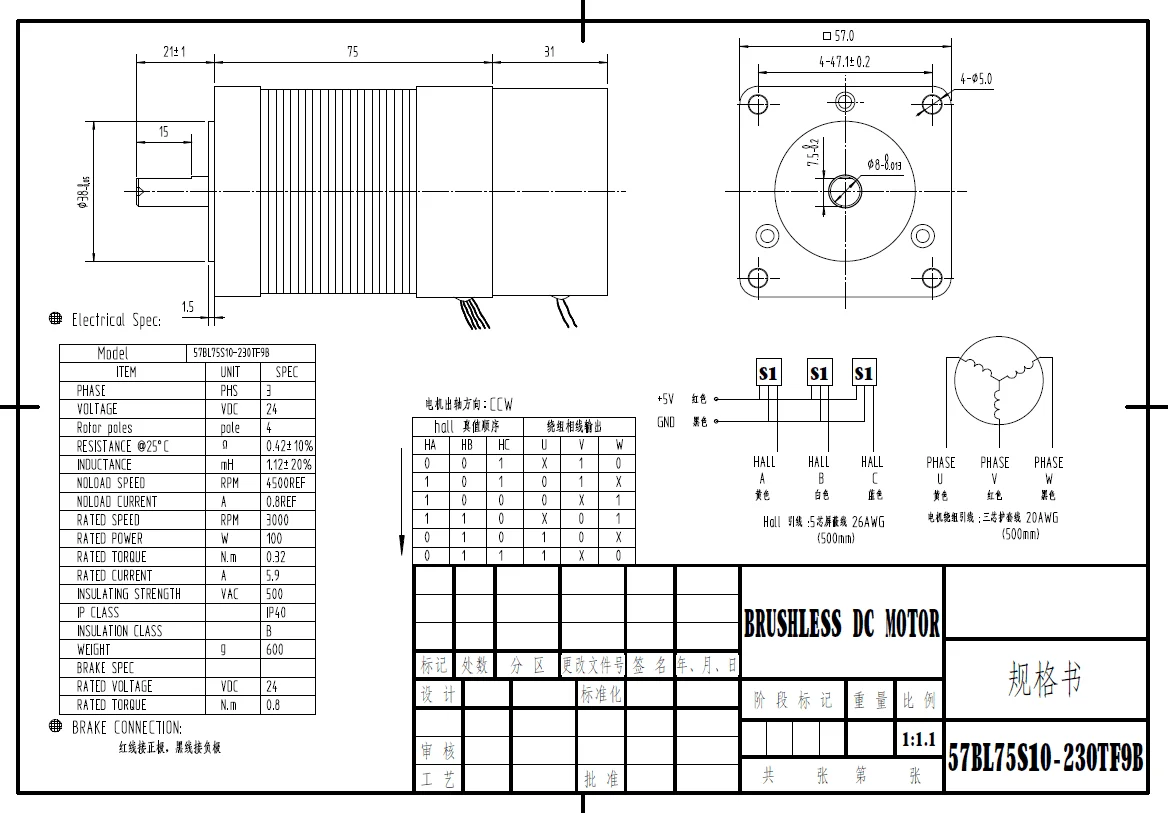

| 57BL75S10-230TF9B | 24 | 100 | 0.32 | 3000 | 4500 | 5.9 | 0.8 | 2 |
| 57BL95S06-210 | 24 | 60 | 0.6 | 1000 | 2000 | 3.6 | 0.4 | 4 |
| 57BL95S15-230 | 24 | 150 | 0.5 | 3000 | 4500 | 8.7 | 0.8 | 2 |
| 57BL95S15-230 | 24 | 150 | 0.5 | 3000 | 4500 | 8.7 | 0.8 | 2 |
| 57BL115S18-230 | 24 | 180 | 0.57 | 3000 | 4500 | 10.7 | 1.1 | 2 |
| 57BL115S21-230 | 24 | 210 | 0.7 | 3000 | 5000 | 13 | 1.3 | 4 |
| 57BL75S10-336 | 24 | 100 | 0.265 | 3600 | 4600 | 3.8 | 0.4 | 2 |
| 57BL95S15-336 | 24 | 150 | 0.4 | 3600 | 4700 | 5.7 | 0.5 | 2 |
| 57BL115S30-3150 | 310 | 300 | 0.57 | 5000 | 6200 | 1.3 | 0.2 | 2 |
Wiring:
| Motor Phase Line (Thick) | Hall (Thin) | Hall Power (Thin) | |||||
| W | V | U | Hw | Hv | Hu | H+ | H- |
| Blue | Green | Yellow | Blue | Green | Yellow | Red | Black |
| Black | Red | Yellow | Blue | Write | Yellow | Red | Black |
Suit ZM-6405E, ZM-6716-V3, ZM-6508, ZM-6615
2.Turn SW2 to OFF (Put Up) ,Turn SW1 to ON (Put Down).
3.turn RJ1 right to max.
4.Control motor speed by adjust RJ2 after put on power (Turn left to low speed, turn right to fast speed).
Your inquiry will get more information!!
