Product Description

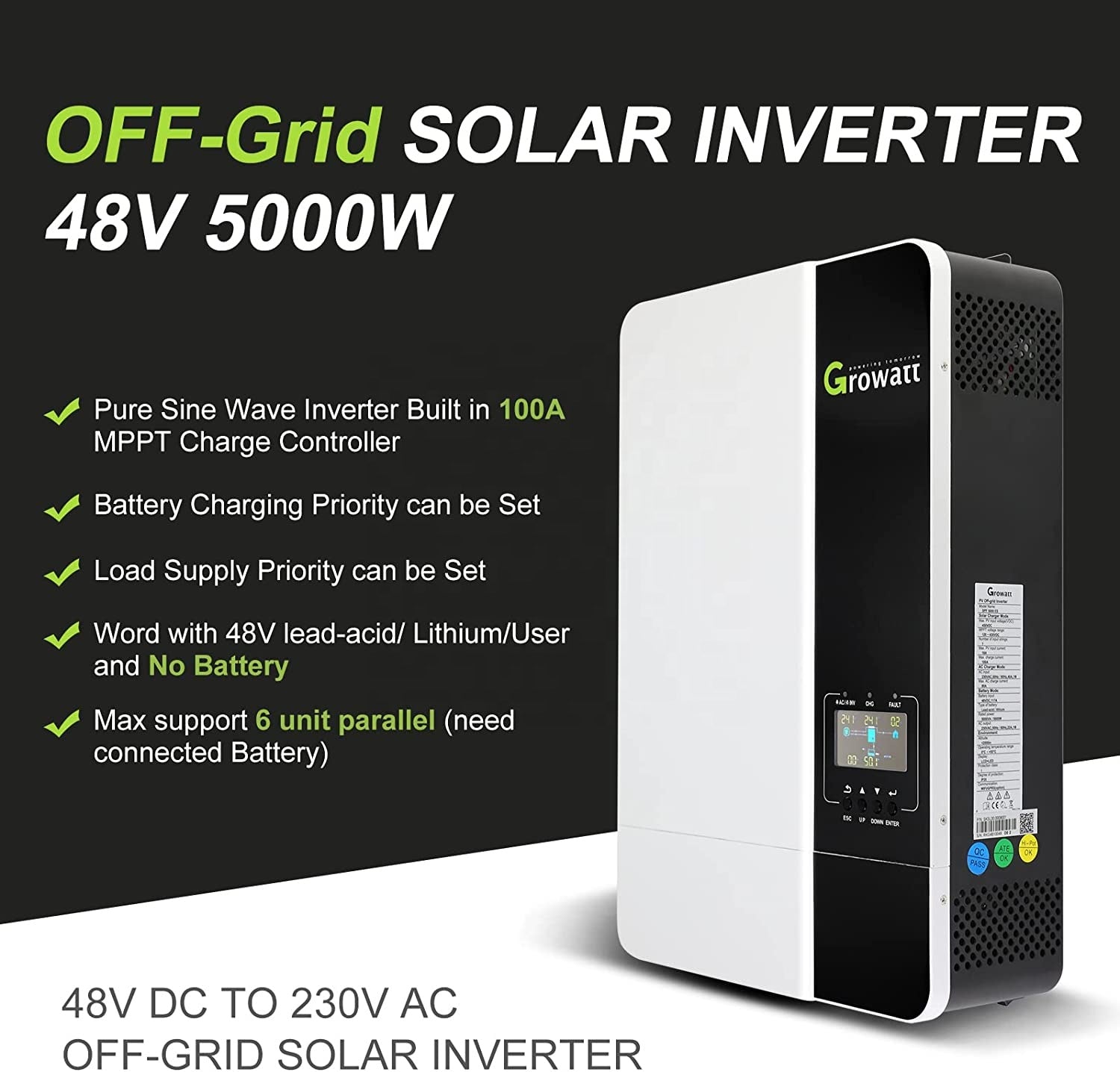

This is a multifunctional 230V off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with 48V battery or without batteries.
Can be accessed to a variety of household appliances and office loads, power tools, industrial equipment, and electronic audio and video equipment, including refrigerators, lamps, televisions, fans, air conditioning and other AC loads.
Important Note:
This is a wide voltage inverter, The voltage that starts to connect to the solar panel must be above 150V for the
inverter to work normally. Means you can connect solar panels in series, saving you the cost of buying wires.

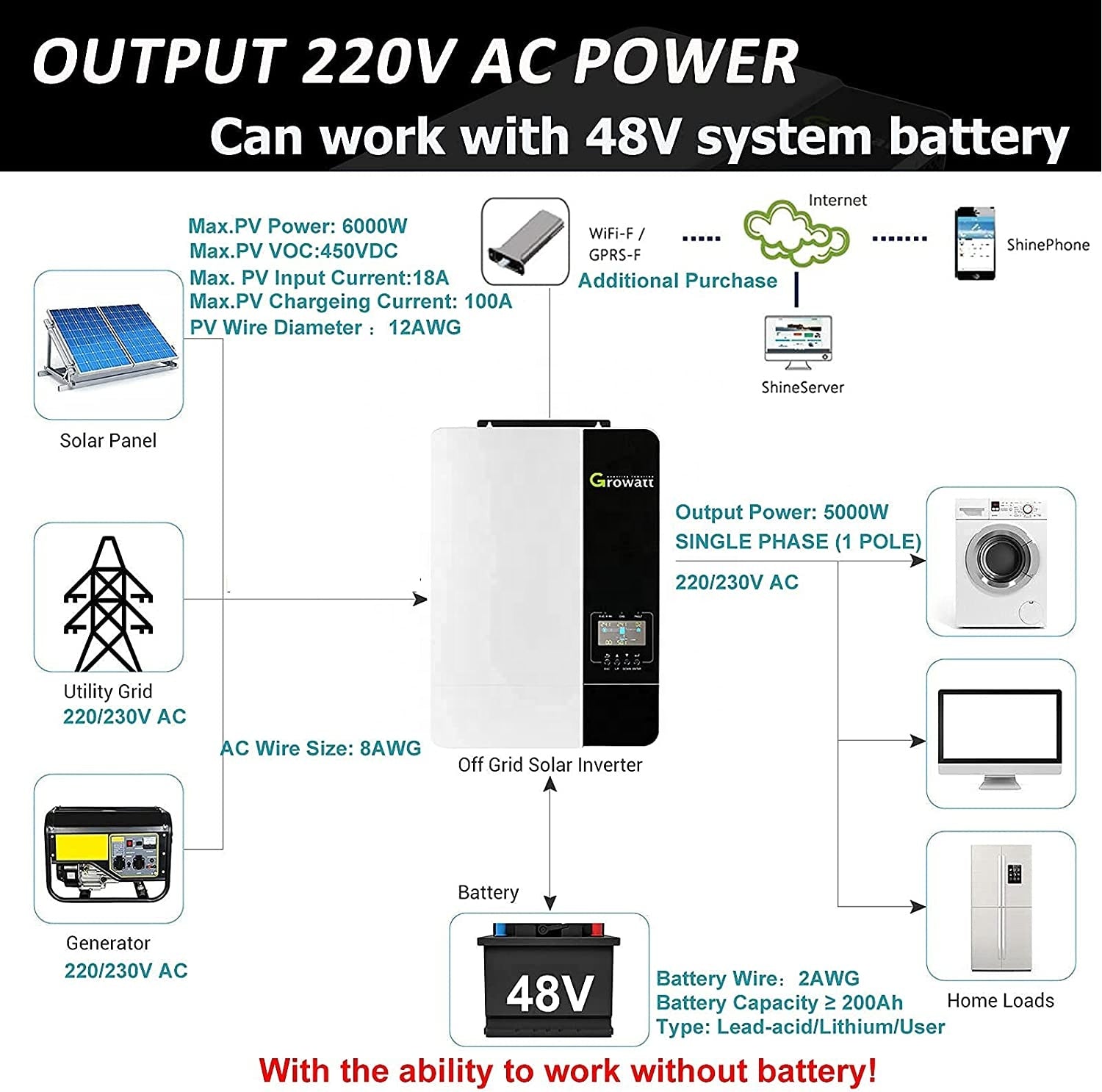

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid.
1. Rated power 5KW, powe factor 1 MPPT ranges 120V~430V, 450Voc
2. High frequency inverter with small size and light weight Pure sine wave AC output
3. Battery charging mode and load working mode can be set
4. Adjustable inverter charging and output time
5. Solar and utility grid can power loads at the same time With CAN/RS485 for BMS communication
6. With the ability to work without battery

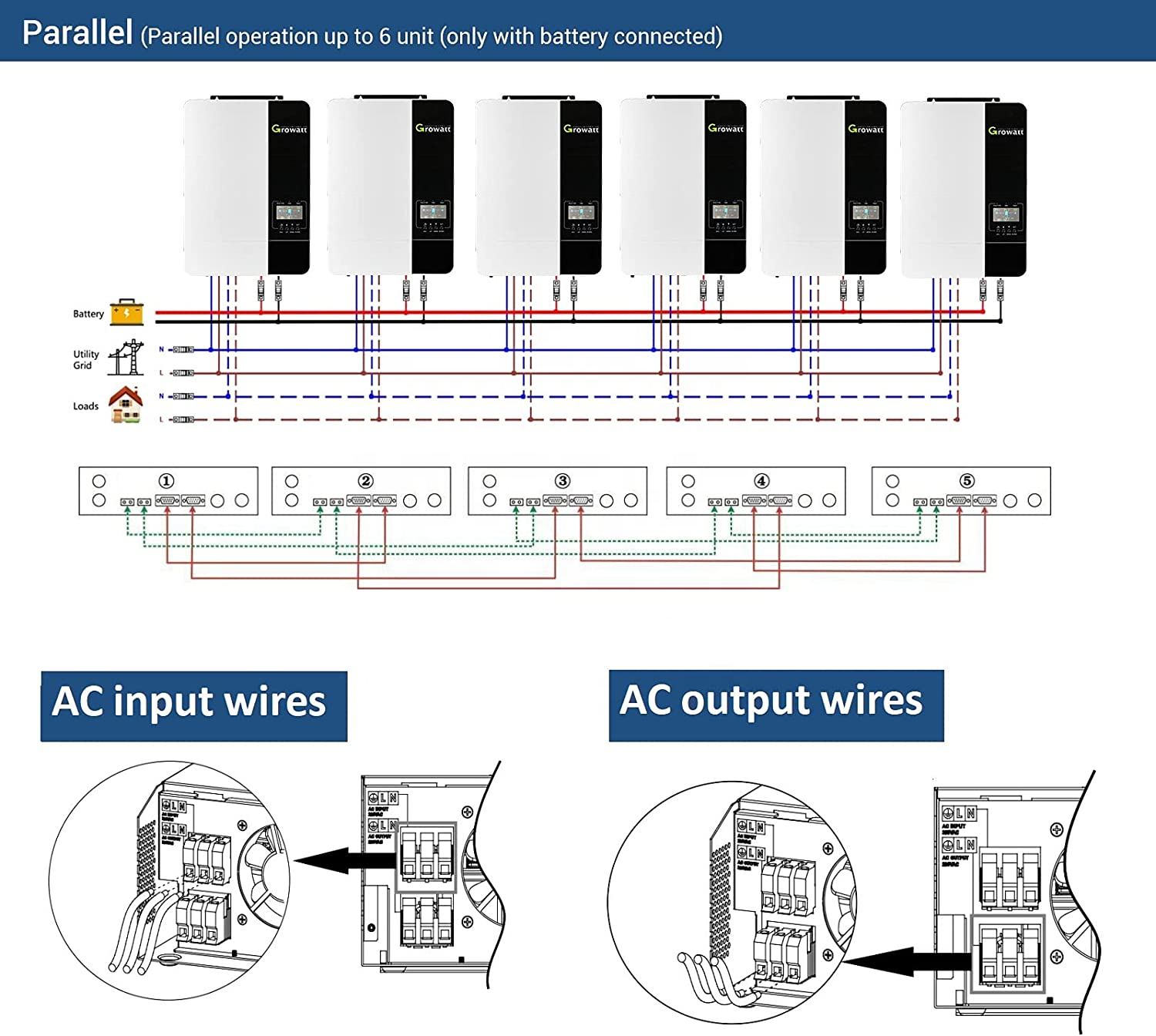

7. Parallel operation up to 6 unit (only with battery connected)
8. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can
monitor the status of the PV system from the mobile phone or from the website anytime anywhere.(optional, Additional purchase required )
Can be accessed to a variety of household appliances and office loads, power tools, industrial equipment, and electronic audio and video equipment, including refrigerators, lamps, televisions, fans, air conditioning and other AC loads.
Important Note:
This is a wide voltage inverter, The voltage that starts to connect to the solar panel must be above 150V for the
inverter to work normally. Means you can connect solar panels in series, saving you the cost of buying wires.
The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid.
1. Rated power 5KW, powe factor 1 MPPT ranges 120V~430V, 450Voc
2. High frequency inverter with small size and light weight Pure sine wave AC output
3. Battery charging mode and load working mode can be set
4. Adjustable inverter charging and output time
5. Solar and utility grid can power loads at the same time With CAN/RS485 for BMS communication
6. With the ability to work without battery
7. Parallel operation up to 6 unit (only with battery connected)
8. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can
monitor the status of the PV system from the mobile phone or from the website anytime anywhere.(optional, Additional purchase required )
Product Features
-【5000W Pure Sine Wave Inverter DC 48V to 220V AC】Single phase/A Hot Leg, built in 100A Mppt Solar Controlle. It is a new
All-in-on Solar Inverter, Max.PV Power：6000W, Max.PV Input Current: 18A, Max.PV Input VOC: 450V DC, PV Wire:10-12AWG, Max PV Charging Current: 100A (mppt controller to battery)
All-in-on Solar Inverter, Max.PV Power：6000W, Max.PV Input Current: 18A, Max.PV Input VOC: 450V DC, PV Wire:10-12AWG, Max PV Charging Current: 100A (mppt controller to battery)
-
【5000W solar inverter supports parallel】
operation for a capacity extension of up to 30 kW. Supports up to 6 units in parallel, supports 3-phase devices. (Battery connection required)
-【5000W solar inverter charger suitable for 48V batteries】Lead acid, lithium, use with battery and without battery. Solar inverter with three selectable charging modes, solar time/solar and utility/only solar; and four output modes, solar time/utility period/SBU
priority/SUB priority, to adapt to different applications
priority/SUB priority, to adapt to different applications
|
SPF5000ES
|
||
|
Battery voltage
|
48VDC
|
|
|
INVERTER OUTPUT
|
||
|
RATED POWER
|
5000VA/ 5000W
|
|
|
Parallel Capability
|
Yes, 6 units
|
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
10000VA
|
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10 ms (For Personal Computers); 20 ms (For Home Appliances)
|
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
5500W
|
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 430VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
|
Maximum Solar Charge Current
|
100A
|
|
|
Maximum Efficiency
|
97%
|
|
|
AC CHARGER
|
||
|
Charge Current
|
80A
|
|
|
AC Input Voltage
|
230 VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances) |
|
|
PHYSICAL
|
||
|
Dimension (D/W/H) in mm
|
485/330/135
|
|
|
Net Weight (kgs)
|
12
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
-15°C - 60°C
|
|
