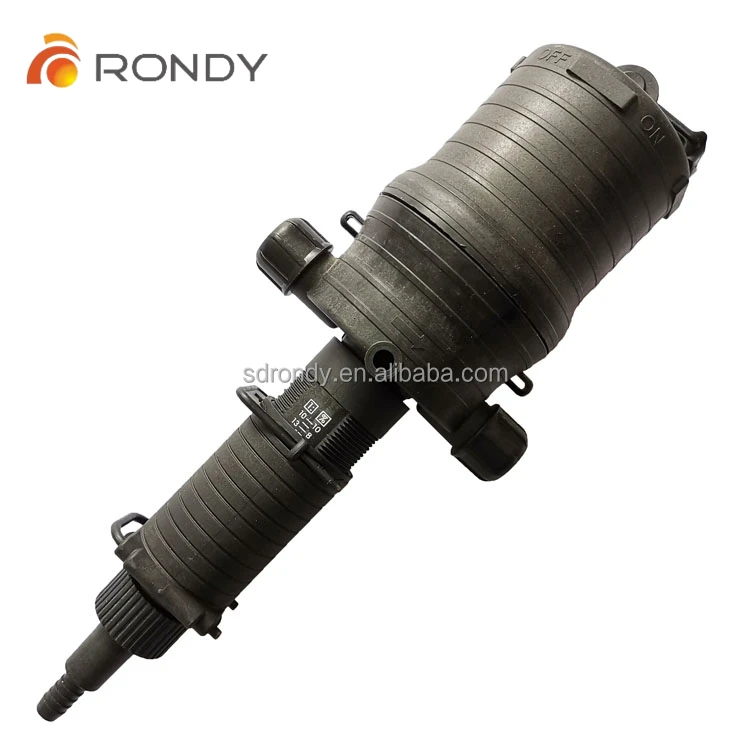

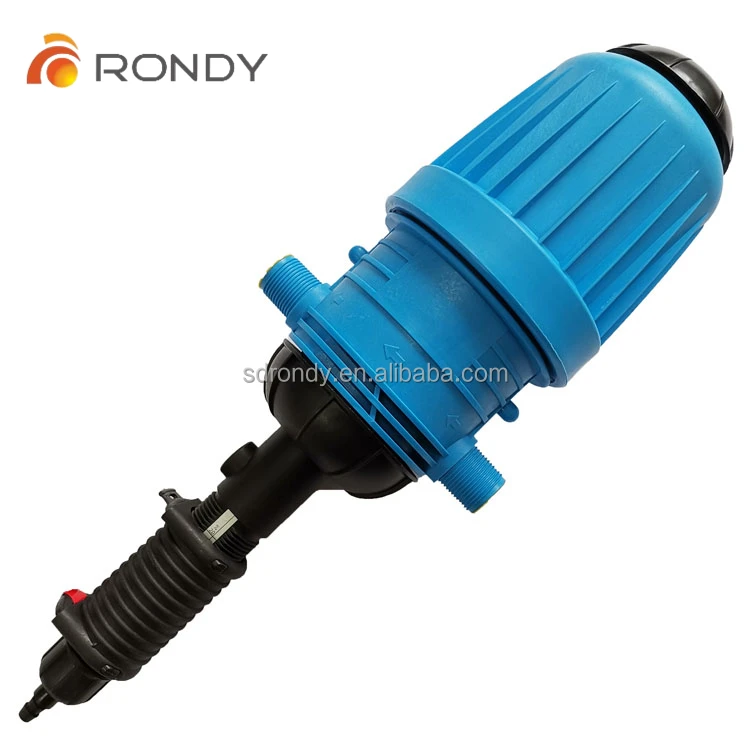

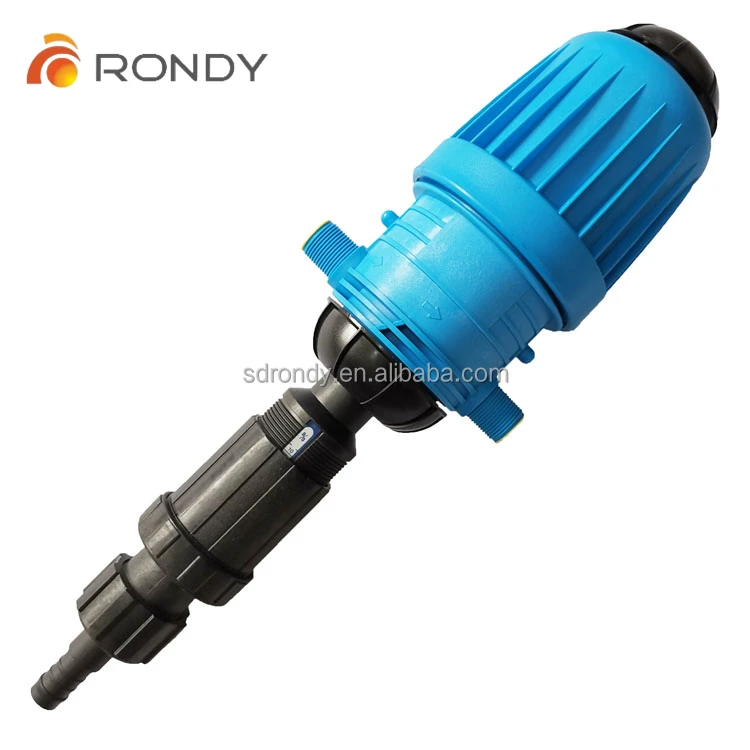

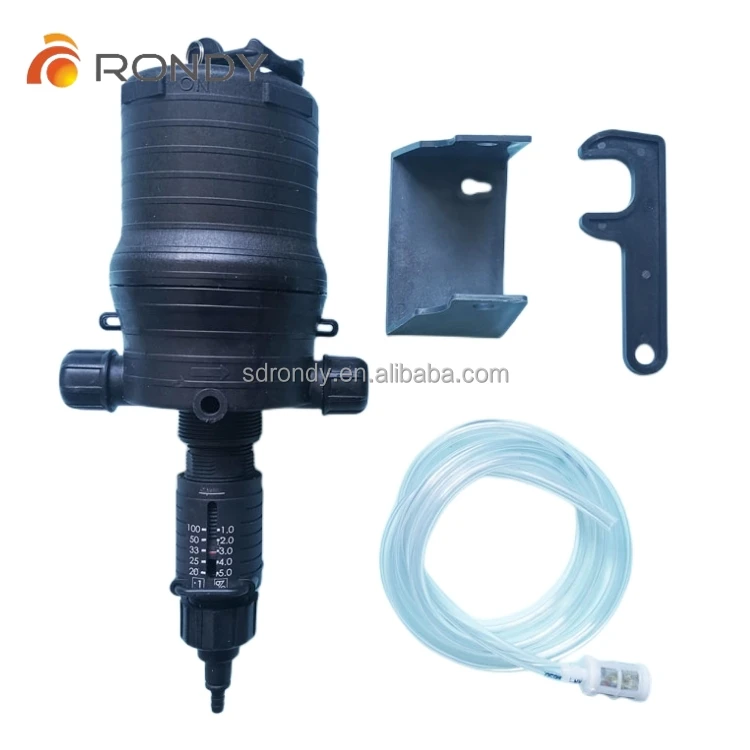

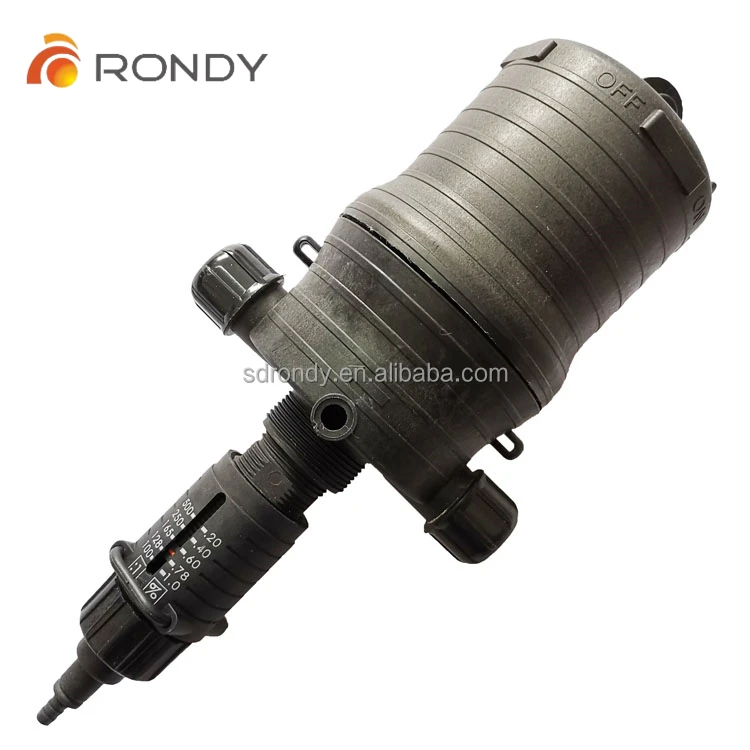

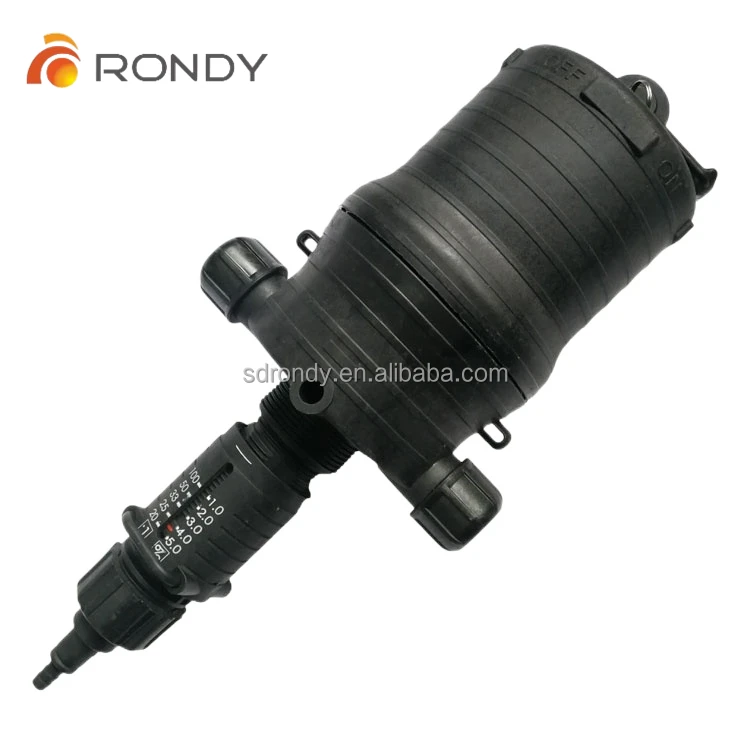

Car wash water powered dosing pump aquarium
Save -50%
Rs. 32,321.51
Rs. 64,643.02
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Products Description
|
Product Name
|
|
|
Material
|
Plastic
|
|
Type
|
Non-electric,Water powered
|
|
Proportional Range
|
0.2%-10%
|
|
LOGO
|
OEM logo
|
|
Package
|
Carton/Carton on wood pallet/Customized
|
|
MOQ
|
5 PCS
|
|
Sample
|
|
|
Delivery time
|
Sample:5-7 days
Mass Production: 15-30 days, depends on qty and customer's design
|
DPY2520
Proportional range: 2%-10%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DPY2505
Proportional range: 1%-5%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DPY2501
Proportional range: 0.2%-1%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DP2502
Proportional range: 0.2%-2%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DP2504
Proportional range: 0.4%-4%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DP2510
Proportional range: 1%-10%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DPP2502
Proportional range: 0.2%-2%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DPP2505
Proportional range: 1%-5%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
DPG2502
Proportional range: 0.2%-2%
Flow-rate range: 25-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 3/4” (25mm)
WATER POWERED PROPORTIONAL DOSING PUMP NON ELECTRICITY.

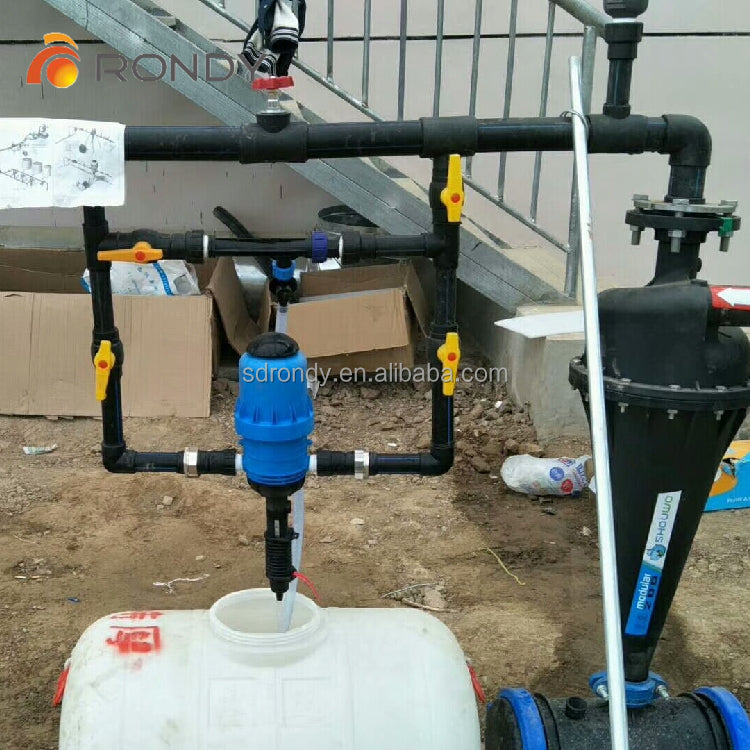

Water powered proportional dosing pump, no electricity is needed. It uses volumetric proportioning, ensuring that the chemical mixture remains the same regardless of variations in pressure and flow. The water flow rate will be reduced when going through the dosing pump. Adopt reciprocating dynamic sealing technology, this dosing pump has higher accuracy. Unique cylinder block and piston motion area design ensures more uniform and effective mixing of liquid and medicine. It can be used in animal Health, food safety & sanitation, irrigation, metal processing, nutrient delivery system, printing, vehicle wash, water treatment, dilution solutions or other industries requiring a certain proportion of dilution.
Working Principle
Non-electric Proportional Dosing Pumps
The proportional pump takes the flowing pressure water as power, having small water pressure loss, without any other power facilities. It uses water power of the proportional pump as engine which drives the piston and the connecting rod inside the proportional pump, sucks up the liquid additive directly and makes it dissolve in the water flow. This device moves up and down in a cylinder. When pressing out the water, it uniformly sucks the additives loaded at the bottom of the container into the water flow through a tube. Repeat the up-and-down motion until the effect is achieved that the additive is added to the flowing water evenly and constantly.
Feature
Non-electric Proportional Dosing Pumps.
Works at low flow rate
Easy to field maintenance
Highly chemical resistant
Good blending
Highly resistant to UV damage
Easy to install
No electricity needed
Easy to adjust dosing rate
Replaceable seals
