CHASUN 1KW 2KW 3KW 4KW 5KW 6KW 7KW 8KW portable pure sine wave charger hybrid DC AC solar inverter power inverter for sale
Product Overview

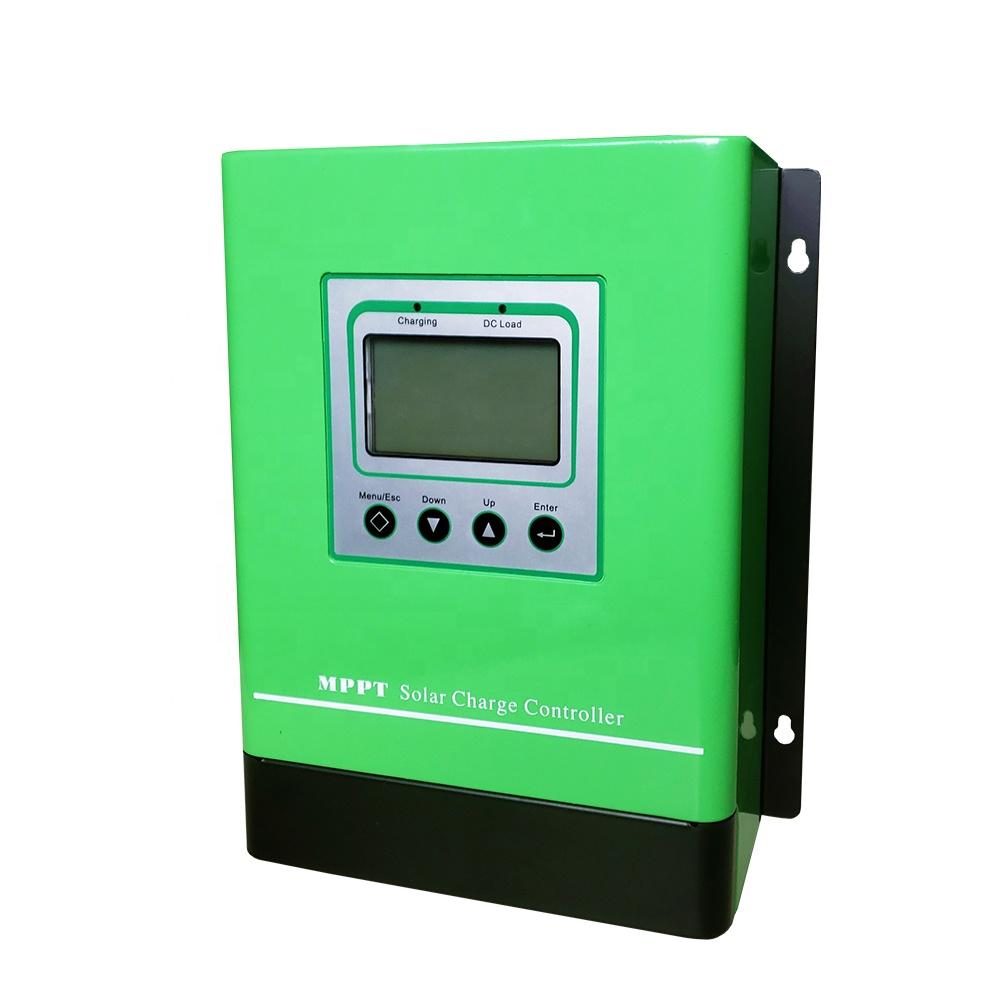

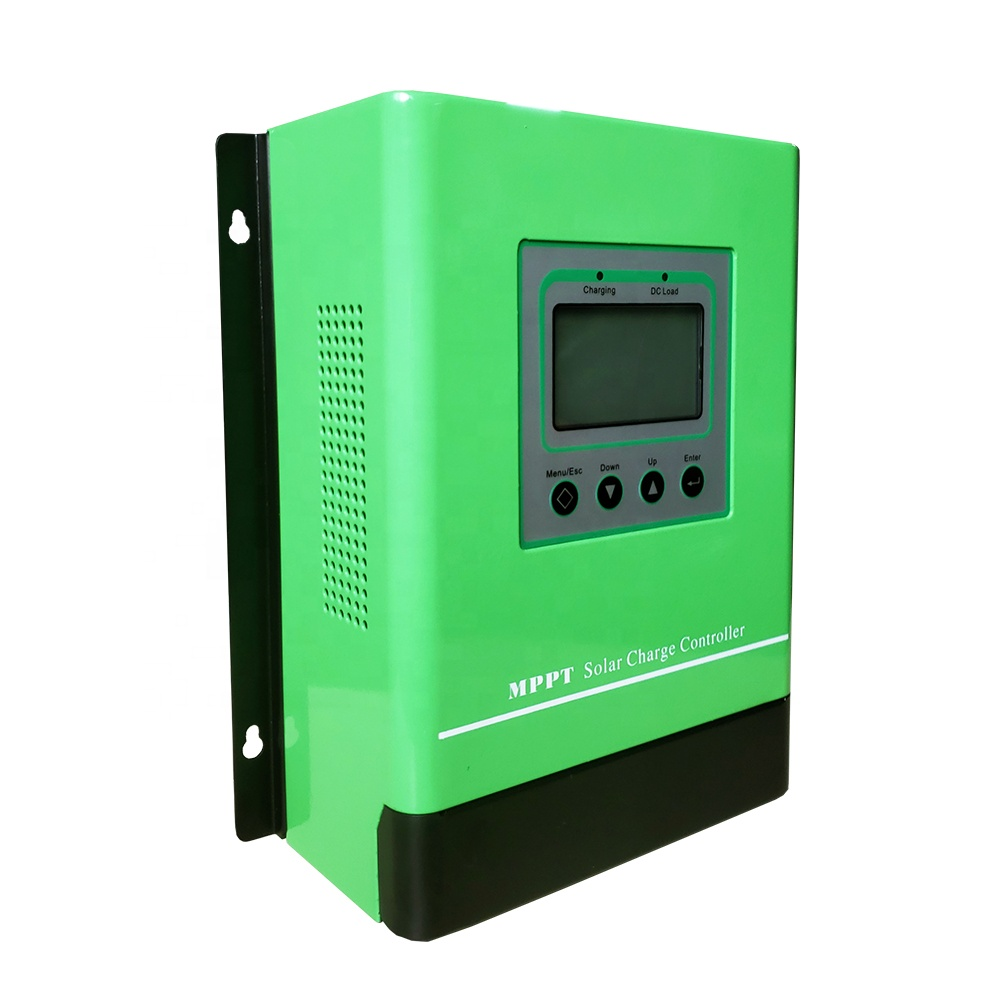

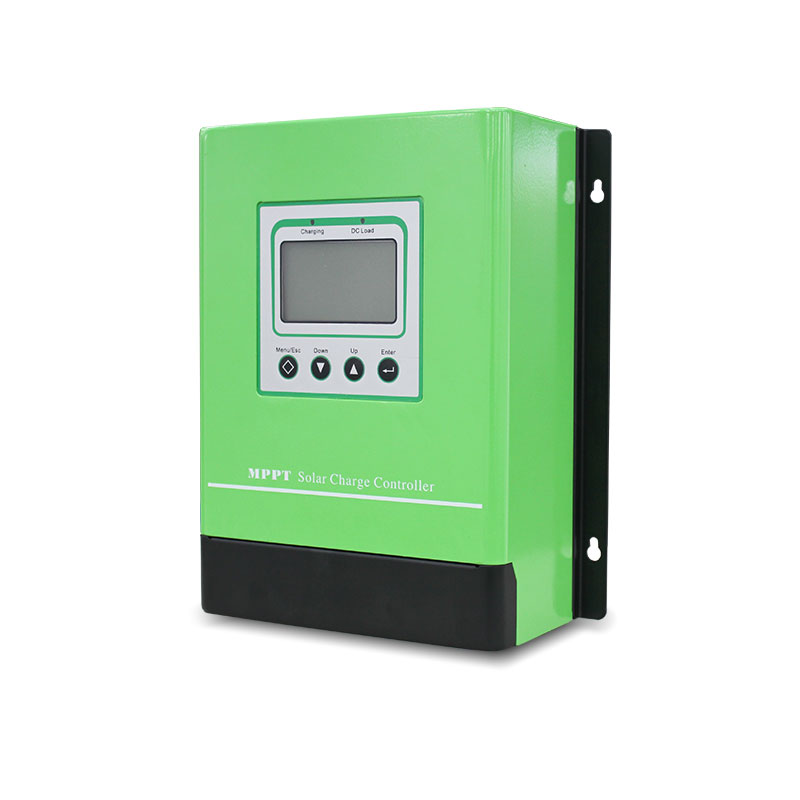

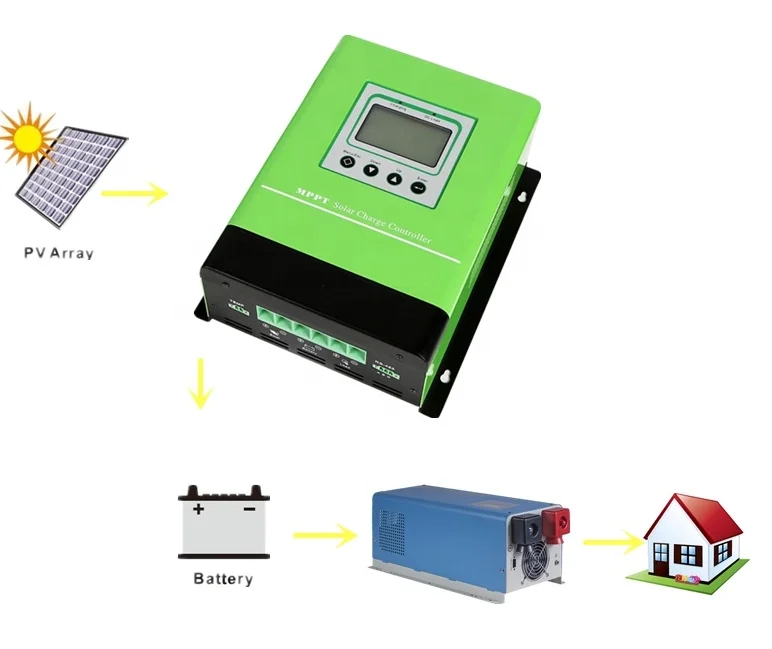

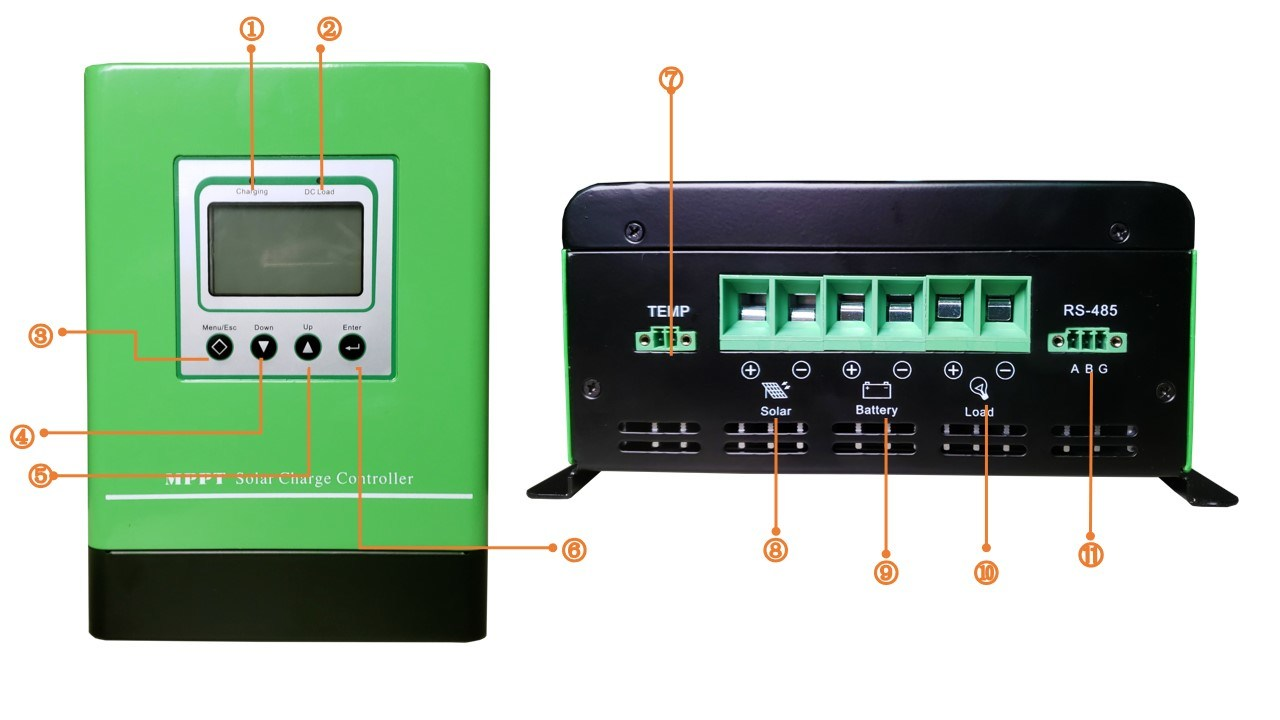

CM series MPPT controller is an advanced, efficient and versatile photovoltaic product.
It uses innovative maximum power point tracking technology to significantly improve the energy efficiency of solar energy systems
with a conversion efficiency of 97%.
The controller adopts intelligent battery charging management and has temperature compensation function to effectively manage the
battery and extend the battery life. The controller integrates RS485 communication interface, which can provide communication
protocol, which is convenient for customers to integrate and manage.

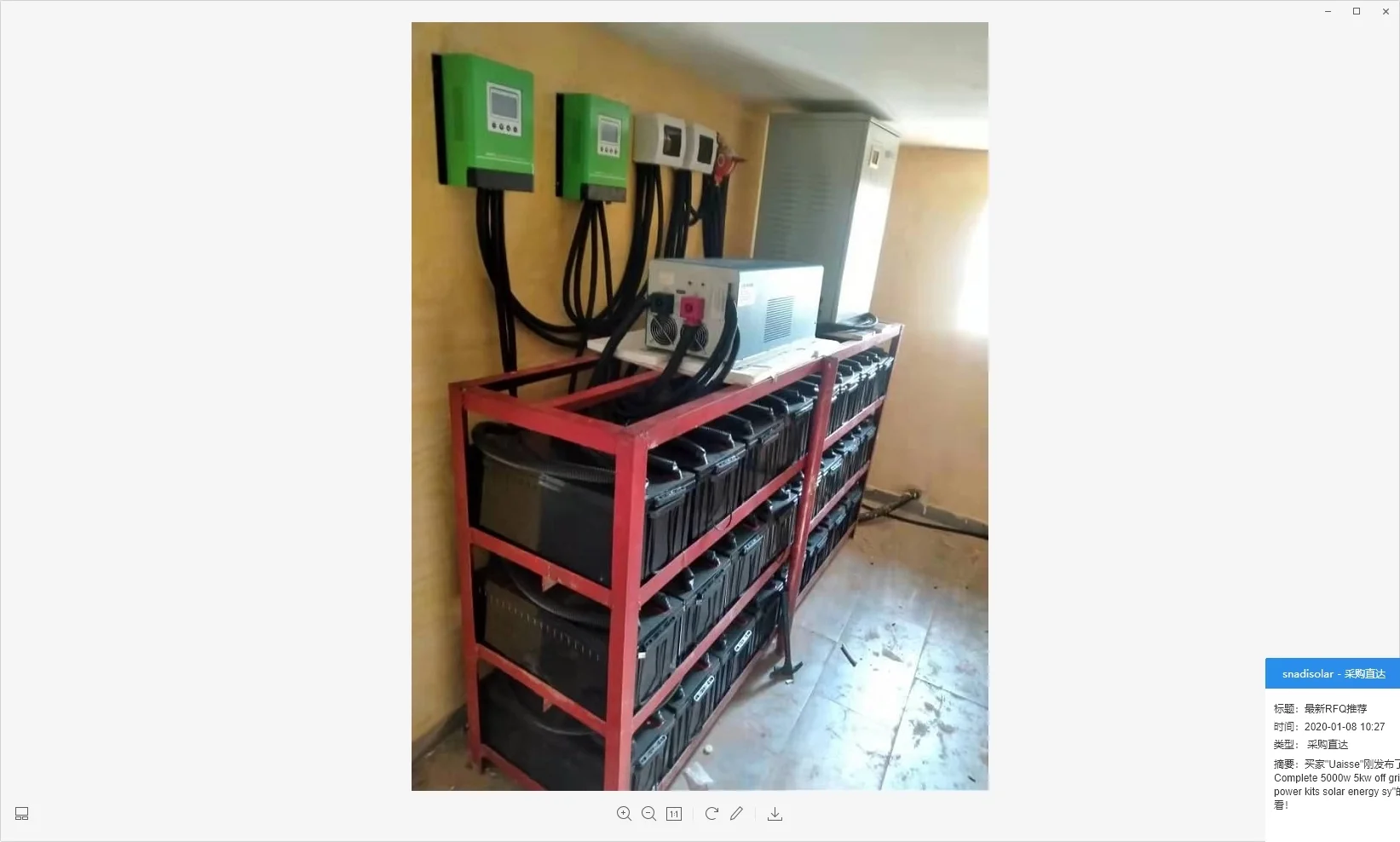

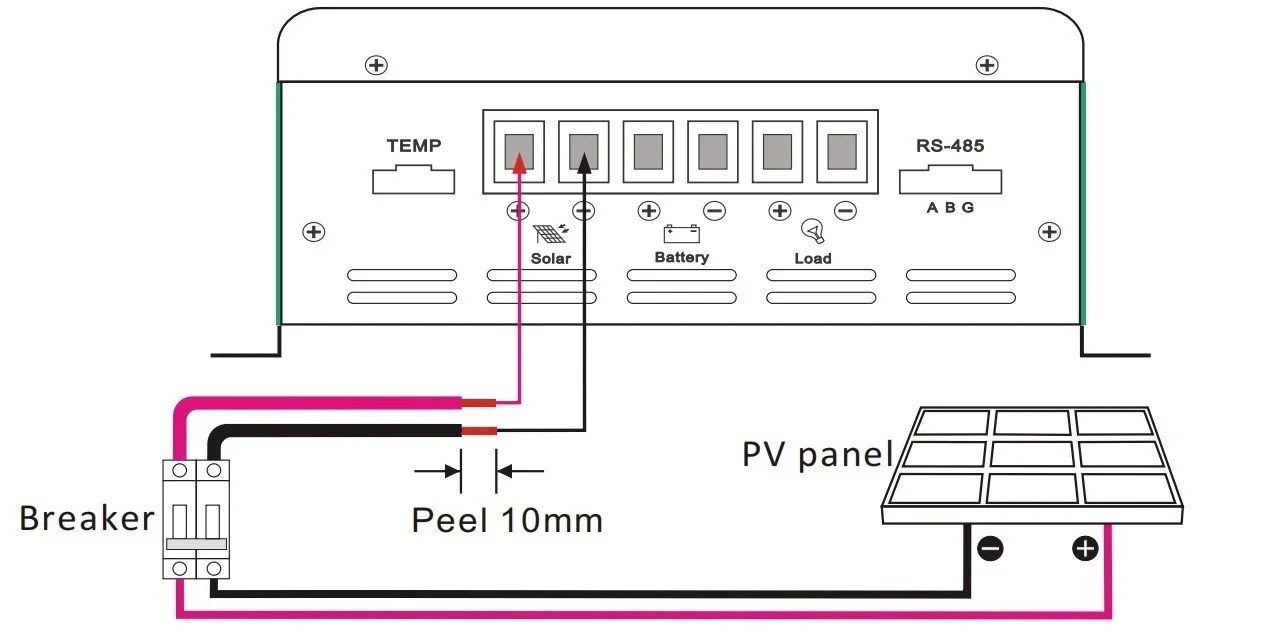

Installation
The installation must be done by a professional technician

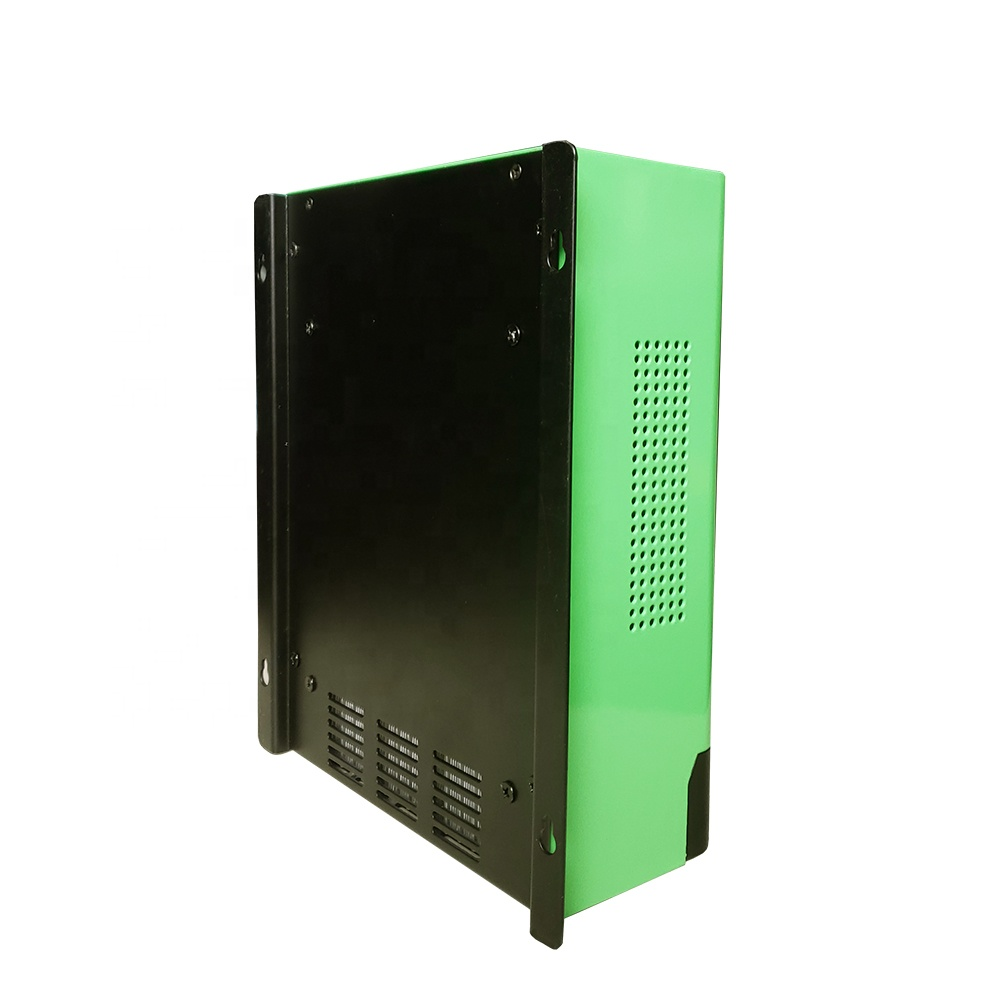

Observe the following safety clearances to ensure that other equipment or objects are not in this range to ensure adequate cooling
space .
It uses innovative maximum power point tracking technology to significantly improve the energy efficiency of solar energy systems
with a conversion efficiency of 97%.
The controller adopts intelligent battery charging management and has temperature compensation function to effectively manage the
battery and extend the battery life. The controller integrates RS485 communication interface, which can provide communication
protocol, which is convenient for customers to integrate and manage.
Installation
The installation must be done by a professional technician
Observe the following safety clearances to ensure that other equipment or objects are not in this range to ensure adequate cooling
space .
Products Description

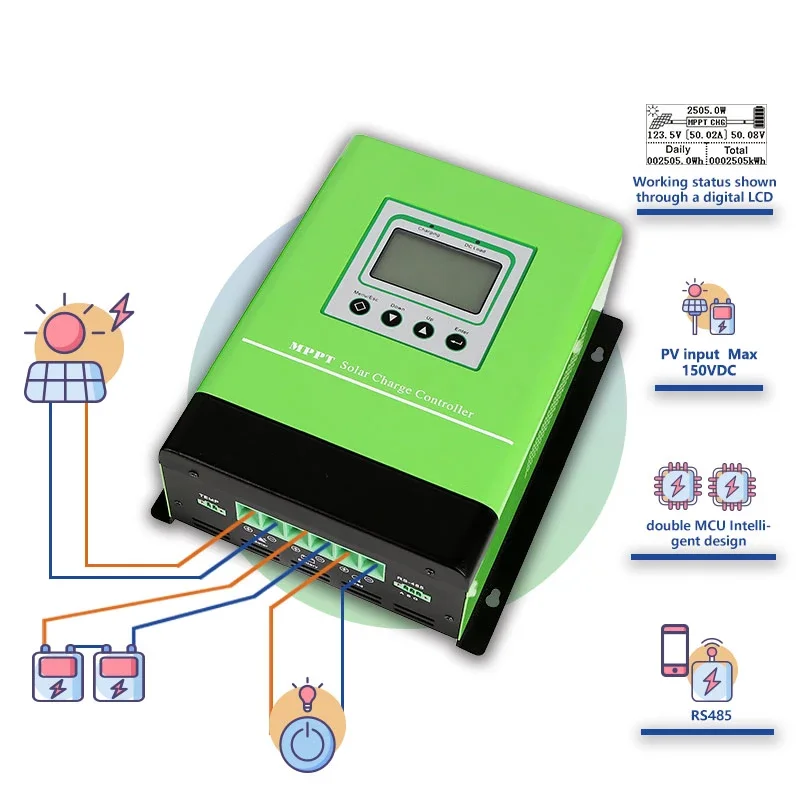

Intelligent maximum power tracking technology
High precision and high effciency with DSP chip control
The widely PV range voltage input , three s tage charging technology

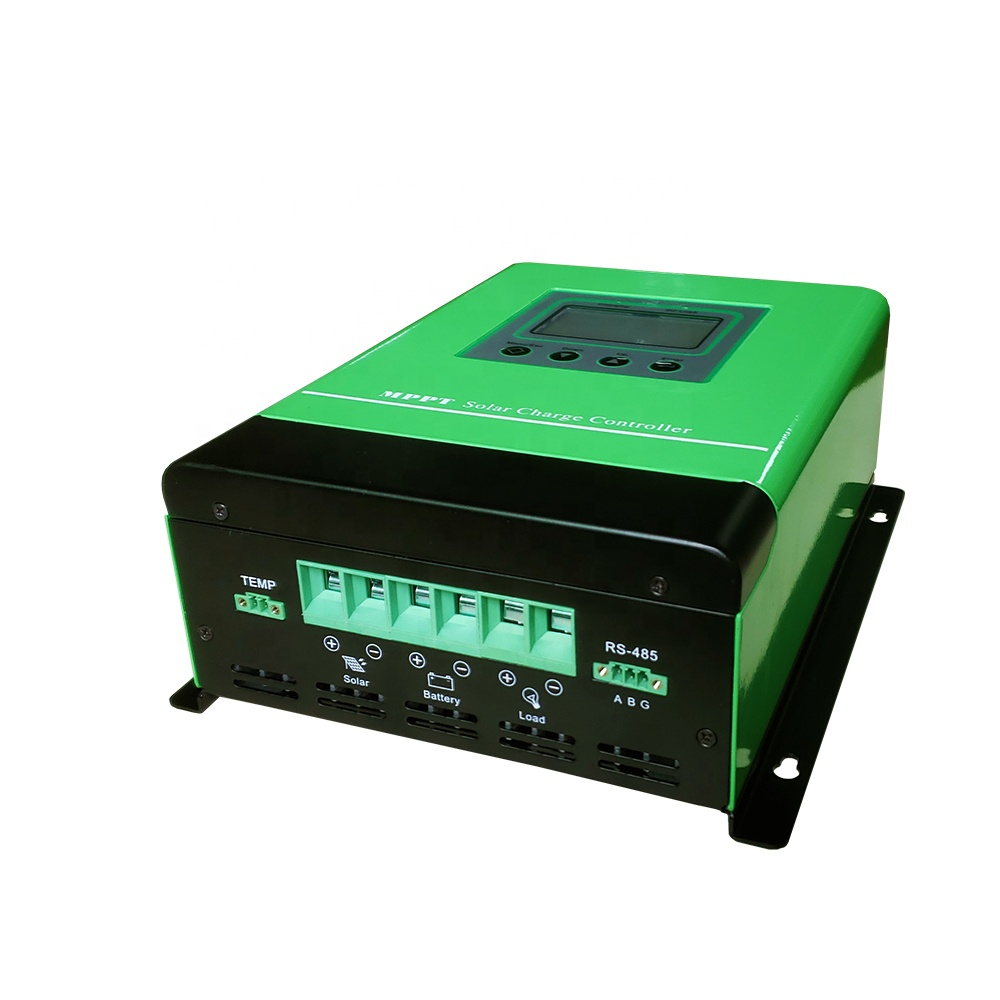

The photovoltaic/battery connection reverse protection short-circuit protection /over current protection
Display technology parameter with 7 inch touch screen
Rs485 remote communication and data transmission(optional)
High precision and high effciency with DSP chip control
The widely PV range voltage input , three s tage charging technology
The photovoltaic/battery connection reverse protection short-circuit protection /over current protection
Display technology parameter with 7 inch touch screen
Rs485 remote communication and data transmission(optional)
|
Model: MP- 40 / 50 / 60
|
/
|
/
|
40 A
|
50 A
|
60 A
|
|||||||
|
Charging Mode
|
MPPT Automatic Maximum Power Point Tracking
|
|||||||||||
|
Charging Method
|
Three stages : Constant Current ( MPPT), Balanced Charging,
Floating Charge |
|||||||||||
|
System Type
|
48 V/ 60 V/ 72 V/96V
|
Automatic Identification/ Manual Setting
|
||||||||||
|
System Identification Voltage Range
|
48 V System |
DC36-60V
|
||||||||||
|
60V System
|
Manual Setting
|
|||||||||||
|
72V System
|
Manual Setting
|
|||||||||||
|
96 V System
|
DC 72 V- DC 120 V
|
|||||||||||
|
Soft Start Time
|
48 /60/72/96V
|
≤10 s
|
||||||||||
|
Dynamic Response Recovery Time
|
48 /60/72/96V
|
≤500 us |
||||||||||
|
Static Power
|
48 /60/72/96V
|
≤2 W
|
||||||||||
|
Machine Efficiency
|
48 /60/72/96V
|
≥96 . 5 %
|
||||||||||
|
PV Module Utilization
|
48 /60/72/96V
|
≤99 . 97 %
|
||||||||||
|
Input Characteristics
|
||||||||||||
|
MPPT Operating
Voltage Range |
48V System
|
DC 65V- DC 150 V
|
||||||||||
|
72 V System
|
DC 80V- DC 150 V
|
|||||||||||
|
96 V System
|
DC 130 V- DC 180 V
|
|||||||||||
|
Input Low Voltage Protection Point |
48V System
|
DC 60 V
|
||||||||||
|
72 V System
|
DC 74 V
|
|||||||||||
|
96 V System
|
DC 120V
|
|||||||||||
|
Input Low Voltage Recovery Point |
48V System
|
DC 65 V
|
||||||||||
|
72 V System
|
DC 80V
|
|||||||||||
|
96 V System
|
DC 130 V
|
|||||||||||
|
Limit Input Voltage
|
48 V/ 60 V/ 72 V/96V
|
48 V/ 60 V/ 72 V/96V (160V) ,96V (235V)
|
||||||||||
|
Overvoltage Protection
|
48 V/ 60 V/ 72 V/96V
|
48 V/ 60 V/ 72 V/96V (150V) ,96V (230V)
|
||||||||||
|
Overvoltage Recovery
|
48 V/ 60 V/ 72 V/96V
|
48 V/ 60 V/ 72 V/96V (145V) ,96V (225V)
|
||||||||||
|
Maximum Solar
Panel Input Power |
48 V System
|
/
|
/
|
2100 W
|
2650W
|
3150 W
|
||||||
|
72 V System
|
/
|
/
|
3200 W
|
4000 W
|
4800 W
|
|||||||
|
96 V System
|
//
|
/
|
4250 W
|
5300 W
|
6400 W
|
|||||||
|
Output Characteristics
|
||||||||||||
|
Optional Battery Type (Default is lead - acid maintenance- free
battery) |
48 V/ 60 V/ 72 V/96V96V
|
Lead- acid maintenance- free Battery, G e l Battery, Liquid Battery, Lithium Battery ( Can also be customized for other types of
battery) |
||||||||||
