Product Description

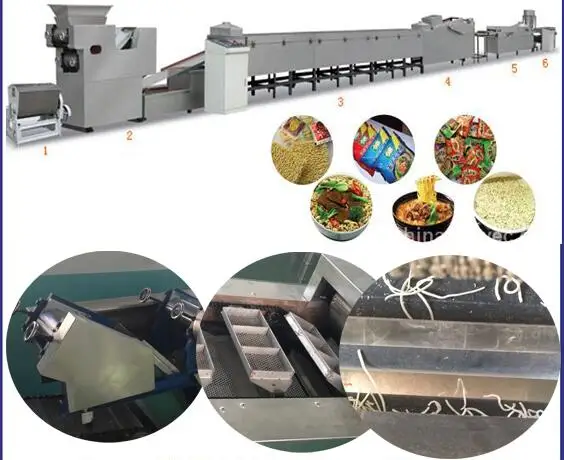

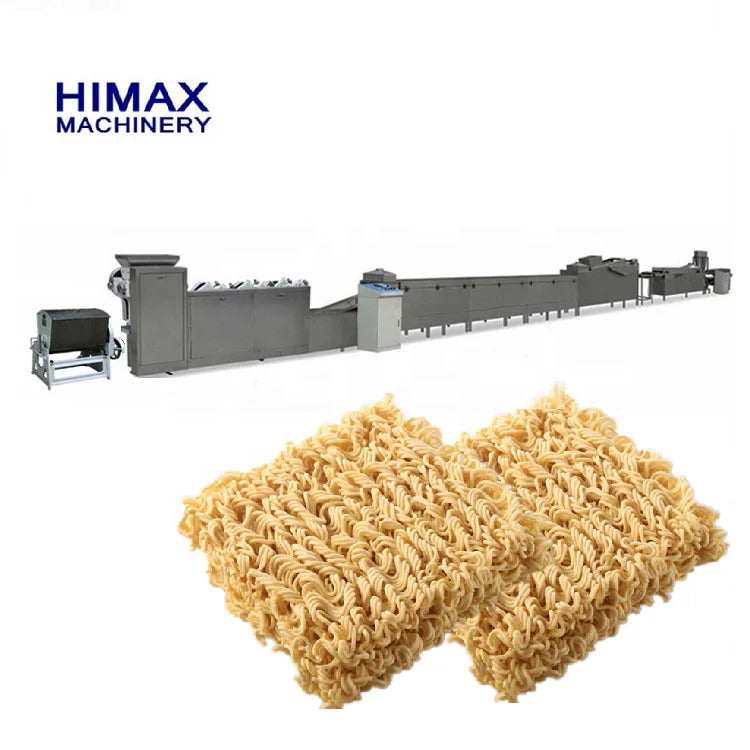

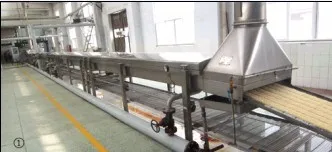

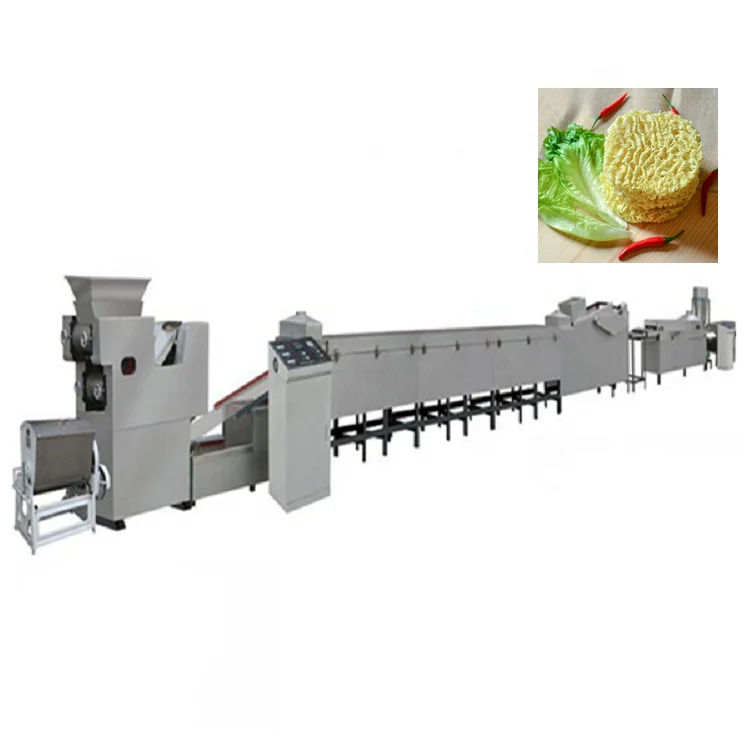

Automatic Instant Noodle Production Line
This production Line,with perfect technology,compact structure,original design and stable performance,is developed on the base of advanced produces and requirements in the world market .It realizes high automation,convenient operation,low energy and small floors space,that assures all working procedures from feeding flour to finished products can be accomplished once. The investment for this line is only one tenth of that larger size equipment,especially suitable to small-size or self-owned enterprises. The corrugated intast noodle produced by this line is tenacious smooth and transparent.
Specification
|
Serial NO.
|
Product Name
|
Remark
|
|
1
|
Dough Mixer
|
Power:3kw,output:180kg/h,size:1170*850*950mm
|
|
2
|
Roller Pressing Machine
|
Power:4kw,output:150kg/h,size:3000*60*1500mm,7roller process
|
|
3
|
Boiling Machine
|
Energy:electric or 0.5T/h boiler to provide steam
|
|
4
|
Fryer
|
Energy:electric,power:60kw,size:5400*870*1200mm
|
|
5
|
Cooler
|
Power:3kw,output:200kg/h,size:3000*500*600mm
|
|
6
|
Packing Machine
|
350 pillow packing machine,40bags/h
|
Main Features
1.The size of instant pasta noodles can be adiusted easily .
2.pressing & shapping machine,cutting machine and frying machine are all frequency control .
3.Rolling pressing design make the noodles springy .
4.Adopt good quality and food-grade stainless steel,which is longer service life and neatness .
5.Longer frying length to ensure good cooking and better taste of instant noodles .
6.Cooling conveyor is special designed with oil filtering function .
7.High automation and accurate control systerm to save labor cost and improve the quality of final products .
1.The size of instant pasta noodles can be adiusted easily .
2.pressing & shapping machine,cutting machine and frying machine are all frequency control .
3.Rolling pressing design make the noodles springy .
4.Adopt good quality and food-grade stainless steel,which is longer service life and neatness .
5.Longer frying length to ensure good cooking and better taste of instant noodles .
6.Cooling conveyor is special designed with oil filtering function .
7.High automation and accurate control systerm to save labor cost and improve the quality of final products .
|
Raw Materials
|
Wheat flour
|
||||
|
Products
|
This line can be used to produce instant noodles
|
||||
|
Capacity
|
11000PCS/8hours
|
||||
|
Voltage
|
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different
countries |
||||
|
Machine Material
|
Food Grade Stainless Steel
|
||||
|
Main Motor
|
Siemens China brand
|
||||
|
Main Electric Elements
|
Siemens or CHNT brand
|
||||
|
Inverter
|
Delta brand
|
||||
Name: Dough Mixer
Power :4.0kw
size: 1.2*0.9*1.4m
Output: 30kg
Functions:Mix the flour and prepares them ready to be used in the next step
Power :4.0kw
size: 1.2*0.9*1.4m
Output: 30kg
Functions:Mix the flour and prepares them ready to be used in the next step

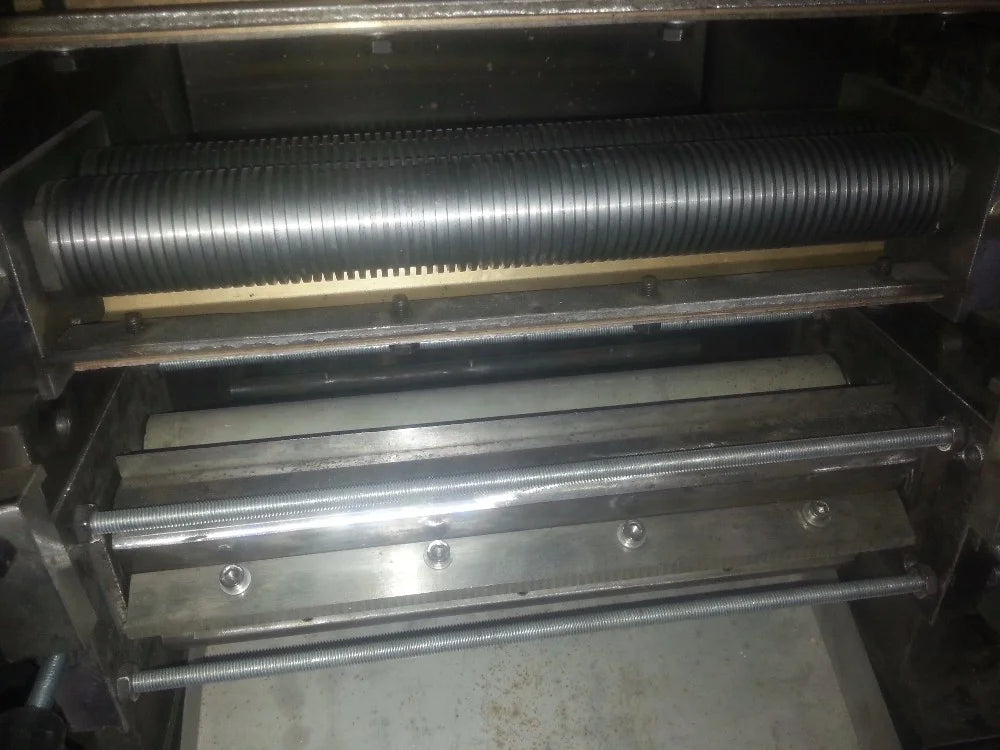

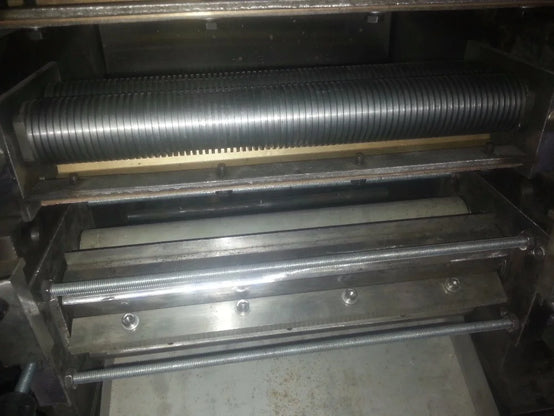

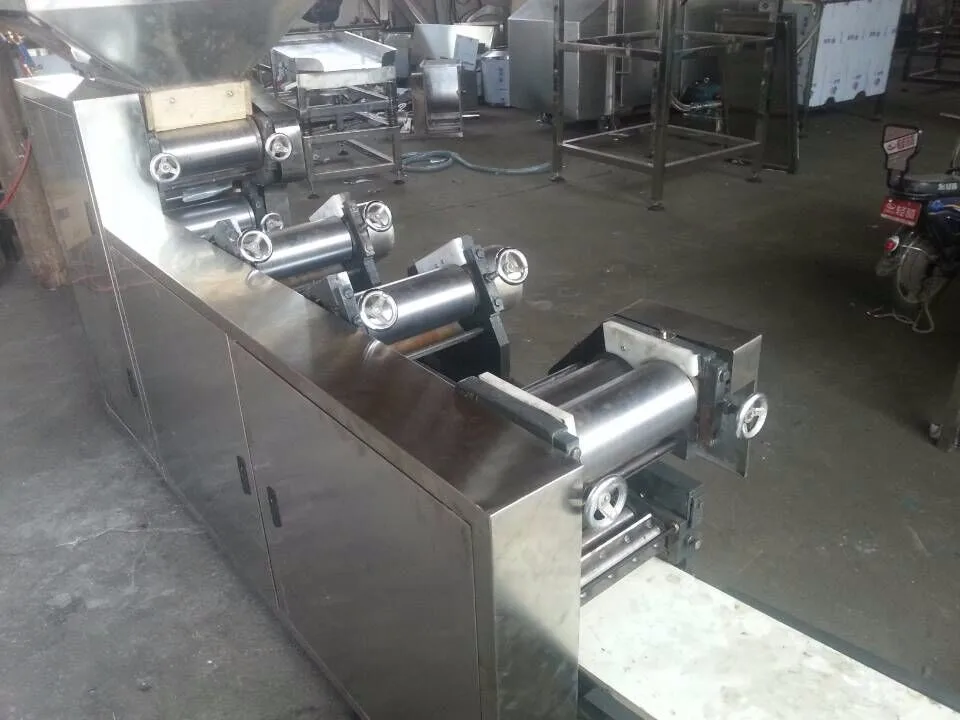

Name:Roller pressing machine
Output: 150kg/h
Power: 4kw
Size: 3*0.6*1.5m
Functions:Processing and cutting dough into noodle shape
Output: 150kg/h
Power: 4kw
Size: 3*0.6*1.5m
Functions:Processing and cutting dough into noodle shape
