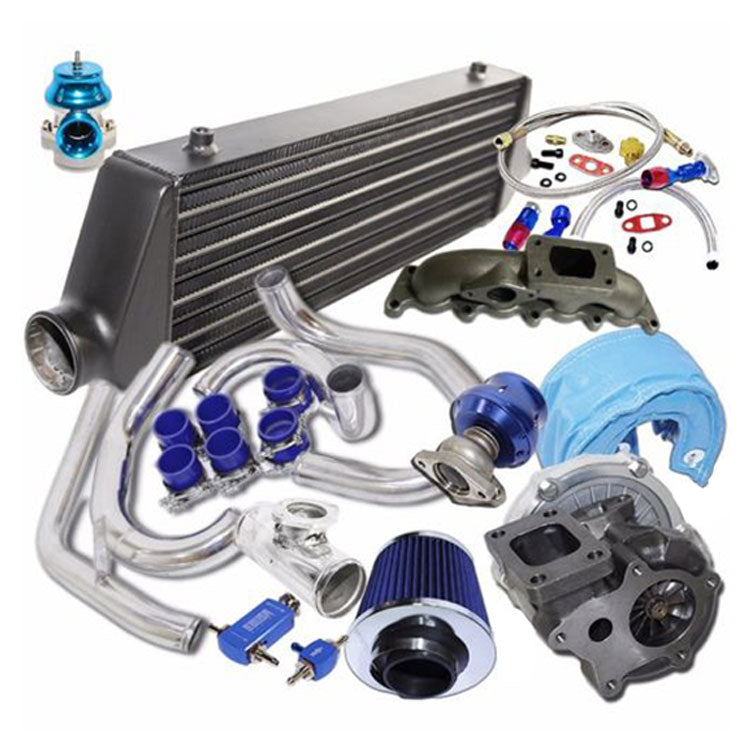

Complet Turbo Kit T3/T4 Turbo and Black Intercooler for 00-05 Volkswagen Golf/ Jetta 1.8T
Share
Complet Turbo Kit T3/T4 Turbo and Black Intercooler for 00-05 Volkswagen Golf/ Jetta 1.8T
-
Application for :
VW Golf
2000-2001 GTI GLS Hatchback 2D
2000-2001 GLS Hatchback 4D
2002 GTI 337 Hatchback 2D
2003 GTI 20th Anniversary Hatchback 2D
2002-2005 GTI 1.8T Hatchback 2DVW Jetta
2000-2005 GLS Sedan 4D
2001 2003 Wolfsburg Edition Sedan 4D
2002-2005 GLS Wagon 4D
2003 Wolfsburg Edition Wagon 4D
2003-2005 GL Sedan 4D
2003-2005 GL Wagon 4D
2004-2005 GLI Sedan 4D
1.8L 1781CC I4 GAS DOHC TURBOCHARGED ONLY
COLORS ARE RANDOMLY SELECTED
-

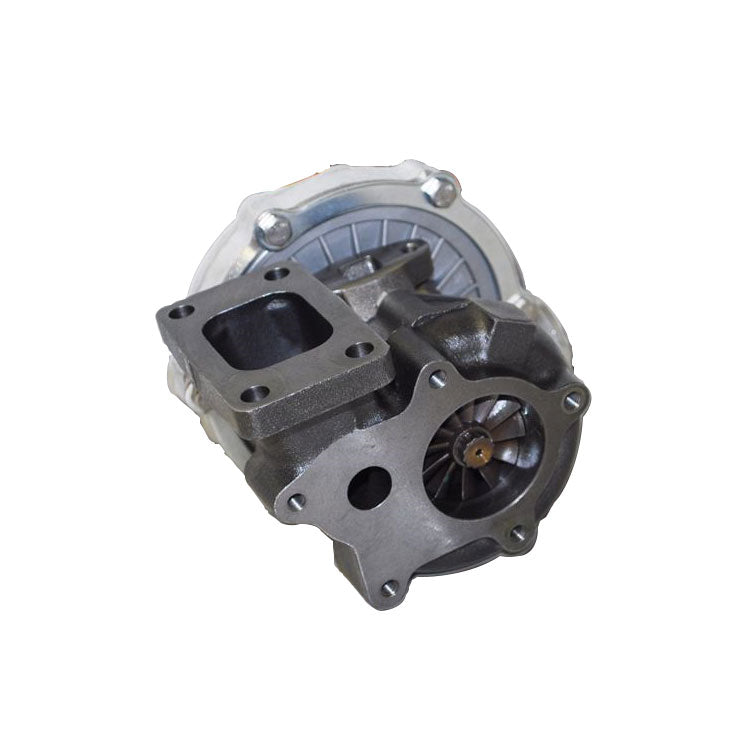

Turbo Charger T3/T4
3" Inlet and 2" Outlet
Hybrid Journal Bearing
Oil Cooling
450 HP
M10X1.25
T3 Flange
0.50 A/R Compressor Wheel (Cold Side)
EXD: 3" (73.55MM)
IND: 1.99" (57.75MM)
Trim 48.9
0.63 A/R Turbine Wheel (Hot Side)
EXD: 2.2" (75.46MM)
IND 2.56" (52.76mm)
Trim 61.9
5 Bolt Standard Hot Side
25-35 PSI Peak Power Performance Output Capability
Comes with Turbine heat shield blanket, cold air intake filter.

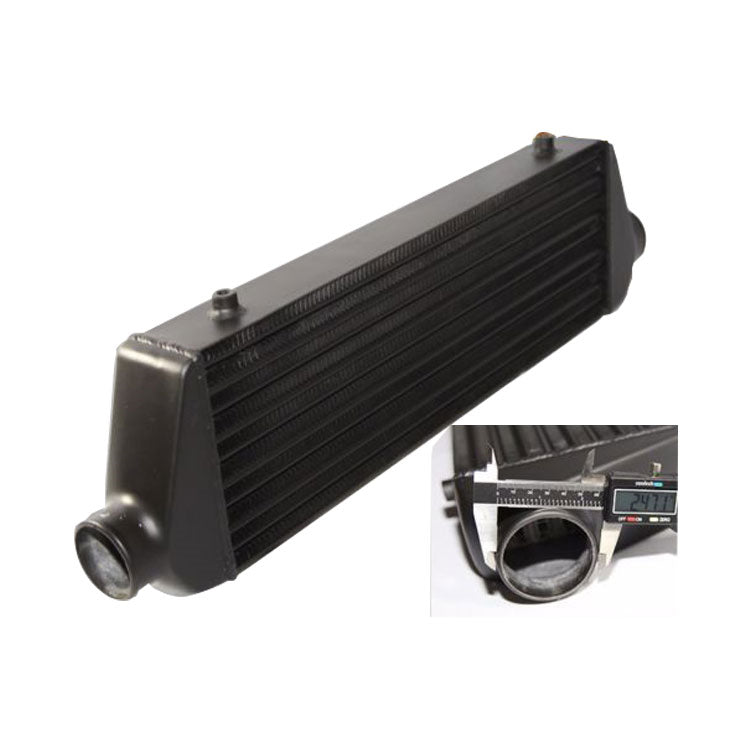

IntercoolerOverall Length 27"
Core Length 21"
Overall Height 7"
Overall Width 2.5"
Both Inlet/Outlet ports are 2.5"
Compress Air Flow Rate <350Cubic Feet/Min, Rated up to500 Max HP
Working Pressure 5~50PSI
Pressure Drop 2~5psi@35psi; 0.2~0.5psi@15psi
Design Bar and Plate
Construction Machine Cut and Stamped, Hand Welded
Works for Many Cars and TrucksCast Iron Turbo Manifold
Direct Bolt on
T3 Turbo Flange fits T3 or T/T3 Turbocharger

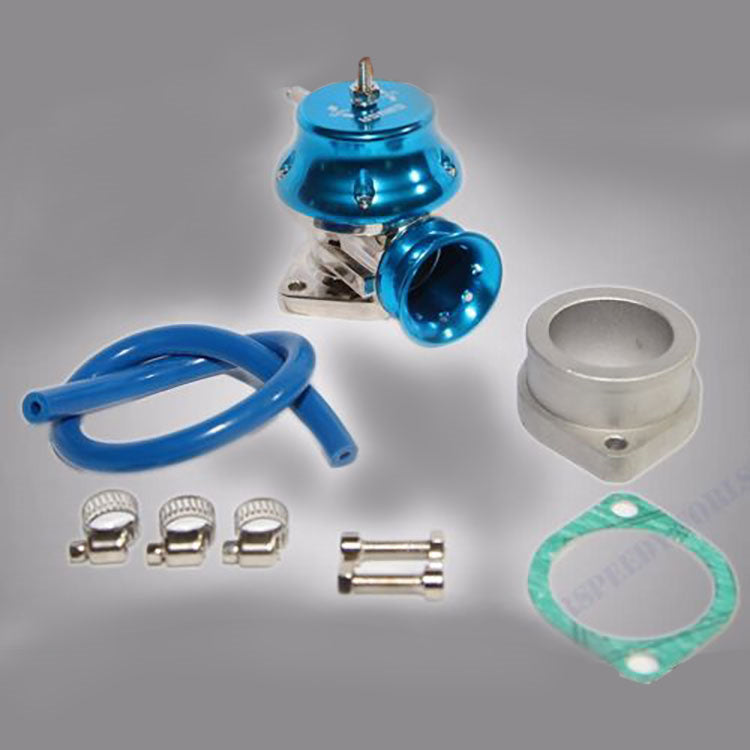

5mm/38mm Wastegate FlangeEM RS Blow off Valve

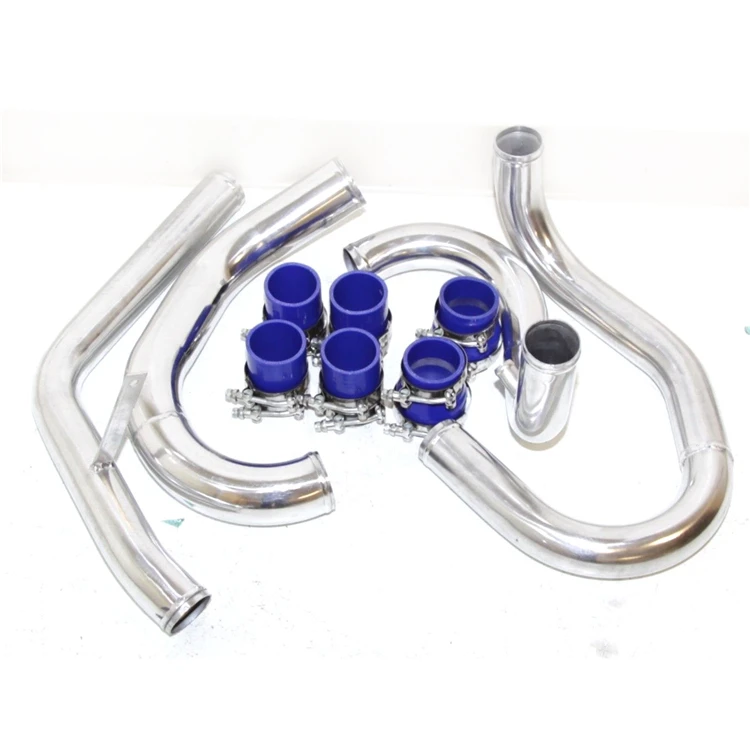

Made of High Quality CNS Billet AluminumFront Mount Intercooler Piping Kits
4 Pieces bolt-on Lightweight Aluminized Mandrel Bent Piping
Increase Air Flow, up to 10-20HP
High Pressure Silicone Hoses
Stainless Steel Clamps
EMUSA 38MM Adjustable Wastegate
Adjustable,4/6/8/10 PSI
High Polish Finish
CNC Machined
Proven AccuracyTurbo Smart Style Manual Boost Controller
Oil Return Line& Oil Feed Line
Exactly Same as the Picture
