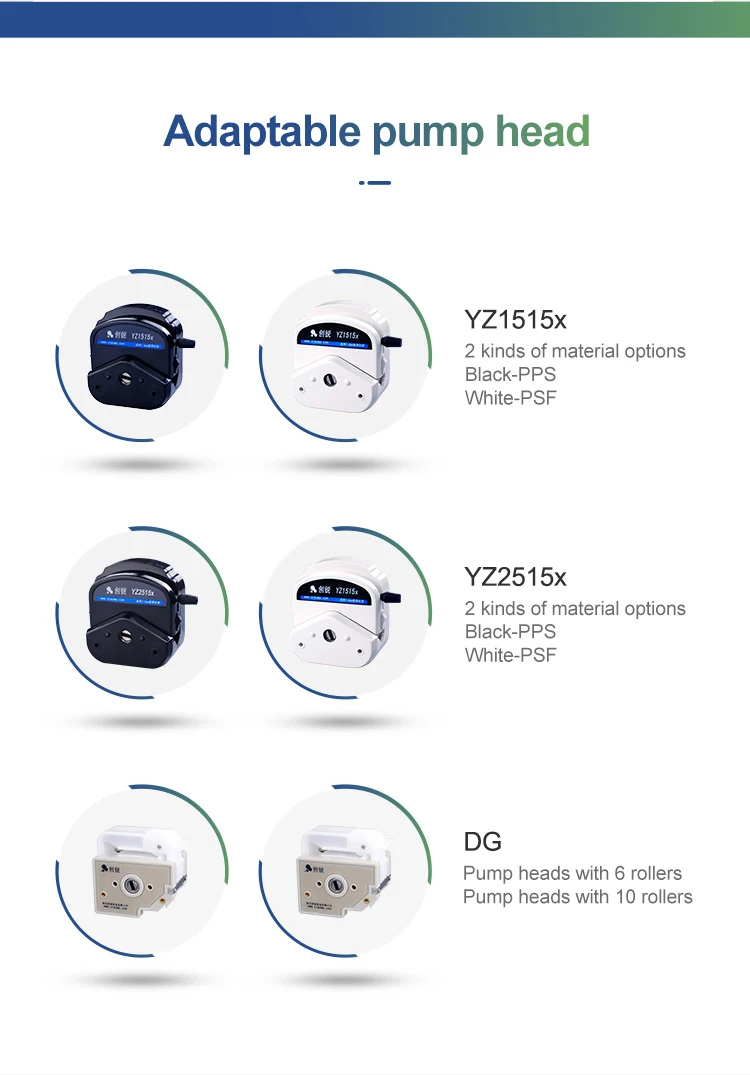

2. With both-way large torque, low power motor. It can be connected with several pump heads to satisfy the different demands of flow rates.

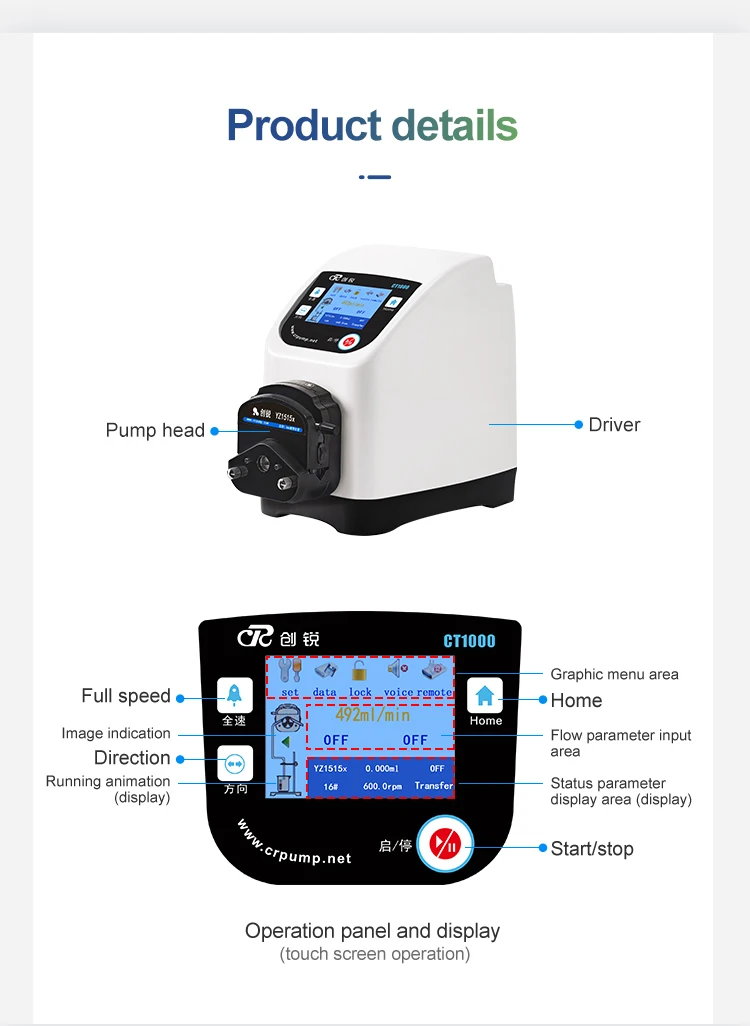

3. Long life, Touch screen control, easy to operate,
4. 3.5 -inch color LCD display in Englishand Chinese version
5. Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.
|

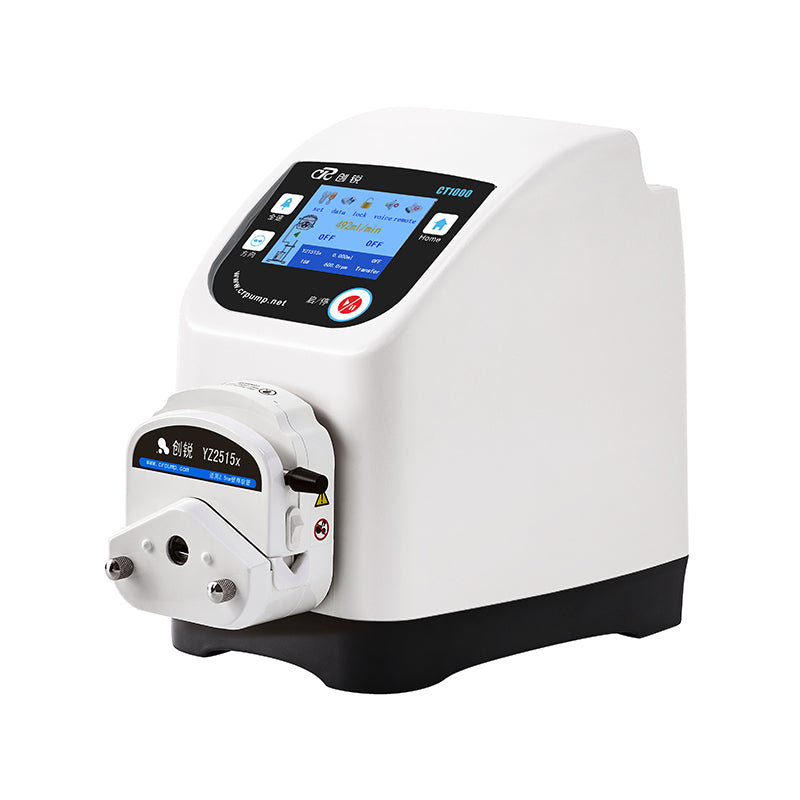

Drive model
|
CT1000
|
|
Max Speed
|
100rpm(reversible)
|
|

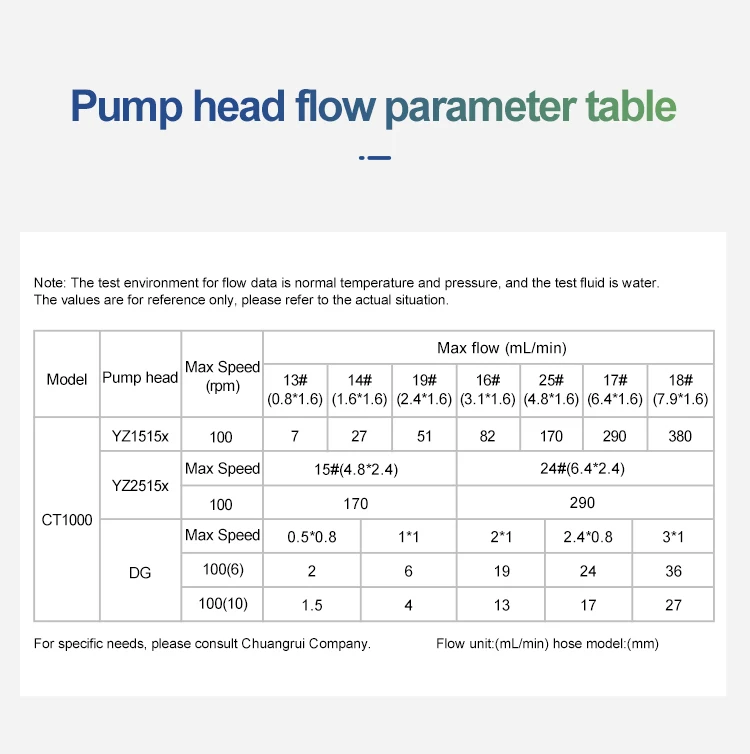

Max Flow
|
480mL/min
|
|
Power
|
<22W
|
|
Speed resolution
|
Speed resolution 0.1rpm
|
|
Speed mode
|
Touch screen adjustment
|
|
Display method
|
Color LCD display (Chinese and English optional)
|
|
Timing range
|
0.1s-9999min
|
|
Quantitative range
|
0.001mL-9999L
|
|
Suction angle
|
10°-720° (0° means no back suction)
|
|
Suction speed
|
10-300rpm
|
|
Power supply
|
AC220±10% (standard) or AC110V±10% (optional)
|
|
External control method
|
Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
|
|
Drive size
|
225X186X248(mm)
|

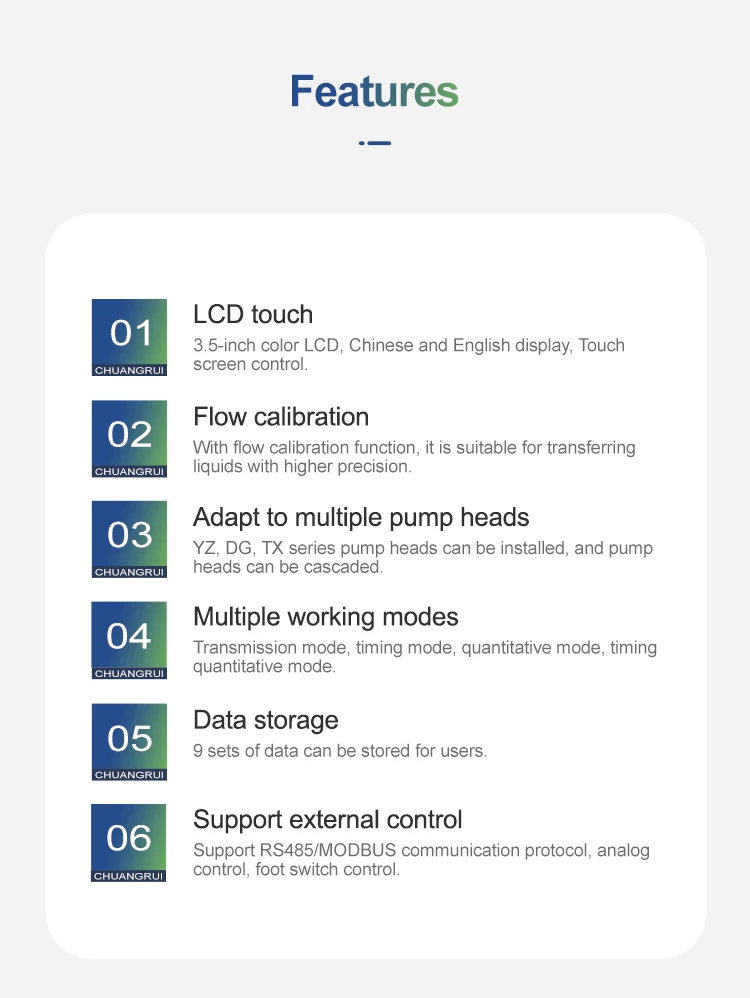

intelligent peristaltic pump with 4 work mode optional : transfer /timer /quantitative/timing quantitative
Friendly operation interface.
Support multi-function selection.
Can save 9 sets data that can help customer fastly find the original filling data .
Support RS485/RS232/MODBUS communication protocol , analog quantity control (0-5v 0-10v 4-20mA ...)foot switch control ,Offer multi Language customized .
Memory function available in case of power off and it will continue the work once the power was restarted.

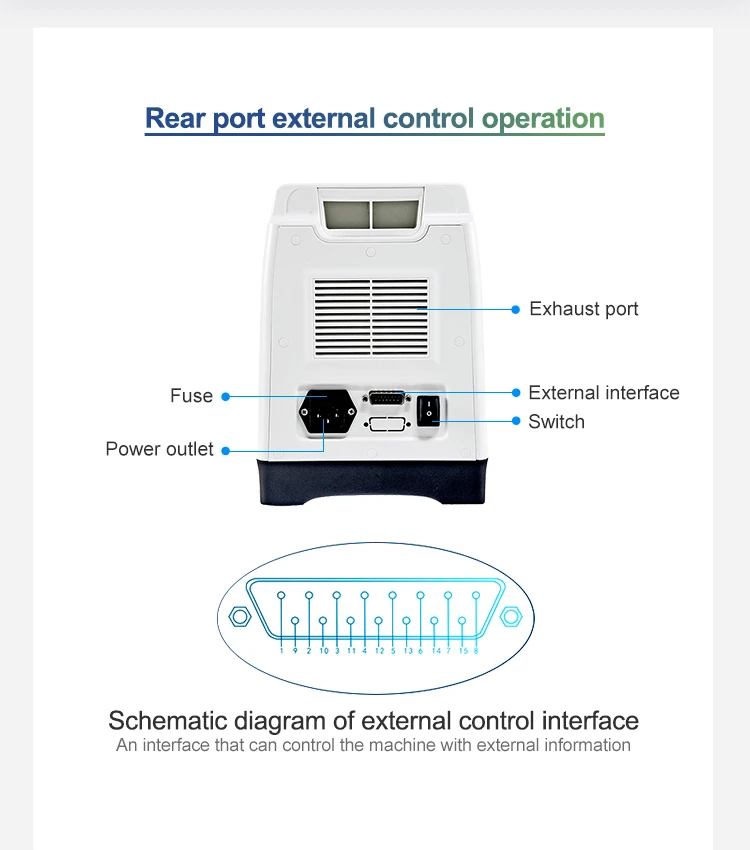

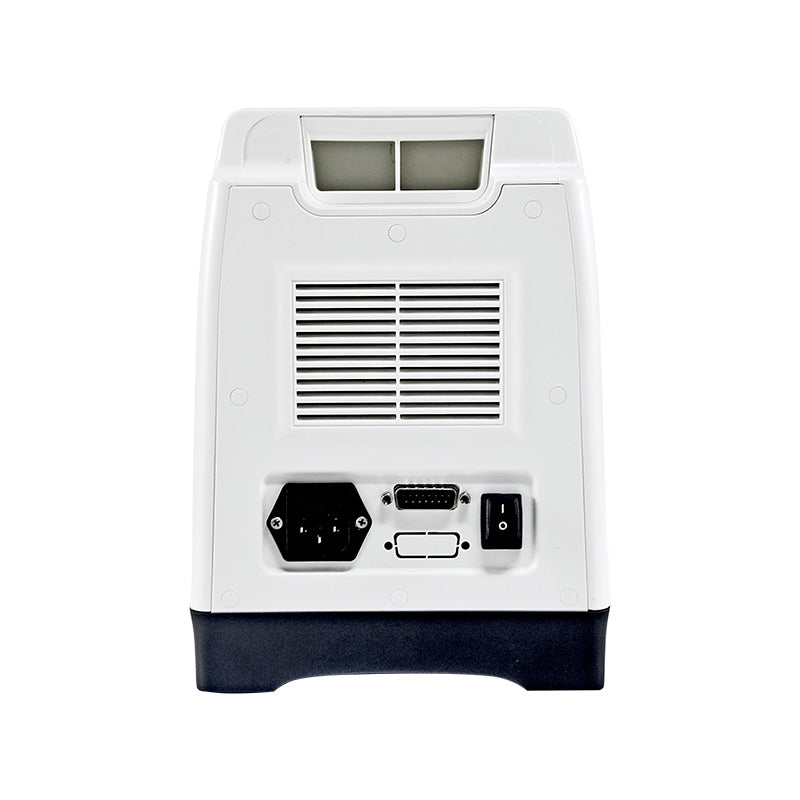

Long-range control is available through the DB15 interface of the drive: speed control, start-stop control, direction control.
Has the flow calibration function, suitable for higher precision transmission fluid.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

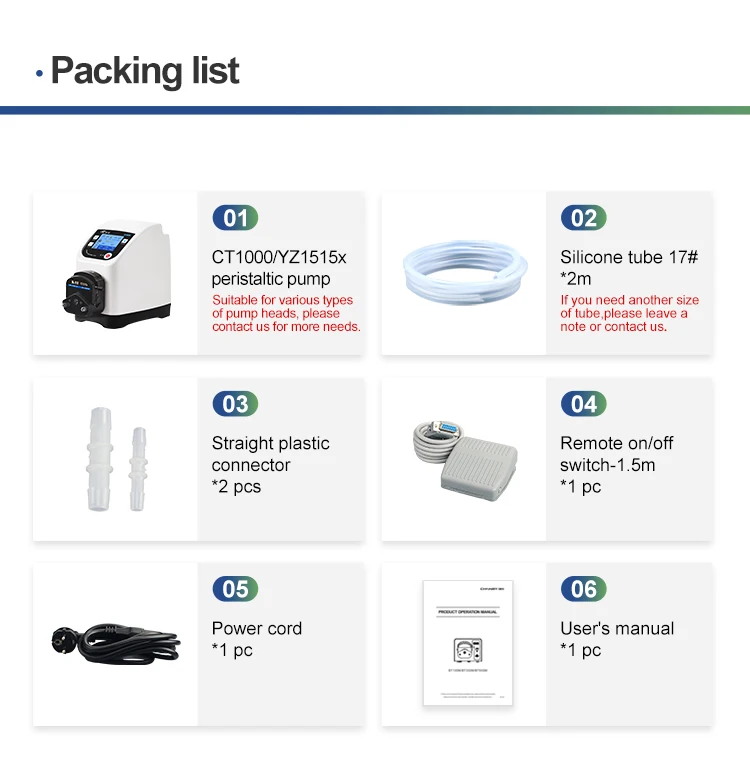

- 1.The package contains a peristaltic pump and its accessories.
2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.
3.If you have other packaging needs, please contact us in time.
