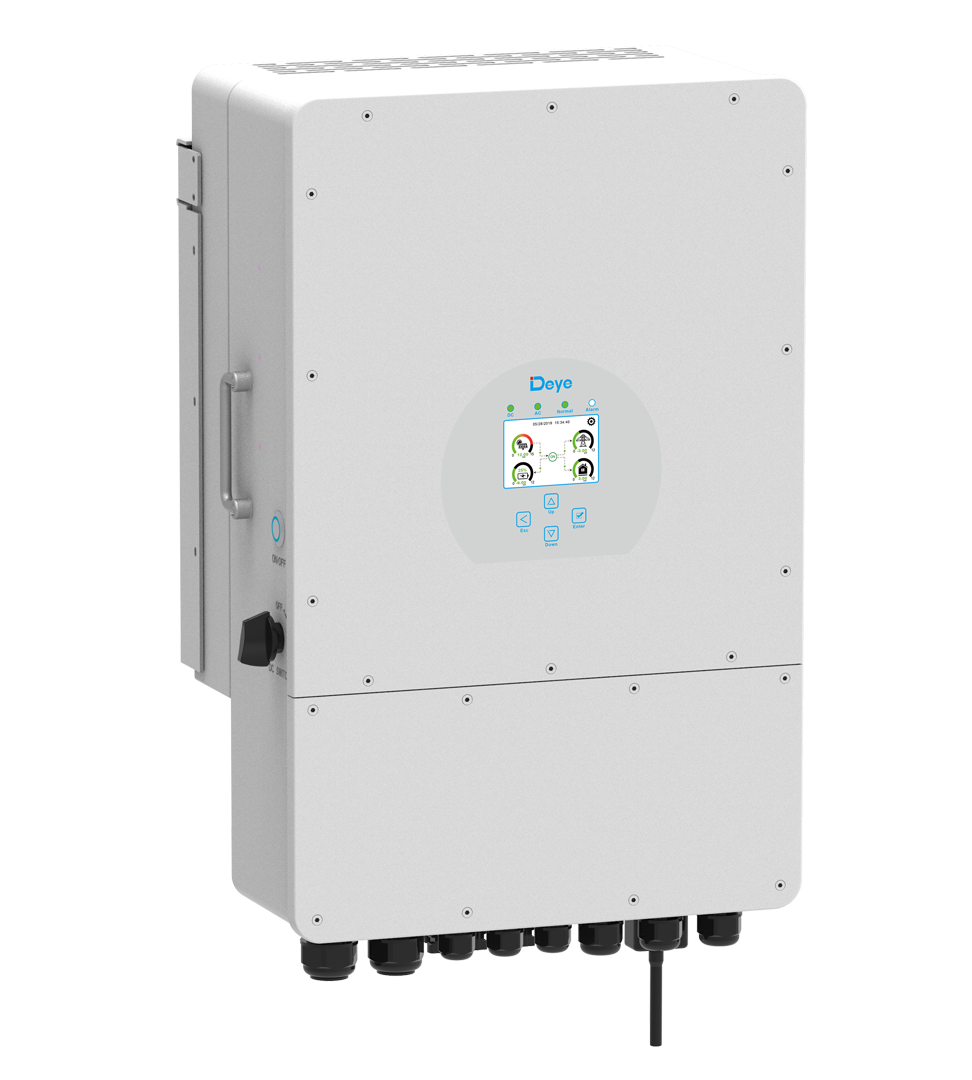

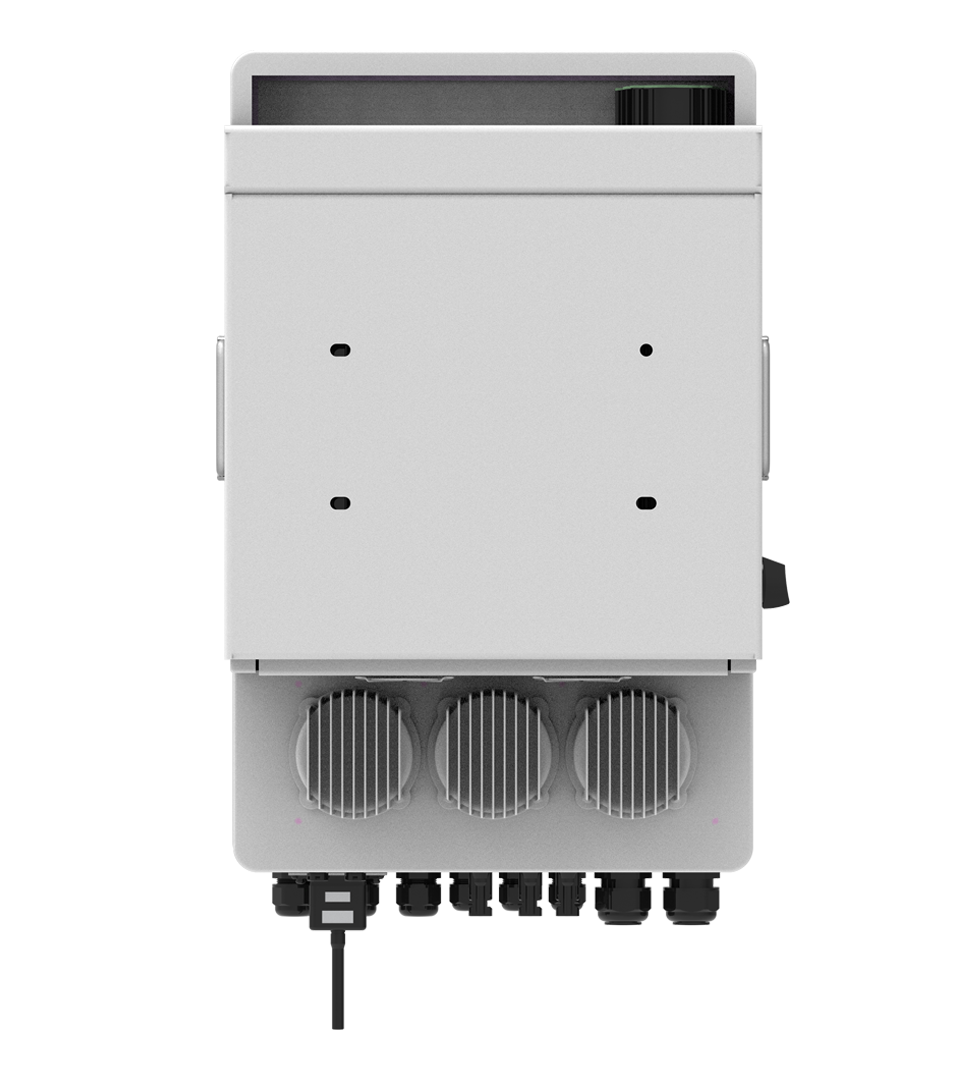

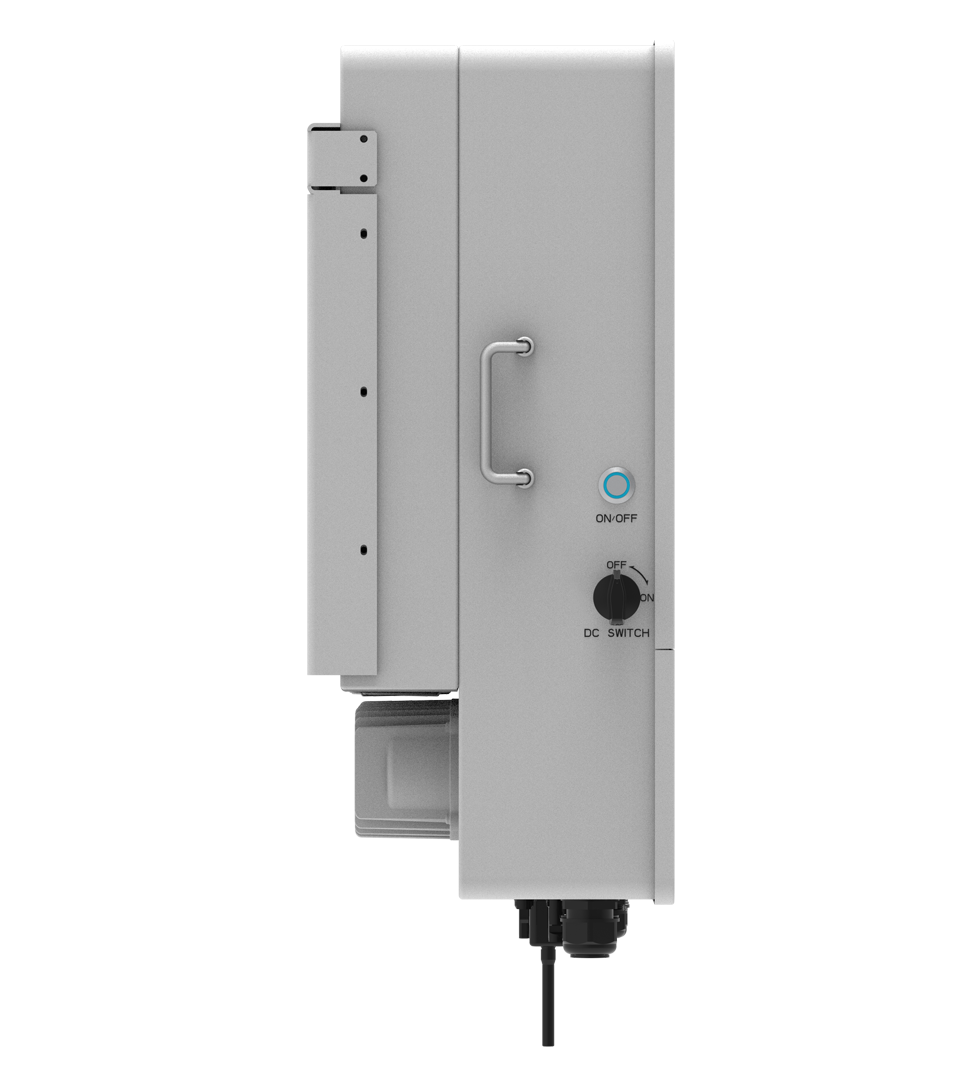

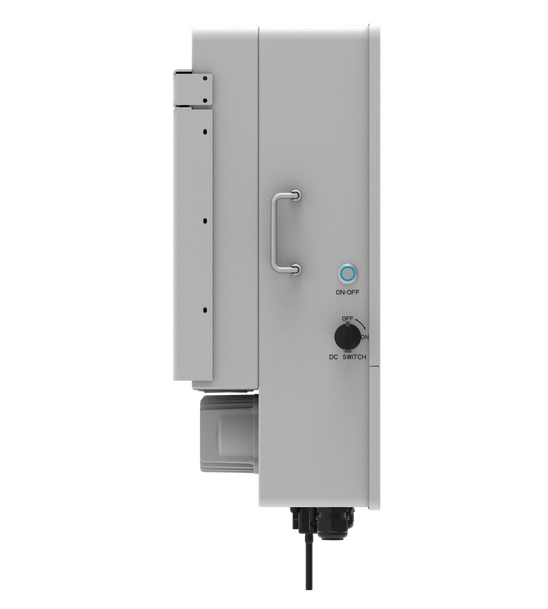

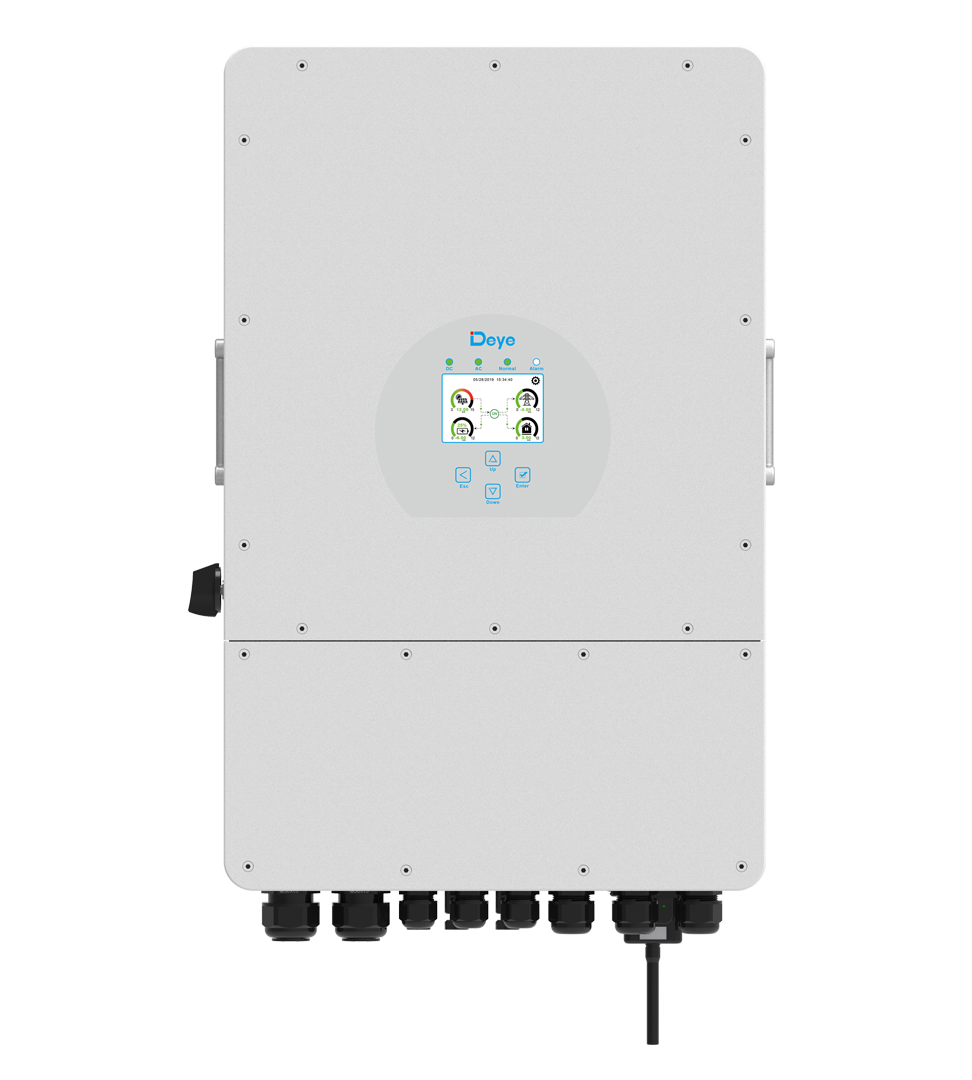

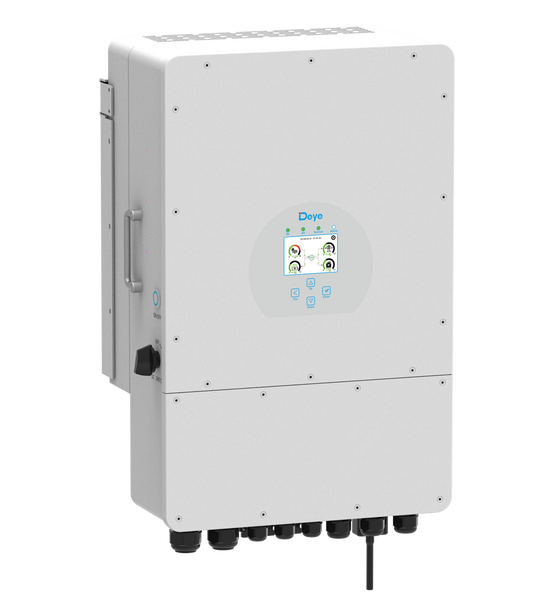

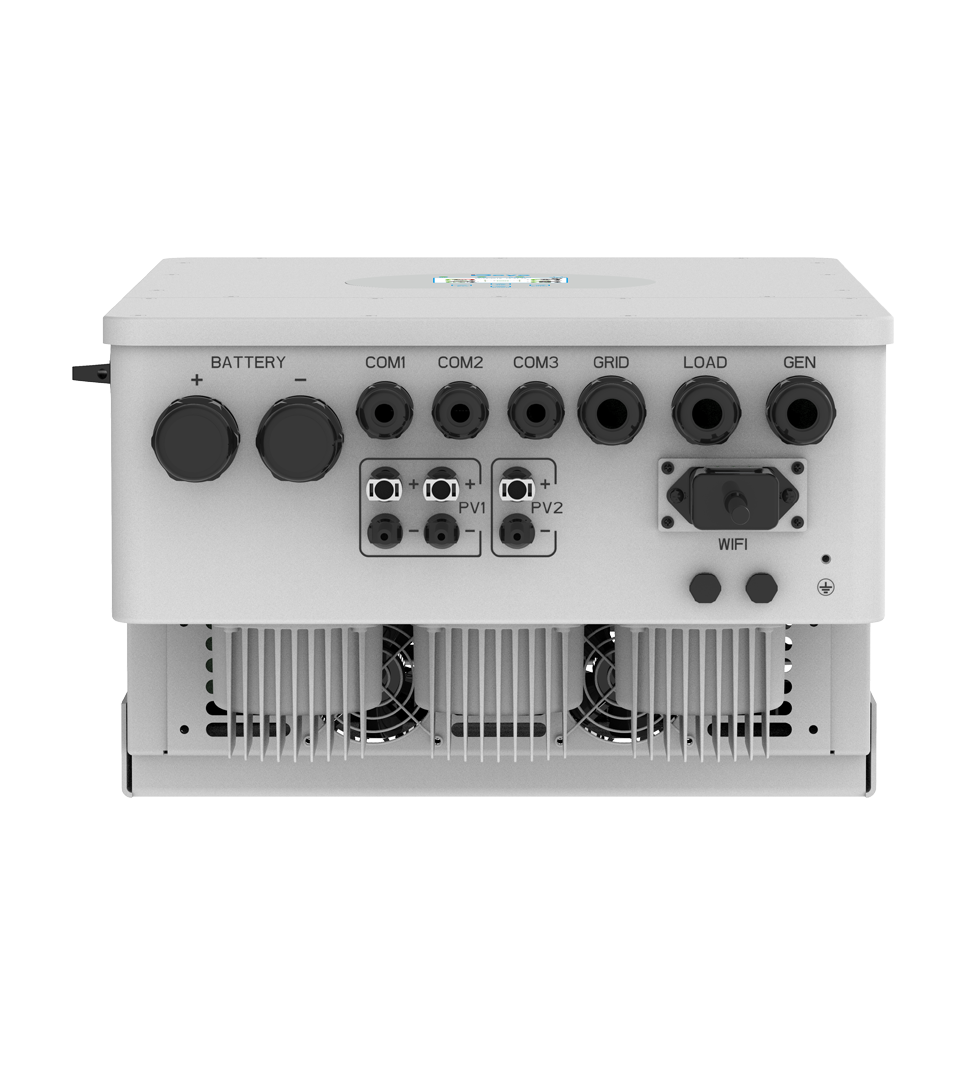

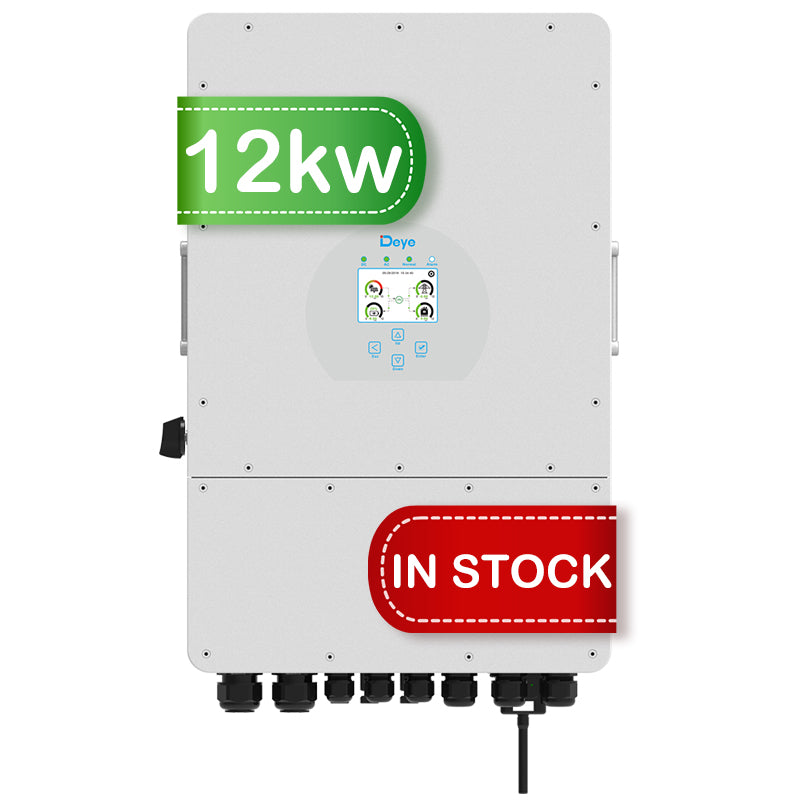

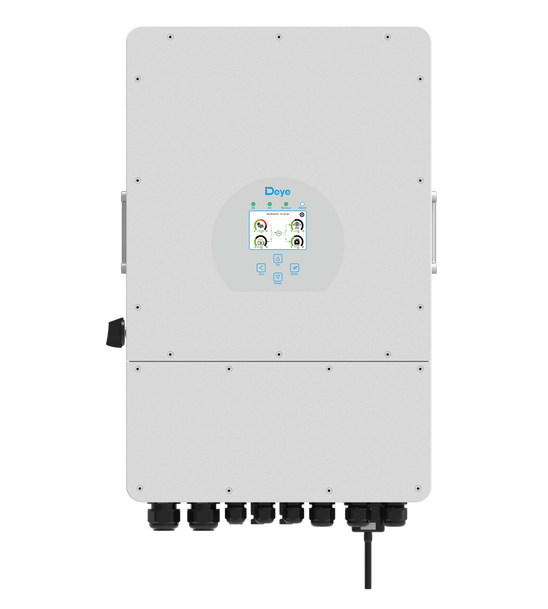

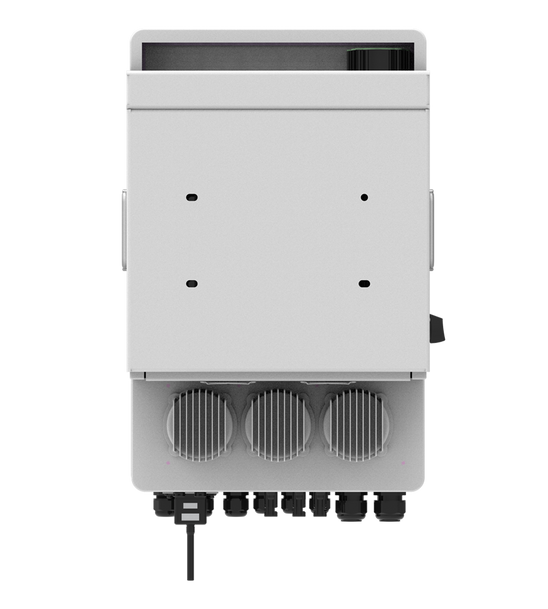

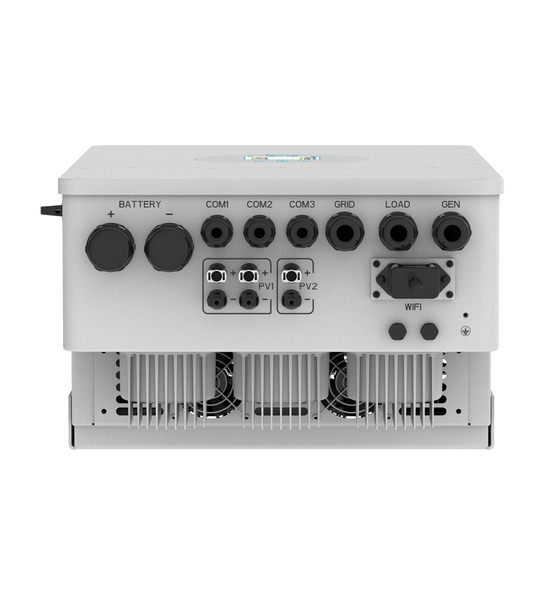

Deye 12kw SUN-12K-SG04LP3-EU wechselrichter solar hybrid panel energy inverter 12kw 3 phase sofar hybrid solar inverter
Save -56%
Rs. 806,817.28
Rs. 1,813,115.56
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Paramenters
|
Model
|
SUN-8K -SG04LP3-EU
|
SUN-10K -SG04LP3-EU
|
SUN-12K -SG04LP3-EU
|
||
|
Battery Input Data
|
|||||
|
Battery Type
|
Lead-acid or Li-lon
|
||||
|
Battery Voltage Range (V)
|
40-60
|
||||
|
Max. Charging Current (A)
|
190
|
210
|
240
|
||
|
Max. Discharging Current (A)
|
190
|
210
|
240
|
||
|
External Temperature Sensor
|
Yes
|
||||
|
Charging Curve
|
3 Stages / Equalization
|
||||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
||||
|
PV String Input Data
|
|||||
|
Max. DC Input Power (W)
|
10400
|
13000
|
15600
|
||
|
Rated PV Input Voltage (V)
|
550 (160~800)
|
||||
|
Start-up Voltage (V)
|
160
|
||||
|
MPPT Voltage Range (V)
|
200-650
|
||||
|
Full Load DC Voltage Range (V)
|
350-650
|
||||
|
PV Input Current (A)
|
13+13
|
26+13
|
|||
|
Max. PV ISC (A)
|
17+17
|
34+17
|
|||
|
Number of MPPT / Strings per MPPT
|
2/1+1
|
2/2+1
|
|||
|
AC Output Data
|
|||||
|
Rated AC Output and UPS Power (W)
|
8000
|
1000
|
12000
|
||
|
Max. AC Output Power (W)
|
8800
|
11000
|
13200
|
||
|
AC Output Rated Current (A)
|
12.1
|
15.2
|
18.2
|
||
|
Max. AC Current (A)
|
18.2
|
22.7
|
27.3
|
||
|
Max. Continuous AC Passthrough (A)
|
45
|
||||
|
Peak Power (offff grid)
|
2 time of rated power, 10 S
|
||||
|
Power Factor
|
0.8 leading to 0.8 lagging
|
||||
|
Output Frequency and Voltage
|
50/60Hz; 3L/N/PE 220/380, 230/400Vac
|
||||
|
Grid Type
|
Three Phase
|
||||
|
DC injection current (mA)
|
THD<3% (Linear load<1.5%)
|
||||
|
Effiffifficiency
|
|||||
|
Max. Effiffifficiency
|
97.6%
|
||||
|
Euro Effiffifficiency
|
97%
|
||||
|
MPPT Effiffifficiency
|
99.9%
|
||||
|
Protection
|
|||||
|
Integrated
|
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Surge protection
|
||||
|
Certififications and Standards
|
|||||
|
Grid Regulation
|
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
VDE 0126-1-1, RD 1699, C10-11
|
||||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
||||
|
General Data
|
|||||
|
Operating Temperature Range (℃)
|
-45~60℃, >45℃ derating
|
||||
|
Cooling
|
Smrat cooling
|
||||
|
Noise (dB)
|
<45 dB
|
||||
|
Communication with BMS
|
RS485; CAN
|
||||
|
Weight (kg)
|
33.6
|
||||
|
Size (mm)
|
422W x 699.3H x279D
|
||||
|
Protection Degree
|
IP65
|
||||
|
Installation Style
|
Wall-mounted
|
||||
|
Warranty
|
5 years
|
||||
