Drop shipping 1pcs LiFEPO4 12V 100AH BMS rechargeable lithium ion phosphate battery pack
Save -52%
Rs. 99,421.78
Rs. 207,513.08
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Products Description
|

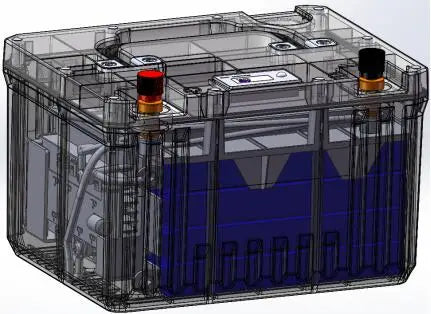

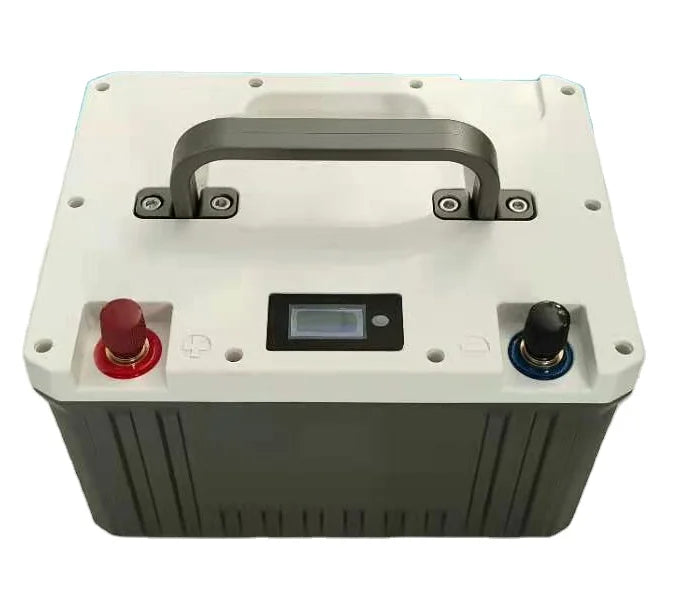

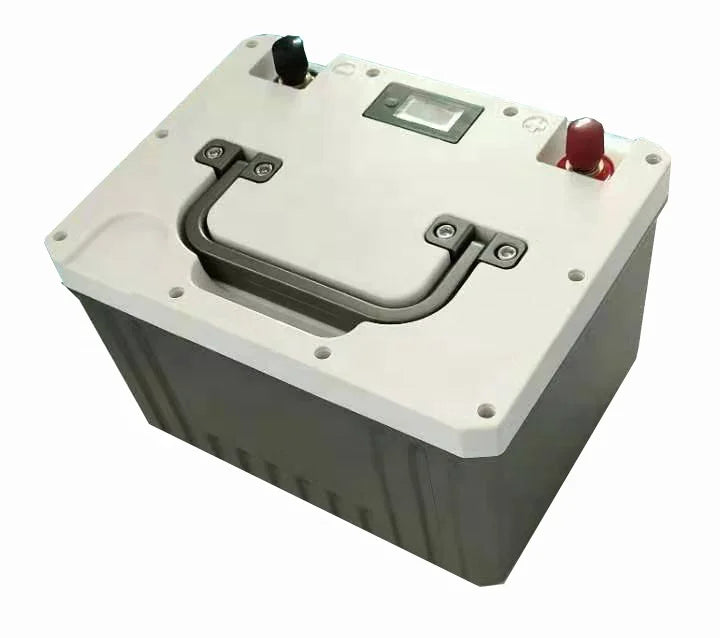

Deep cycle 12v 100ah LiFePO4 Lithium battery for Solar system/Camping Car/Yacht/Carvan with Built in BMS and LCD monitor
|
||||||||
|
Item
|
Specification
|
Note
|
||||||
|
Battery Pack
|
Nominal Voltage:
|
12V
|
Any voltage can be customized
|
|||||
|
Nominal Capacity:
|
100Ah
|
Any capacity can be customized
|
||||||
|
Discharge Cut-Off:
|
10V
|
|||||||
|
Charge Cut-Off:
|
14.6V
|
|||||||
|
Charge Current:
|
100A
|
Free customization service
|
||||||
|
Cont. Discharge:
|
200A
|
Free customization service
|
||||||
|
Peak Discharge:
|
400A
|
Free customization service
|
||||||
|
Impedance:
|
≤20mΩ
|
|||||||
|
Charge Temperature:
|
0℃ - 45℃
|
|||||||
|
Discharge Temperature:
|
-20℃ - 60℃
|
|||||||
|
Charge Method:
|
CC/CV
|
|||||||
|
Life Cycle:
|
2000+
|
80% DOD, Max. 95% DOD
|
||||||
|
BMS:
|
With BMS
|
|||||||
|
Dimension:
|
L*W*H: 330*175*220mm
|
Any dimension can be customized
|
||||||
|
Weight:
|
14KG
|
|||||||
|

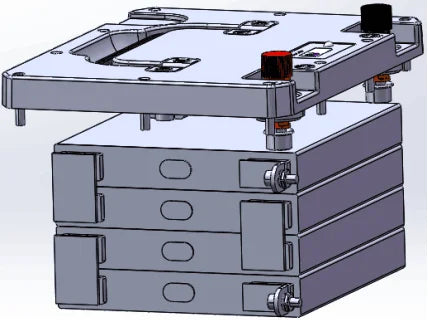

Battery Cell Used
|
Prismatic LiFePO4 Cell
|
3.2V 100Ah/50Ah/25Ah
|
4S1P/ 4S2P/ 4S4P
|
|||||
|
BMS
|
|
Single cell overcharge protection voltage
|
3.9±0.05V
|
|||||
|
Single overcharge release voltage
|
3.6±0.05V
|
|||||||
|
Charge Protection
|
Rated charging current
|
≤200A
|
||||||
|
Over discharge protection
|
Single cell over-discharge protection voltage
|
2.20±0.1V
|
||||||
|
Single-substrate release voltage
|
2.7±0.1V
|
|||||||
|
Rated discharge current
|
≤200A
|
|||||||
|
Discharge protection current
|
500±100A (10mS)
|
|||||||
|
Short circuit protection
|
Short circuit protection
|
200-600 µs
|
||||||
|
Communication Function
|
Support
|
Confirm with supplier
|
||||||
|
Balance
|
Active cell balancing
|
Confirm with supplier
|
||||||
|

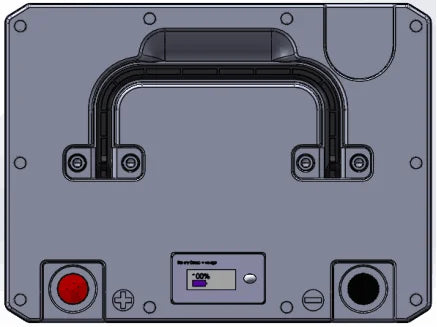

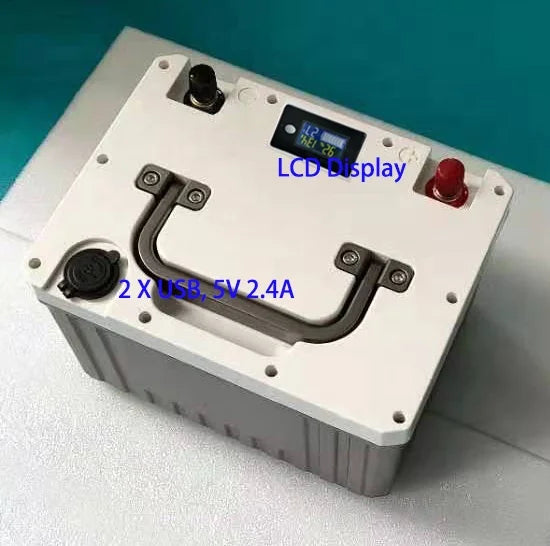

LED Indicator
|
Display content
|
Voltage/ Capacity%/ Working Temperature
|
||||||
|
Battery Case
|
ABS plastic case
|
With handle
|
||||||
|
IP Grade
|
IP65
|
|||||||
