Easun On Off Grid Tie 10KW Parallel Function 3 phase 8KW Double Output Dual MPPT 120A 48V Solar Inverter Hybrid
182380969013089_91407554
9999 In Stock Sold Out 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999
Share

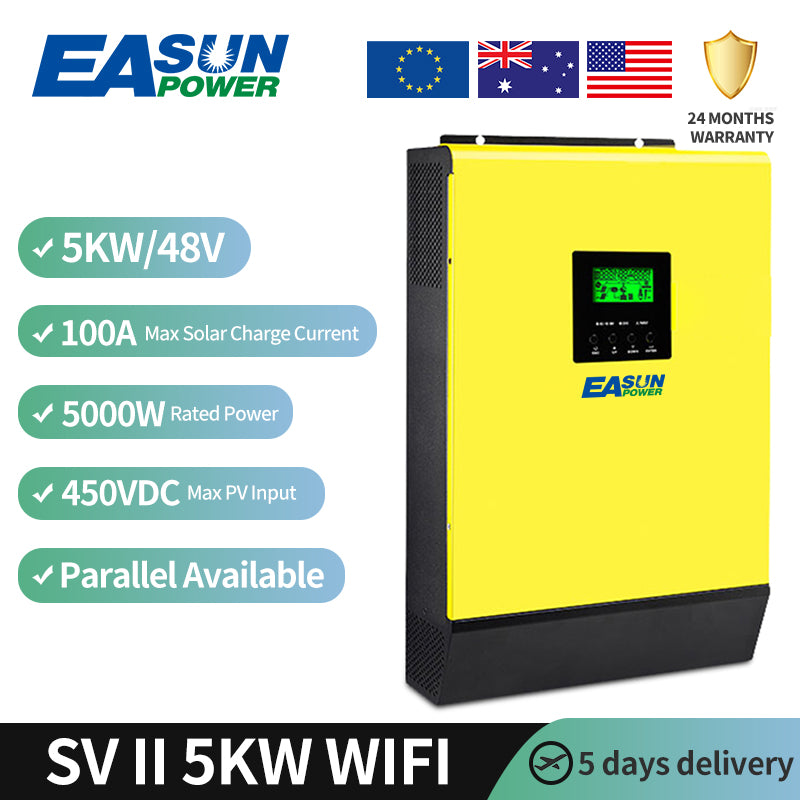

* Pure sine wave max 5000w output
* Max 100A MPPT solar charger
* Max 450Vdc input
* HYBRID Grid-Tie / Off Grid SOLAR inverter for 48V system
* Parallel support up to 9 units
* Batteryless operation
* Total system max charging: 80A
* Bundled monitoring & setting software
* Supports 50hz or 60hz (program adjustable)
* Grid feedback when there is excess energy
* USB interface available
* Able to use ac grid or generator power
* Timer setting for AC charging & output now available
* Pure sine wave inverter. PF 1.0

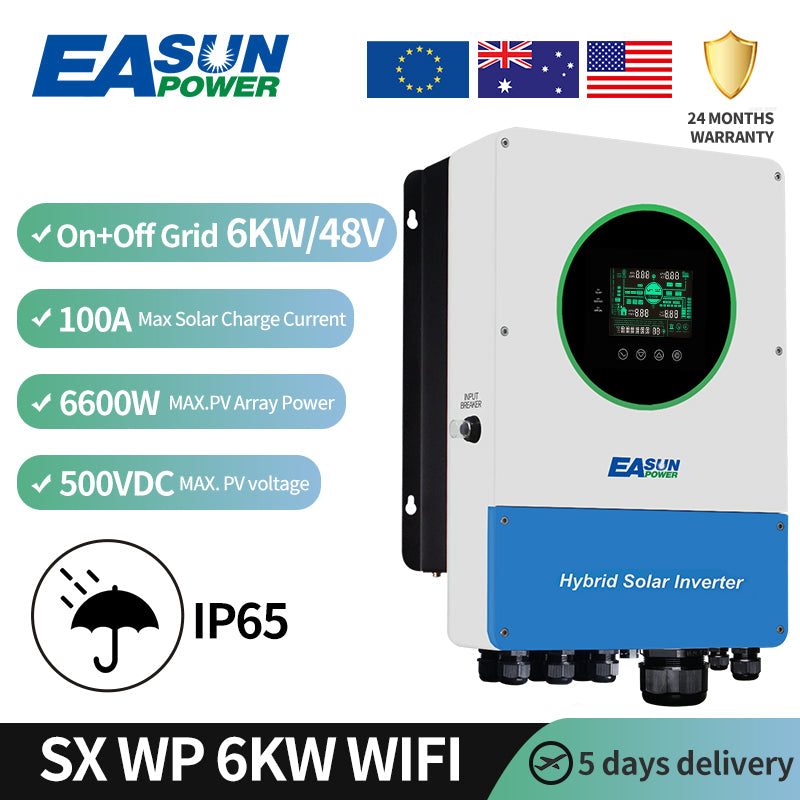

6000W 110A MPPT.
120-500V wide PV input. Maximum PV Array Open Circuit Voltage: 500V
Support with Lifepo4, Lithium Ion, GEL, AGM, Lead-acid battery
Can work no battery.
Generate power from PV directly to supply load, even without battery.
PV to AC efficiency is much higher.

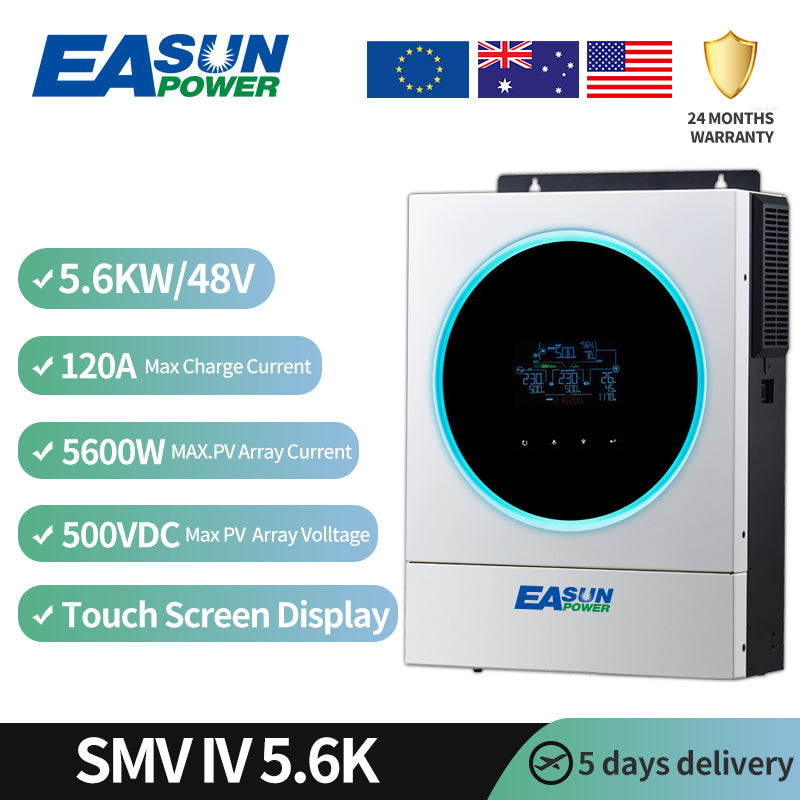

·Customizable status LED ring with RGB lights
·Touchable button with 4.3" colored LCD
· Supports USB On-the-Go function
· Data log events stored in the inverter
· Self-consumption and Feed-in to the grid
·Programmable supply priority for PV, Battery or Grid
·User-adjustable charging current and voltage
·Programmable multiple operationmodes:Grid-tie,off-grid and grid-tie with backup
· Built-in Wi-Fi for mobile monitoring (App is available)
· Reserved communication port for BMS
· Parallel operation up to 9 units

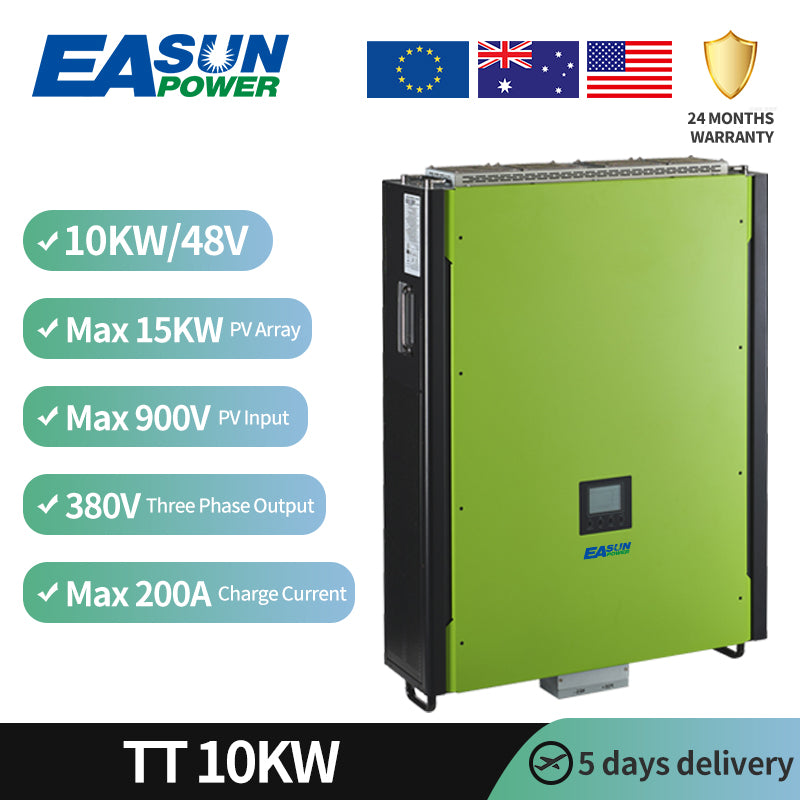

* 10000W 48V Pure Sine Wave Inverer + 14850W MPPT Solar Charger + 40A Battery Charger
* Max PV Input 900Vdc
* Works With 380~415Vac Load Only
* Works With 48v Battery System only
* Max Grid-Tie conversion efficiency up to 96%
* Large LCD display of comprehensive system info
* RS232 and USB interface available
* User programmable functions
* Bundled Free monitoring software with setting programs
* CE, VDE4105 , AS 4777 certified
* Supports Parallel Function up to 6 units Max, built-in parallel board
|
MODEL
|
IGrid SV II 5KW
|

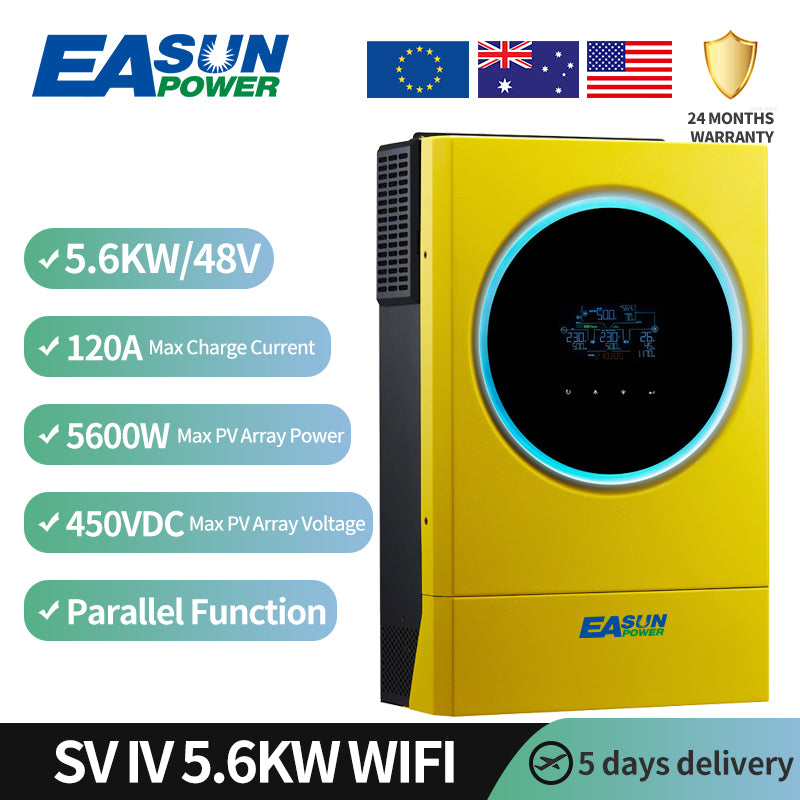

IGrid SV IV 5600W
|
IGrid TT 10KW
|
IGrid TT 15KW
|
|||
|
PHASE
|
1-phase in / 1-phase out
|
1-phase in / 1-phase out
|
3-phase in / 3-phase out
|
3-phase in / 3-phase out
|
|||
|
Maximum PV Input Power
|
5000W
|
6000W
|
14850 W
|
22500 W
|
|||
|
Rated Output Power
|
5000W
|
5600W
|
10000W
|
15000W
|
|||
|
MPP Voltage Range
|
120 VDC ~ 430 VDC
|
120 VDC ~ 430 VDC
|
350 VDC ~ 850 VDC
|
400 VDC ~ 800 VDC
|
|||
|
Nominal Output Voltage
|
220/230/240 VAC
|
230 VAC (P-N) / 400 VAC (P-P)
|
230 VAC (P-N) / 400 VAC (P-P)
|
||||
|
Output Waveform
|
Pure sine wave
|
||||||
|
Nominal DC Voltage
|
48 VDC
|
48 VDC
|
48 VDC
|
48 VDC
|
|||
|
Maximum Charging Current
|
100 A
|
120 A
|
200 A
|
300 A
|
|||
|
Net Weight (kgs)
|
12
|
54
|
73
|
||||
|
Parallel Function
|
Yes, 9 units ( Parallel kits optional )
|
Yes, up to 6 units ( Parallel kits optional)
|
|||||
|
Communication Port
|
USB/RS232/RS485/WIFI/Dry-contact
|
RS-232/USB and CAN Interface
|
|||||
