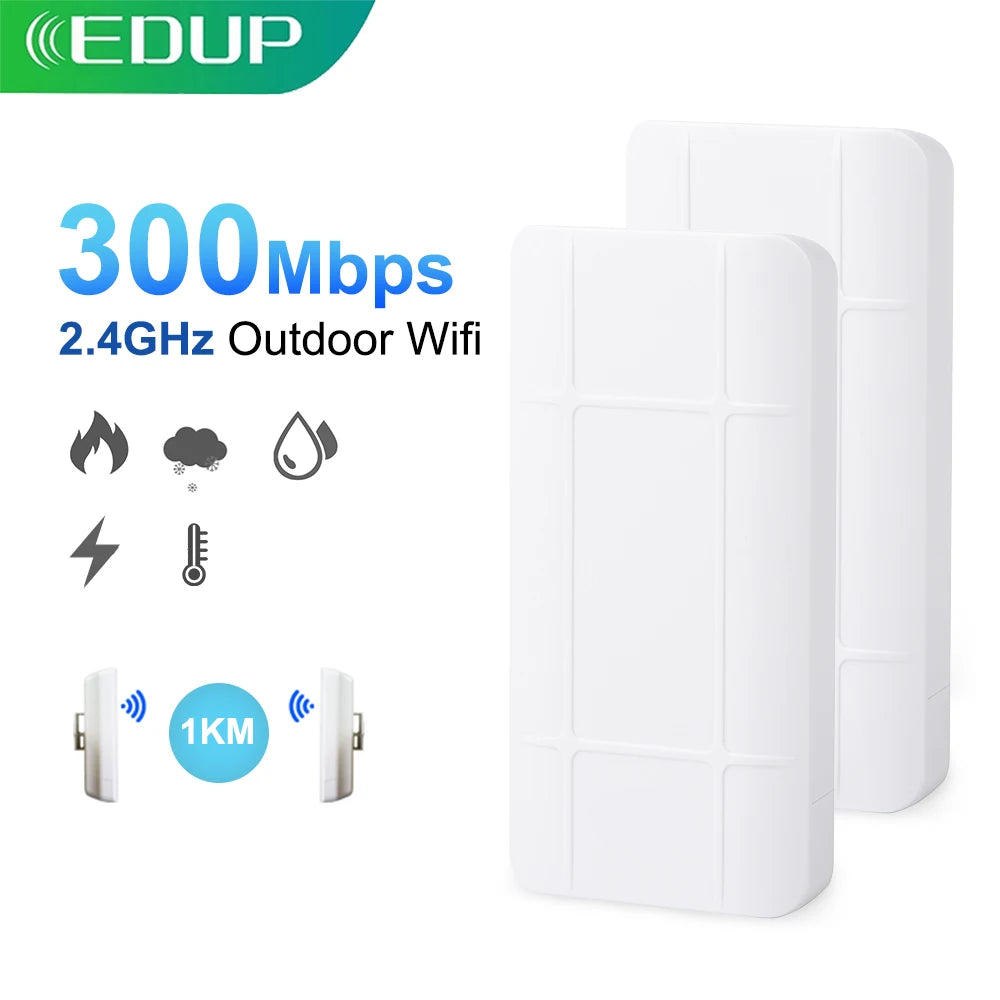

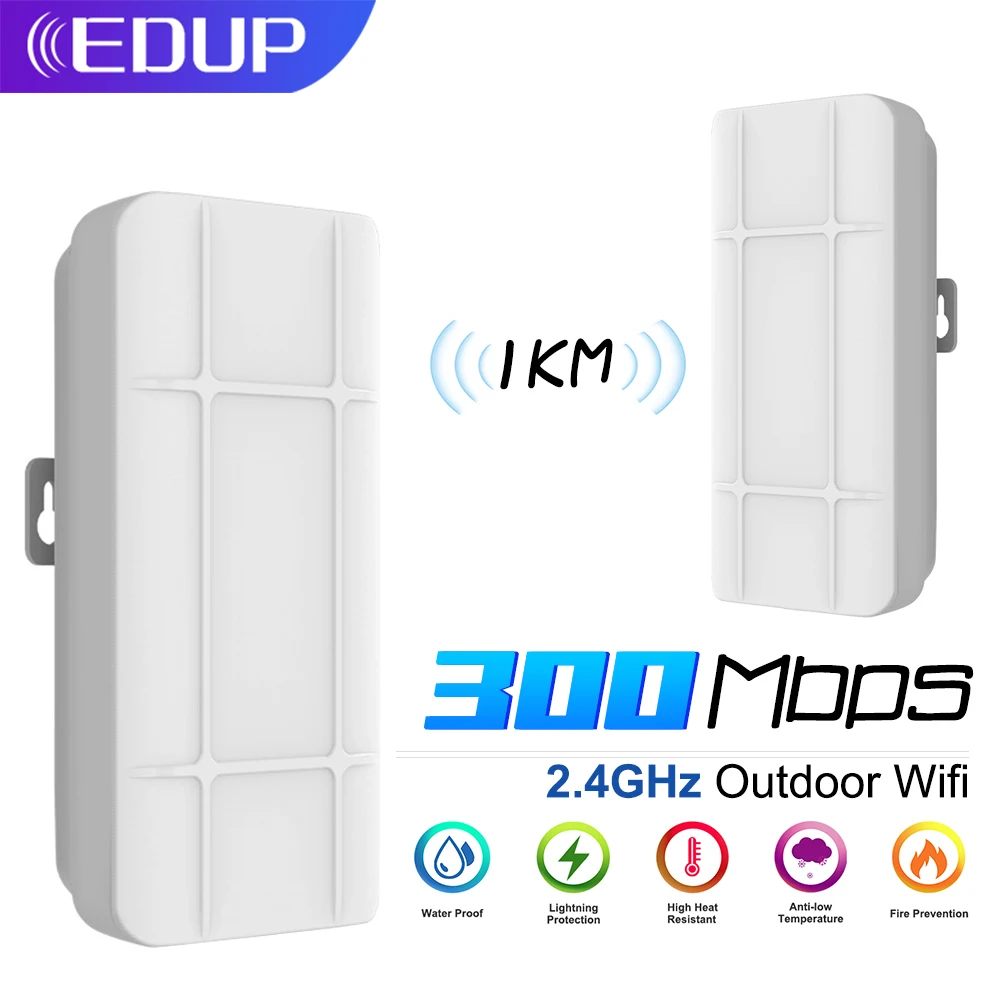

EDUP 2.4GHz No Setting 1KM Long Range Wireless Outdoor Bridge Network Bridge 300Mbps Router Outdoor Network Bridge Support POE
Share
5.8GHz Wireless Bridge 900Mbps 3-5KM Transmission Distance
Features:
An economical outdoor CPE with a data rate of 300Mbps, following the IEEE 802.11b/g/n standard, built-in 10dBi panel antenna, and receiving and sending wireless distance up to 1000 meters or more.
Support router, universal repeater, WISP, AP, repeater mode, effectively solve the PTP, PTMP application and outdoor long-distance WIFI coverage application problems.

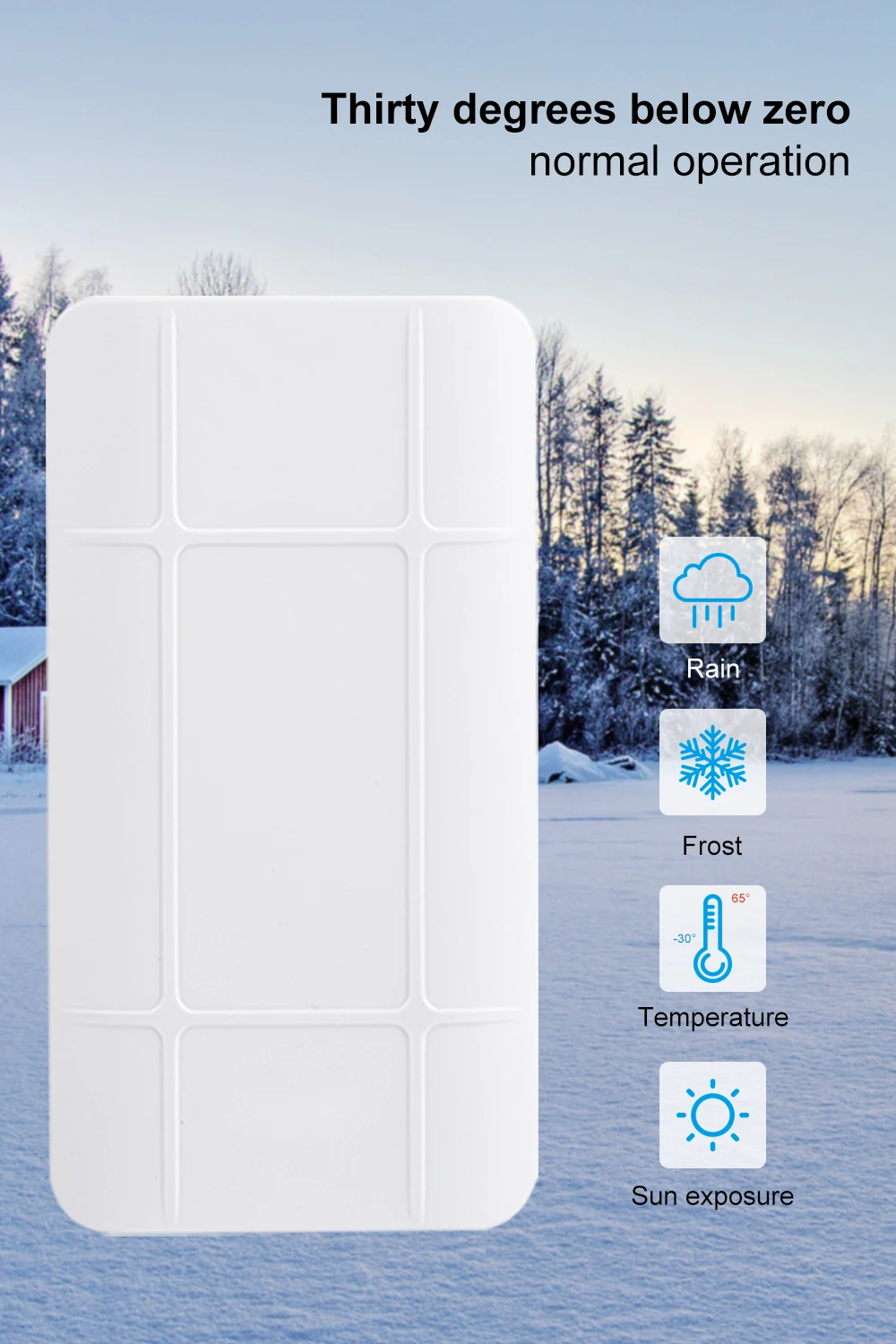

The shell has ABS waterproof, dustproof, sun-proof functions, temperature adaptation, board protection, and supports 24V passive POE. It is easy to install even if there is no power outlet nearby, suitable for outdoor use.

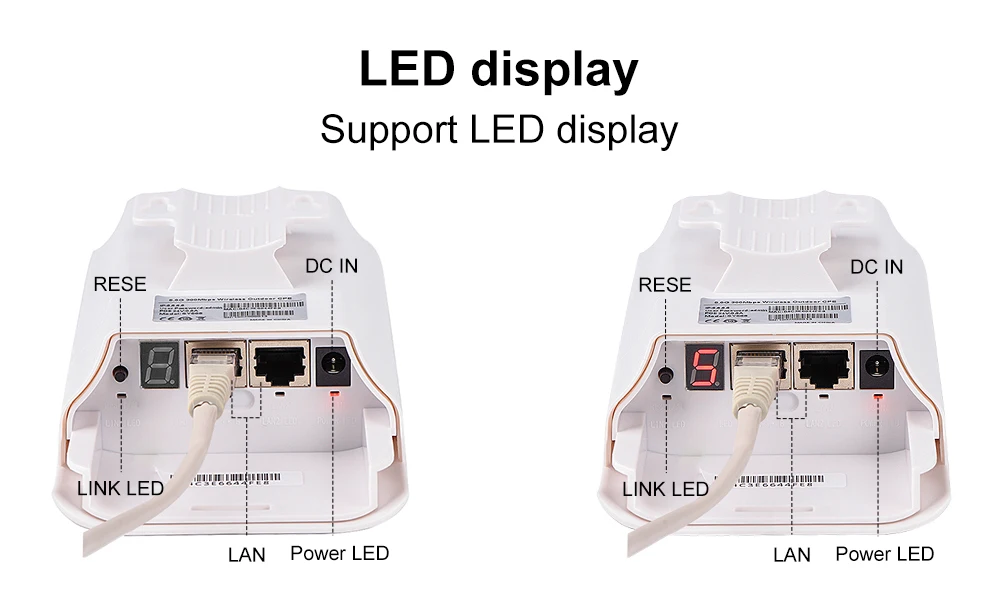

In addition, with digital display, easy to pair, simple configuration, the device is widely used in closed-circuit television, rural remote data transmission, parks, squares and other occasions.
Note:If the bridge is not paired to use, the transmission distance will not reach 1Km! Please confirm your usage before placing an order!
Application mode:
*Point-to-point network transmission

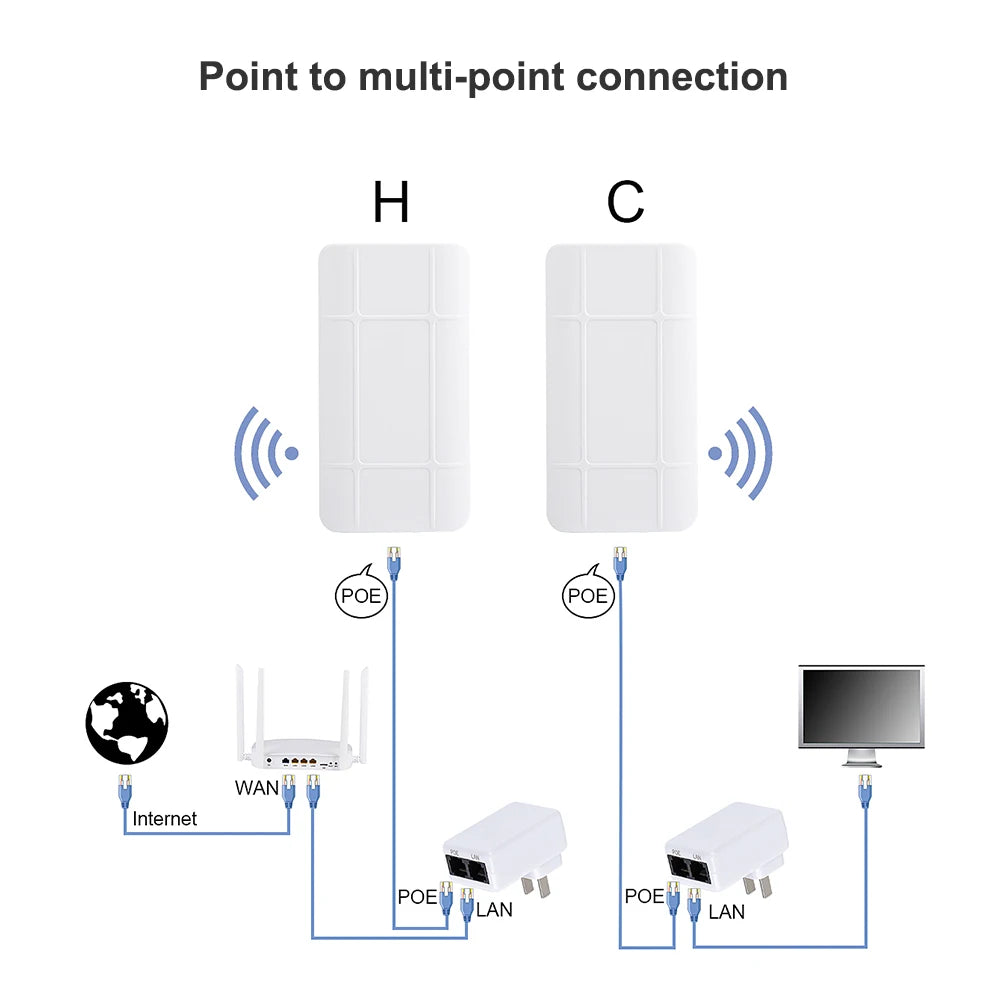

*Point-to-multipoint network transmission
*Point-to-multipoint multi-camera monitoring network transmission
*Point-to-point network coverage
Specifications:
1.Clock frequency:550MHz
2.Communication standard:2.4G: 300M 802.11b/g/n MIMO technology
3.Interface:LAN1/WAN PoE+LAN2 10/100Mbps RJ45
4.Memory:64MB DDR2 RAM
5.Flash Memory:8MB
6.Power supply power:<12W
7.Power support:POE:24V 0.5A,DC:12V 1A

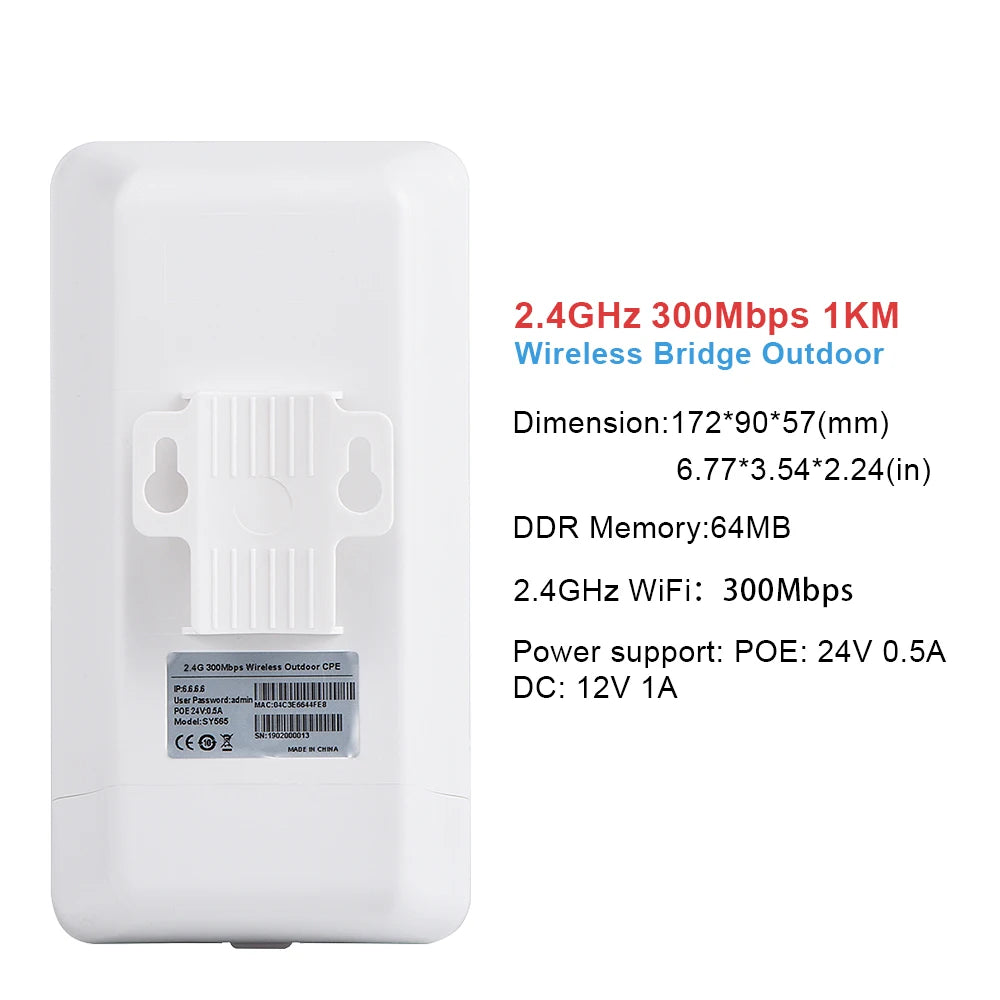

8.Size:172*90*57(mm)
9.Weight:0.5KG
10.Maximum access user:32
11.Button:1 reset button, long press to reset, short press to adjust the number to display the number
12.Working mode:Routing mode, Universal relay mode, WISP mode, AP mode and Relay mode
13.Internet access:Controller address/DHCP/Static IP

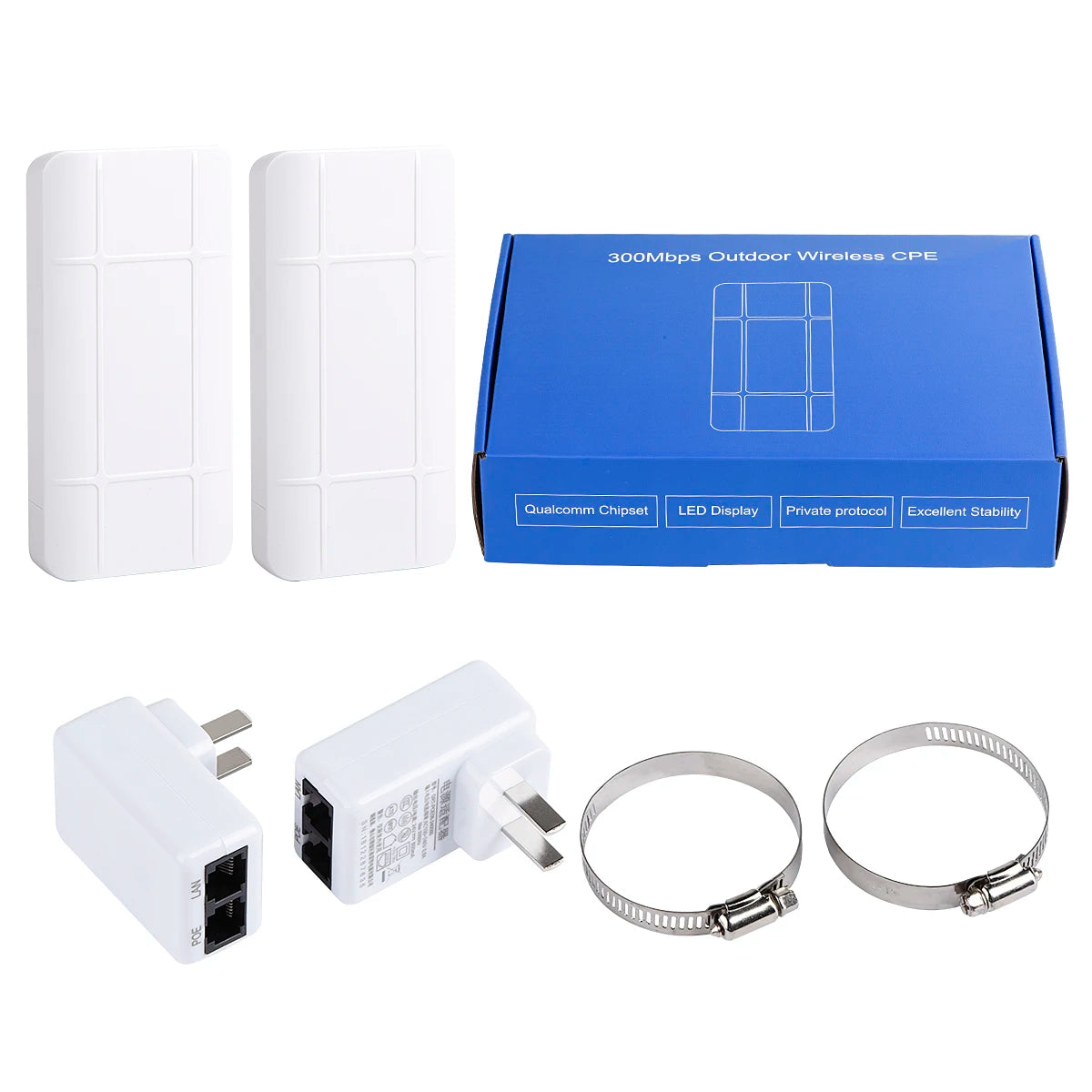

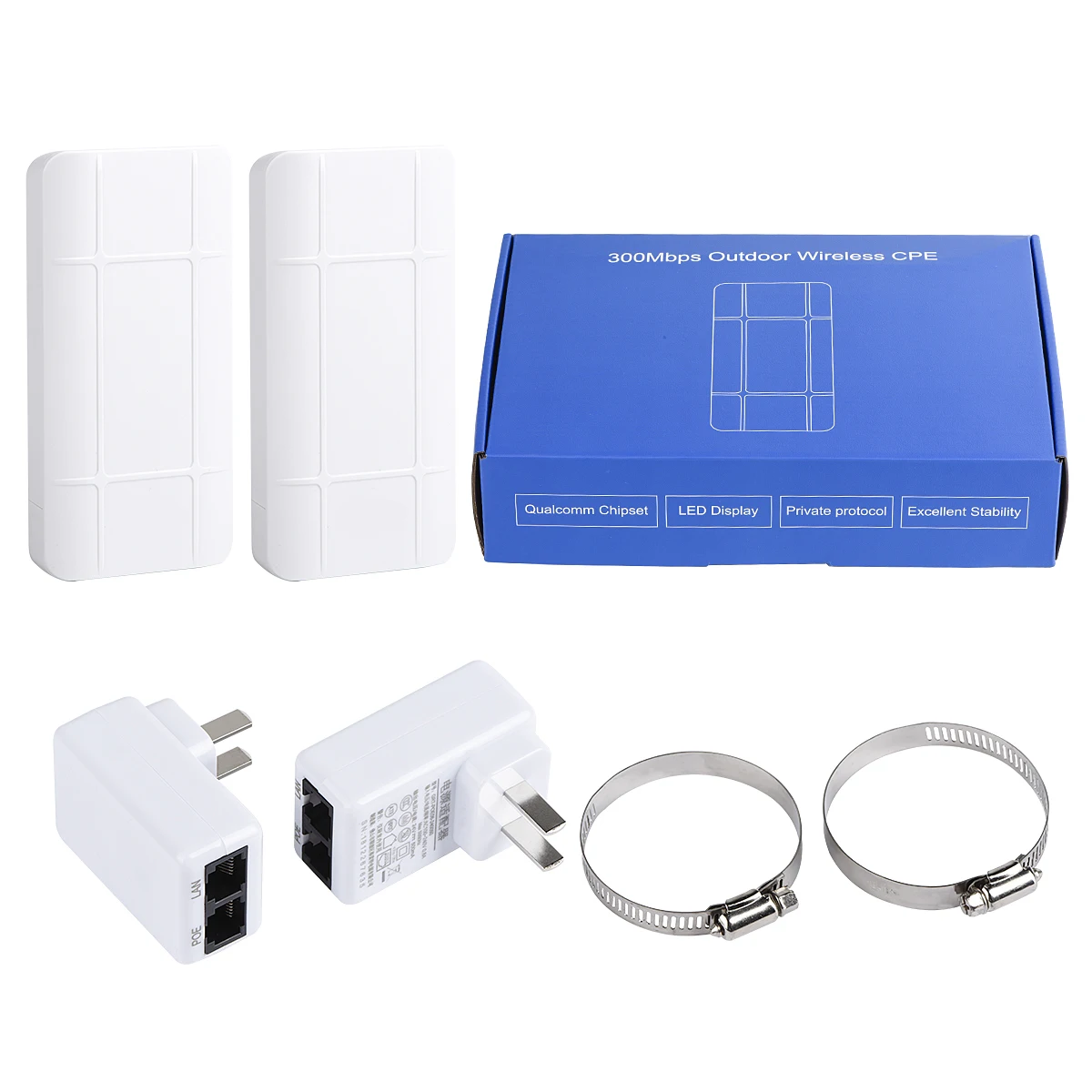

Packing list:
2*Network bridge
4*Tie
2*Power adapter(24V 0.5A)
2*Network cable
1*User manual
