Product Description

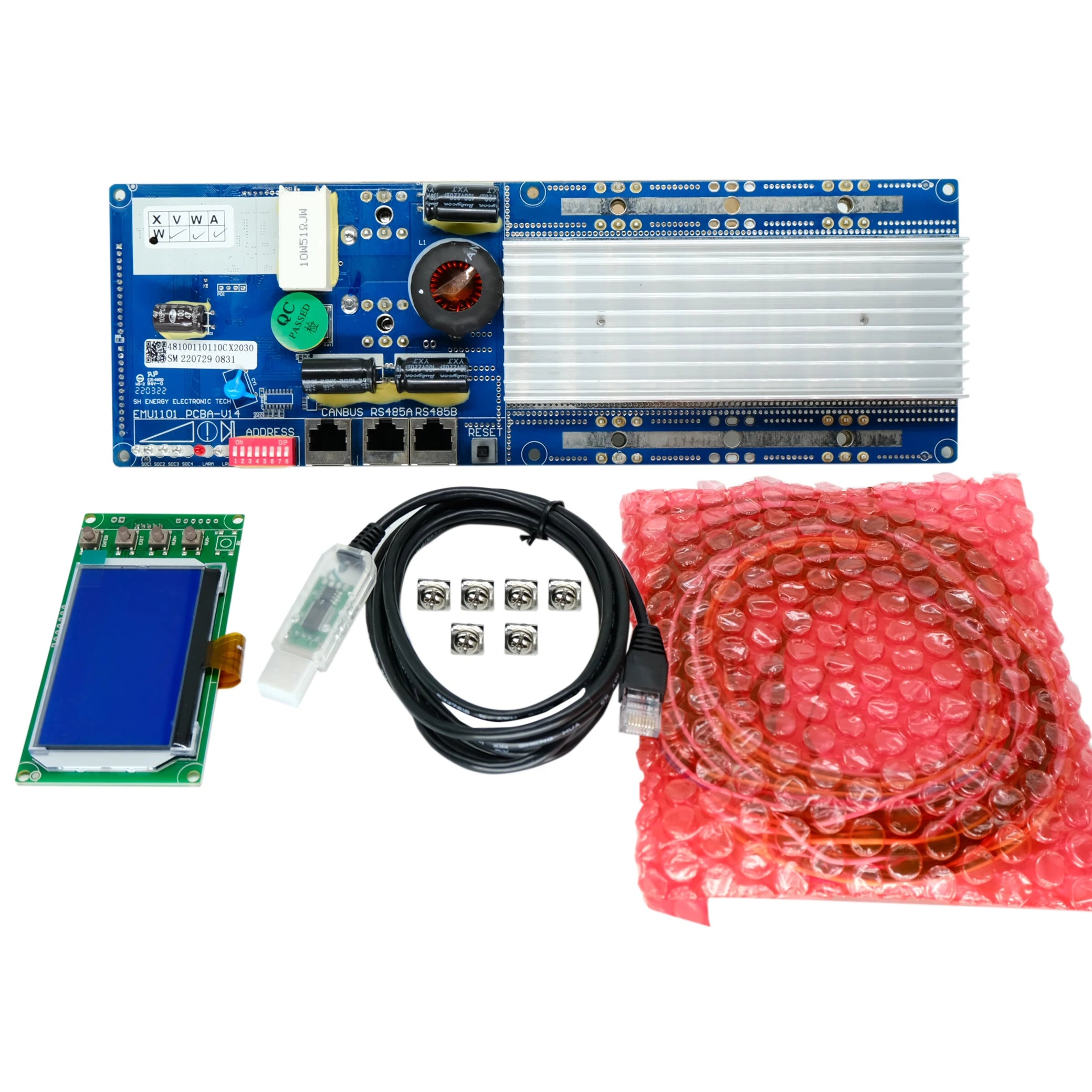

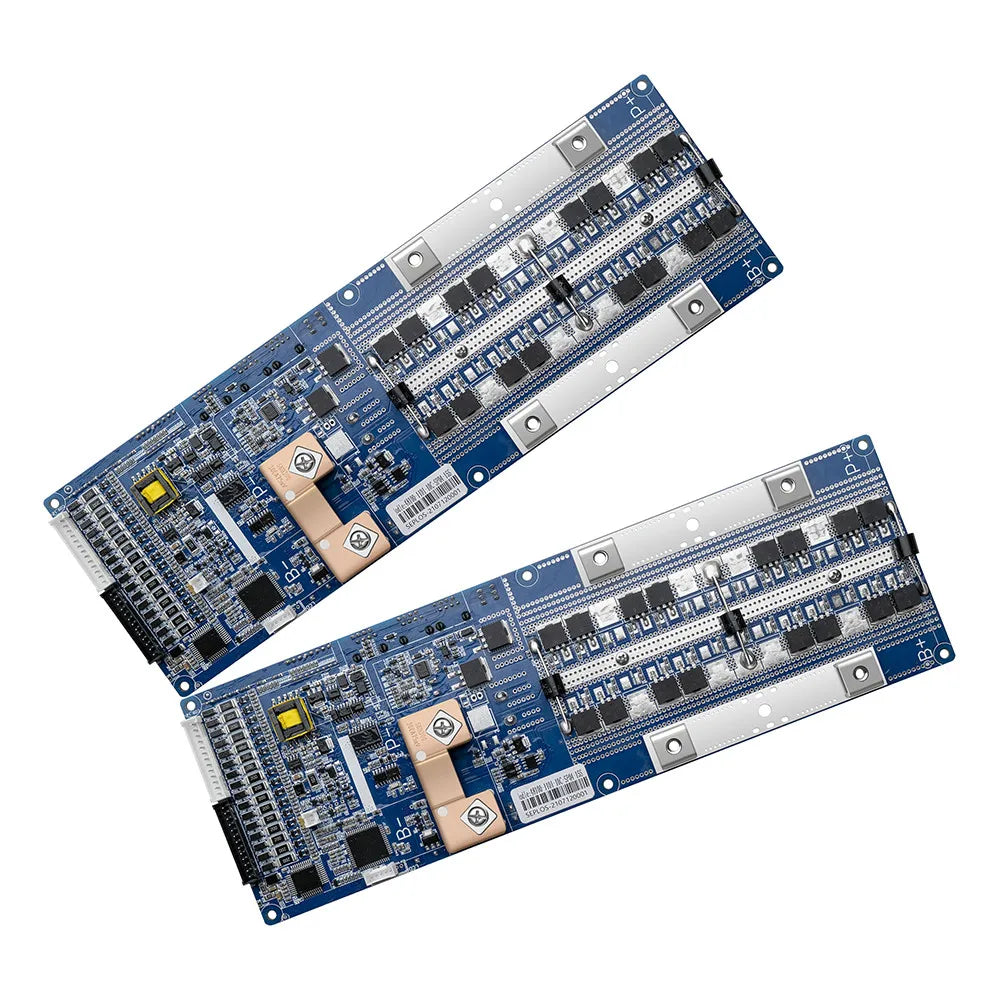

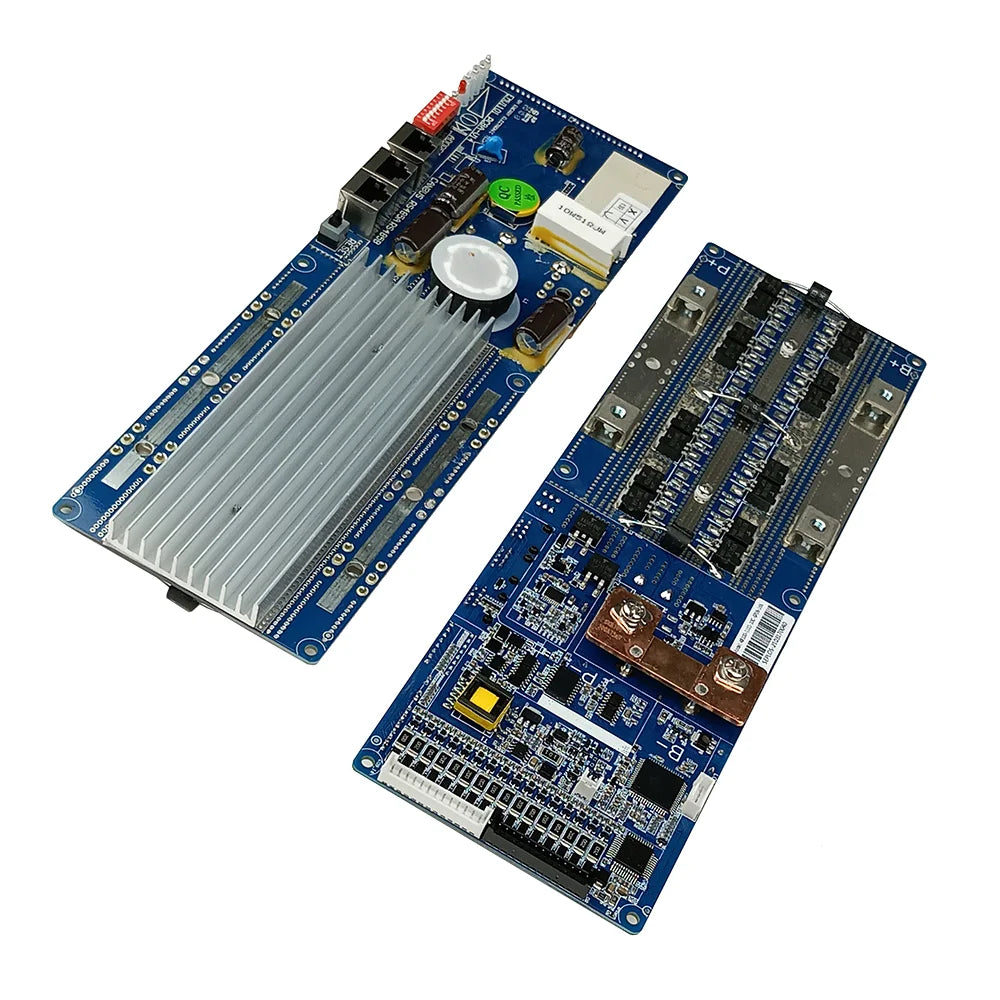

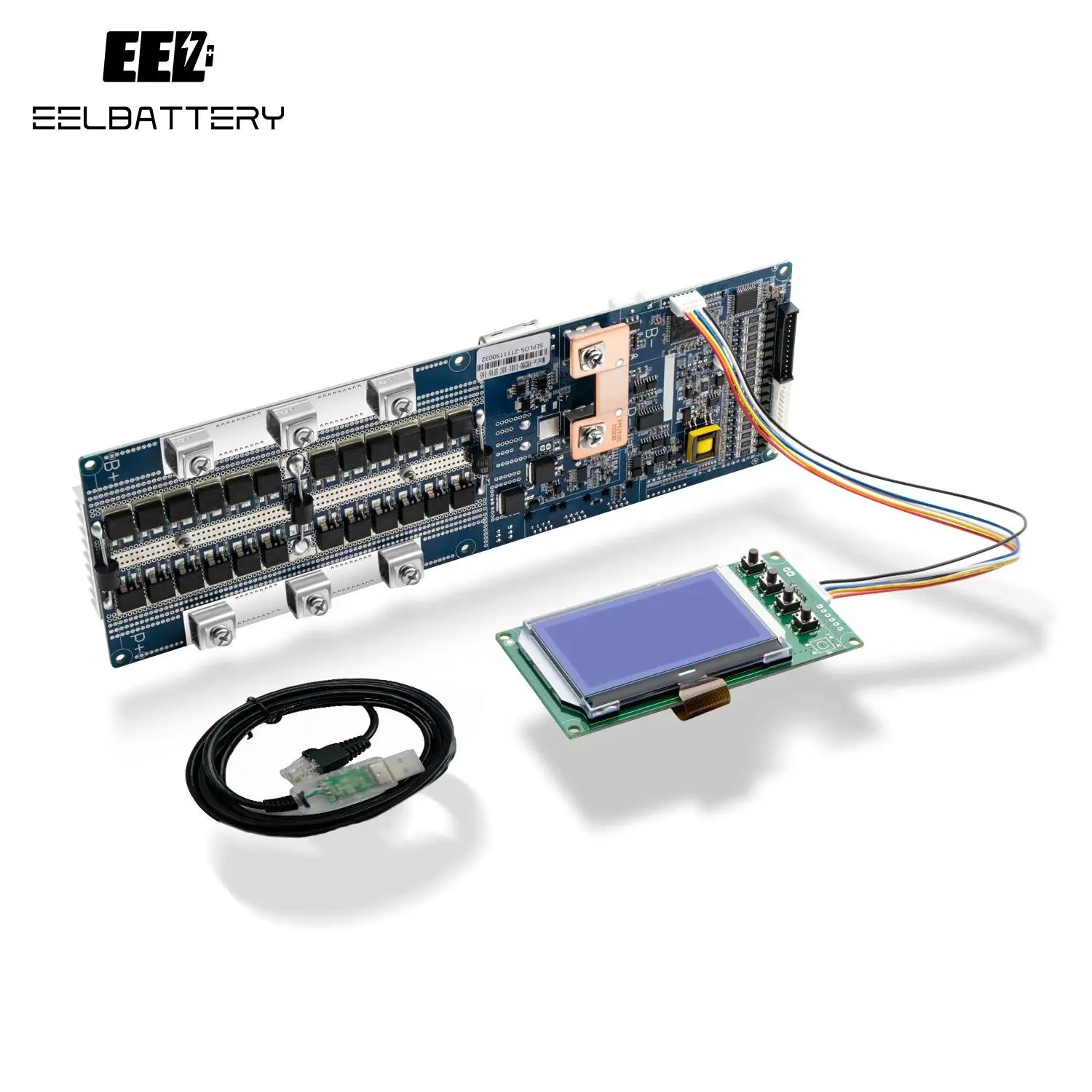

Smart lithium lifepo4 battery module CANBUS/RS485 24/48v 8S-16S 50A/75A/100A/150A/200A battery protection board Cell BMS LCD monitoring system

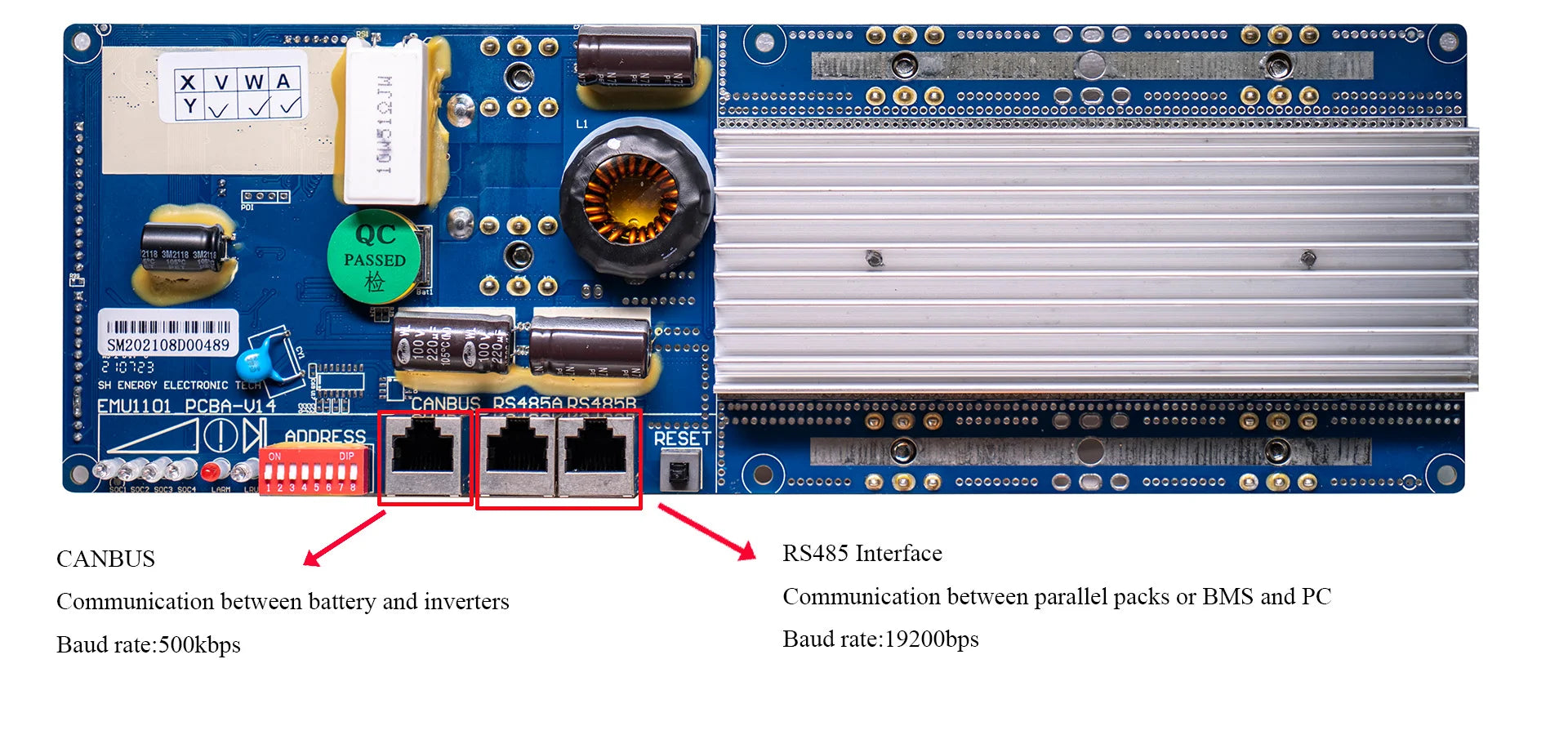

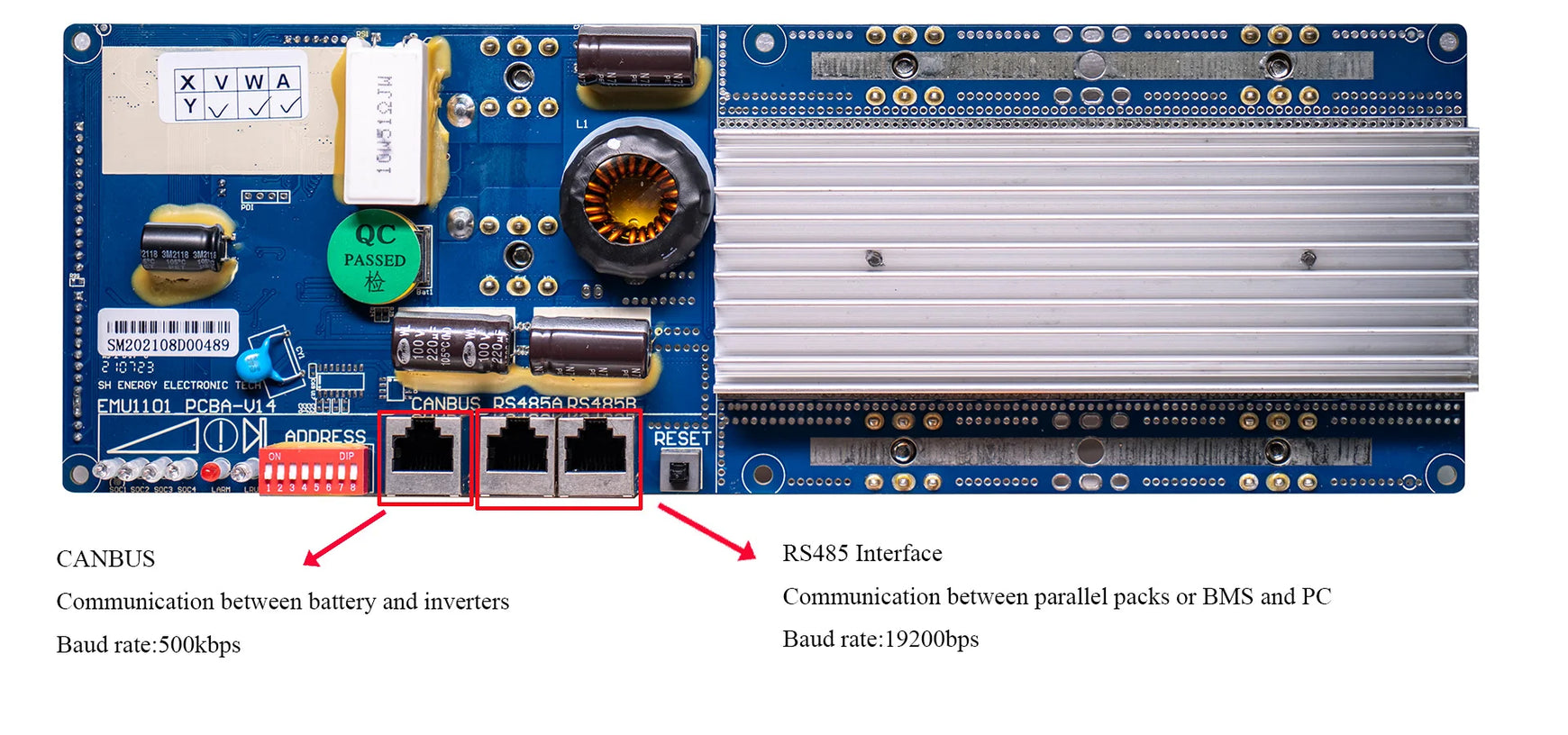

RS485 converter is necessary to connect upper computer for bms setting.
1. This smart bms with CANBUS/RS485 module is compatible with lifepo4 & lithium NCM battery pack
2.BMS support CANBUS communication protocol and RS485 communication protocol.
2.BMS support CANBUS communication protocol and RS485 communication protocol.
3.Our BMS can support up to max 16 units in parallel operation.
4.The main functions are: CANBUS communication,RS485 communication,passive balance,individual cell over voltage protection,Over（under)voltage protection,temperature protect,over charge (discharge)protection, over current protection, Short circuit protection.
4.The main functions are: CANBUS communication,RS485 communication,passive balance,individual cell over voltage protection,Over（under)voltage protection,temperature protect,over charge (discharge)protection, over current protection, Short circuit protection.
Specification
|
Battery type and serial number
|
LFP(16S/15S)
|
NCM(14S/13S)
|
|||||
|
Continuously charging/discharging current
|
50A/75A/100A/150A/200A
|
50A/75A/100A/150A/200A
|
|||||
|
Communication protocol
|
CANBUS and RS485
|
CANBUS and RS485
|
|||||
|
Custom function
|
Heating function、External switch
|
Heating function、External switch
|
|||||
|
Working temperature
|
-20℃-70℃
|
||||||
|
Pre-charging
|
0-3000ms
|
||||||
|
Current Balance
|
Passive balance
|
150mA(Max)
|
|||||
|
|
Working mode power consumption
|
<40mA
|
|||||
|
Sleeping mode power consumption
|
0uA
|
||||||
|
Capacity protection
|
Nominal capacity
|
5-500Ah
|
|||||
|
Remaining capacity protection
|
5%
|
||||||
|
Short Circuit protection |
Short circuit protection lock
|
Continuously short in output circuit
|
|||||
|
Short circuit protection lock times
|
5 times
|
||||||
|
Short circuit protection lock release
|
Connected with charger
|
||||||
|
|
Over voltage protection
|
3650mV
|
4200mV
|
||||
|
Under voltage protection
|
2700mV
|
2900mV
|
|||||
|
|
Over voltage protection
|
57.6V
|
58V
|
||||
|
Under voltage protection
|
41.6V
|
40.6V
|
|||||
|
|
Over current protection
|
60A/85A/110/160A/210A
|
|||||
|
Over current protection time delay
|
30mS
|
||||||
|
Current limiting(charging)
|
Passive current limiting
|
10A
|
|||||
|
|
Start
|
0℃
|
|||||
|
Stop
|
10℃
|
||||||

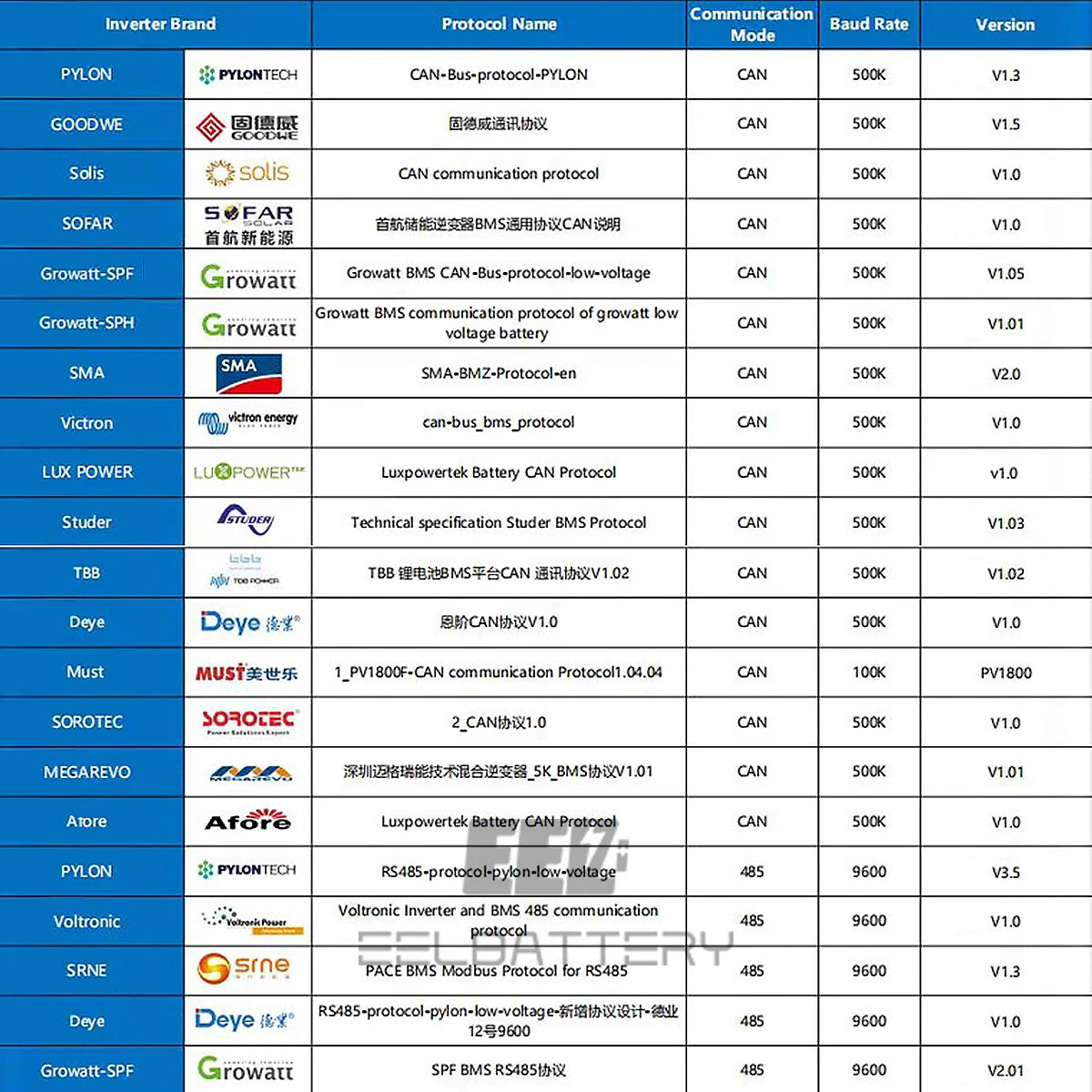

CANBUS protocol is compatible with following inverters brand
The CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
*Pylontech
* Goodwe
* Growatt SPF&SPH
* Victron
* LUX POWER
* Sofar
* DEYE
* Studer
* MUST
* TBB POWER
* SOLIS
* SMA
* Goodwe
* Growatt SPF&SPH
* Victron
* LUX POWER
* Sofar
* DEYE
* Studer
* MUST
* TBB POWER
* SOLIS
* SMA
* SOROTEC
* MEGAREVO
* Afore
If your inverter brand not in the list, please kindly ask the inverter supplier to provide the protocol to define. And send protocol to us, we'll help to solve it.
RS485 protocol is compatible with following inverters brand
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching
inverter brand, which can be automatically matched or manually switched:
inverter brand, which can be automatically matched or manually switched:
*Pylontech
*Voltronic power
*Growatt-SPF
*SRNE
*Voltronic power
*Growatt-SPF
*SRNE
* Deye
Application
