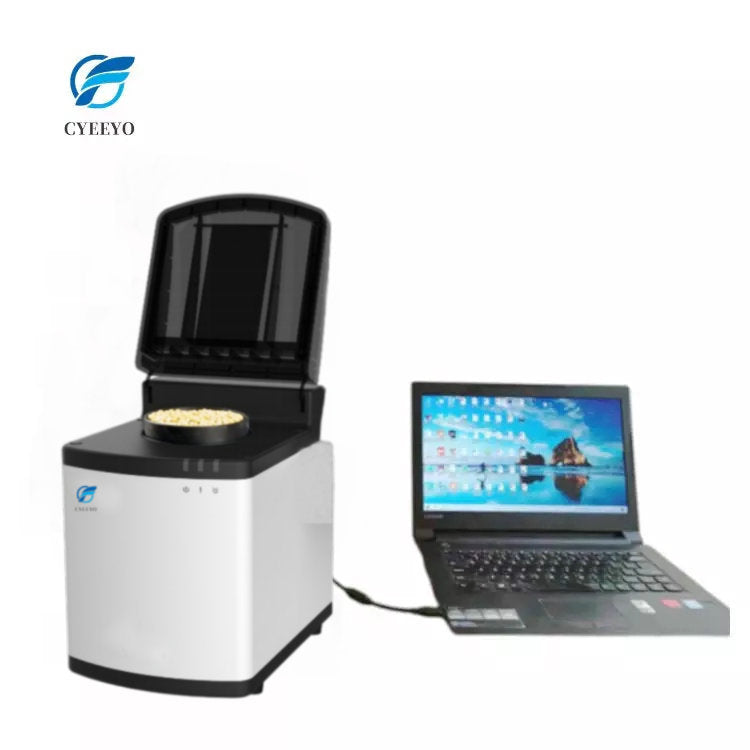

fish Animal Feed Protein Fat Lab Nir Infrared Poultry Raw Material Grain Machine Analyzer spectrometer
Share
fish Animal Feed Protein Fat Lab Nir Infrared Poultry Raw Material Grain Machine Analyzer spectrometer
Technical principle

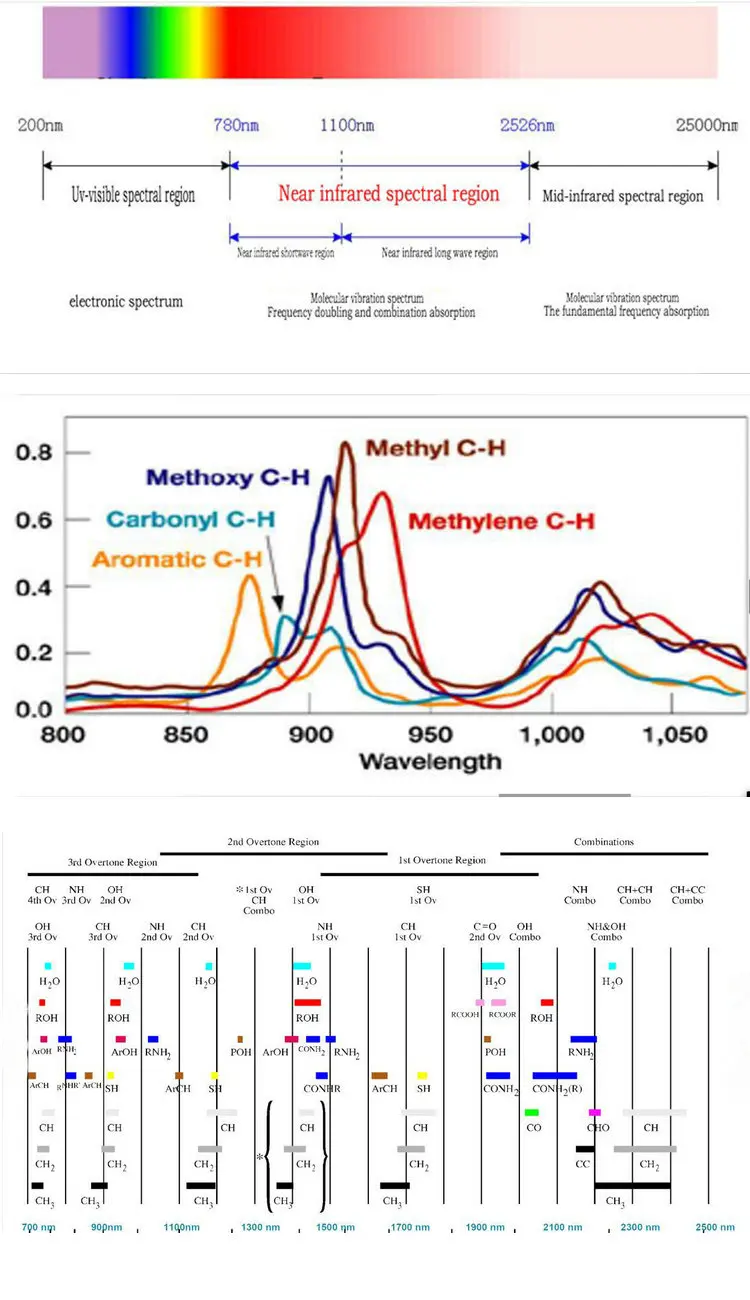

What is near-infrared light
Nir spectroscopy is most suitable for the determination of substances containing C-H, N-H, O-H and other groups. It can not only get the information of molecular structure, composition and state, but also get the physical state information of sample density, particle size, polymerization degree of polymer and fiber diameter, etc., which is very widely used in thefield.
Technical specifications
| Wavelength range |
000-1800 nm |
| Light Source |
Tungsten halogen lamp with expected lifespan more than 10000 hours, User changeable via specific disassemble tool |
| Measurement mode |
Diffuse reflectance |
| Detector |
High performance ultra-cooled InGaAs (Indium Gallium Arsenide) detector to -20℃, dual stage temperature stabilized |
| Optical Brandwith |
10.95 ± 0.3 nm @ 1395.5 nm |
| Signal to noise ratio |
> 10000:1 |
| Sample Volume |
200mL |
| Analysis time |
6-10 sec. (30 scans / sample = 6s, scan speed = 5 times / sec.) |
| Wavelength repeatability |
< 0.05 nm |
| Wavelength accuracy |
≤ ±0.2 nm |
| Stray light |
< 0.1% |
| Communication connection |
Bluetooth |
| Temperature range |
(0-40) ℃ |
| Humidity range |
(5-85) % |
| Power supply |
(220 ± 20) V~/50Hz |
| Dimensions (L × W × H) |
220 × 310 × 310 mm |
| Weight |
About 10kg (without battery) |
A user-friendly and professional app for it is developed and installed on a mobile phone. Both of Measurement and data processing are integrated in the app. With it, you can also download and manage various calibrations, edit sample names, review historical data, perform bias calibration, etc.
The operation is simple, no special training required, no sample preparation required, no damage to samples. All you require to do is place the sample plate on the analyzer platform, click on the “measurement”, and the instrument will perform the measurement automatically and shows the result immediately.
Portable
It is a portable instrument that can be taken to the field to support raw material acquisition, production inspection, seed screening, new production evaluation in feed industry, oil processing, grain trade, etc.Non-destructive rapid detection of physical and chemical components of granules, strips, and powdered samples are realized within less than 10 seconds.
What’s more, it’s small in size and light in mass.
