MOMOTECH Automatic
Flat bed Die Cutting Machine

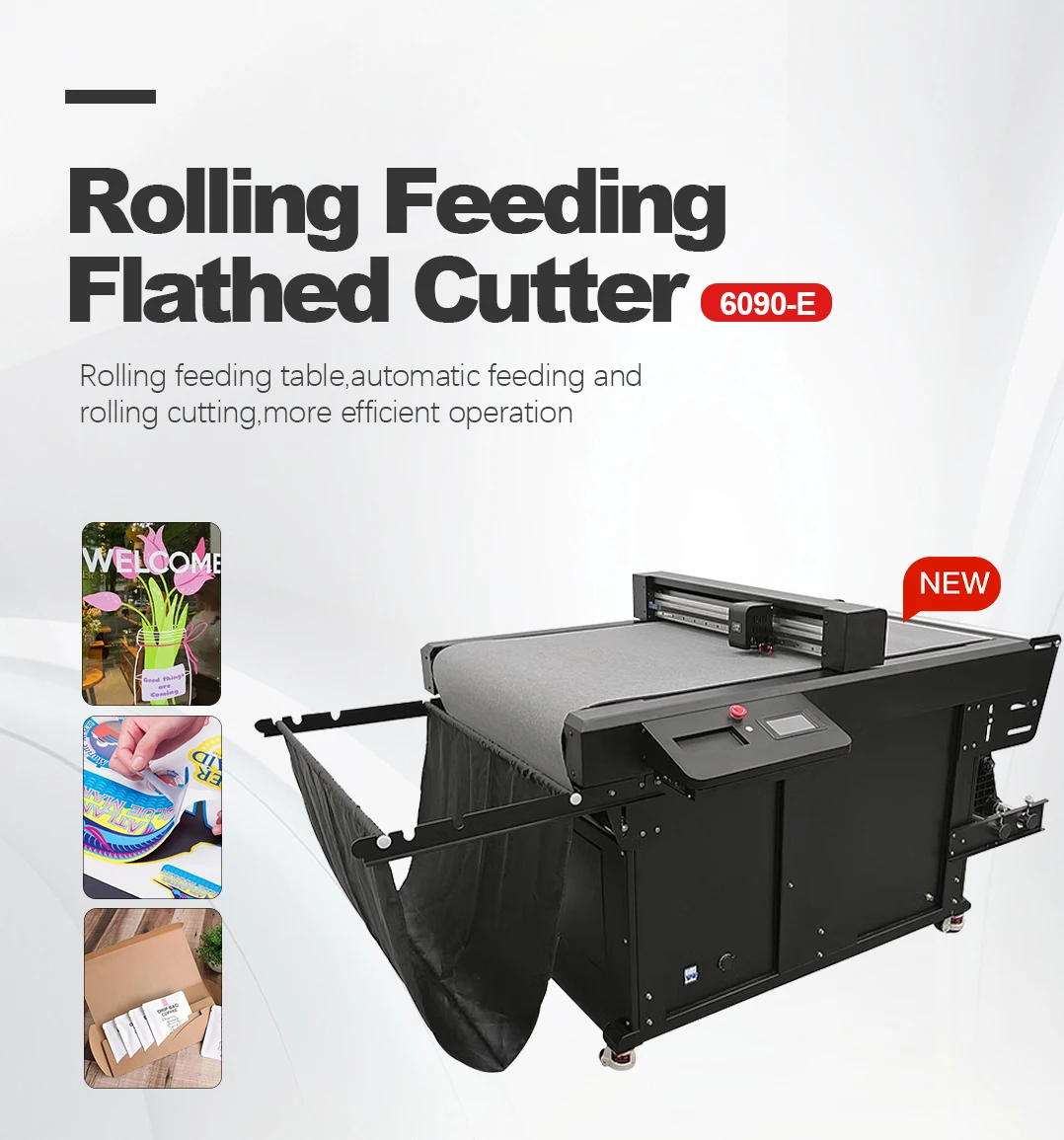

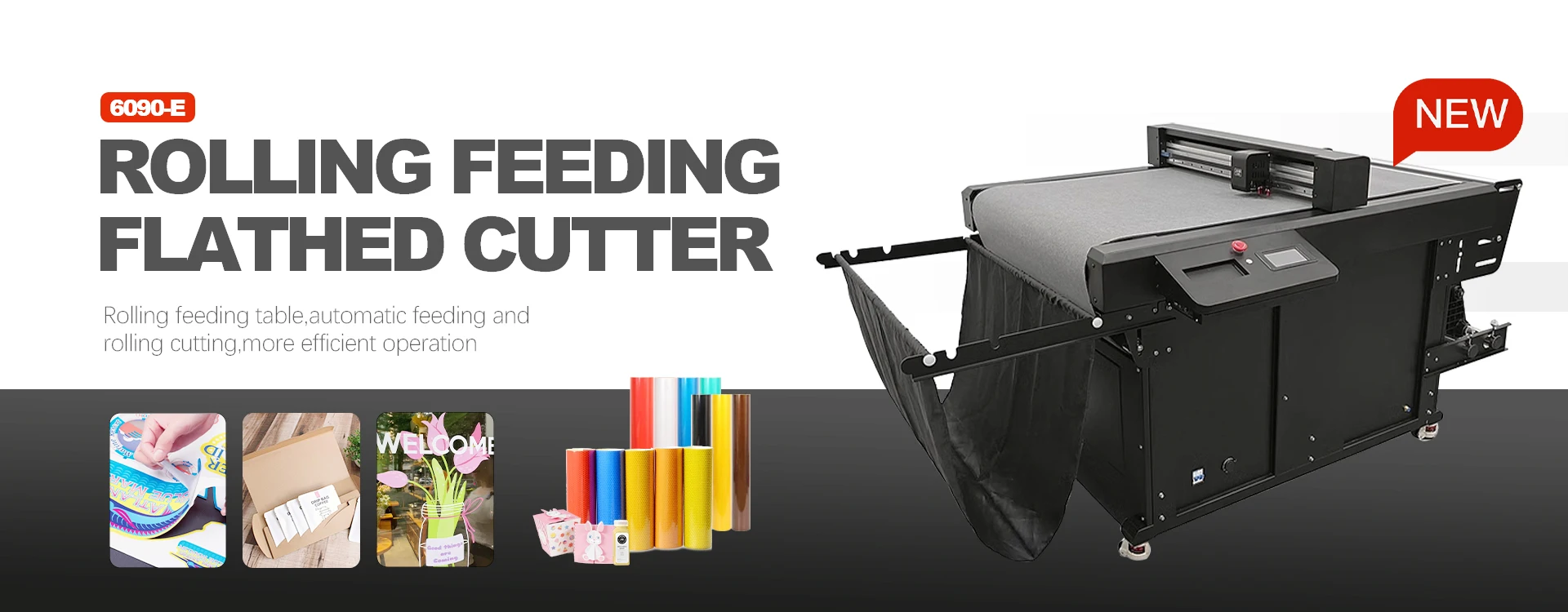

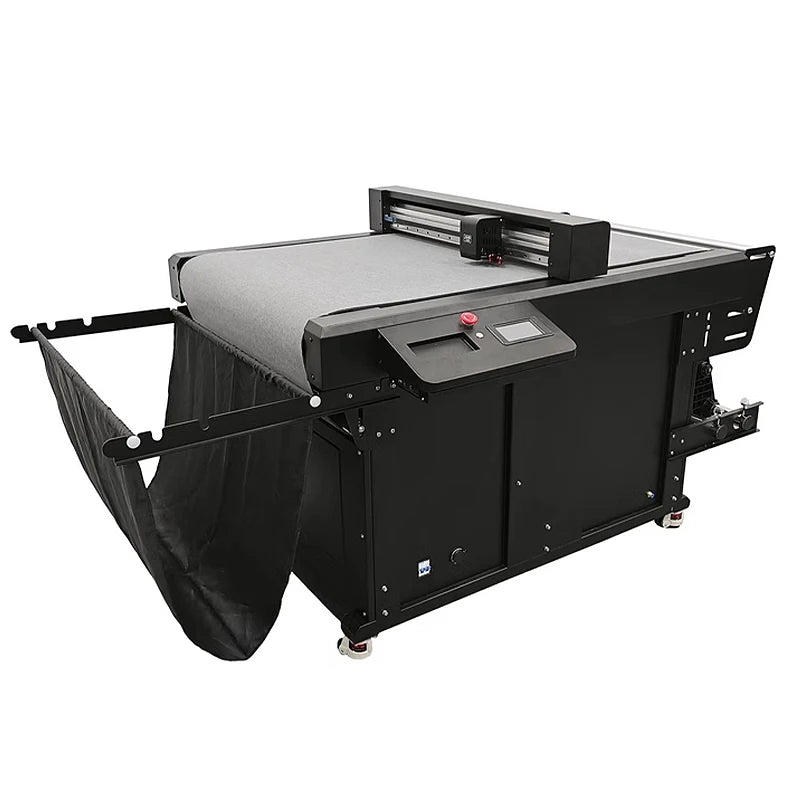

600*900mm Rolling Feeding Flat bed cutter 6090E

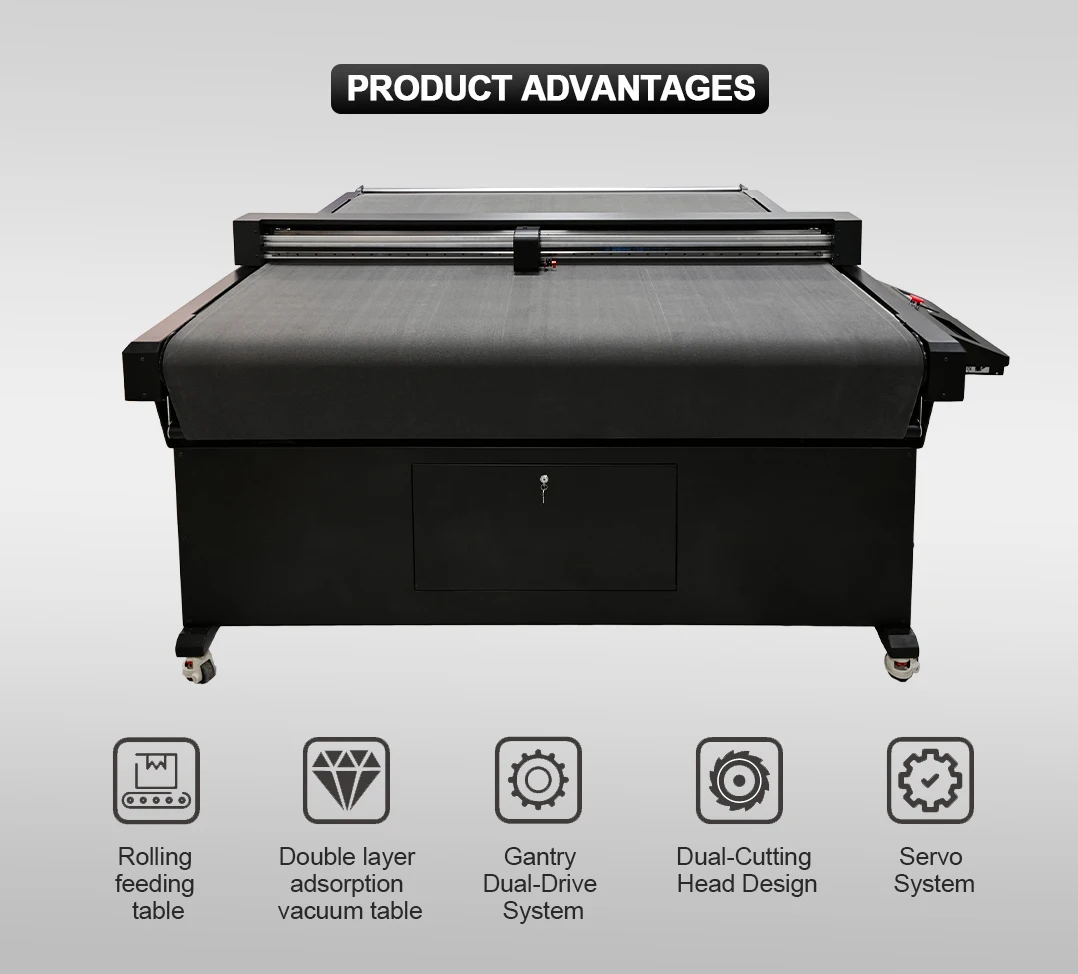

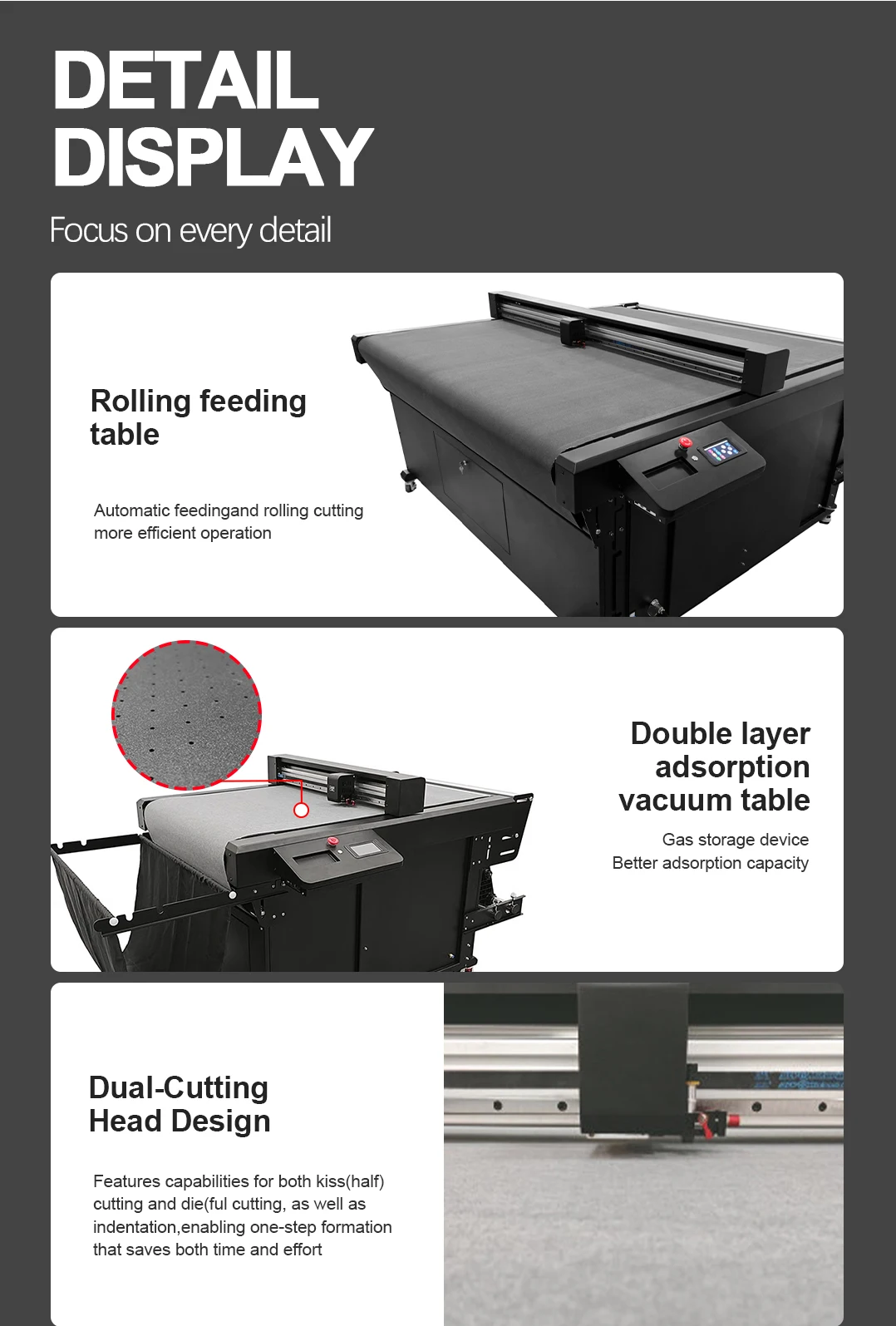

Auto Feeding System:
Rolling feeding table,automatic feeding and rolling cutting,more efficient operation，It also supports cutting sheets.
Working table:
Double laver adsorption vacuum table+ gas storage device, Better adsorption capacity

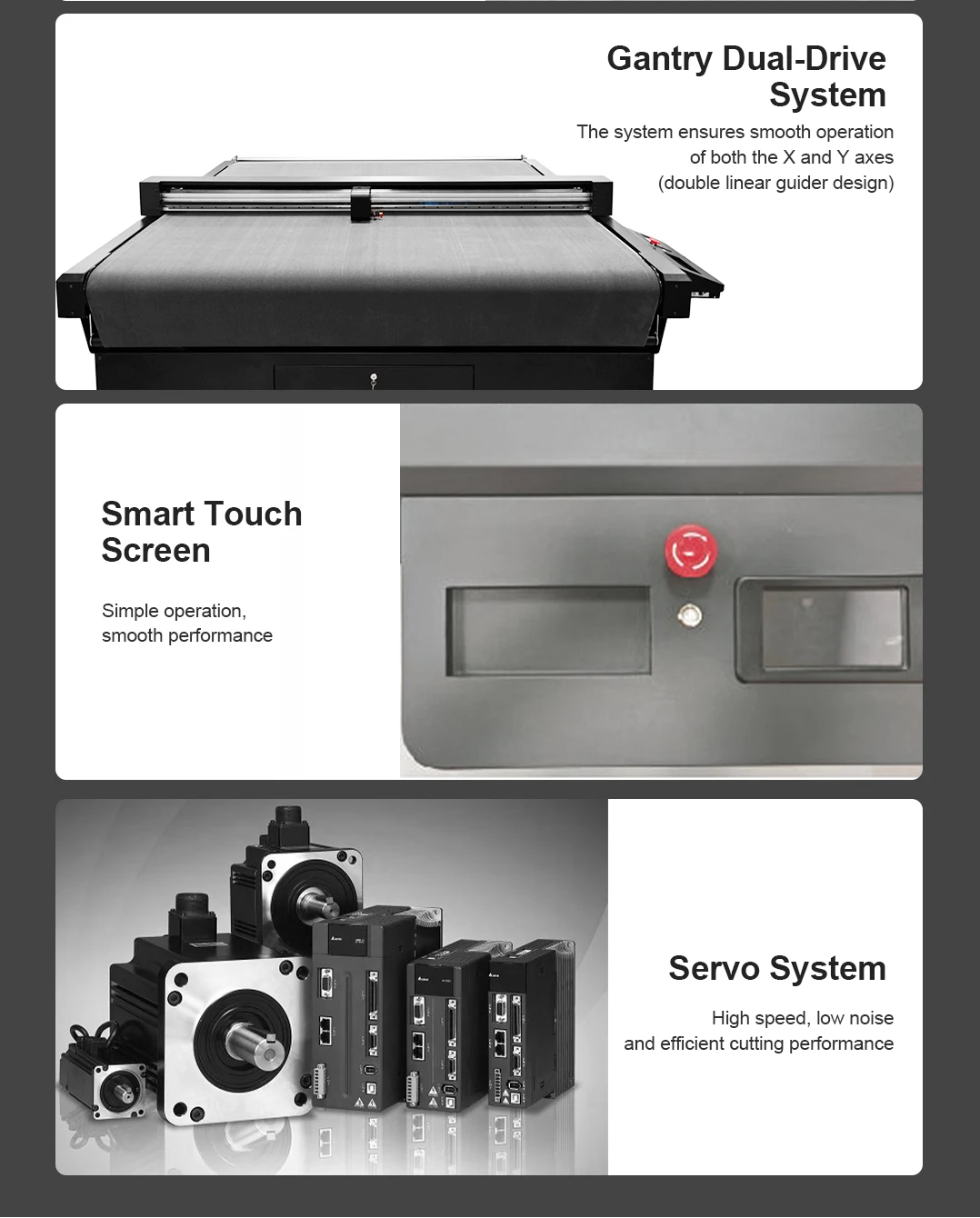

Gantry Dual-Drive System:
The system ensures smooth operation of both the X and Y axes(double linear guideldesign), striking a balance between speed and precision.
Dual-Cutting Head Design:
Features capabilities for both kiss(half) cutting and die(full) cutting, as well asIndentation, enabling one-step formation that saves both time and effort.
Servo System:
High speed, low noise, and efficient cutting performance.
High-Definition Camera: Material-agnostic, precise positioning
Smart Touch Screen:
Simple operation,smooth performance.
Easy-to-Use Interface:
With a user-friendly U Disk/USB interface and support for Signmaster software, the plotter cutting machine is convenient to operate and compatible with various design programs.

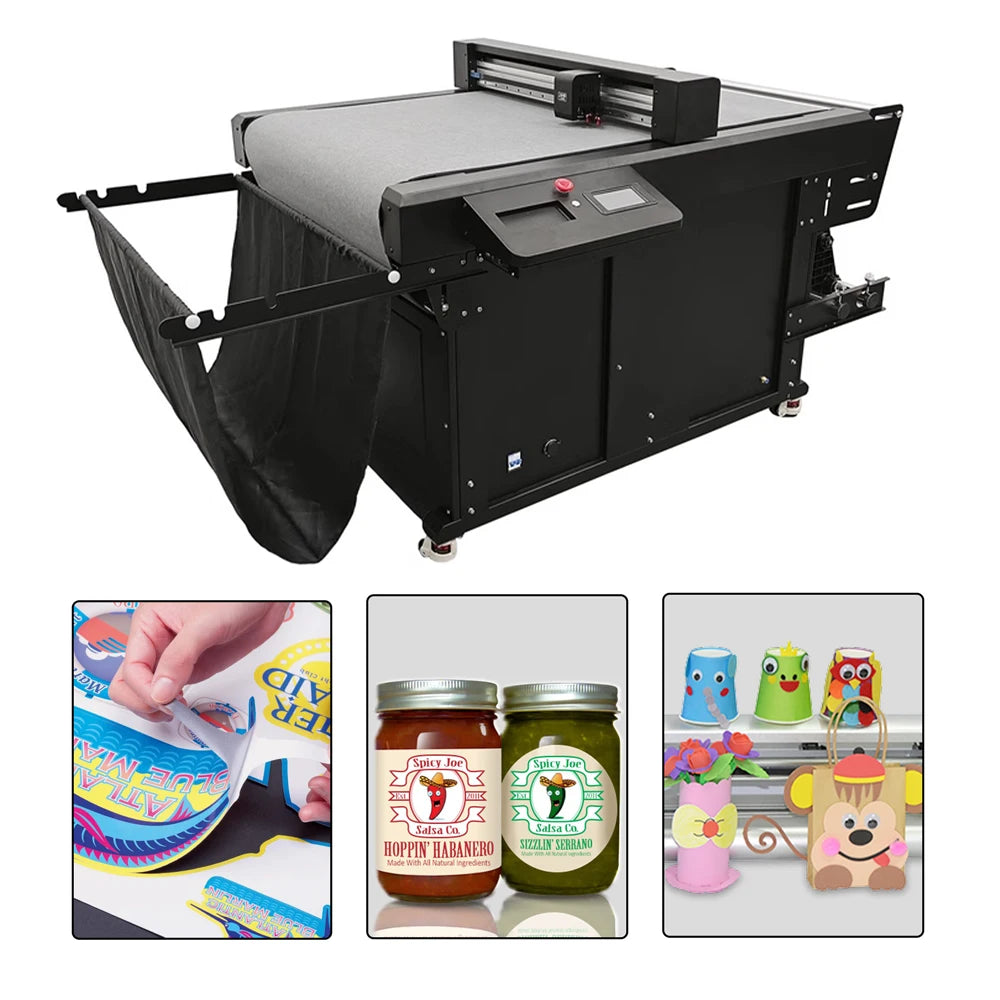

Wide Compatibility: Suitable for diverse industries including hotels, garment shops, building material shops, and more, the MOMOTECH Flat bed cutter can handle diverse materials up to 1mm thickness.
|

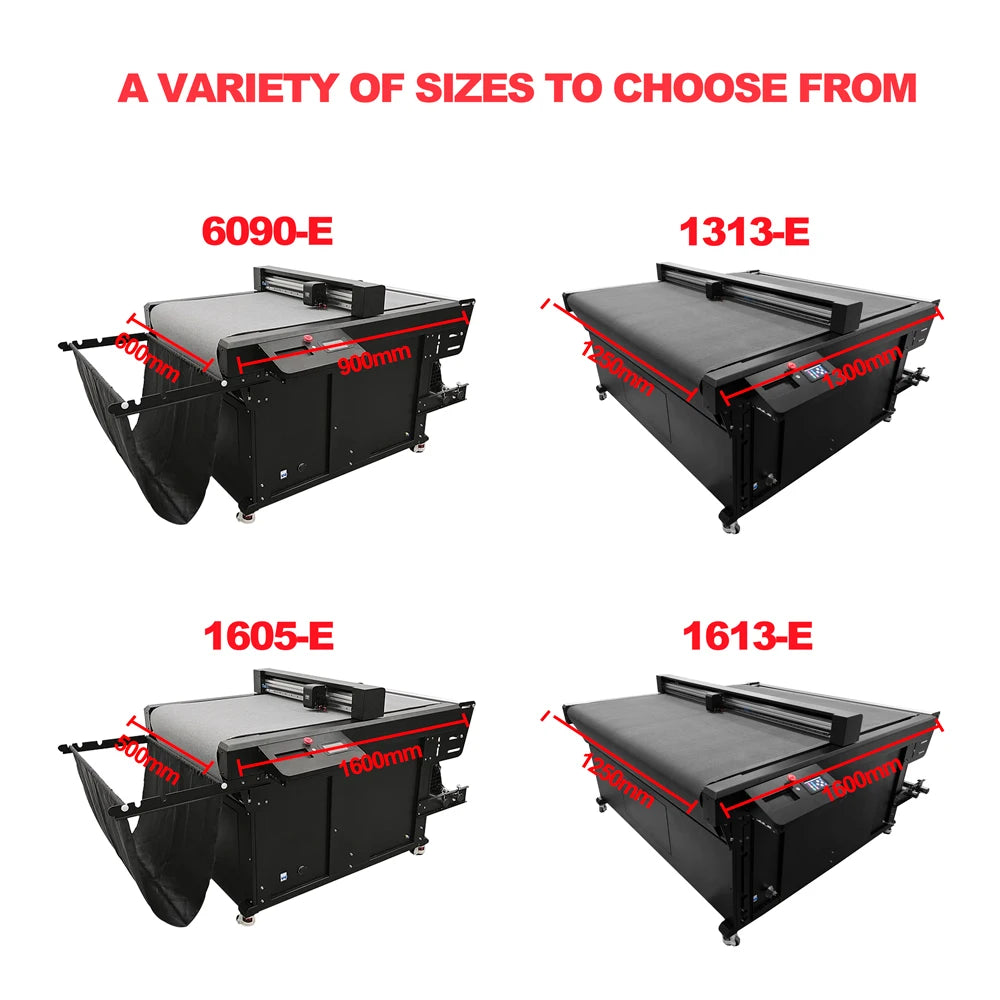

Model
|
6090E
|
1313E
|
1605E
|
1613E
|
|||
|
Cutting area
|
600*900mm
|
1300*1250mm
|
1600*500mm
|
1600*1250mm
|
|||
|
Drive system
|
Servo system
|
||||||
|
Max.Cutting speed
|
1000mm/s
|
||||||
|
Max. Cutting force
|
1200g
|
||||||
|
Max.Cutting thickness
|
1.2mm
|
||||||
|
Cutting head
|
Dual-Cutting Head
|
||||||
|
Media Hold--Down
|
Vacuum Suction
|
||||||
|
Interface
|
USB,Flash Drive,Ethernet Port,WiFi
|
||||||
|
ARMS system
|
CCD Camera
|
||||||
|
Mechanical accuracy
|
0.0125mm
|
||||||
|
Working atmosphere
|
Temperature 0-35℃，
Reletive Humidity: 35%-95% (non-condensing)
|
||||||
|
Power supply
|
220V/50-60Hz
|
||||||
|
Footprint size
|
1250*1700*960mm
|
1950*2100*960mm
|
2260*1300*960mm
|
2260*2100*960mm
|
|||
|
Package size
|
1100*1800*1300mm
|
1800*2200*1300mm
|
2100*1400*1300mm
|
2100*2200*1300mm
|
|||
|
G.W
|
280Kg
|
480Kg
|
360Kg
|
550Kg
|
|||
