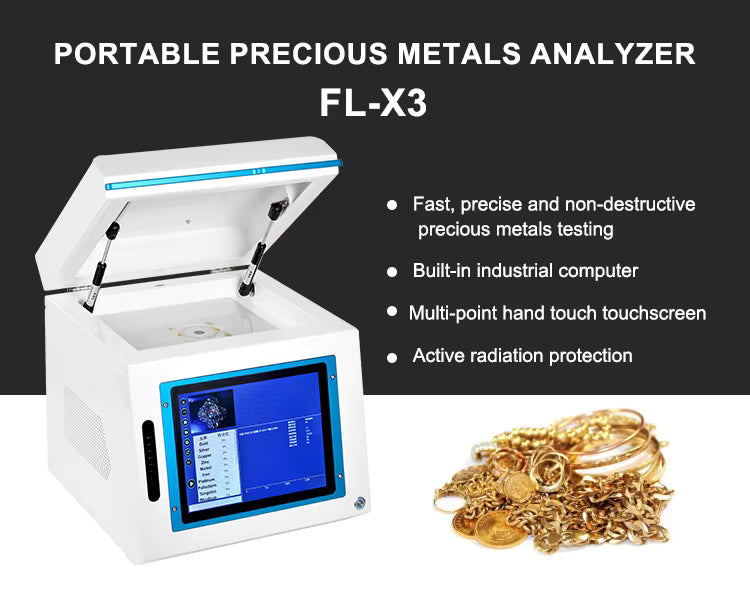

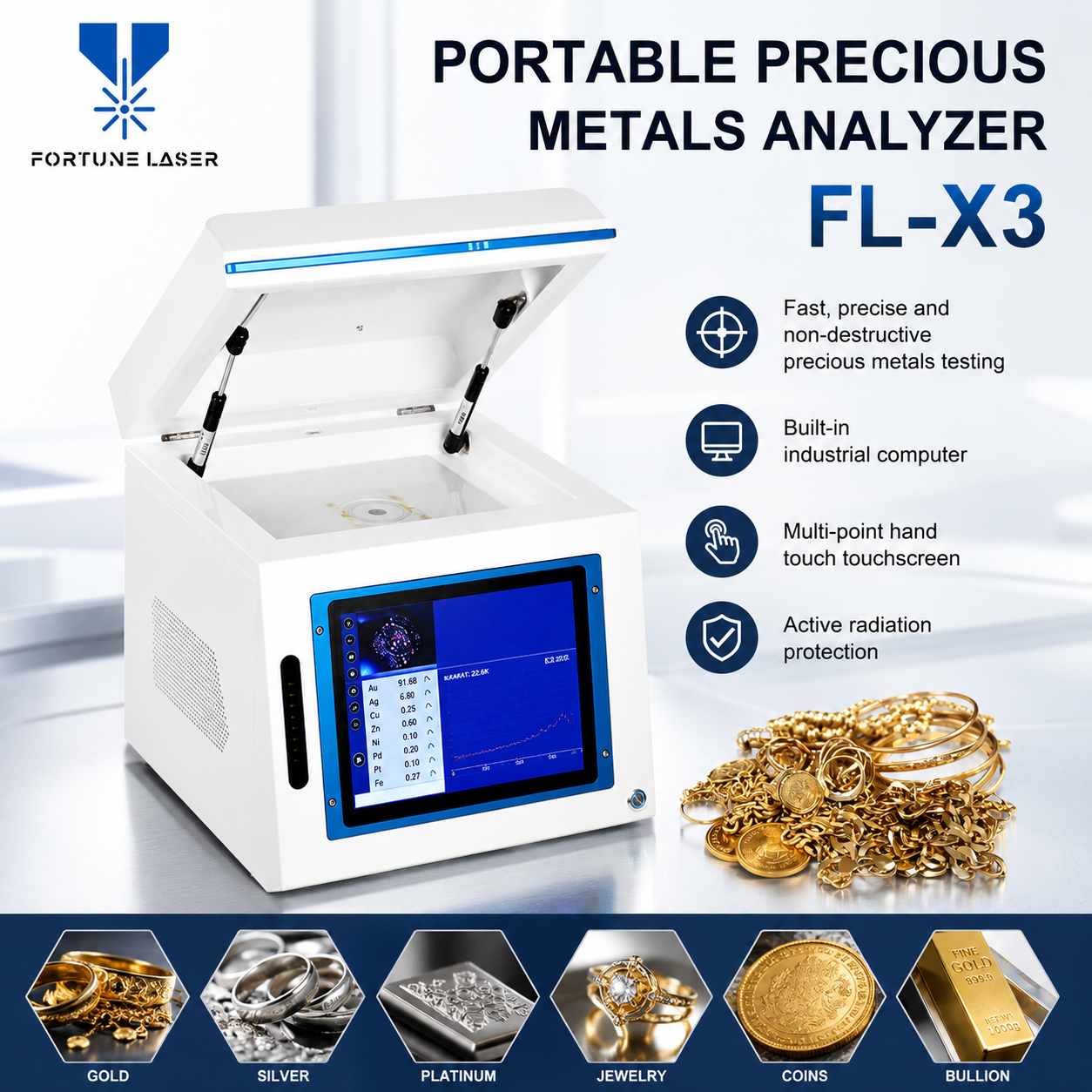

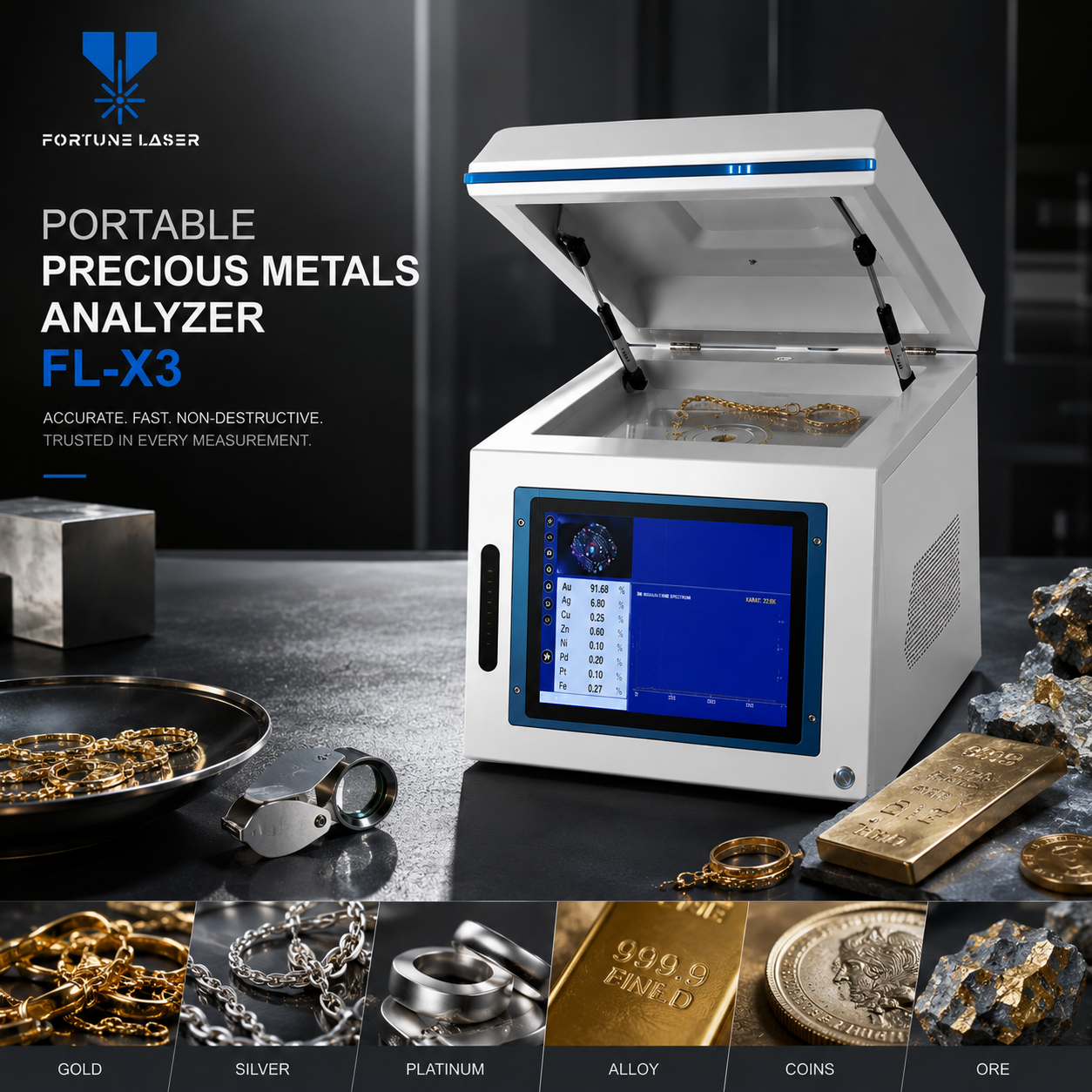

Fortune Laser FL-X3 XRF Gold & Precious Metal Analyzer | Multi-Element Tester

Professional Non-Destructive Precious Metal Analysis

The Fortune Laser FL-X3 is a professional X-ray fluorescence (XRF) testing machine designed for non-destructive analysis of precious metals and metal compositions.

The system is designed for applications including gold testing, jewelry testing, precious-metal trading, pawn-shop inspection, refinery quality control and professional material analysis.

The FL-X3 supports analysis of solid, powder and liquid samples according to the supplied product specification and provides a broad elemental analysis range from 0.01% to 99.99%.

With a 5 kV to 50 kV X-ray tube voltage range, selectable filters and a proportional-counter detector, the FL-X3 is designed as a professional benchtop analytical system rather than a basic acid-testing or electronic karat meter.

1. FL-X3 KEY FEATURES

• XRF-based non-destructive elemental analysis

• Designed for gold and precious-metal testing

• Multi-element analysis

• Analysis range 0.01% to 99.99%

• Stated accuracy specification 0.05%-0.1%

• 5 kV-50 kV tube voltage

• 0-50 kV high-voltage power supply

• Proportional counter detector

• Selectable/customizable filter configuration

• Large sample chamber

• 510 x 400 x 420 mm sample chamber

• 220 V operation

• Solid, powder and liquid sample capability according to supplied specification

• One-year warranty

• OEM and ODM customization available subject to manufacturer confirmation

2. PRECIOUS METAL TESTING

The FL-X3 is intended for analysis of precious-metal compositions including applications involving:

• Gold

• Silver

• Platinum

• Palladium

• Iridium

• Rhodium

• Ruthenium

• Copper

• Zinc

• Nickel

• Other alloying elements depending on calibration and configured analytical range

The exact element menu, calibration method and analytical performance depend on the instrument configuration and calibration standards supplied with the machine.

3. GOLD PURITY ANALYSIS

XRF analysis provides a non-destructive method for examining the elemental composition of a sample.

For gold-related applications, the analyzer can be used to examine:

• Gold jewellery

• Gold bars

• Gold coins

• Gold alloys

• Precious-metal components

• Recycled precious metals

• Manufacturing samples

• Jewellery production materials

The displayed composition should be interpreted according to the instrument calibration, sample geometry, surface condition and measurement procedure.

FL-X3 XRF Gold Analyzer

• XRF gold tester
• XRF gold testing machine
• gold purity analyzer
• precious metal analyzer
• precious metal tester
• XRF precious metal tester
• gold karat tester
• gold testing machine
• gold purity testing machine
• jewelry testing machine
• jewelry gold tester
• pawn shop gold tester
• gold refinery testing machine
• EDXRF gold analyzer
• XRF silver tester
• platinum tester
• palladium analyzer
• Au Ag Pt Pd tester
• non destructive gold tester
• professional gold analyzer

4. NON-DESTRUCTIVE TESTING

One of the major advantages of XRF analysis is that the sample can normally be tested without melting, cutting or chemically dissolving it.

This makes XRF particularly useful where the original condition of the jewellery or precious-metal item needs to be preserved.

Typical applications include:

• Jewellery counters

• Gold purchasing operations

• Pawn shops

• Precious-metal dealers

• Refineries

• Manufacturing quality control

• Material inspection laboratories

XRF is a surface-sensitive analytical technique, so plating, coatings, solder joints and layered construction can affect results. Multiple measurement points and appropriate calibration are recommended for professional evaluation.

5. ANALYSIS RANGE

Manufacturer-supplied specification:

0.01% to 99.99%

This broad analytical range allows the system to examine elemental concentrations across different material compositions.

The practical detection limit for an individual element depends on the element, calibration, sample matrix and operating conditions.

6. ACCURACY

Supplied specification:

0.05%-0.1%

The supplier also uses “99.99% accuracy” in marketplace material.

For professional product positioning, we recommend interpreting the 0.05%-0.1% figure as the stated measurement accuracy specification, rather than advertising “99.99% accuracy” as a blanket guarantee.

Actual analytical uncertainty varies according to:

• Element

• Concentration

• Sample composition

• Calibration

• Surface condition

• Measurement time

• Geometry

• Reference standards

7. X-RAY TUBE SYSTEM

Tube voltage:

5 kV-50 kV

High-voltage power supply:

0-50 kV

The adjustable excitation range allows the instrument to be configured for different analytical requirements.

X-ray operating parameters should be used according to the manufacturer's supplied operating procedure and safety instructions.

8. DETECTOR

Detector type:

Proportional Counter Tube

The detector receives characteristic X-ray signals generated by the tested material and supports elemental analysis.

Detector performance is one of the factors that influences sensitivity, resolution and analytical stability.

9. SELECTABLE FILTER SYSTEM

The FL-X3 specification identifies:

Selectable customized filter switches

Filters can be configured according to the analytical application and target elements.

Final filter configuration should be confirmed with the manufacturer based on the intended application before purchase.

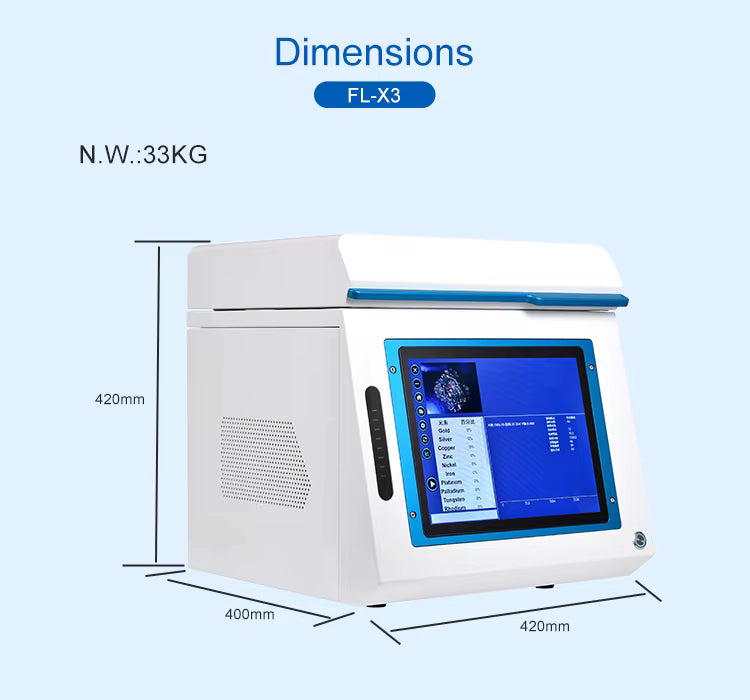

10. LARGE SAMPLE CHAMBER

Sample chamber size:

510 x 400 x 420 mm

The large enclosed chamber provides space for a variety of sample shapes and sizes.

Potential applications include:

• Jewellery batches

• Metal components

• Precious-metal parts

• Laboratory samples

• Manufacturing samples

• Larger solid specimens

Actual usable sample dimensions depend on the internal fixture and measurement geometry.

11. SAMPLE TYPES

The supplied specification identifies:

Solid

Powder

Liquid

Sample preparation requirements vary according to the material and analytical objective.

For jewellery and finished precious-metal items, appropriate positioning and repeat measurements can help improve analytical consistency.

12. ACTIVE RADIATION PROTECTION

The product is marketed with active radiation-protection features.

The machine is designed as an enclosed XRF analytical system with safety controls intended to restrict X-ray exposure during operation.

However, radiation safety claims and regulatory approvals must be verified for the exact FL-X3 configuration supplied to the Indian customer.

Do not treat general CE/AERB statements from a supplier listing as a substitute for verification of the specific model's Indian regulatory status.

13. X-RAY SAFETY

The FL-X3 uses an X-ray tube and is therefore a radiation-generating analytical instrument.

For India, procurement and supply must be handled in accordance with applicable Atomic Energy Regulatory Board requirements.

AERB's published procedure specifically includes cabinet-type X-ray fluorescence equipment within its X-ray inspection-system approval process. The procedure includes documentation relating to the X-ray tube/generator, radiological safety, radiation-leakage testing, interlocks and other safety features.

Therefore, before commercial delivery in India, the exact model, manufacturer documentation, approval status and procurement requirements should be verified.

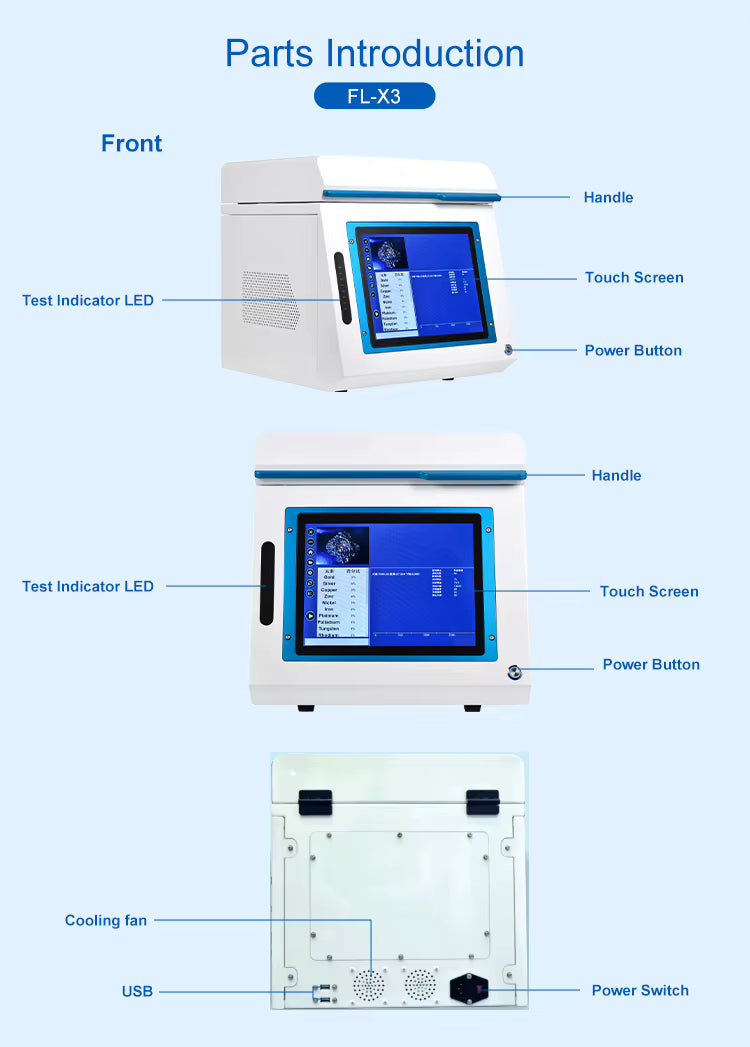

14. DISPLAY & COMPUTER SYSTEM

The supplier describes the FL-X3 product family as being available with an integrated computer and multi-point touchscreen interface.

Depending on the exact supplied configuration, the system may support:

• Instrument control

• Test-result display

• Element analysis

• Purity reporting

• Measurement records

• Automatic reporting

• Data management

The exact computer hardware, operating system, screen size and software version should be confirmed in the commercial quotation.

15. APPLICATIONS

Jewellery Stores

• Gold purity testing

• Jewellery quality inspection

• Precious-metal verification

• Alloy composition analysis

Pawn Shops

• Gold purchase inspection

• Precious-metal screening

• Customer transaction support

• Non-destructive testing

Gold Traders

• Incoming material inspection

• Precious-metal composition checking

• Batch verification

Refineries

• Material screening

• Alloy analysis

• Process quality control

• Incoming/outgoing material inspection

Jewellery Manufacturers

• Alloy verification

• Production quality control

• Material consistency testing

• Component analysis

Laboratories

• Material analysis

• Precious-metal research

• Quality-control testing

• Comparative measurements

16. WHY XRF INSTEAD OF DESTRUCTIVE TESTING?

XRF provides a rapid, non-destructive analytical approach.

Compared with methods that require:

• Scratching

• Chemical reagents

• Melting

• Cutting

• Sample destruction

XRF can provide elemental information while preserving the tested item.

However, XRF and fire assay serve different purposes. Fire assay remains a reference method for certain gold assay applications, while XRF is particularly useful for rapid non-destructive screening and routine analysis.

17. IMPORTANT PLATING & SURFACE NOTE

XRF results can be affected by:

• Gold plating

• Gold-filled construction

• Solder

• Surface coatings

• Multiple metal layers

• Surface contamination

• Uneven surfaces

A surface XRF measurement should therefore not automatically be interpreted as a complete bulk-composition result.

For high-value transactions, use a documented testing procedure and take measurements from appropriate locations.

18. TECHNICAL SPECIFICATIONS

Brand: Fortune Laser

Model: FL-X3

Product Type: XRF Gold & Precious Metal Analyzer

Technology: X-Ray Fluorescence / XRF

Application: Gold testing / Jewellery testing / Precious-metal analysis

Accuracy Class: High Accuracy

Stated Accuracy: 0.05%-0.1%

Analysis Range: 0.01%-99.99%

Sample Forms: Solid / Powder / Liquid

Tube Voltage: 5-50 kV

High Voltage Power Supply: 0-50 kV

Detector: Proportional Counter Tube

Filters: Selectable customized switches

Sample Chamber: 510 x 400 x 420 mm

Operating Voltage: 220 V

Warranty: 1 Year

OEM: Available subject to confirmation

ODM: Available subject to confirmation

Origin: Guangdong, China

19. MACHINE & PACKAGING

Selling unit:

1 complete machine

Approximate package size:

63.5 x 53.5 x 58.2 cm

Approximate gross weight:

58 kg

The final shipping weight and dimensions should be confirmed before freight booking because wooden packing, accessories and export packaging can change the chargeable weight.

20. PROCUREMENT & QUOTATION

For professional procurement, please provide:

1. Required quantity

2. Intended application

3. Delivery city and PIN code

4. Required voltage

5. Required analytical elements

6. Desired calibration/application

7. Whether installation and training are required

8. Whether Indian regulatory documentation is required

We can confirm the exact FL-X3 configuration, documentation, calibration, accessories, warranty, shipping and commercial quotation before order confirmation.

21. WARRANTY & SUPPORT

Manufacturer-stated warranty:

1 Year

OEM information also indicates online after-sales support, remote technical assistance and software support depending on the selected configuration and commercial agreement.

Final warranty coverage, response procedure, spare-parts policy and software support should be specified in the quotation.

22. OEM & ODM

The manufacturer indicates support for:

• OEM branding

• Machine nameplate customization

• Software/interface branding

• Report template customization

• UI language customization

• Machine colour customization

• Voltage customization

Customization availability, MOQ and lead time must be confirmed for the specific FL-X3 order.

23. IMPORTANT REGULATORY NOTICE FOR INDIA

This is an X-ray-generating analytical instrument.

Indian buyers should verify the applicable AERB requirements for the exact model and configuration before purchase and installation.

AERB's published approval procedure specifically covers cabinet-type XRF equipment and identifies requirements relating to manufacturer authorization, technical documentation, radiation leakage testing, safety interlocks and model approval/procurement procedures.

Do not purchase or install an XRF machine in India solely on the basis of an online seller's statement that it is “AERB certified.”

The exact model documentation and applicable approval/procurement status should be confirmed.

24. FAQ

What is the FL-X3?

The FL-X3 is a Fortune Laser XRF-based precious-metal and multi-element analyzer.

Can it test gold?

Yes. It is designed for gold and precious-metal analysis.

Can it test silver and platinum?

The supplier markets the system for multi-element precious-metal analysis including gold, silver, platinum and palladium. Exact elemental coverage depends on the configured analytical method and calibration.

Is XRF testing destructive?

XRF is generally a non-destructive analytical technique, allowing jewellery and metal samples to be tested without melting or chemical dissolution.

Can it test jewellery?

Yes. Jewellery testing is one of the intended applications.

Can it be used in pawn shops?

Yes. The supplier specifically positions its precious-metal analyzers for pawn-shop and gold-purchasing applications.

Can it detect gold plating?

XRF can identify elemental differences associated with plated or layered materials, but surface-sensitive measurements can be misleading for some constructions. Multiple points and appropriate procedures should be used.

What is the accuracy?

The supplied specification states 0.05%-0.1%. Actual uncertainty depends on element, concentration, calibration, sample geometry and measurement conditions.

What is the analysis range?

The supplied specification states 0.01%-99.99%.

What is the X-ray tube voltage?

5-50 kV.

What detector does it use?

Proportional counter tube.

What is the sample chamber size?

510 x 400 x 420 mm.

What is the machine weight?

The supplied packaging specification gives approximately 58 kg gross package weight. Actual machine net weight should be confirmed separately.

What voltage does it require?

The supplied specification states 220 V.

What is the warranty?

One year.

Is AERB approval included?

Do not assume this from the generic product listing. The applicable Indian regulatory status must be confirmed for the exact model/configuration and transaction. AERB's published process specifically covers cabinet-type XRF equipment.

Can Shanvis arrange procurement?

Yes, subject to confirming the model, documentation, applicable Indian regulatory requirements, delivery location and commercial terms.
