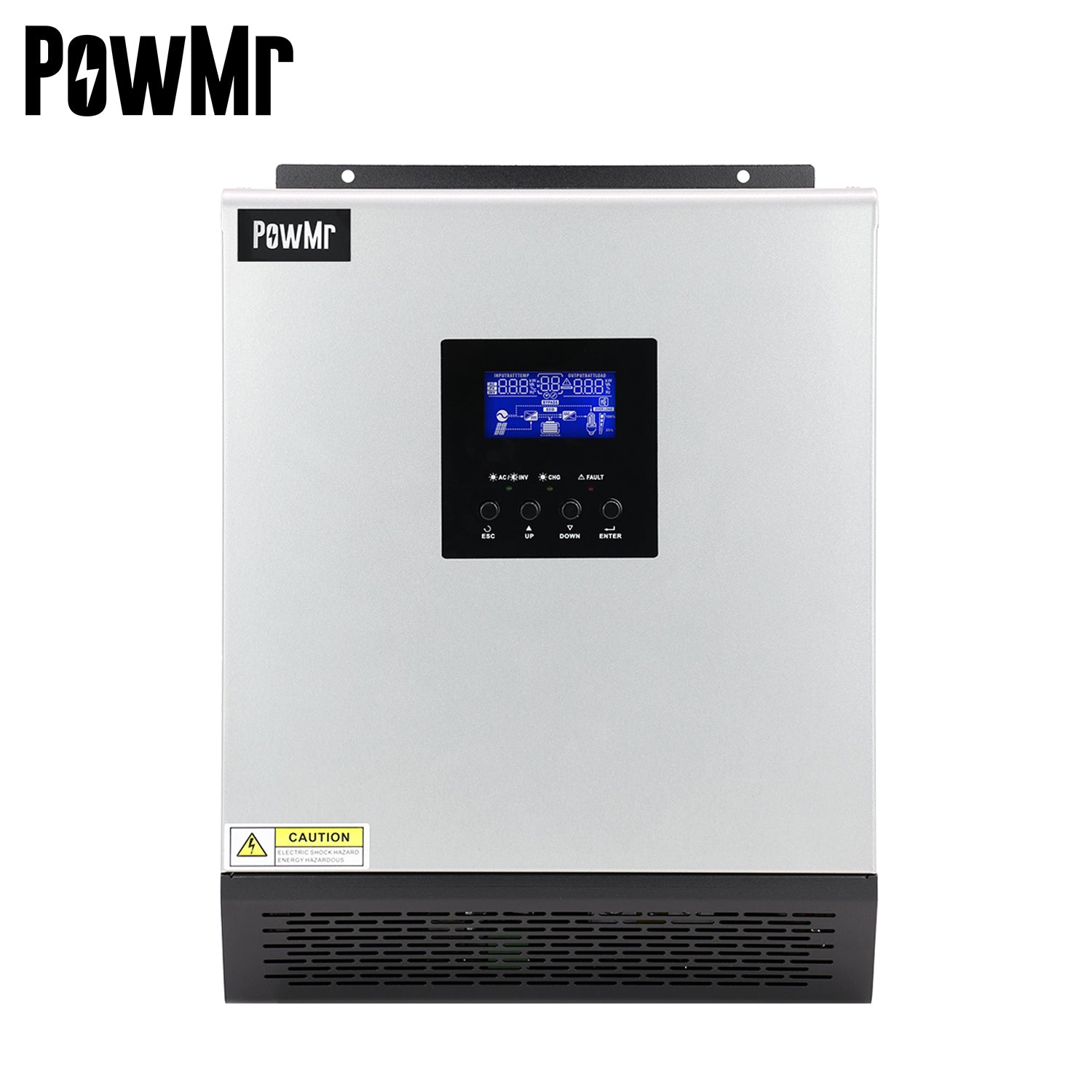

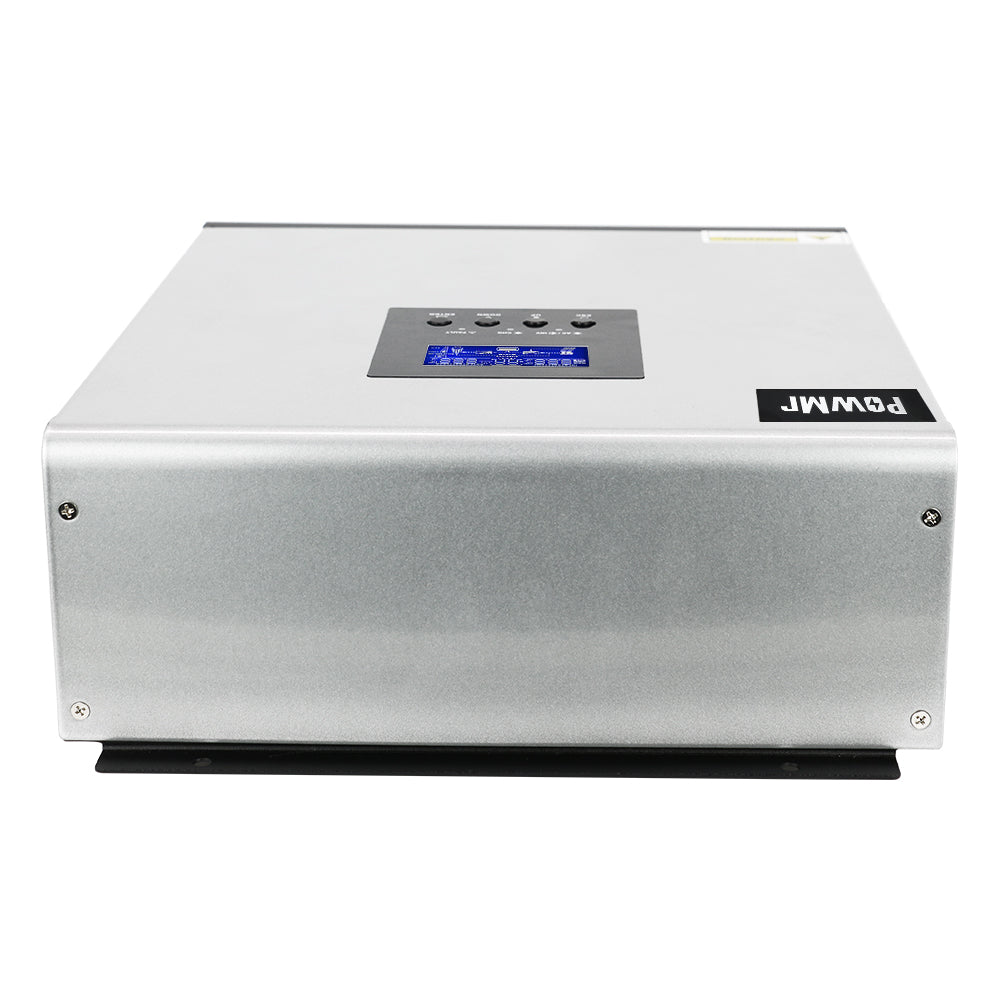

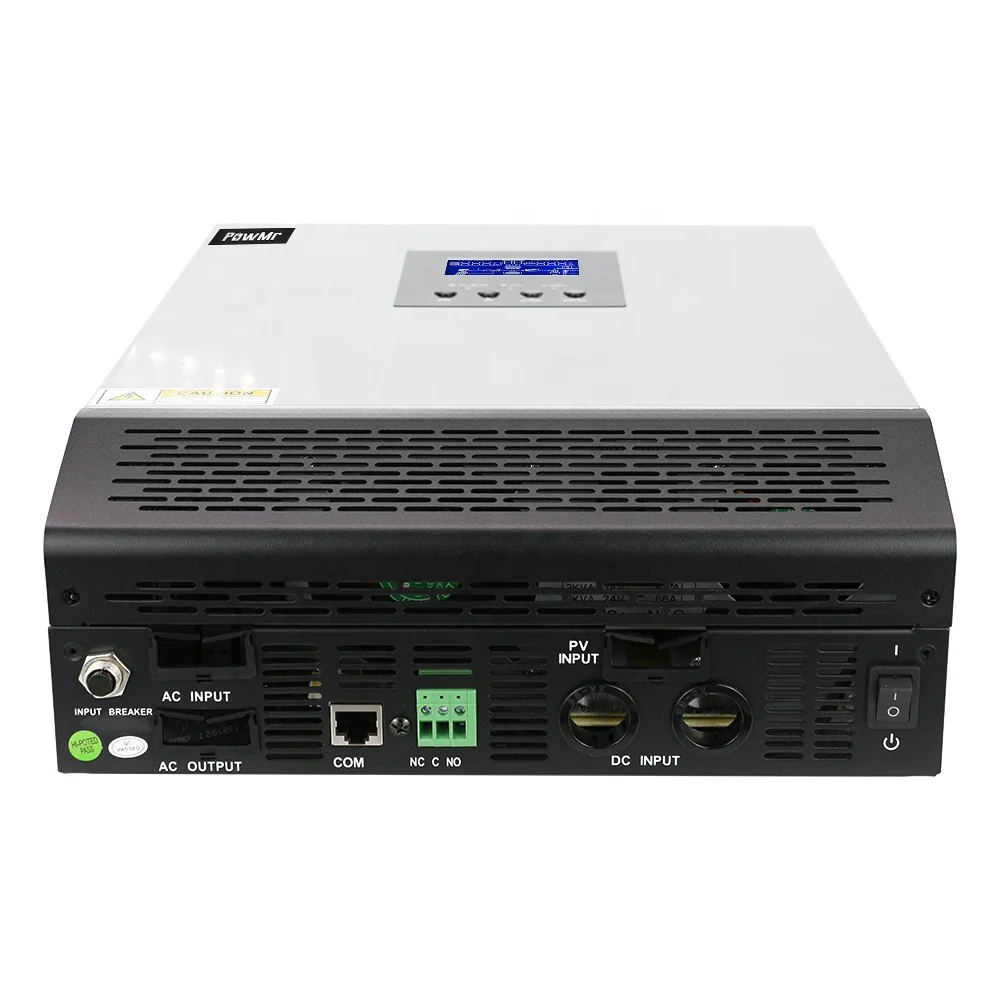

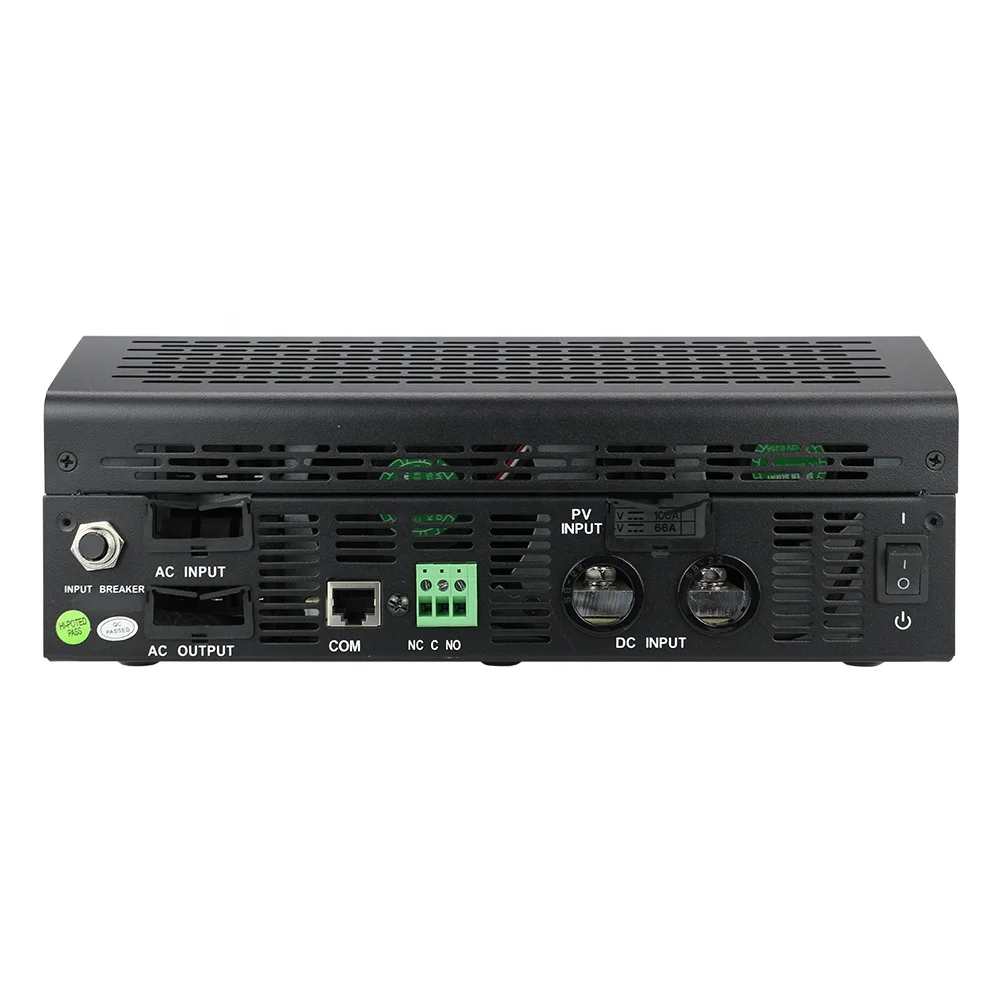

Free Shipping!!! PowMr 3KVA 2400W DC 24V PWM 50A Solar Charge Controller AC 110V Hybrid Solar Inverter
Save -56%
Rs. 71,536.63
Rs. 163,512.29
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
*Pure sine wave inverter
*Configurable input voltage range for home appliances and personal computers via LCD setting
*Configurable battery charging current based on applications via LCD setting
*Configurable AC/Solar Charger priority via LCD setting
*Compatible to mains voltage or generator power
*Auto restart while AC is recovering
*Overload/ Over temperature/ short circuit protection
*Smart battery charger design for optimized battery performance
*Cold start function
*Pure sine wave inverter
*Configurable input voltage range for home appliances and personal computers via LCD setting
*Configurable battery charging current based on applications via LCD setting
*Configurable AC/Solar Charger priority via LCD setting
*Compatible to mains voltage or generator power
*Auto restart while AC is recovering
*Overload/ Over temperature/ short circuit protection
*Smart battery charger design for optimized battery performance
*Cold start function
Battery Type:
Flooded Batteries, Gel Batteries, Lead-acid Batteries, User Mode

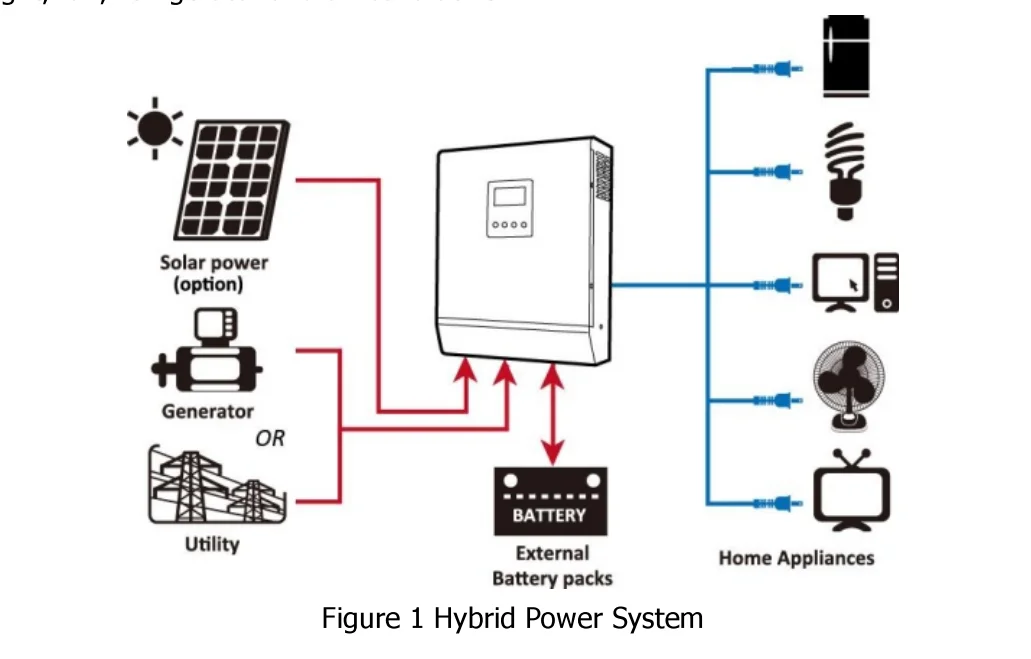

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
* Generator or Utility.
* PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements.
* PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
For details, please refer to the manual recommendation or consult online customer service.
Specification
|
INVERTER MODEL
|
1KVA
|
2KVA
|
3KVA
|
||
|
Charging Algorithm
|
3-Step
|
||||
|
Rated Output Power
|
1KVA/0.8KW
|
2KVA/1.6KW
|
3KVA/2.4KW
|
||
|
Nominal Input Voltage
|
120Vac
|
||||
|
Max AC Input Voltage
|
150 Vac
|
||||
|
Input Voltage Waveform
|
Sinusoidal (utility or generator)
|
||||
|
Nominal Input Frequency
|
50Hz/ 60Hz (Auto detection)
|
||||
|
Output Voltage Waveform
|
Pure Sine Wave
|
||||
|
Output Frequency
|
60Hz
|
||||
|
Peak Efficiency
|
90%
|
||||
|
Surge Capacity
|
2* rated power for 5 seconds
|
||||
|
Nominal DC Input Voltage
|
12Vdc
|
24Vdc
|
|||
|
Output Short Circuit Protection
|
Circuit Breaker
|
||||
|
Efficiency (Line Mode)
|
>95% (Rated R load, battery full charged )
|
||||
|
Transfer Time
|
10ms typical (UPS);20ms typical (Appliances)
|
||||
