fuel injection carburetor conversion kit riel lpg ACT L02 rail cng
Brief Introduction

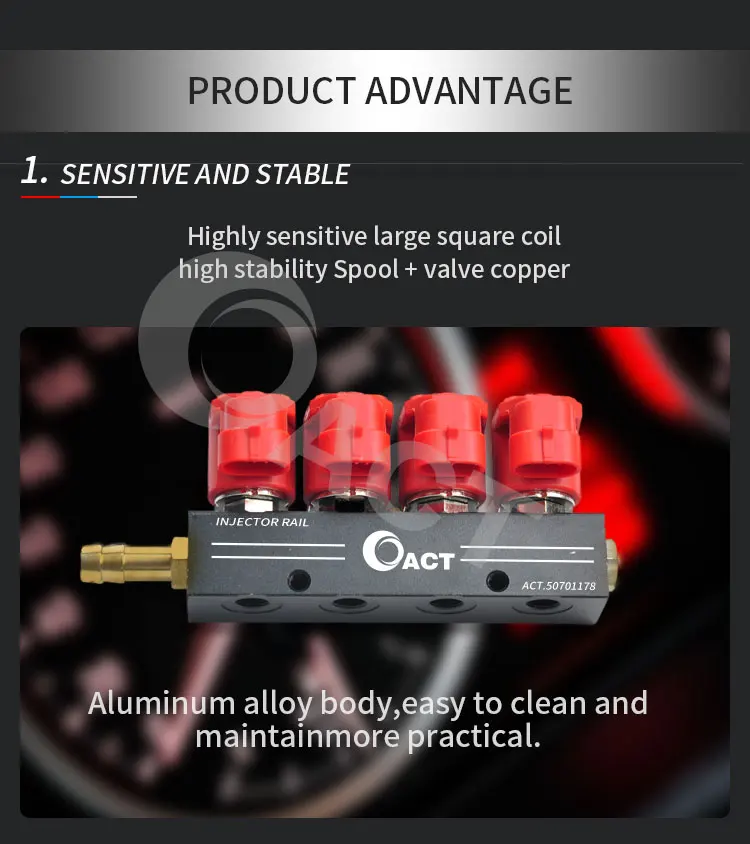

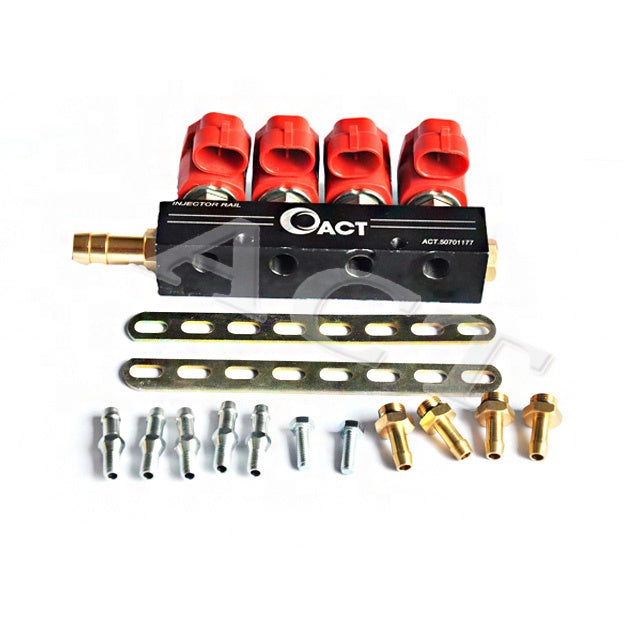

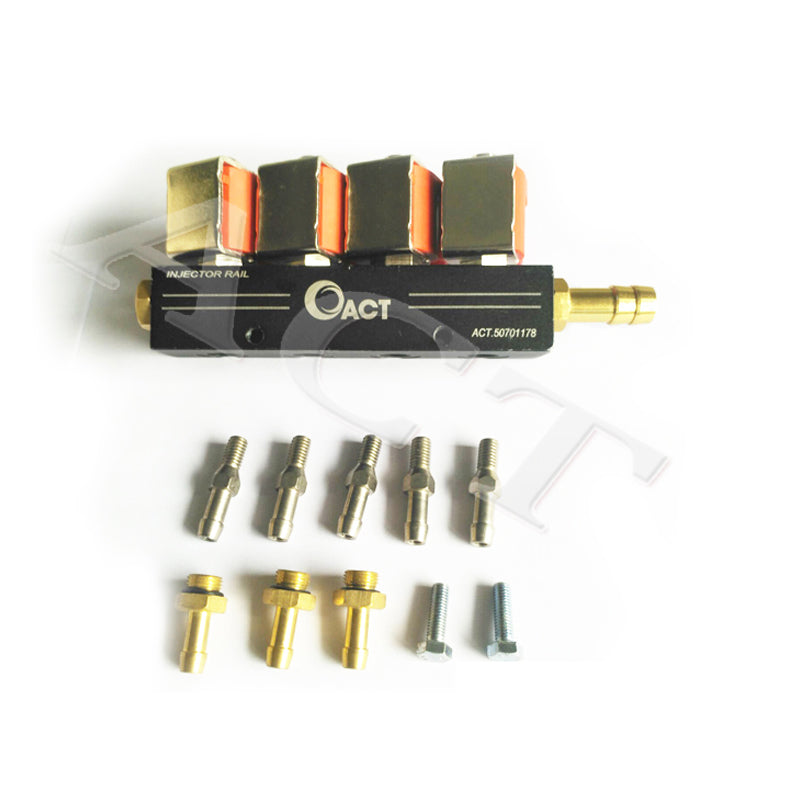

Injector rail is one part of gas engine air intake system ,comprised of a group of jet nozzles, temperature and pressure sensors, spray rail body, outlet nozzles and other components

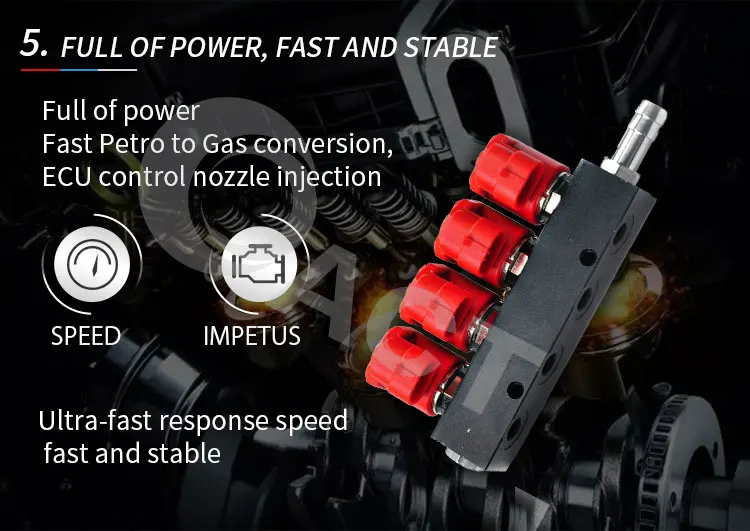

In the different conditions of the engine, according to the ECU control strategy ECU calculated the injection timing and pulse width (jet volume) ], compressed natural gas injected into the gas rationing rail or cylinder.
|

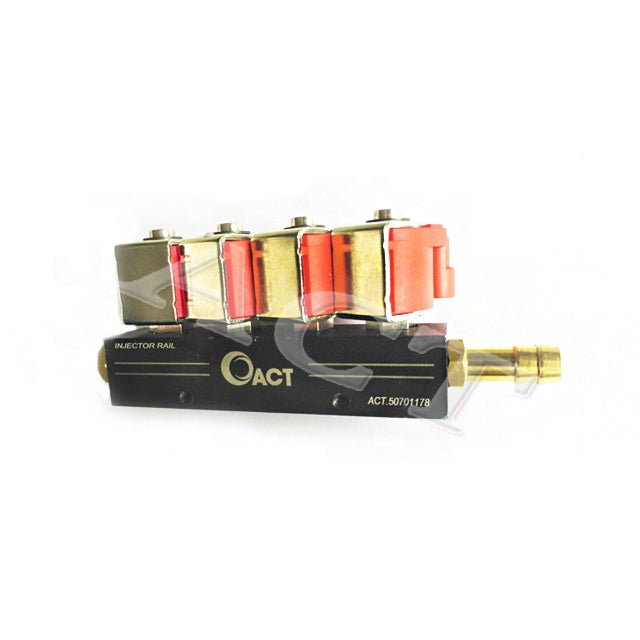

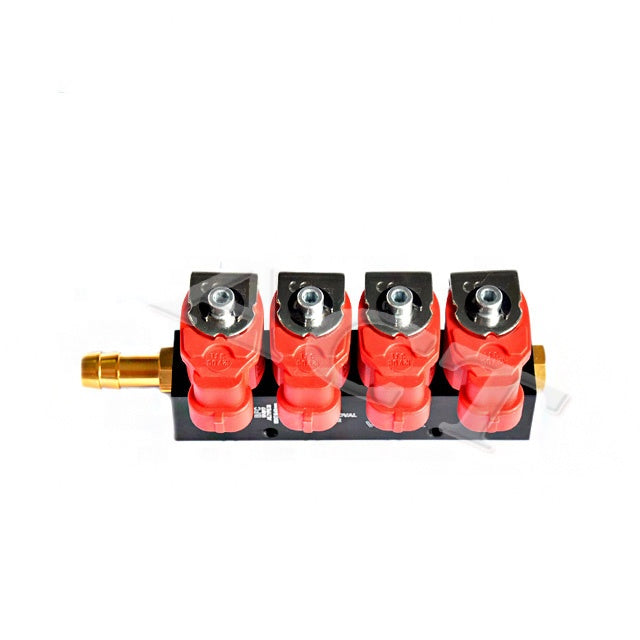

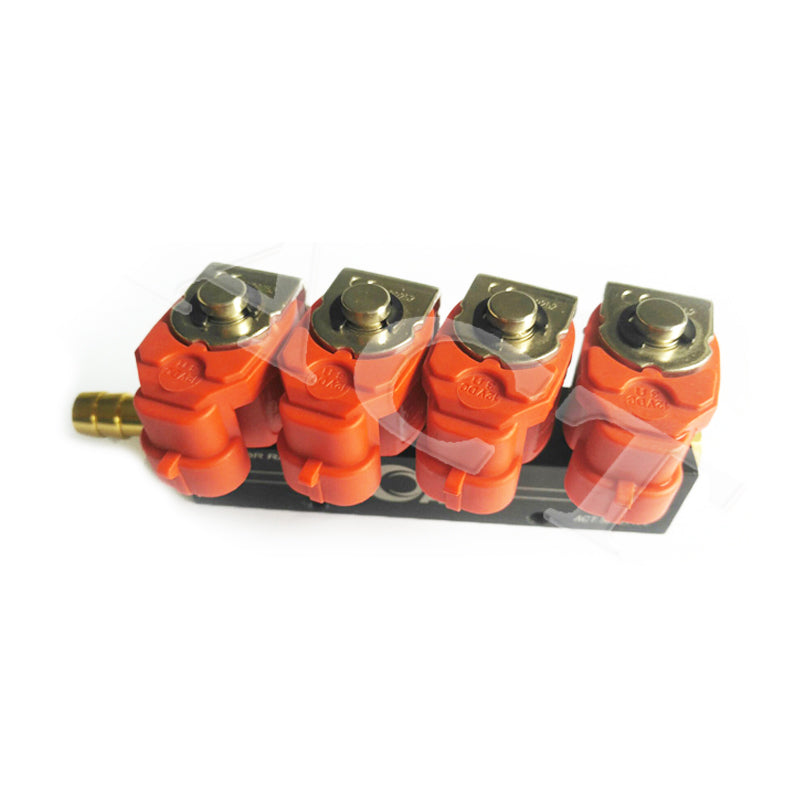

SPECIFICATIONS FOR ACT-V4D Injector Rail
|
||||||
|
Product details
|
Regulated media
|
CNG
|
LPG
|
|||
|
Resistance
|
3 ohm
|
2 ohm
|
||||
|

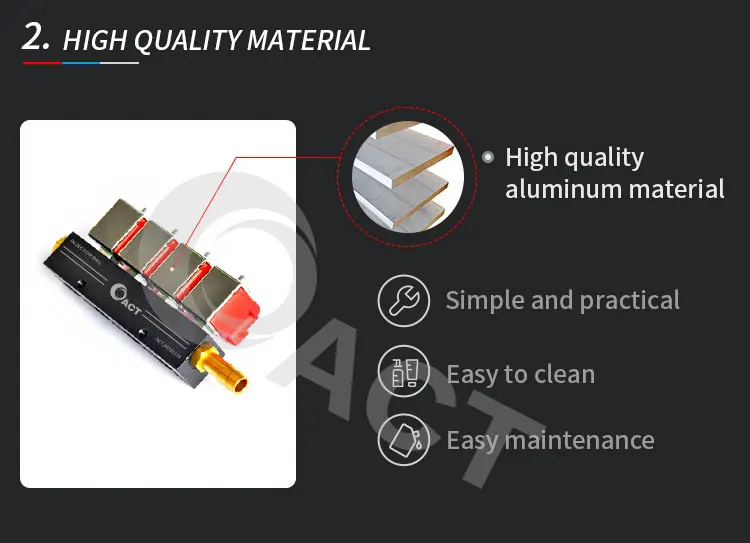

Material
|
Aluminum Alloy
|
|||||
|
Main parameters
|
Opening time
|
3 ms
|
2.5 ms
|
|||
|
Closing time
|
2 ms
|
1.8 ms
|
||||
|
Working pressure
|
0.5~2.5 bar
|
0.5~2.5 bar
|
||||
|
Maximum pressure
|
4.5 bar
|
4.5 bar
|
||||
|
Under pressure
|
8 bar
|
8 bar
|
||||
|
Voltage
|
DC12V±10%
|
DC12V±10%
|
||||
|

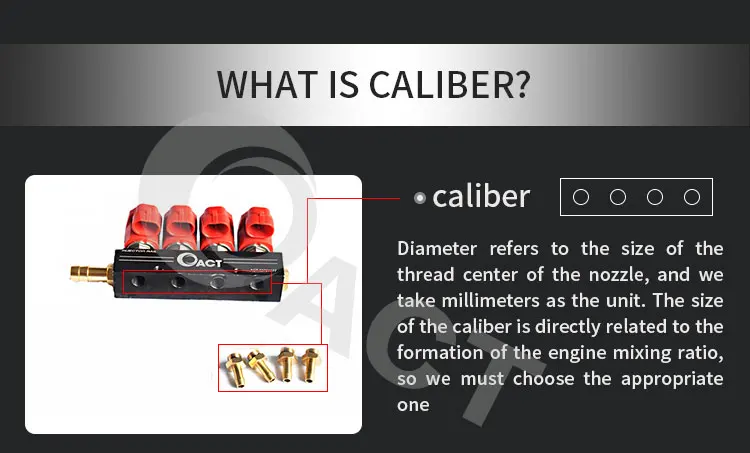

Nozzle diameter
|
φ1.5
|
φ1.5
|
||||
|
Inlet connector
|
Inner diameter of rubber hose φ10
|
|||||
|
Outlet connector
|
Inner diameter of rubber hose φ16
|
|||||
|
Working temperature
|
-20℃ + 120 ℃
|
|||||
|
Package details
|
30 Pieces / carton
|
20KG
|
0.030 CBM
|
|||
|
40 Pieces / carton
|
26 KG
|
0.035 CBM
|
||||
|
50 Pieces / carton
|
33 KG
|
0.040 CBM
|
||||
