Products Description
|
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
100Ah@0.2C
|
|
|
Energy
|
1280Wh
|
|
|
Internal Resistance
|
≤50mΩ
|
|
|

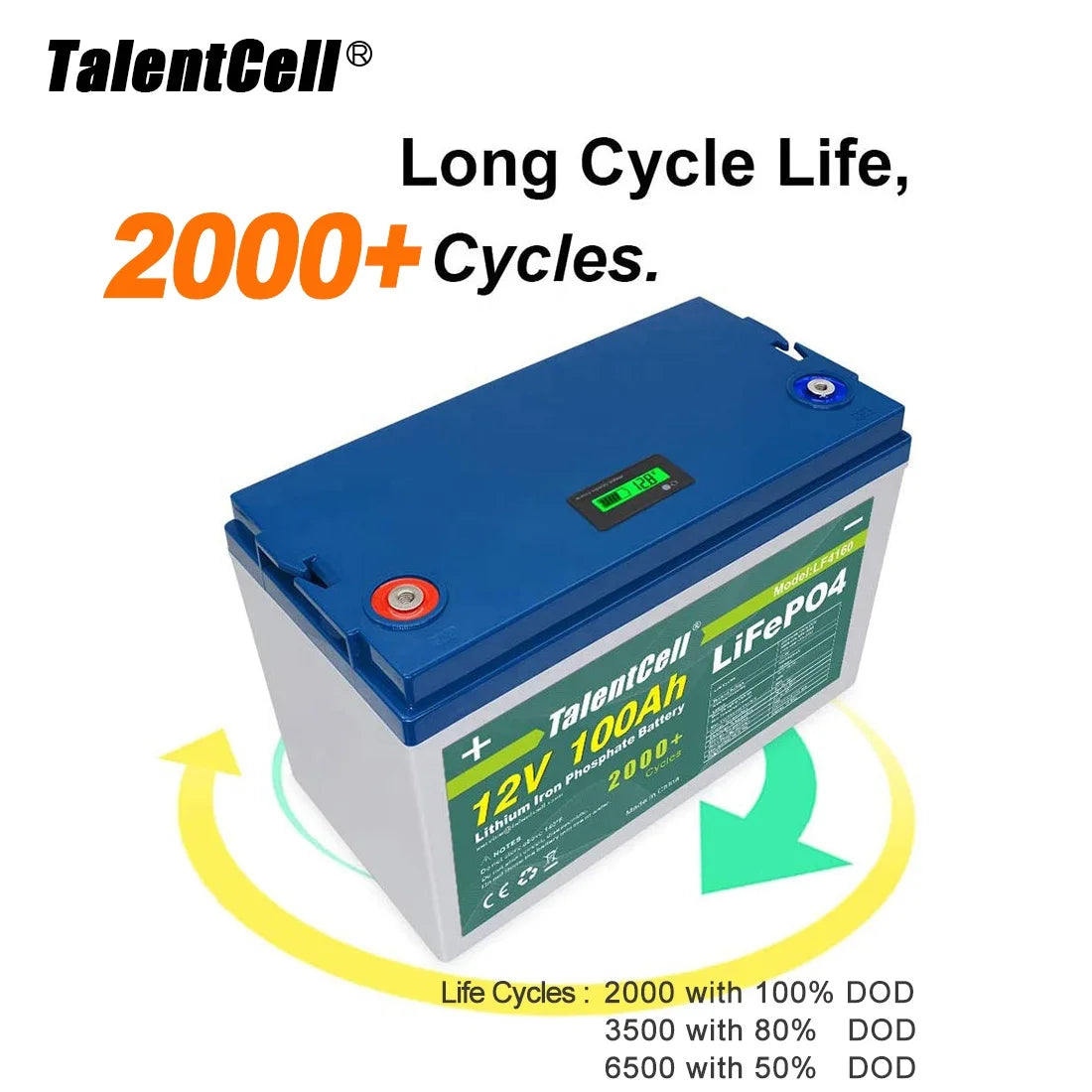

Cycle Life
|
6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C |
|
|
Charging Current
|
50A
|
|
|
Max.Charging Current
|
50A
|
|
|
Standard Discharging
|
Discharging Current
|
100A
|
|
Max. Continuous Current
|
100A
|
|
|
Max.Pulse Current
|
200A(<3S）
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
|
Structure
|
Cell & Format
|
IFR32700 N65,4S17P or 4S1P
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
328*172*216*216mm
|
|
|
Package Dimension
|
398*243*295mm
|
|
|
Weight
|
Approx. 13Kg
|
|
|
Terminal
|
M8
|
Details Images
◆ UPS ◆ Solar & Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Advantage
Custom
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
