🔍 1. Professional Product Overview

The GOOTU One Phase Solar Inverter 10KW 8KW 7KW Dual Output Hybrid Inverter Support Lithium Battery is a high-utility asset meticulously selected for the Shanvis Store 2026 collection. Engineered to bridge the gap between industrial reliability and commercial affordability, this product is a cornerstone for D2C brands and B2B resellers looking to establish market dominance through quality-vetted inventory.

📦 2. Comprehensive Detailed Description & Technical Specifications

Product Description

7.2/8.2/10.2KW 220/230/240VAC 48V 160A All In One Hybrid Solar Inverter

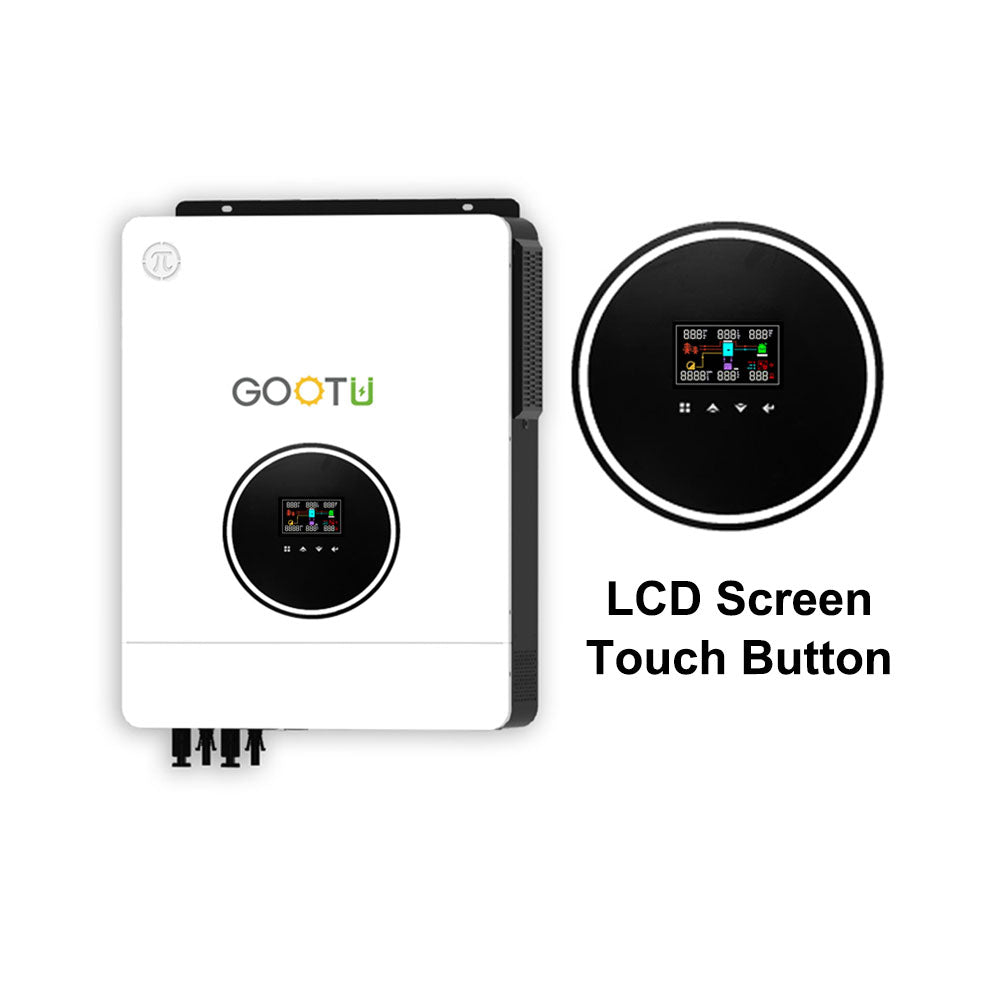

Main Features: * Pure sine wave solar inverter (Grid Tie / Off Grid). * 1.0 output power factor. * WIFI & GPRS available for IOS and android. * Support running without battery. * One click to restore factory settings. * Built-in 160A MPPT solar charger. * Built-in lithium battery automatic activation. * Built-in anti-dusk kit for harsh environment(optional). * High PV input voltage range(360~500VDC) * Smart battery charge design to optimize battery life. * Touch button, RGB light. * Dual output.

Data Sheet

Model	JSN-H4872E160
Rated Output Power	7200W/7200VA
Max. PV Input Power	8200W
Max. Solar Charging Current	140A
Grid Tie Operation
PV Input(DC)
Normal DC Voltage / Max. DC Voltage	360VDC/500VDC
Start-up Voltage / Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90VDC~450VDC
Number of MPPT Tracker / Max. Input Current	1/27A
Grid Output(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195~253VAC
Nominal Output Current	31.3A
Power Factor	＞0.99
Feed-in Grid Frequency Range	49~51±1HZ
Efficiency
Max. Conversion Effeciency(DC/AC)	98%
Two Load Output Power
Full Load	7200W
Max. Main Load	7500W
Max. Second Load(Battery Mode)	2400W
Main Load Cut Off Voltage	44VDC
Main Load Return Voltage	48VDC
Off Grid Operation
AC Input
AC Start-up Voltage / Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC/170-280VAC
Max. AC Input Current	40A
Nominal Operatiing Frequency	50/60HZ
Super Power	14400W
PV Input(DC)
Max. DC Voltage	500VDC
MPPT Voltage Range	90VDC~450VDC
Number Of MPPT Tracker/Max. Input Current	1/27A
Battery Mode Output(AC)
Normal Output Voltage	48VDC
Output Waveform	Pure Sine Wave
Efficiency(DC to AC)	94%
Battery & Charger
Nominal DC Voltage	48VDC
Max. Solar Charging Current	160A
Max. AC Charging Current	140A
General
Physical
Product Dimension	420*310*110mm
Carton Dimension	588*463*205mm
Net Weight	14.2KGS
Gross Weight	15.7KGS
Interface
Communication Port	RS23/EIFI/Remove LCD /GPRS
Enviroment
Operating Temperature	-10~50°C

Project

Certificates

📦 3. What is in this Order & Packaging Information

What is in this Order:

• 1 x GOOTU One Phase Solar Inverter 10KW 8KW 7KW Dual Output Hybrid Inverter Support Lithium Battery
• 1 x High-Capacity Battery Pack / Power Source (If applicable)
• 1 x Fast-Charging Station & Cable (If applicable)
• 1 x Technical User Manual & Access Guide
• 1 x Secure Shanvis Store Enterprise Packaging

🚚 Packaging & Shipping Information:
Our units are shipped in multi-layered industrial-grade vibration-proof boxes. We offer Domestic and Global Shipping via our Delivered Duty Paid (DDP) model to ensure your order arrives in showroom condition directly to your warehouse.

💡 4. Strategic Importance & Business Value

In the evolving landscape of 2026 e-commerce, the GOOTU One Phase Solar Inverter 10KW 8KW 7KW Dual Output Hybrid Inverter Support Lithium Battery matters because it minimizes operational downtime and maximizes end-user satisfaction. For Amazon, Flipkart, and Meesho sellers, it represents a 'Hero SKU' that maintains consistent performance ratings, reducing return rates and enhancing your brand’s supply chain integrity.

🚀 5. Core Advantages & Key Features

• 🛡️ Advanced Build Integrity: Sourced using premium materials to ensure longevity in high-frequency commercial environments.
• ⚙️ Precision Functionality: Every unit is verified to meet international standards (CE/ISO equivalent) for reliable deployment.
• 💹 High ROI Potential: Low maintenance requirements paired with high-performance output ensures maximum profitability per unit.
• 📦 Fulfillment Ready: Designed with protective packaging standards suitable for global transit and Indian FBA warehouses.

📊 6. Technical Fact Sheet & Commercial Use Cases

👍 8. Core Business Advantages (Top 10)

1. Commercial Durability: Optimized build for educational and industrial use cases.
2. DDP Shipping: Final landed cost certainty with no hidden import fees.
3. Low MOQ Access: Low entry barriers for growing MSMEs and startups.
4. Full GST Compliance: Verified B2B invoices for input tax credit claims.
5. Global Quality QA: Strict multi-point checks at international source points.
6. Supply Chain Stability: Reliable inventory availability for high-volume resellers.
7. High Market ROI: Low overheads and consistent performance metrics.
8. Fulfillment Integration: Packaging standard compatible with major Indian logistics.
9. Reduced Overhead: Streamlined procurement process through official Shanvis partners.
10. Verified Branding: Direct professional partnership with MeeThought/Bhavitha Sree Trading.

❓ 9. B2B Procurement FAQ

Q1: Can we claim GST Input Tax Credit?
A: Yes, we provide official B2B invoices with your GSTIN for full tax compliance.

Q2: What is the benefit of DDP Shipping for us?
A: DDP means the price you see is the final landed cost. No surprise customs or hidden duties at the time of delivery.

Q3: Is this product suitable for high-volume reselling?
A: Absolutely. We source this specifically for Amazon and Meesho power-sellers who require consistent quality.

Q4: How do you handle Quality Assurance (QA)?
A: Each batch undergoes a rigorous multi-point check at our global source facilities before dispatch.

Q5: Can we request bulk customized branding?
A: Yes, for large-scale enterprise orders, we facilitate OEM branding through our manufacturing partners.

🛡️ 10. Warranty & After-Sales Support

Shanvis Enterprise Warranty: Every unit is backed by our B2B buyer protection program. We offer comprehensive after-sales assistance, defective-on-arrival (DOA) replacements, and dedicated technical support to ensure your business operations never face unnecessary downtime.
