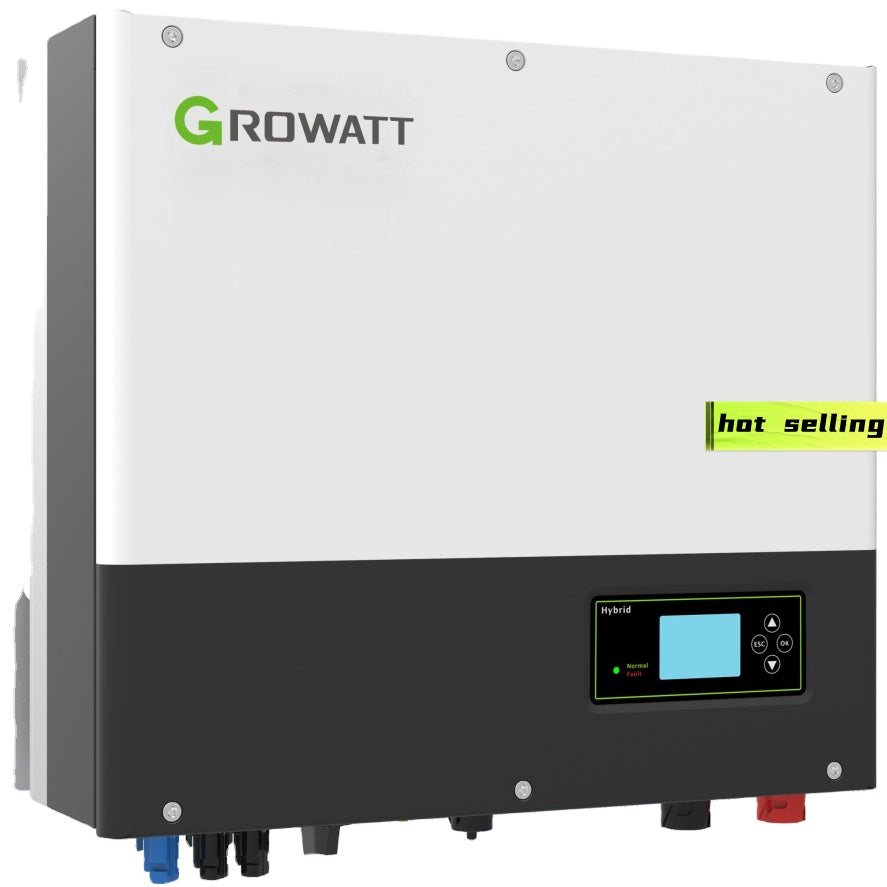

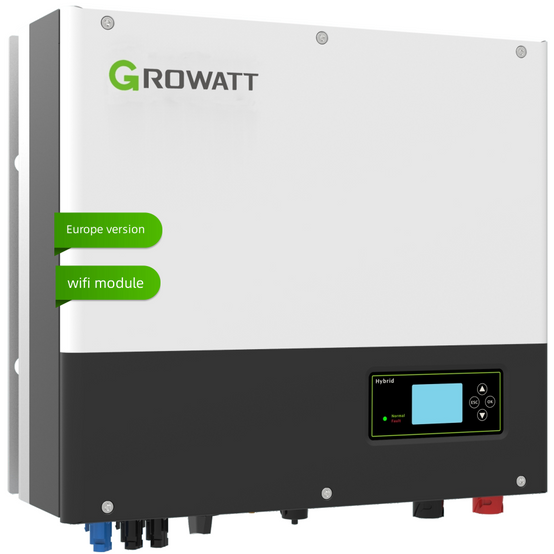

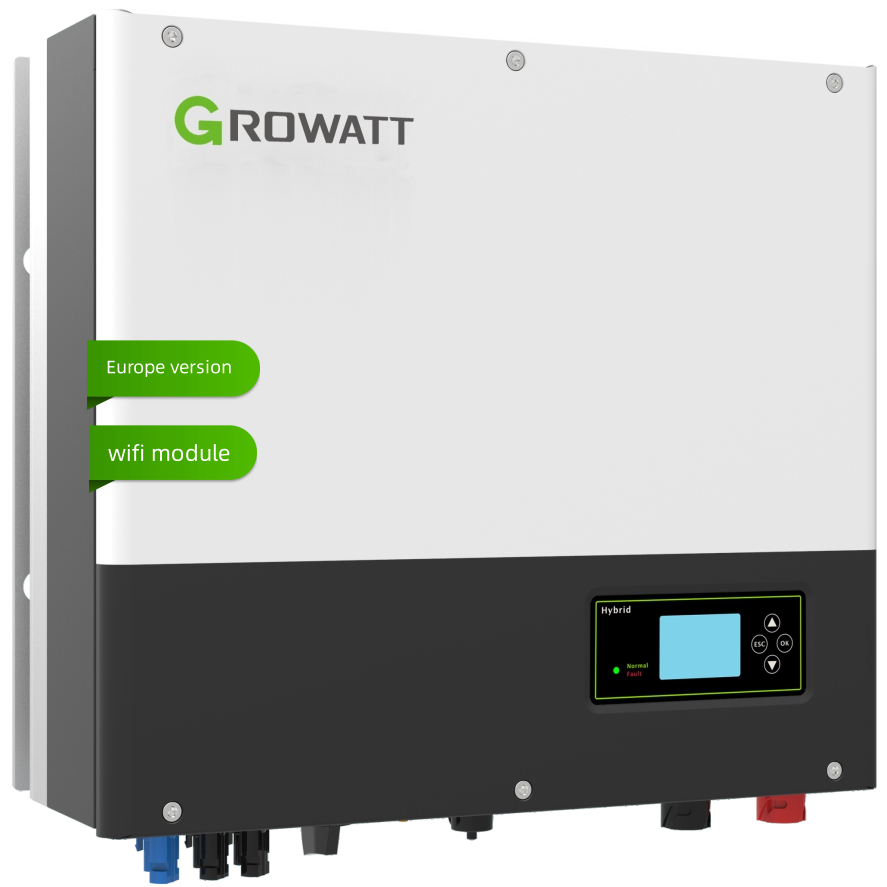

Growatt Hybrid Inverter 20kw 10kw 6kw Inverter Sph10000tl3 Bh-up Solar Hybrid Inverter
Save -55%
Rs. 591,353.33
Rs. 1,326,725.15
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
Feature
●100% three-phase imbalance output
●Smart phase-level power export limitation
●Wide battery voltage 100-550V
●UPS function, 10ms transition
●Scalable system configuration
●VPP interface ready
●DC/AC type II SPD
●1.5 DC/AC Ratio
Growatt on grid / Off grid / Hybrid inverters are available, kindly contact us for quote and technical datasheet
●UPS function,10ms transition
●wide battery voltage 100-550v
●Smart face level ,power control
●Compatible with both DC-Coupled and AC coupled system
●Scalable system configuration
●Smart face level ,power control
●Compatible with both DC-Coupled and AC coupled system
●Scalable system configuration
Solution Diagram
Specification
|
Model
|
SPH4000 TL3 BH-UP
|
SPH5000 TL3 BH-UP
|
SPH6000 TL3 BH-UP
|
SPH7000 TL3 BH-UP
|

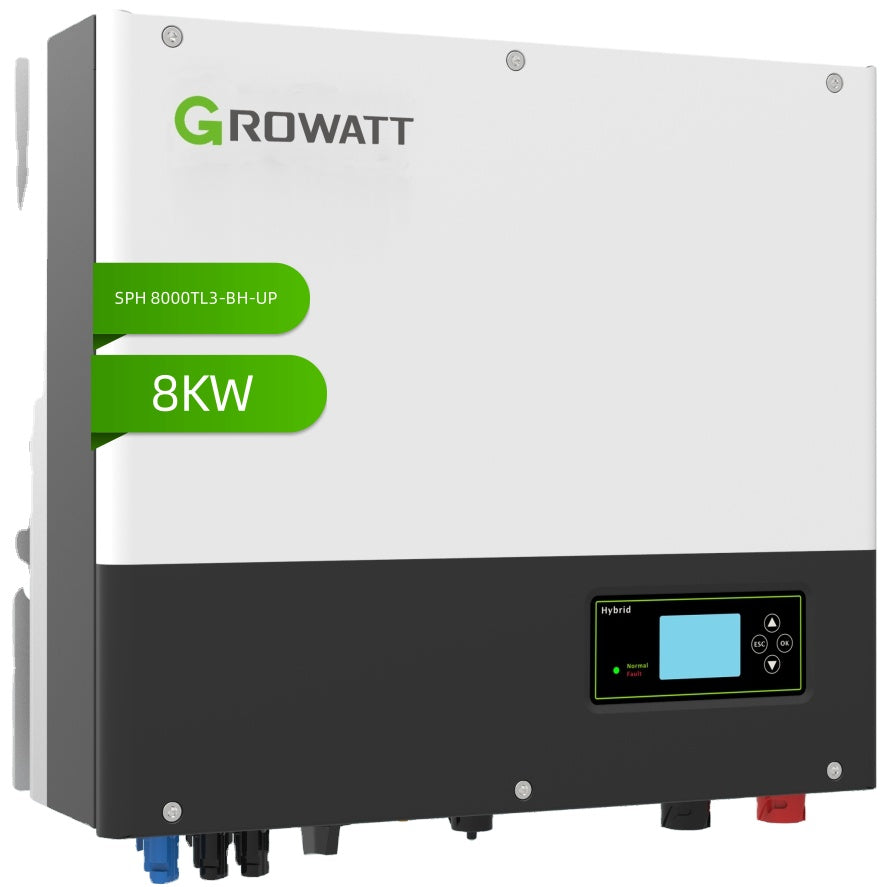

SPH8000 TL3 BH-UP
|
SPH10000 TL3 BH-UP
|
||||||
|
Rated Power
|
4000W
|
5000W
|
6000W
|
7000W
|
8000W
|
10000W
|
||||||
|
Max. PV input power
|
6000W
|
7500W
|
9000W
|
10500W
|
12000
|
15000W
|
||||||
|
Max. DC input voltage
|
1000V
|
|||||||||||
|
Nominal DC input voltage
|
120V
|
|||||||||||
|
Max. input current
|
13.5A
|
|||||||||||
|
Nominal AC voltage range
|
230V/400V (310~476V)
|
|||||||||||
|
Max. output current
|
6.1A
|
7.6A
|
9.14A
|
10.6A
|
12.1A
|
15.2A
|
||||||
|
European efficiency
|
97%
|
97.2%
|
97.3%
|
97.4%
|
97.4%
|
97.5%
|
||||||
|
Dimensions(W/H/D)
|
505/453/198mm
|
|||||||||||
|
Weight
|
30KG
|
|||||||||||
|
CE, IEC 62116, IEC 61727,IEC62109,INMETRO,AS4777
|
||||||||||||
