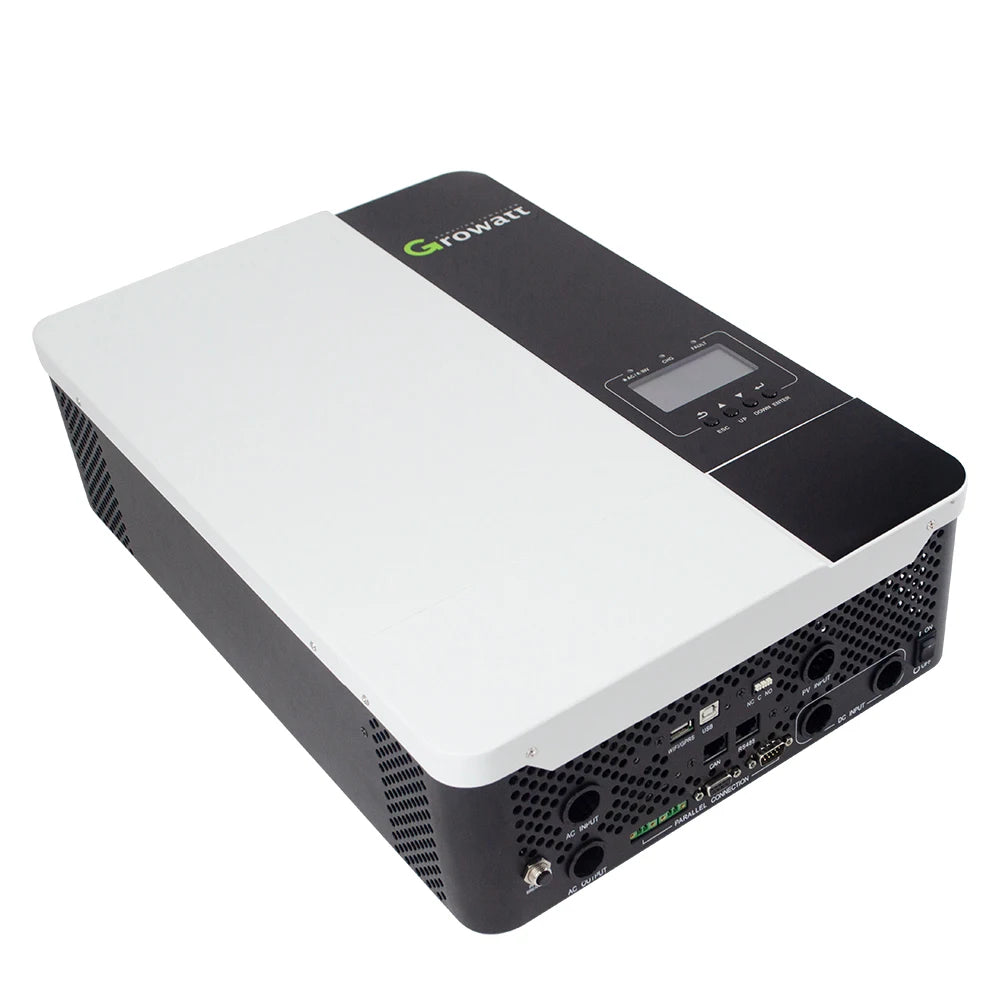

Growatt SPF5000ES off Grid Solar Inverter 48v EU Version Wifi Module hybrid off Solar Inverter
Save -49%
Rs. 218,835.86
Rs. 428,739.57
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Details Images
|
Model
|
SPF3500ES
|
SPF5000ES
|
||
|
Battery Voltage
|
48V DC
|
|||
|
Battery Type
|
Lithium /Lead-acid
|
|||
|
Inverter Output
|
||||
|
Rated Output
|
3500VA/3500W
|
5000VA/5000W
|
||
|
Parallel Capability
|
Yes, 6 units maximum
|
|||
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|||
|
Surge Power
|
7000VA
|
10000VA
|
||
|
Solar Charge
|
||||
|
Maximum PV Array Power
|
4500W
|
6000W
|
||
|
MPPT Range @ Operating Voltage
|
120VDC~430VDC
|
|||
|
Number of Independent MPP Trackers/ Strings Per MPP Tracker
|
1/1
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|||
|
Maximum Solar Charge Current
|
80A
|
100A
|
||
|
AC Charge
|
||||
|
Charge Current
|
60A
|
80A
|
||
|
AC Input Voltage
|
230VAC
|
|||
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|||
|
Physical
|
||||
|
Protection Degree
|
IP20
|
|||
|

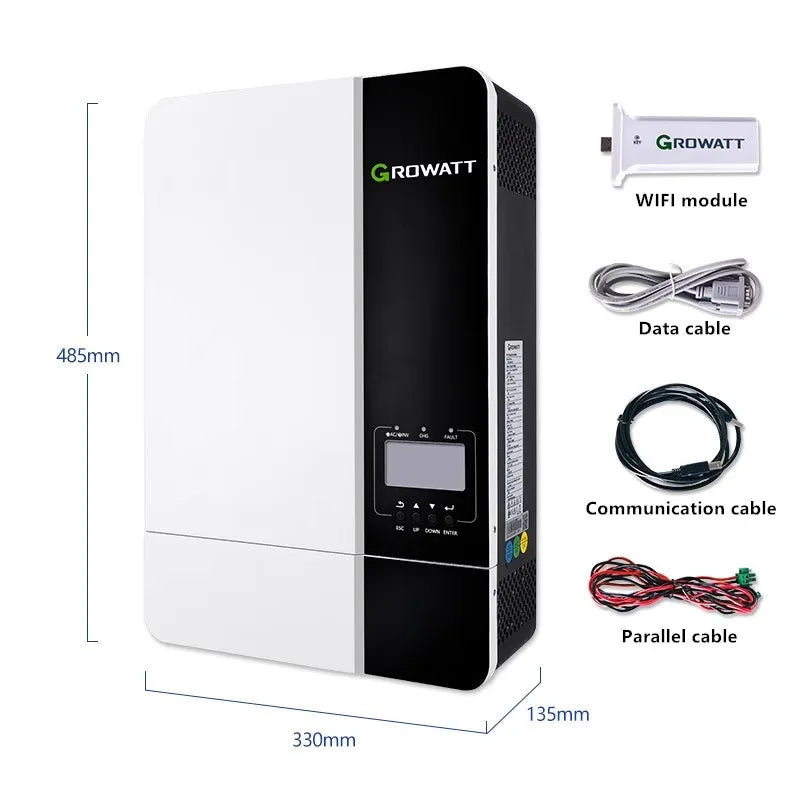

Dimension
|
330/485/135mm
|
|||
|
Net Weight
|
11.5KG
|
12KG
|
||
|

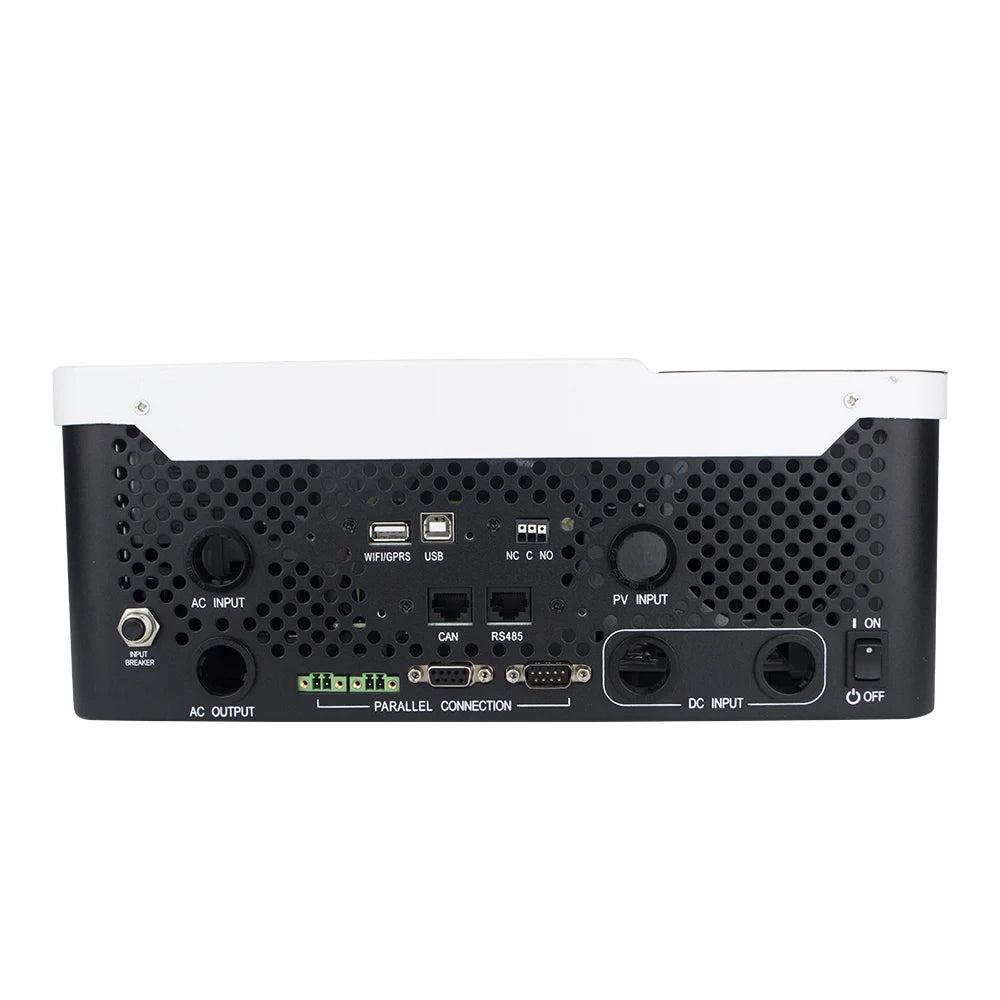

1. LCD display
|
2. Status indicator
|
3. Charging indicator
|
|
4. Fault indicator
|
5. Function buttons
|
6. AC input
|
|
7. WiFi/GPRS communication port
|
8. USB communication port
|
9. BMS communication port (support CAN/RS485 protocol)
|
|
10. RS485 communication port(for expansion)
|
11. Dry contact
|
12. PV input
|
|
13. Power on/off switch
|
14. Battery input
|
15. Parallel communication ports
|
|
16.Current sharing ports
|
17. AC output
|
18. Circuit breaker
|
