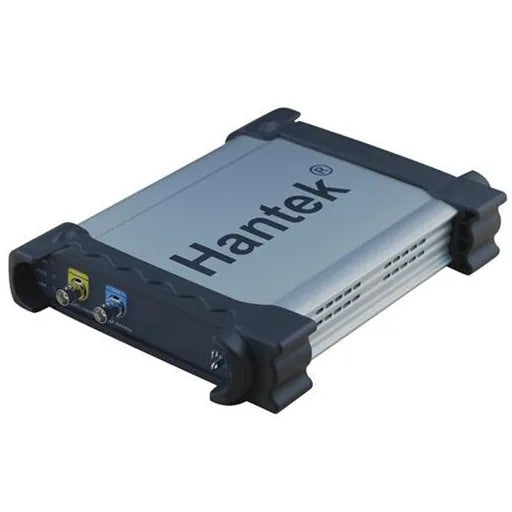

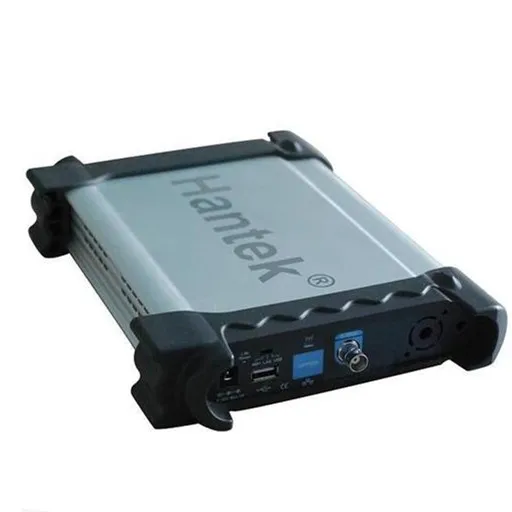

Hantek DSO3102A Digital Multimeter Oscilloscope USB PC Based 100MHz bandwidth 2 CH Car-detector Osciloscopio Logic Analyzer
Features
128M depth storage;
·2 / 4-channel oscilloscope + EXT channel;
·60 / 100/150/200 / 250MHz bandwidths;
·1GSa / s real-time sampling rate;
·8--36V wide range of input power.
· more than 20 kinds of automatic detection, pass / fail detection function, suitable for engineering applications.
· Excellent industrial design, similar interface with bench oscilloscopes, easy to use
· Software Support: Window 2000, Windows XP, VISTA, Windows 7/8.
· provide VC, VB, LABVIE second development sample source code
Parameters:
| model | DSO3102 | DSO3102A | DSO3202 | DSO3202A | DSO310Four | DSO3104A | DSO3204 | DSO3204A |
| Vertical system | ||||||||
| The number of channels | 2 | 4 | ||||||
| bandwidth | 60MHz | 100MHz | 150MHz | 200MHz | 100MHz | 150MHz | 200MHz | 250MHz |
| rise time | 5.8ns | 3.5ns | 2.3ns | 1.7ns | 3.5ns | 2.3ns | 1.7ns | 1.4ns |
| Input impedance | Resistance: 1M ohm; capacitance: 25 pF | |||||||
| Input sensitivity | 10mV/div to 5V/div | |||||||
| Input Coupling | AC/DC/GND | |||||||
| The vertical resolution of the road | 8 bits | |||||||
| memory depth | 10K-128M/CH | |||||||
| Maximum input voltage | 400V (DC+AC Peak) | |||||||
| horizontal system | ||||||||
| Real time sampling rate | 1GSa/s | |||||||
| The actual range | 5ns/div to 1000s/div | |||||||
| The actual accuracy | + 50ppm | |||||||
| Trigger system | ||||||||
| trigger source | CH1, CH2, EXT | CH1, CH2, CH3, CH4, EXT | ||||||
| Trigger mode | Edge, pulse width, video, alternating | |||||||
| Trigger Type | Single, automatic, normal | |||||||
| automatic measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Time, Rise Fall, Time, Width Positive, Width Negative, Duty, Cycle | |||||||
| Cursor measurement | Horizontal, Vertical, Track, Auto Measure Modes | |||||||
| Waveform processing | +, -, x, FFT, Invert. | |||||||
| Voltage range |
10mV to 5V/div x probe 100mV to 1 10 x; 50V/div probe; 1V to 500V/div x 100 probe; 10V to 5000V/div x 1000 probe; 100V to 50000V/div x probe 200mV to 10000 100V/div 20:1; |
|||||||
| The current range | CC65 (20A), CC65 (60A), CC650, CC1100 | |||||||
| FFT | Rectangular, Hanning, Hamming, Blackman, Window | |||||||
| Interface | USB 2 (Lan WIFI Optional) | |||||||
| Power Supply | 8--36V Wide range of input voltage,suitable | |||||||
| size | 255 x 190 x 45 (mm) | |||||||
| weight |

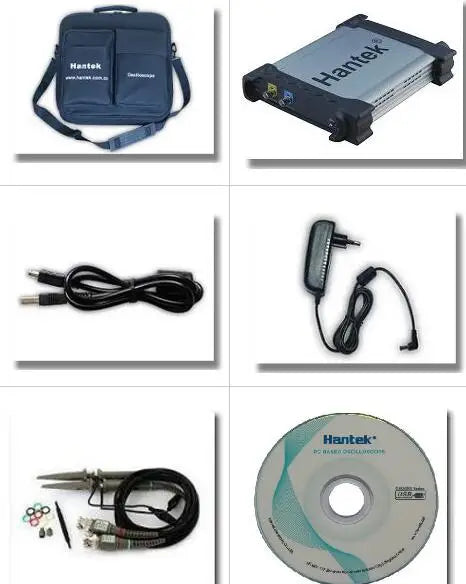

1Kg An overview of the characteristics:
|
|||||||

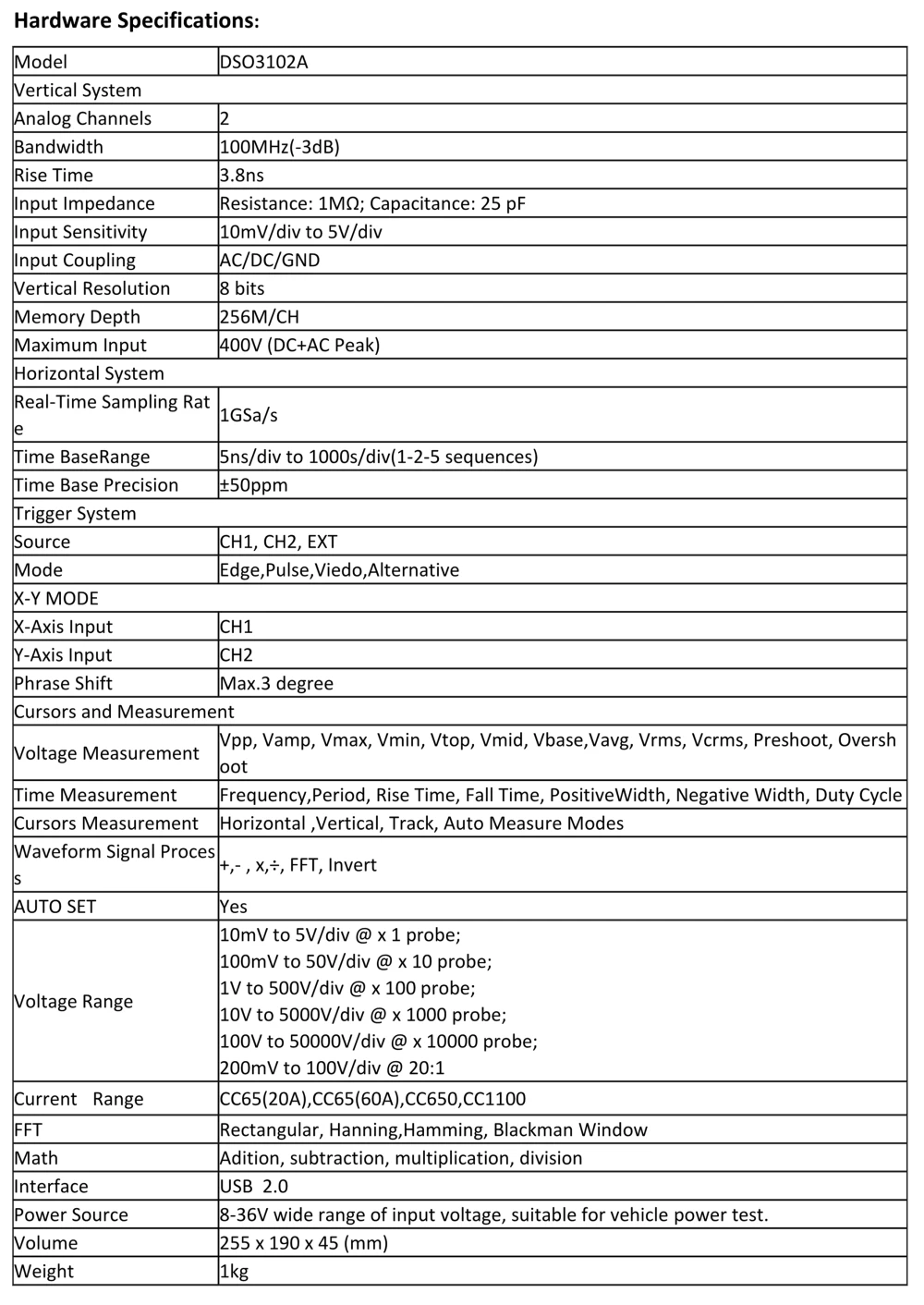

Specifications:
