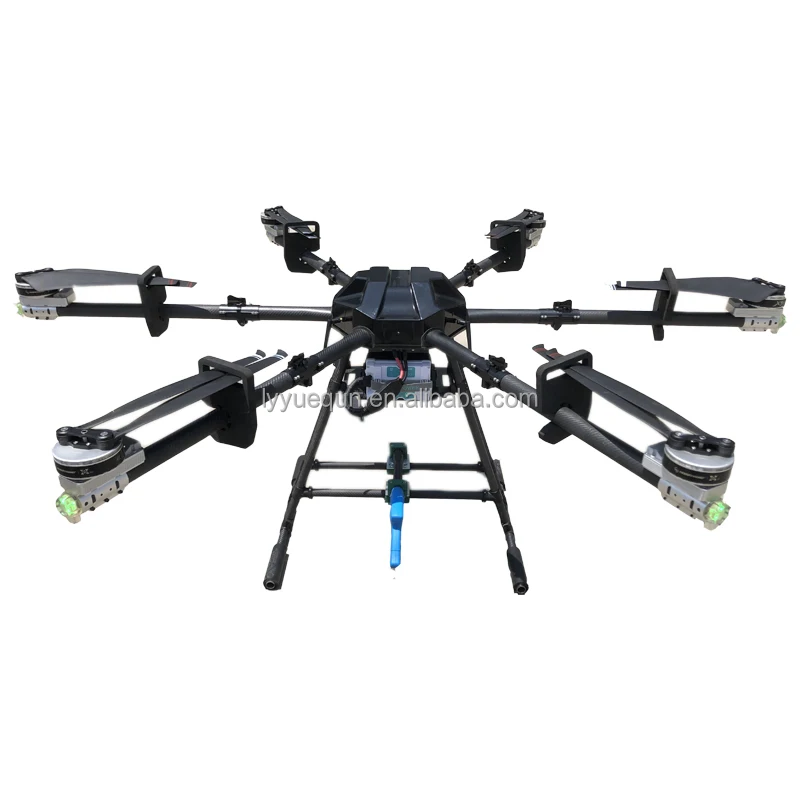

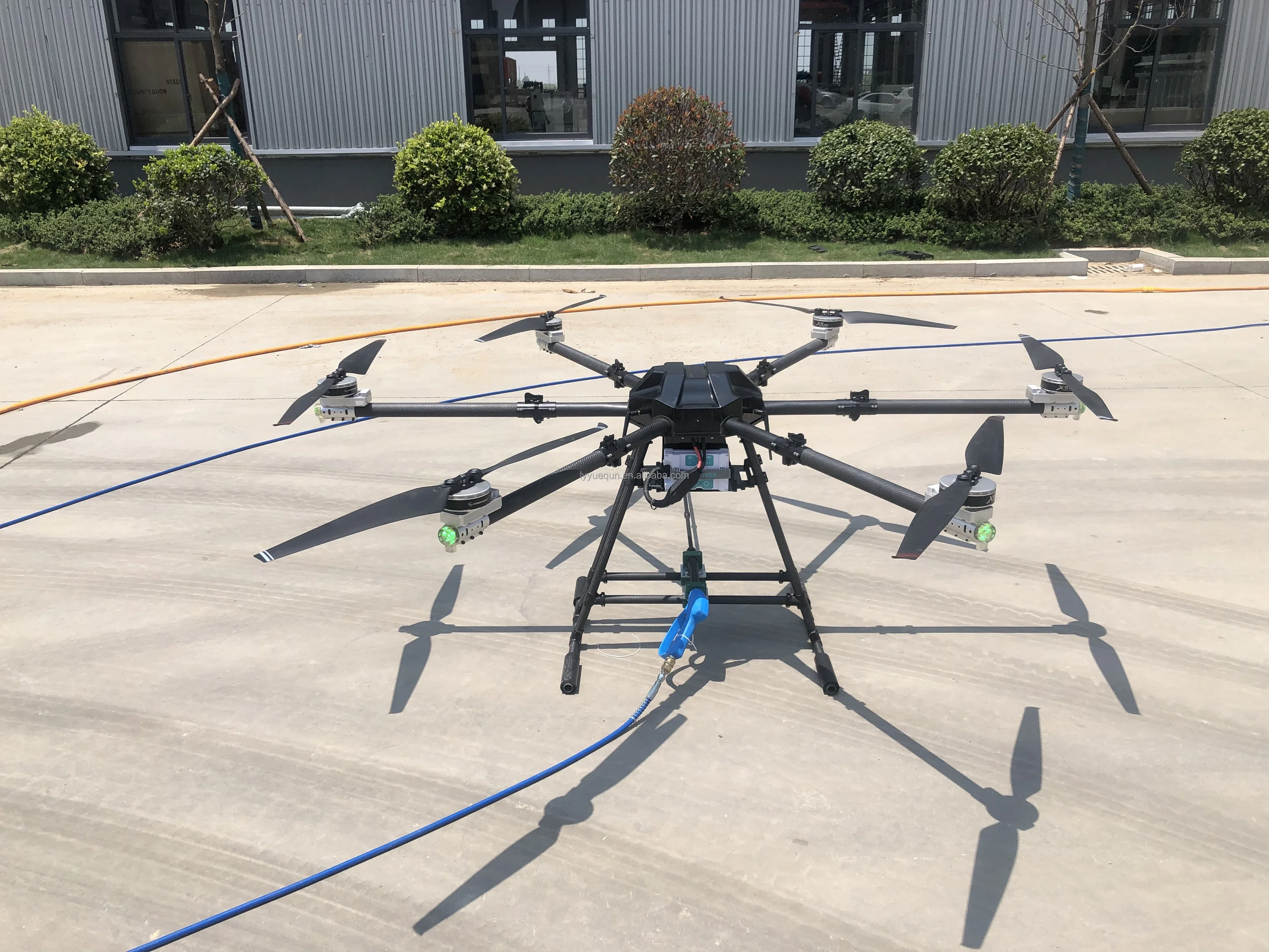

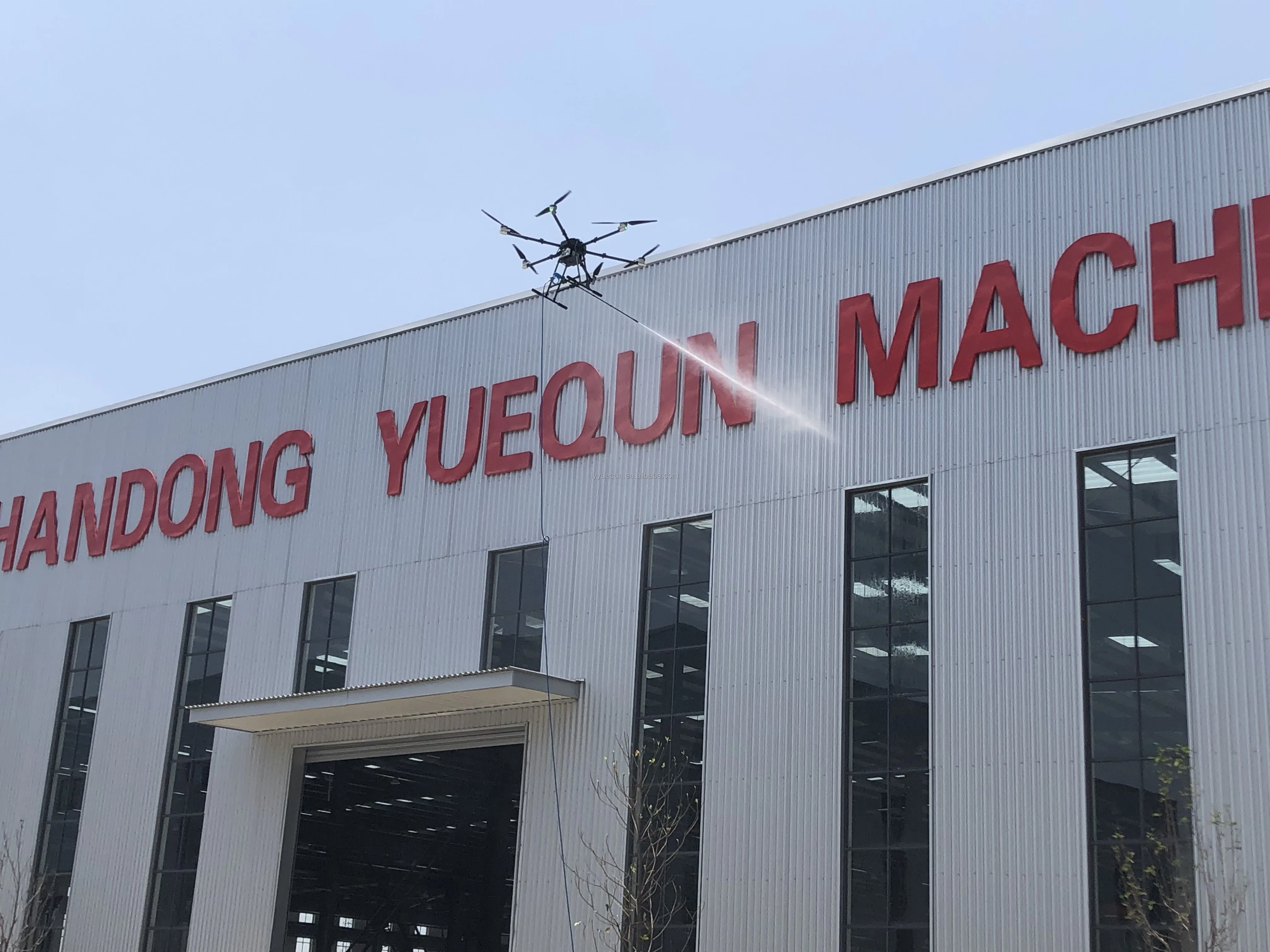

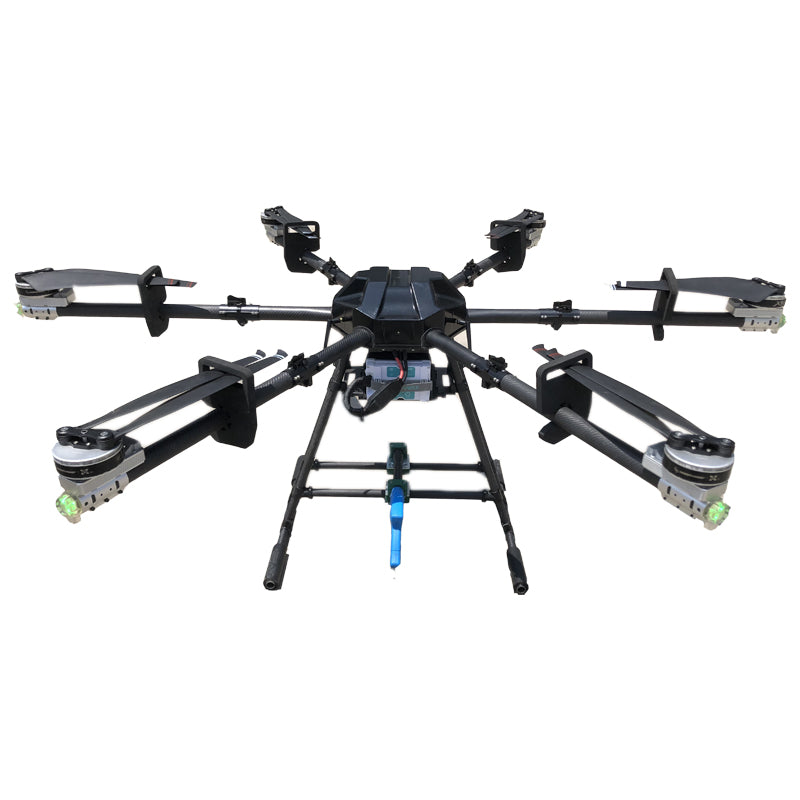

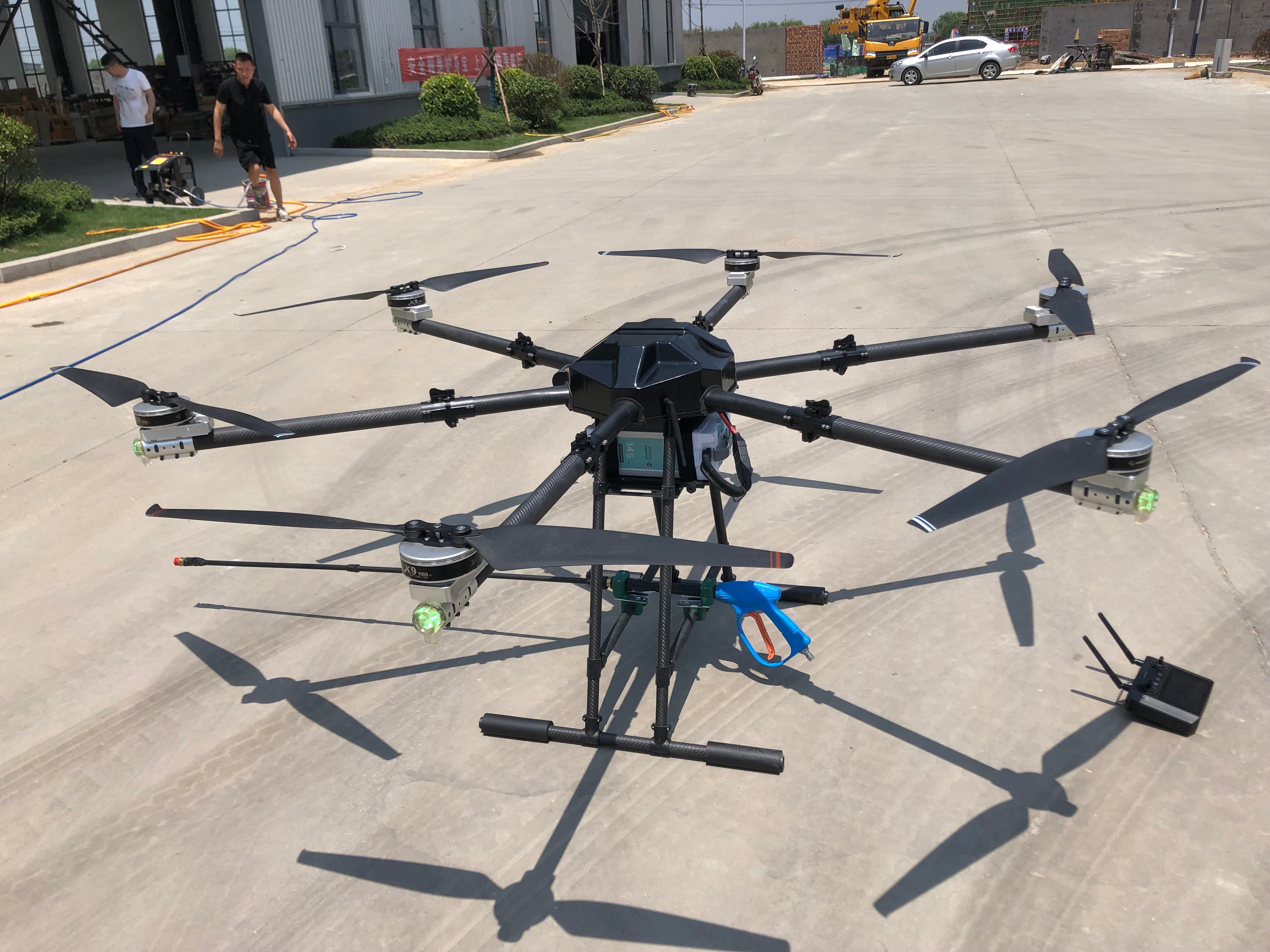

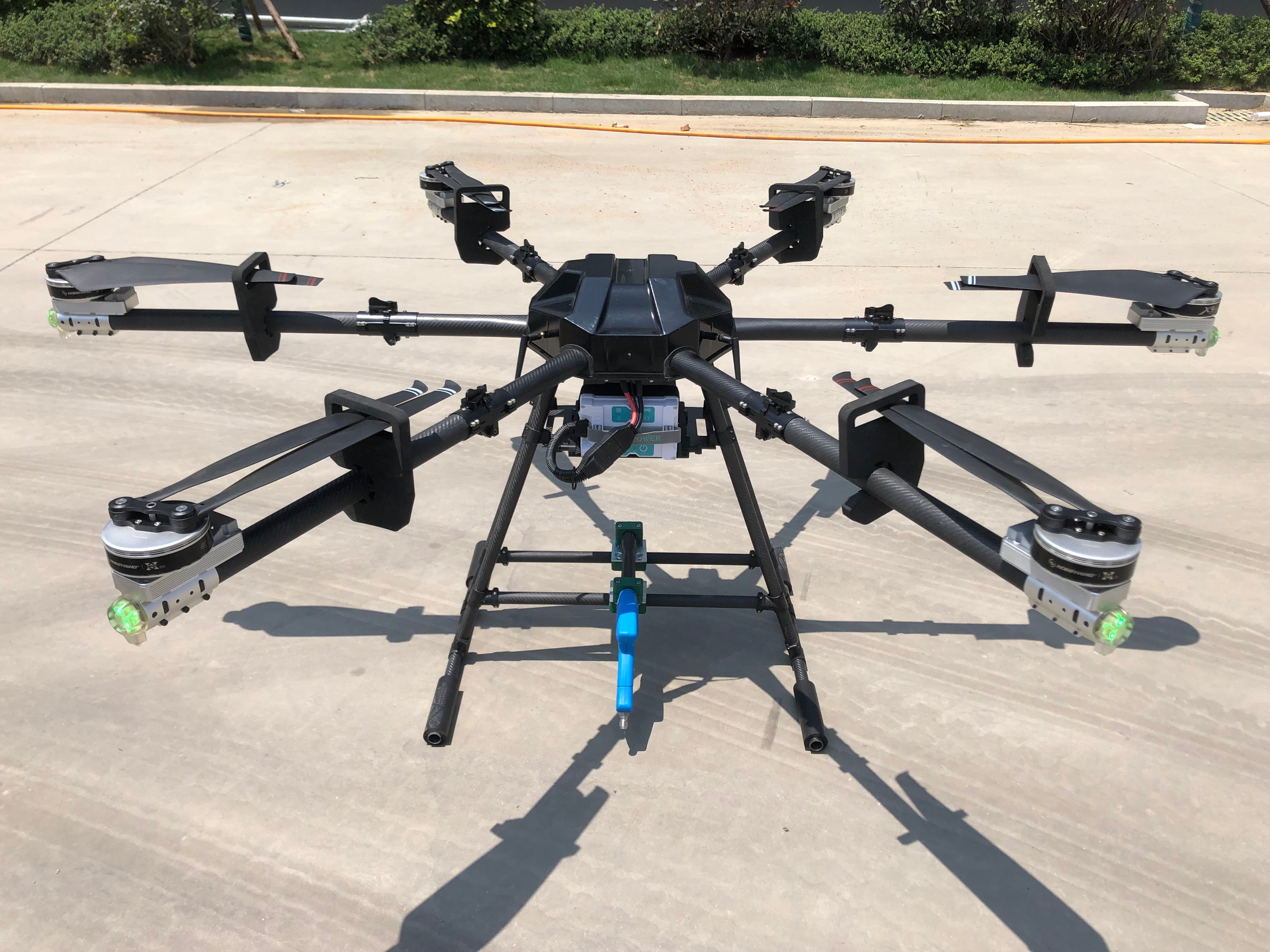

High pressure cleaning drone 6 Axis 50 meters height solar panels cleaning drone clean windows
Share
|
Basic Parameters
|
|
|
||
|
Spread Size
|
1826*2090*900mm
|
|
||
|
Folded Size
|
1000*1000*900mm
|
|
||
|
Weight(includ. battery)
|
25kg
|
|
||
|
Take-off Weight
|
55kg
|
|
||
|
Battery
|
14S 28000mAh
|
|||
|
Power System
|
||||
|
Motor
|
brushless
|
|||
|
Motor KV
|
110 (r/min)·V
|
|
||
|
Power motor model
|
X9 Plus
|
|
||
|
Propeller
|
48inch(1234mm)
|
|
||
|
Flight Specs
|
|
|
||
|
Hover
|
35min(unloaded)
9min(loaded)
|
|||
|
Positioning Accuracy with strong GNSS signal,RTK not enabled
|
Horizontal ±60cm
Vertical ± 30cm
|
|
||
|
Type of satellite receiver
|
GPS
|
|||
|
Obstacle Avoidance detection distance
|
1~40 m
Forward or backward detection depending on the flight direction
|
|||
|
Obstacle avoidance Sensing range
|
3m
obstacle diameter>=2.5cm
|
|||
|
Obstacle avoidance direction
|
Front
|
|||
|
Spraying Specs
|
||||
|
Flying Height
|
0-50m
|
|||
|
Nozzle No
|

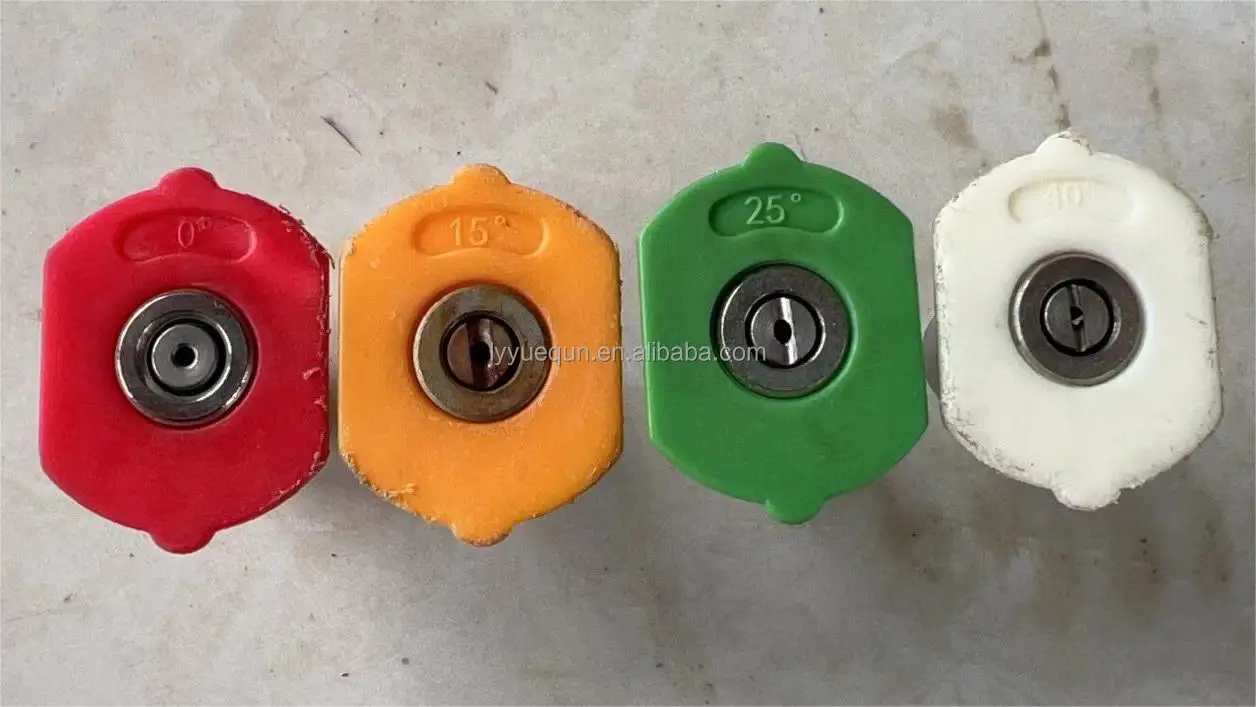

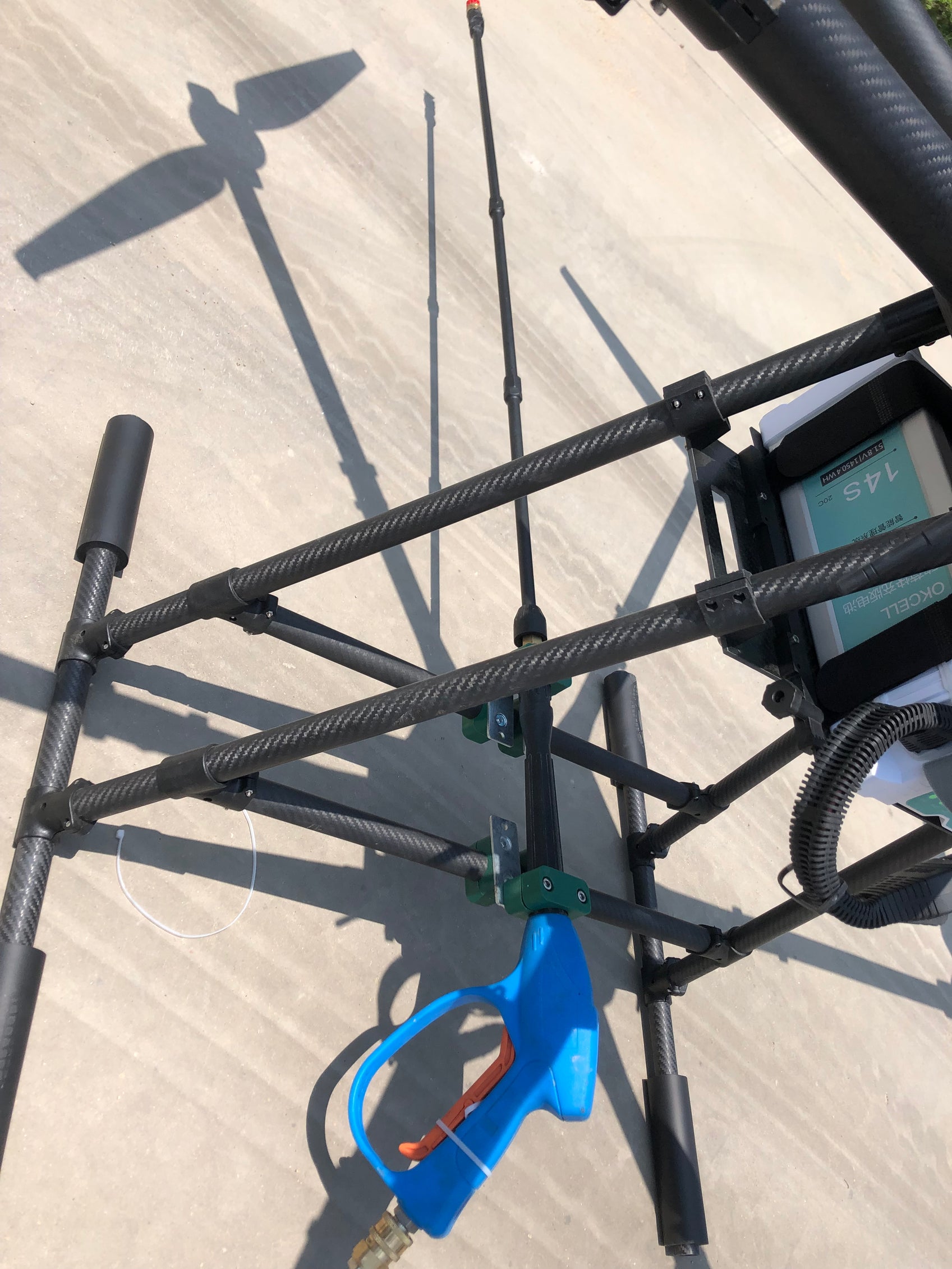

1 Spray gun/4 degrees nozzles(0/10/15/25)
|
|
||
|
Flying Speed
|
3-8m/s
|
|
||
|

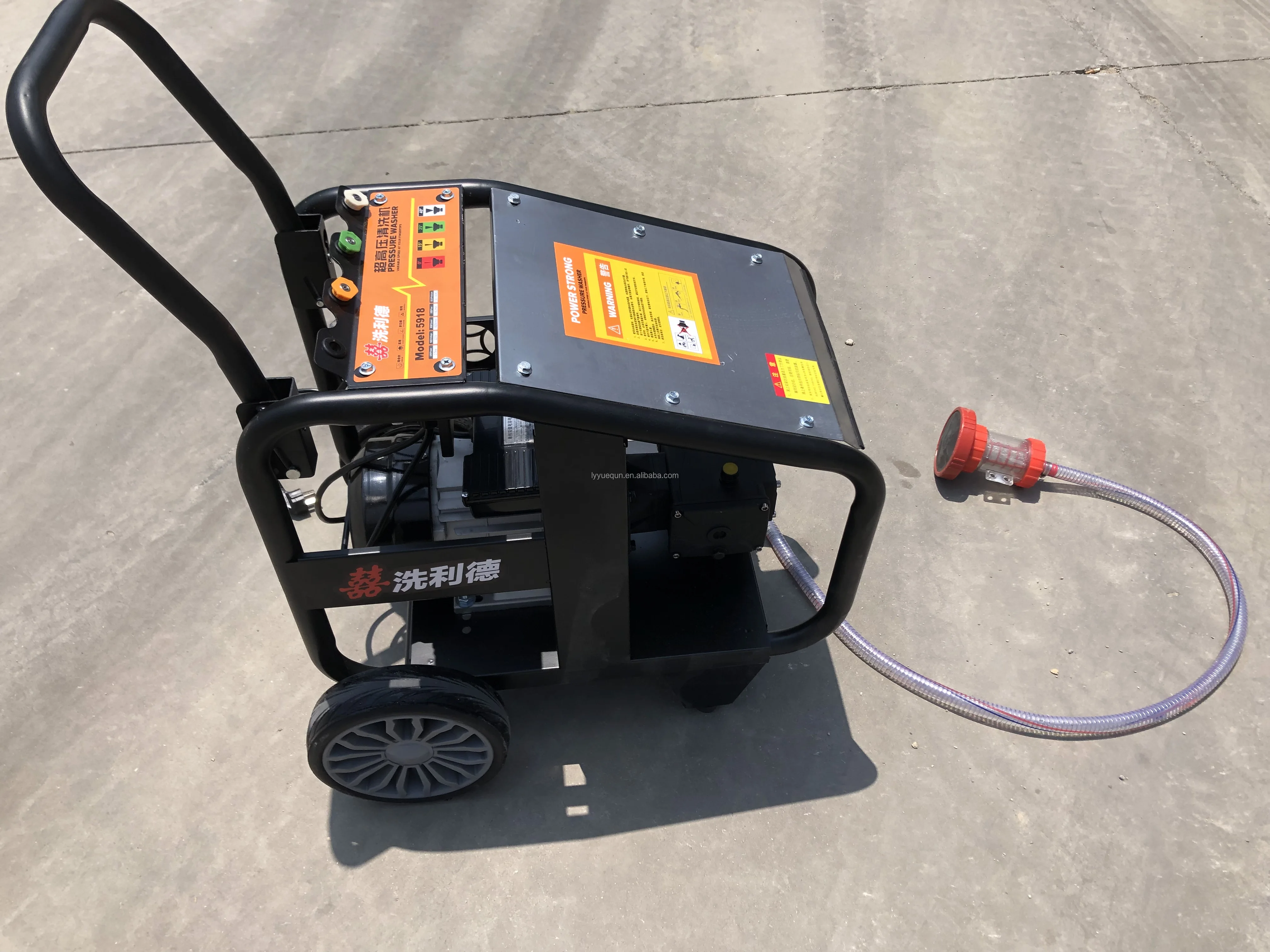

Spray Pressure
|
0-400Bar
|
|
||
|
Pump Intensity of pressure
|
0-5800PSI
|
|||
|
Charger
|
||||
|
Charger input voltage
|
AC110-240V or 380V
|
|||
|
charging power
|
3000W
|
|||
|
Charger output current
|
55A
|
|||
|
Aluminum box size / weight
|
123*108*96,35KG
|
|||
