High Pressure Piston Diesel Air Compressor for Firefighting Scba Breathe Equipment
Share
220 volt 50hz single phase/three phase/gasoline engine breathing air compressor for scuba diving and fire fighting
High pressure compressor for scuba / paintball /fire breathe junior
| Model No. | LW100 | LW100ET | LW100P |
| Medium | Breathable air | ||
| Air quality | Comply with EN12021 STANDARD | ||
| Discharge rate | 100L/min (6m3/h) | ||
| Work pressure | 225bar/330bar | ||
| Noise | 95dB | 97dB | |
| Weight | 46kg | 44kg | |
| Drive | Single phase | Three phase | Gasoline engine |
| Power | 2.2kw | 2.2kw | 4.2k2 |
| Compressor Parameters | |||
| Stage | 3 | ||
| 1st-stage cylinder | 60mm | ||
| 2nd-stage cylinder | 28mm | ||
| 3rd-stage cylinder | 12mm | ||
| Travel | 24mm | ||
| Speed | 2300rpm | ||
| 1st-stage exhaust pressure | 0.6-0.7Mpa | ||
| 1st-stage safety valve pressure | 1.0Mpa | ||
| 2nd-stage exhaust pressure | 4-6Mpa | ||
| 2nd-stage safety valve pressure | 8Mpa | ||
| Lubricating system | splash lubrication | ||
| Oil volume | 360ml | ||
| Max. intake temperature | 5-45℃ | ||
| Intake temperature | Environment temperature+20℃ | ||
| Motor protection grade | IP55 | ||
| Length(mm) | 700 | 770 | |
| Width(mm) | 380 | 420 | |
| Height(mm) | 420 | 420 | |
Charging rate:100L/min-6m³/h-3.5CFM
Filling time cylinder: 6L to 300bar:18min
Working pressure: 225Bar/3300psi-300Bar/4300psi-330bar/4500psi
Dimension: length 66cm/26'', width 38cm/15'', height 41cm/16.1''
Dry weight: 42kg/93bs
Portable compressor SCU70
The compact dimensions and light weight of this electric driven compressor make it very easy to handle. It is simple and economical to use.
| Code |
SCU70 |
| Flow rate |
136 L/min |
| Working pressure |
2.3bar |
| Engine power |
Electric 160w 12v |
| Driven |
direct |
| Motor speed |
1900rpm |
| Inlet diameter |
1/4" |
| Max current |
13A |
| Condensate drain |
manual |
| Filling hose connect |
1 |
| Dimensions (H-W-D) |
320*125*145mm |
Portable compressor SCU80
The compact dimensions and light weight of this electric driven compressor make it very easy to handle. It is simple and economical to use, Two people can breathe at the same time
| Code |
SCU80 |
| Flow rate |
80 L/min |
| Working pressure |
8bar |
| Engine power |
Electric 550W 12V |
| Driven |
direct |
|
Lubricate |
splash |
|
Starter |
ON/OFF button |
| Condensate drain |
manual |
| Filling hose connect |
2 |
Portable compressor SCU80E
The compact dimensions and light weight of this electric driven compressor make it very easy to handle. It is simple and economical to use, Two people can breathe at the same time
| Code |
SCU80E |
| Flow rate |
100 L/min |
| Working pressure |
8bar |
| Engine power |
Electric 1100W |
| Driven |
direct |
| Lubricate |
splash |
| Starter |
ON/OFF button |
| Condensate drain |
manual |
| Filling hose connect |
2 |
| Dimensions (H-W-D) |
500*450*450mm |
| Weight |
35kg |
| Noise level |
73 db(A) |
Portable compressor SCU100
The compact dimensions and light weight of this electric driven compressor make it very easy to handle. It is simple and economical to use, to filling cylinders even in your home.

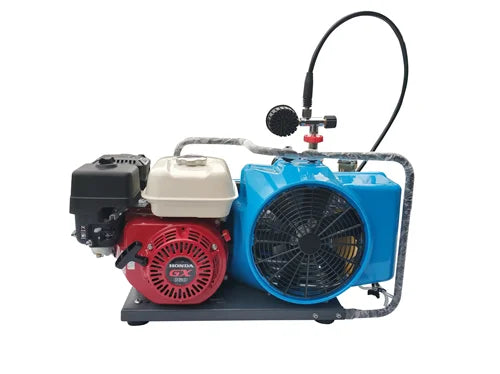

Portable compressor LW100
The compact dimensions and light weight of this gas/petrol driven compressor make it very easy to transport. It is an ideal unit for filling cylinders on land or on boat. junior
1. Charging Rate: 100L/min;
2. Suction pressure: atmosphere
3. Working pressure: 200bar
4. Max working pressure:300bar/4200psi-330bar/4500psi
5. No.of stage and cylinder: 3
6. Electric motor:5.5HP 380v/50hz/3ph or customized
7. Temperature of discharge: environment±10℃
