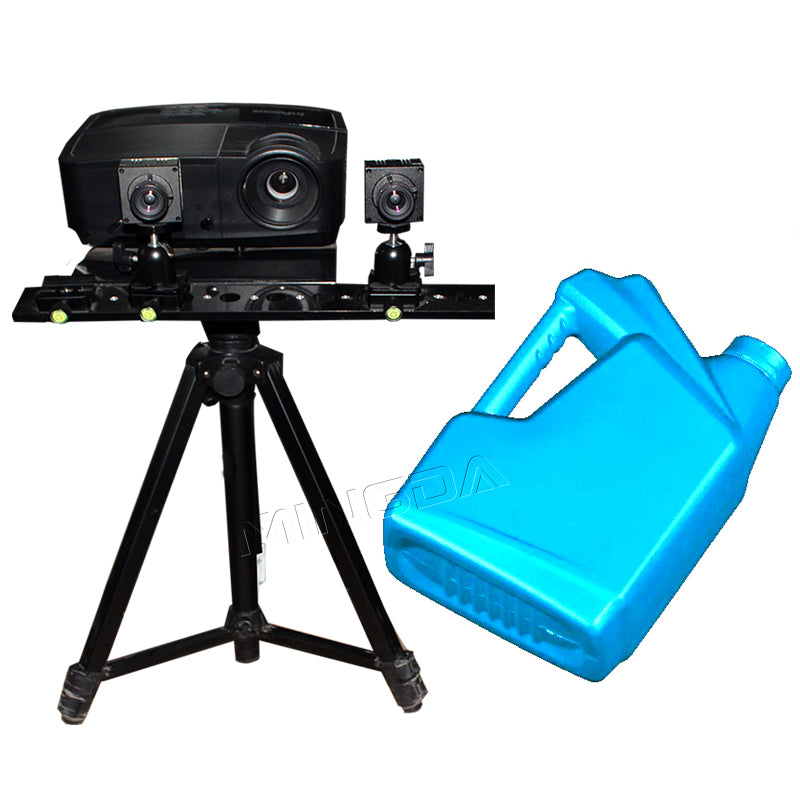

High quality white light 3D scanner for furniture/car/building 3d scanner
Share
MINGDA Professional 3D Scanner and 3D Printer Manufacturers
MINGDA MD-3203 High Accuracy Object usage 3D Printer 3D Scanner for CNC machine Automobile 3D Printing
Best Scanner 3D High Accuracy , MINGDA MD-3203 3D Printer Scanner for Sale
Specification of MINGDA MD-3203 3D Scanner
Description of this 3D scanner
| Model |
MD-3203 |
| Scanning way |
Non-contact surface scanning |
| Raster technology |
German original industrial sensor,binocular1.3 million classes. |
| Accuracy |
<=+/-0.05mm |
| Single frame Speed |
<=3s |
| Dot-pitch |
0.1-0.3mm |
| Camera lens |
Japanese 3M original lens |
| Raster display |
American brand light source raster |
| Alignment |
Fully automatic stitching alignment |
| Scanning range |
objects as small as 10mm in diameter, large objects to two meters high, can precision scanning |
| Scanning depth |
not only meet the general object scanning, suitable depth scan larger objects (0 ~ 180mm) |
| System support |
WINDOWS XP/WINDOWS 7/ WINDOWS 7 X64 |
| Supporting software |
International large-scale software fully compatible (can generate a variety of data formats for use in other software, including stl,stp, ply, asc, ac, pif, igs,iges,obj,etc., can be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWare other software for post-processing.) |
| Driver support |
Microsoft Certified driver, easy to install |
| Noise level |
Very low |
| Net weight |
20KG |
| Packaging dimension |
80*60*30cm |
| Packaging |
Aviation packaging |
| Delivery time |
3 working days |
| Payment terms |
TT with 100% |
| Warranty |
3 years |
MDINGD MD-3203 3D Scanner Main Features
1. Fast scanning speed, high precision: single scan time less than 3 seconds, automatic stitching, stitching precision can reach 0.03mm/m (3um).
2. Excellent machine hardware: the machine hardware is excellent, the original imported, reliability, good durability, ensure the products are excellent stability.
3. Scan widely:10mm diameter objects to 2m tall objects, scan Precisely.
4. Non injury: raster scanning technology, no damage, no deformation of the objects, suitable for all kinds of objects.
5. Easy to use and operate: interface concise, beginners in short time can be skilled operation, the package will package.
6. No harm to human body: strong adaptability to the environment, the American digital grating, high brightness, good heat dissipation; no damage to the eyes, working terms low.
7. Many automatic splicing ways: manual splicing ways,automatic mosaic method.the automatic mosaic using a unique ICP (Iterative Closest Point) sign automatic splicing technology, all the data points are scanned for the best matching, automatic operation, high precision, fast calculation speed, so that the error on object is small.solving the problem of delamination may occur in the process of stitching. the complex objects can be viewed in different directions to get three-dimensional data integrity.
8. Strong compatibility: output format supports STL/ OBJ /IGES /DXF
3DS... With the globalization of software interface, to adapt to the international large software, as well as the domestic software. Such as: mastercam, powermill, ug, pro/e, geomagic studio......
Domestically such as caived, manufacturing engineer, wentai
High Precision Scanner 3D Application
MD-3203 3D Scanner Scanning Shoe Sole

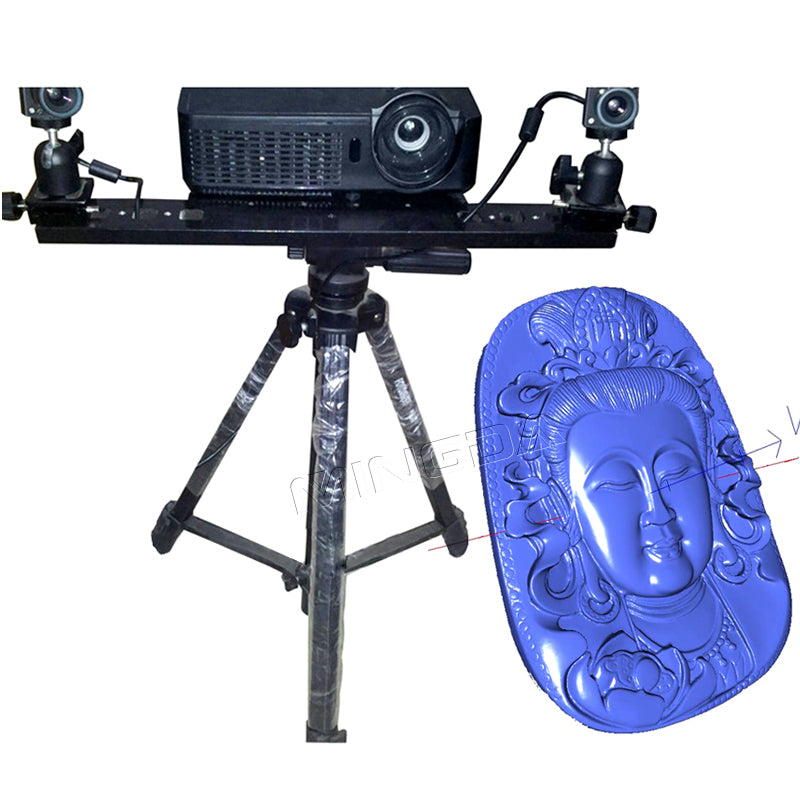

MINGDA Best Scanner 3D Machine Scanning Crafts

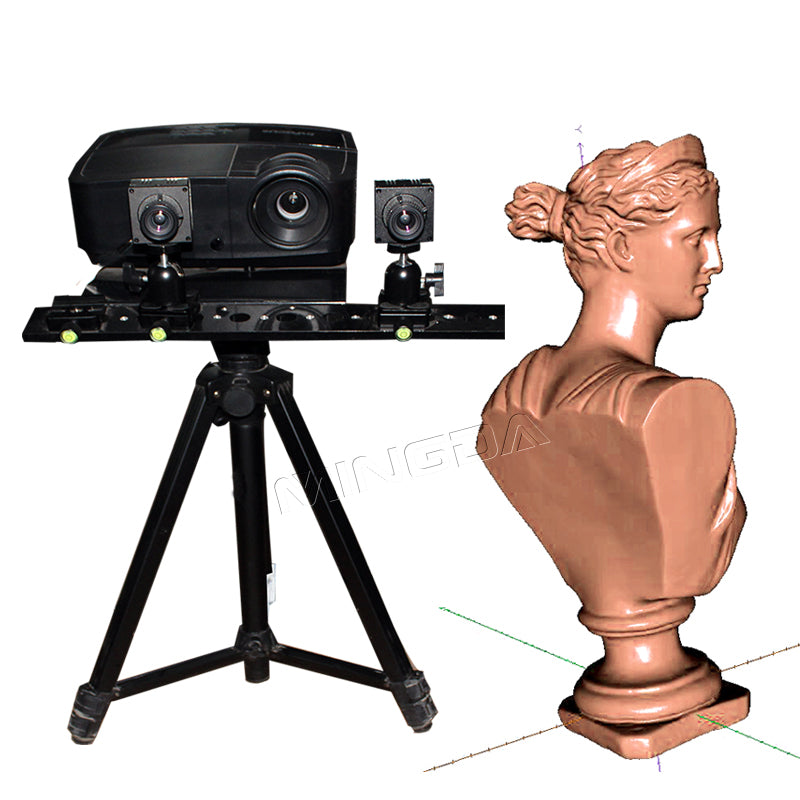

High Precision 3D Scanner MD-3203 Scanning Statues and Small Parts

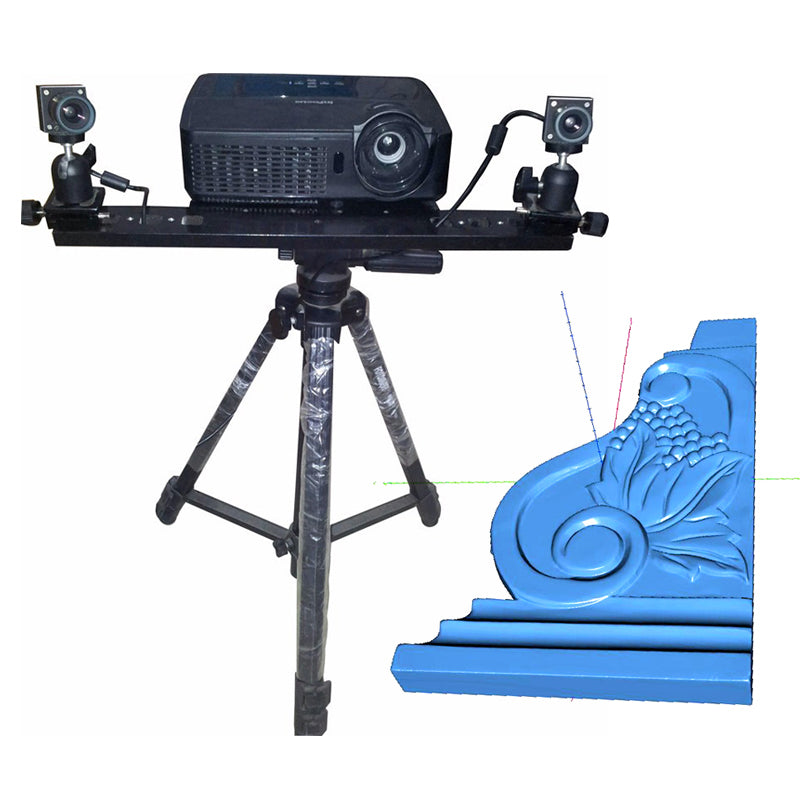

MD-3203 3D Scanner Scanning Decorations and Small Buildings
Standard accessories
| Calibration plate |
1 piece |
| Calibration plate holder |
1 set |
| Dongle |
1 set |
| Paper marker |
10 pieces |
| Power line |
1 piece |
| Data line |
1 piece |
| System dish |
1 pieces |
| Black table cloth |
1 piece |
| Operation manual |
1 piece |
Warmth Tips
Before you start scanning, you should disable some computer settings and close some programs that may affect your scanning process.
1) Cancel screen saving and power saving functions.
2) Close anti-virus and all running programs.
3) Don’t use other programs during scanning process
4) Especially don’t open the current scanning data file.
MINGDA 3D Scanner Best Matched 3D Printer Machines
Parameters of MINGDA High Quality & High Accuracy 3D Printer Machine/ 3D Printing Machinery
If you also looking for 3d printer, please click the below printing size with inner link with the products.
MD-4H printing size 300*200*200mm
MD-4D printing size 300*200*200mm with dual extruders
MD-6H printing size 400*300*500mm
MD-666 printing size 600*600*600mm
High Stability + High Quality+ High Accuracy + Fast Speed + Beautiful and High-End Design + Diversity Products + Convenient Operation
