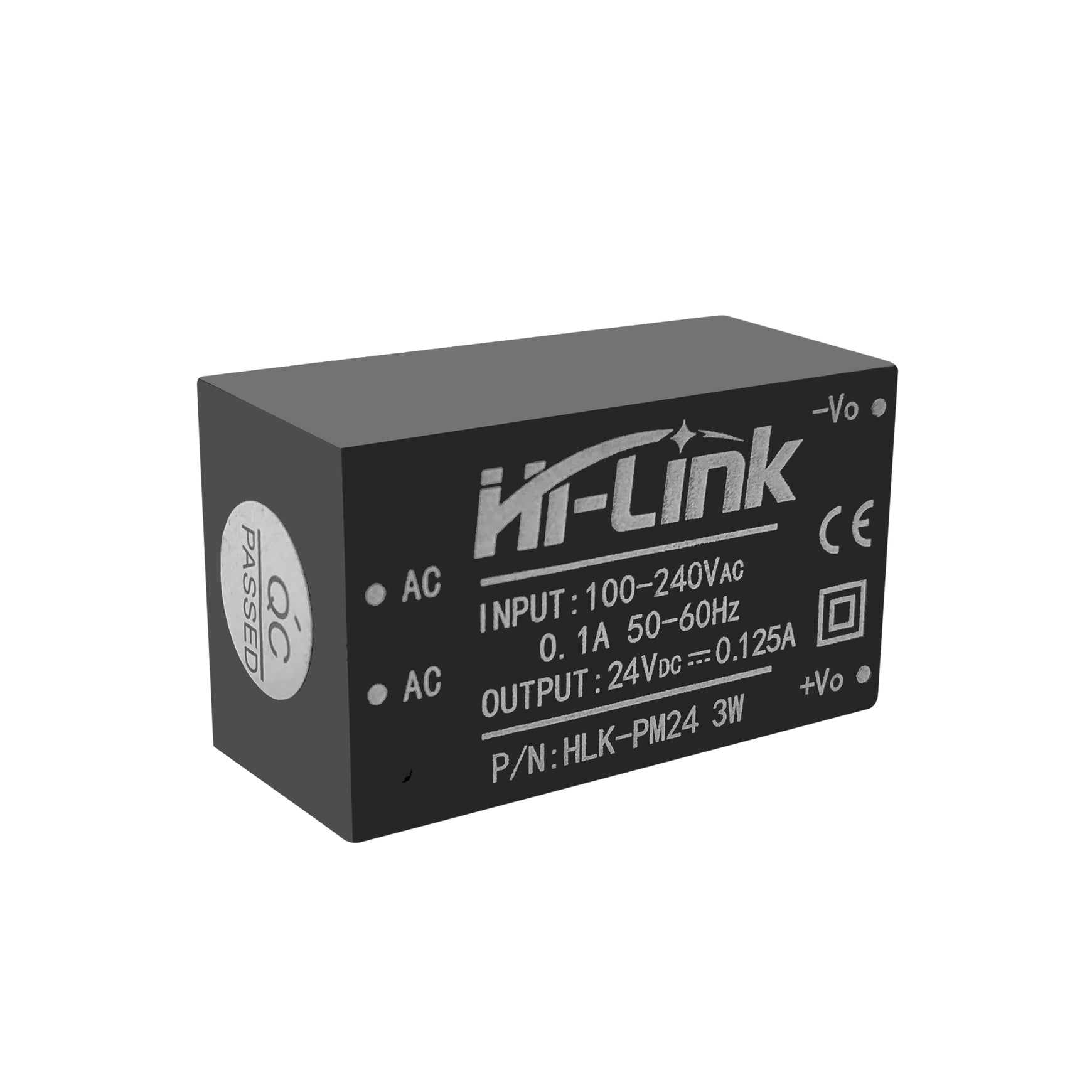

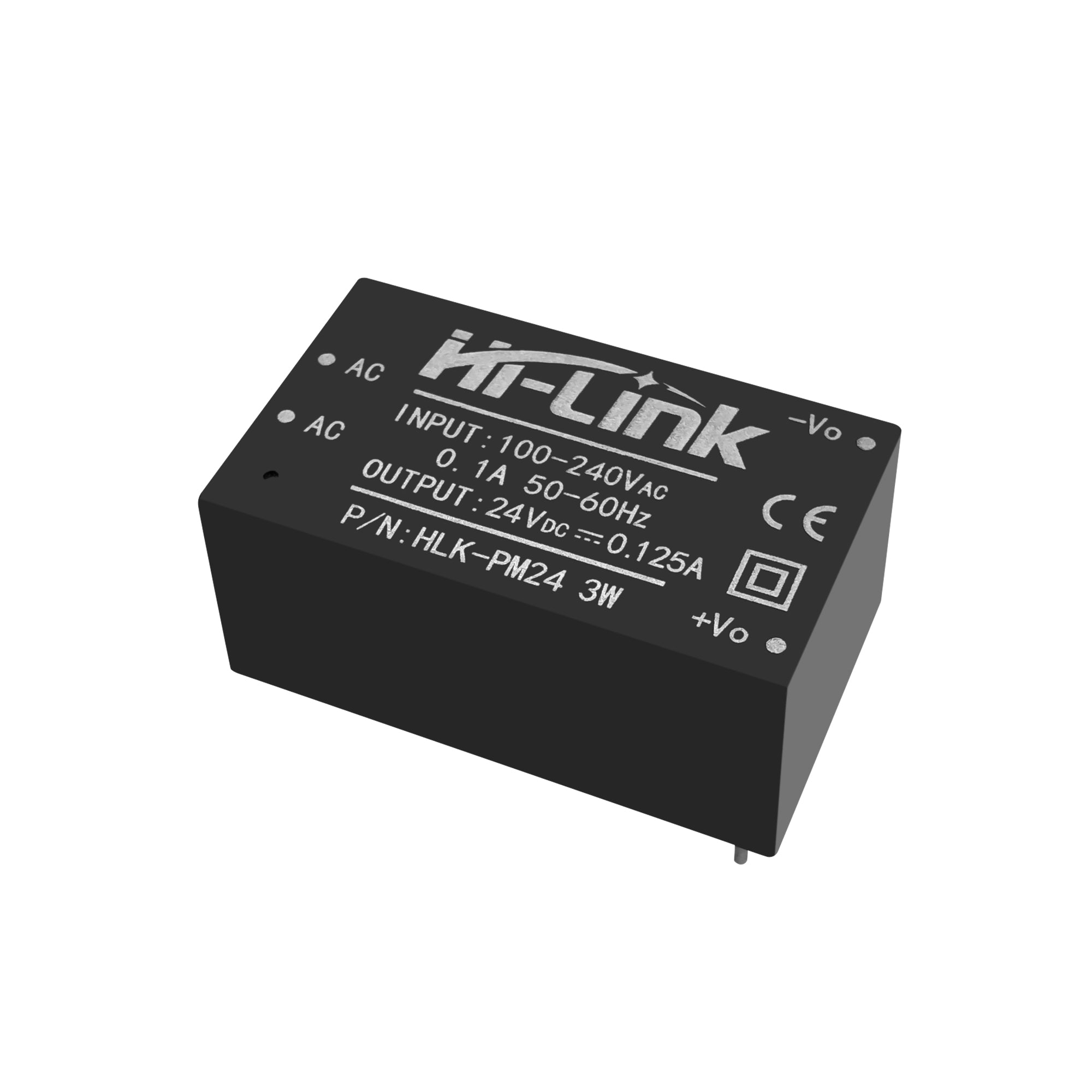

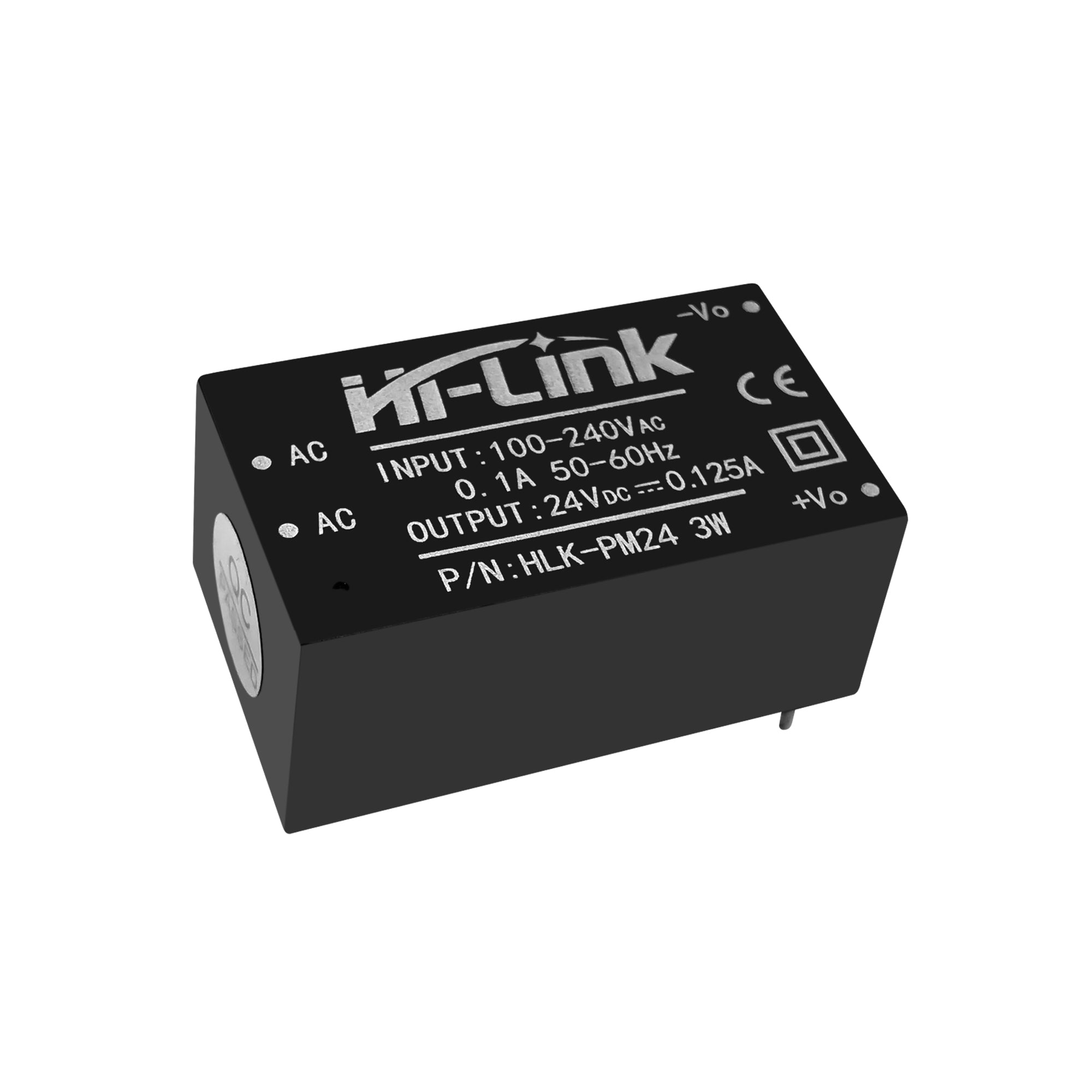

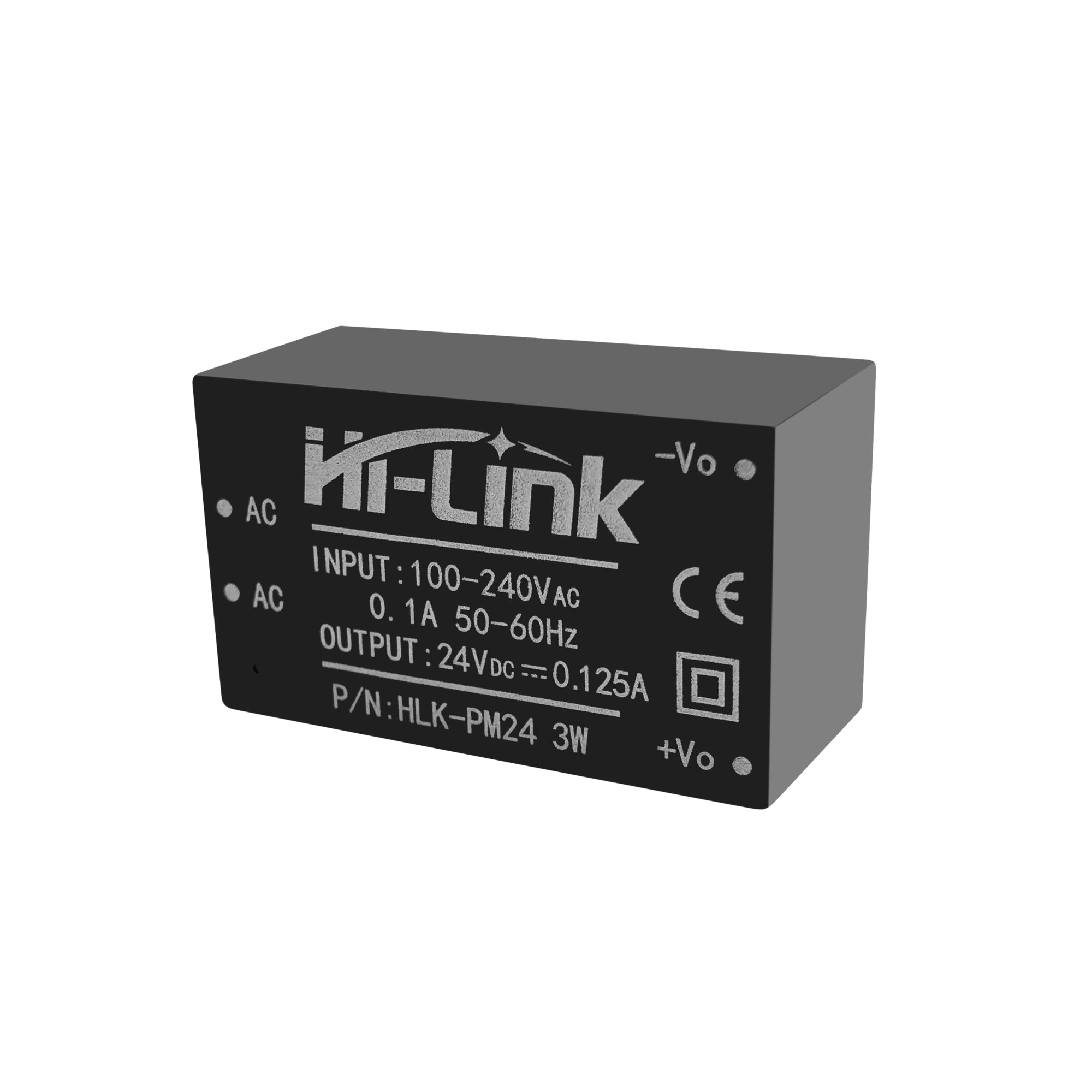

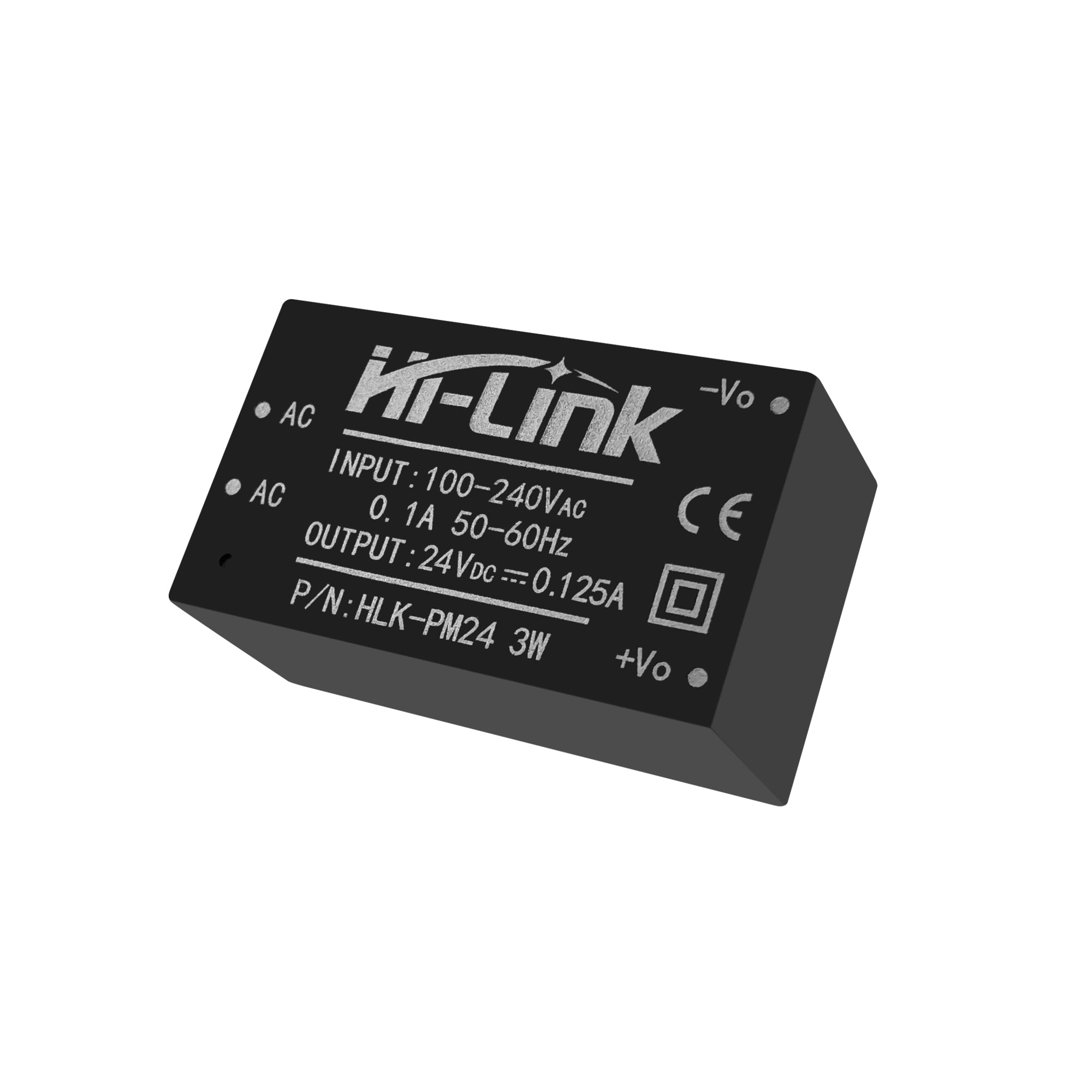

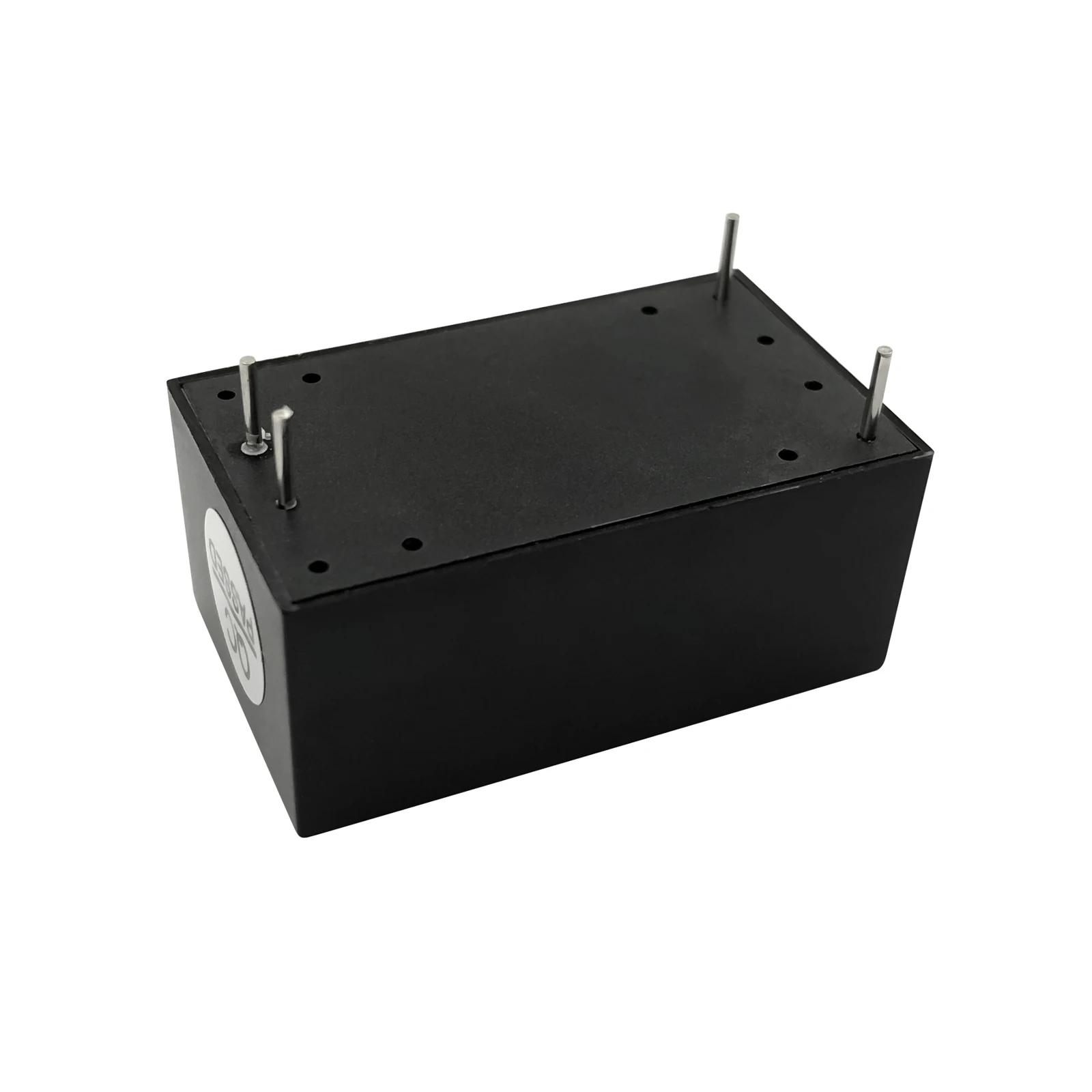

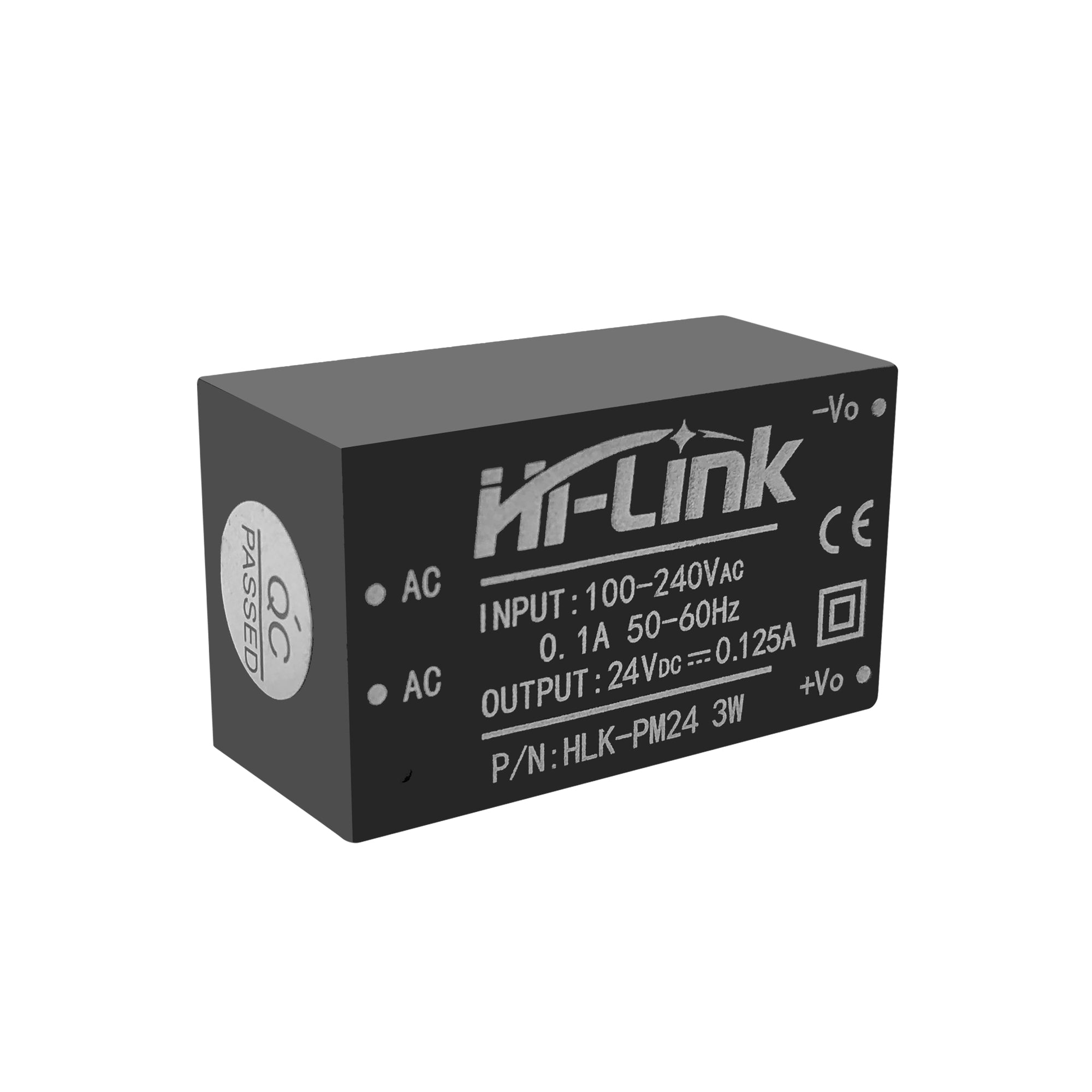

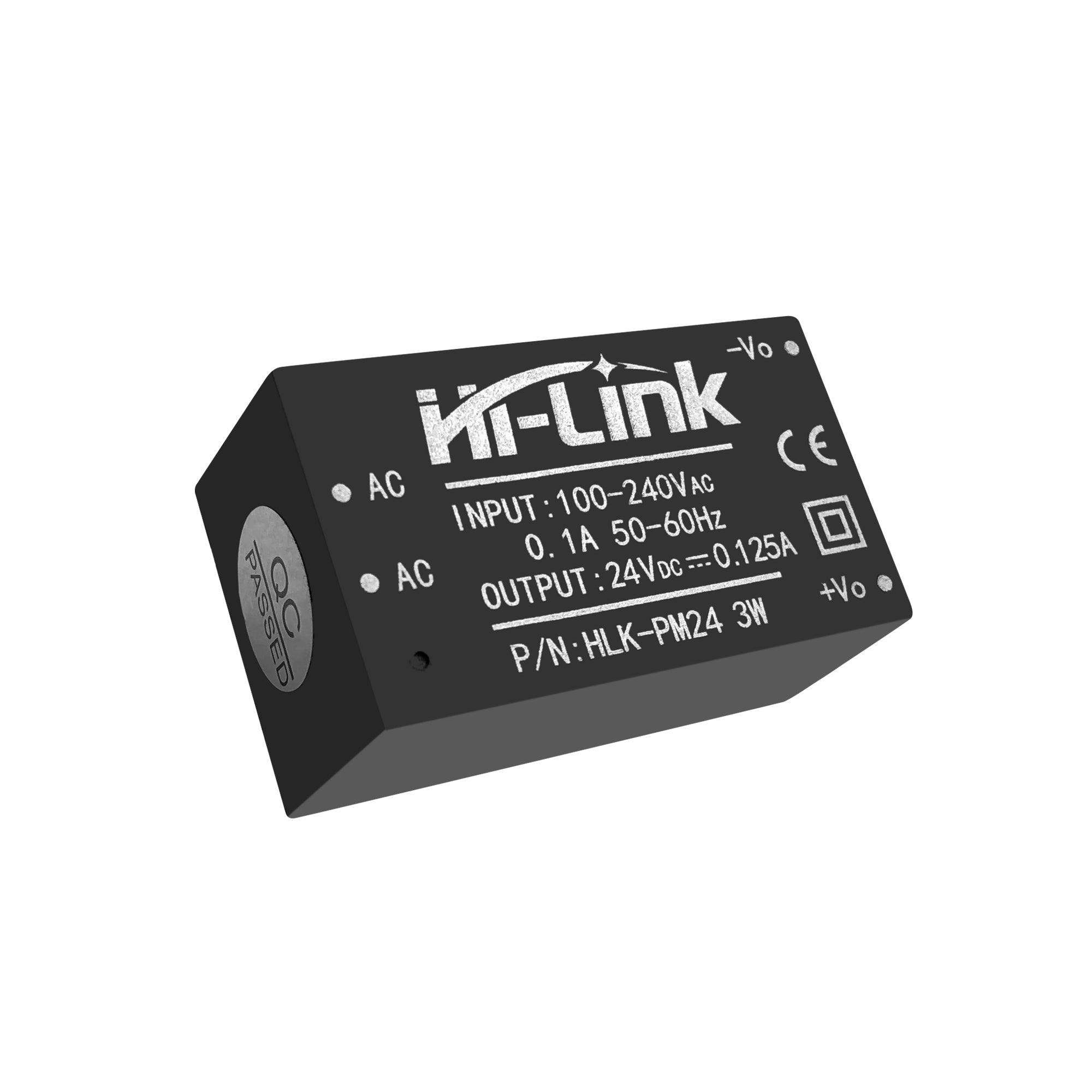

HLK-PM24 AC DC Power Converter Module 24V 125mA 3W with cheap price CE RoHs
Save -50%
Rs. 572.88
Rs. 1,145.75
HURRY ! ONLY
2700 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
1. Function: Singel type 220V input to 24 V output

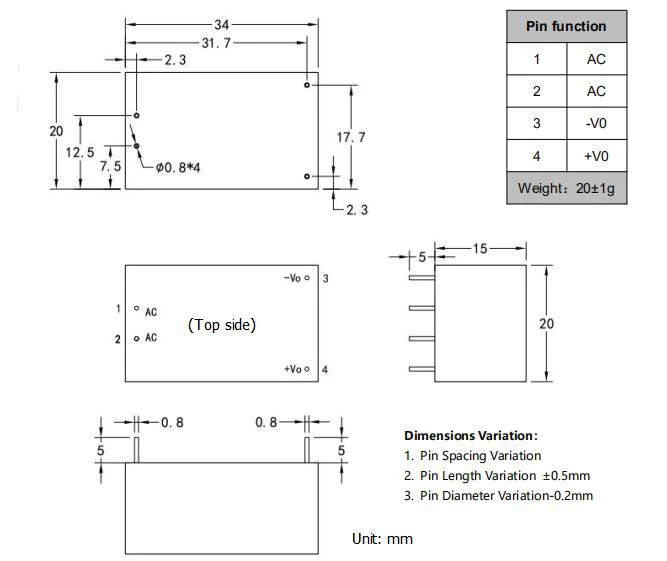

2. Size: 34mm*20mm*15mm
3. Certification: CE, ROHS, Meet UL
The 3W ultra-small series module power supply is a small-volume, high-efficiency AC DC power module supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
1. Ultra-thin, ultra-small, smallest volume;
2. Global universal input voltage (90~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration,
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration,
water and dust to meet IP65 standards
12. Economic solutions, cost-effective

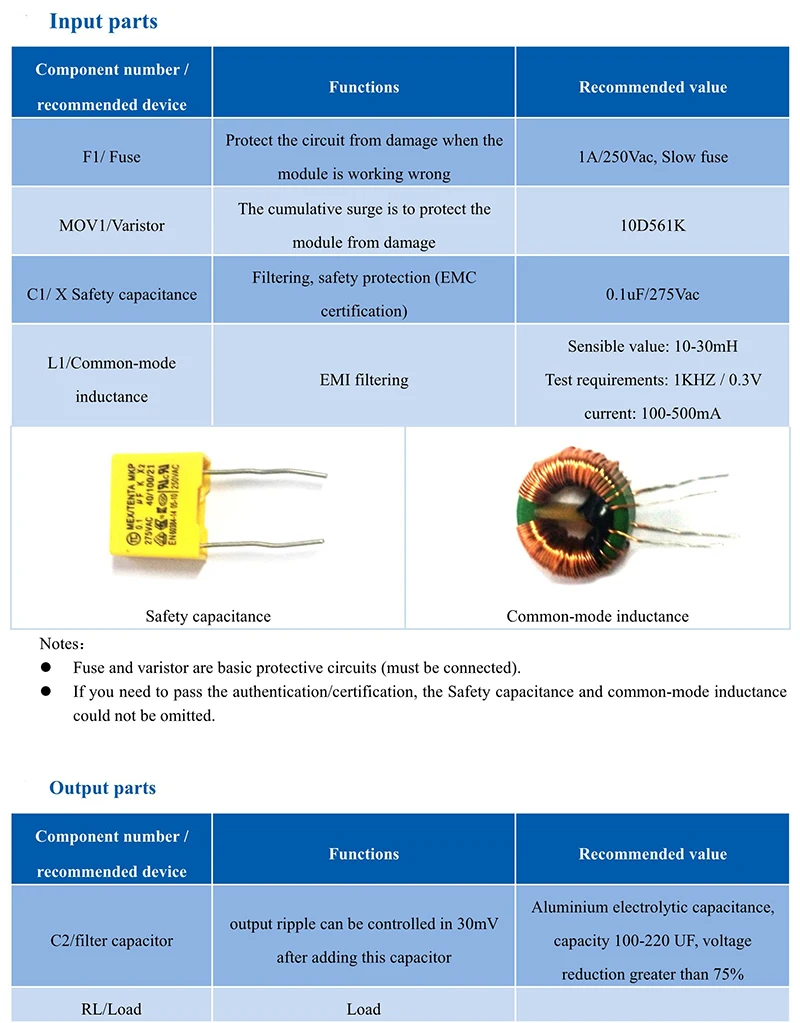

13. Work without external circuit
14. 1 year quality guarantee period
12. Economic solutions, cost-effective
13. Work without external circuit
14. 1 year quality guarantee period
|
Product Name
|
HLK-PM24 switched power adapter module
|
|
Input
|
220v
|
|
Output
|
24v
|
|
Stock
|
keep a large stock of goods
|
|
Work temperature
|
-25~ +80
|
