HY-X series Co2 Laser Power Supply For RECI or SPT orJOY Laser Tube for co2 Engraving Cutting Machine laser machine parts
Model：HY-X50/X60/X80/X100/X150
Product Features
1. Good compatibility: It can be applicable to 60-80w laser tube of a number ofmanufacturers. 2. Dramatically lengthen the
service life of laser.
3. Easy control of laser power: Both O-5V analog signal and PWM signal cancontrol the laser power.
4. The power supply can take feedback interface which can be used in closed-loopcontrol and testing the working current of laser.
5. High Voltage Power Supply: Input AC 220Vor AC 110V Voltage ,Max output DC 30KV
6. Quick response speed and effect: High performance, large cutting power. It also canprolong laser tube's working life.
service life of laser.
3. Easy control of laser power: Both O-5V analog signal and PWM signal cancontrol the laser power.
4. The power supply can take feedback interface which can be used in closed-loopcontrol and testing the working current of laser.
5. High Voltage Power Supply: Input AC 220Vor AC 110V Voltage ,Max output DC 30KV
6. Quick response speed and effect: High performance, large cutting power. It also canprolong laser tube's working life.

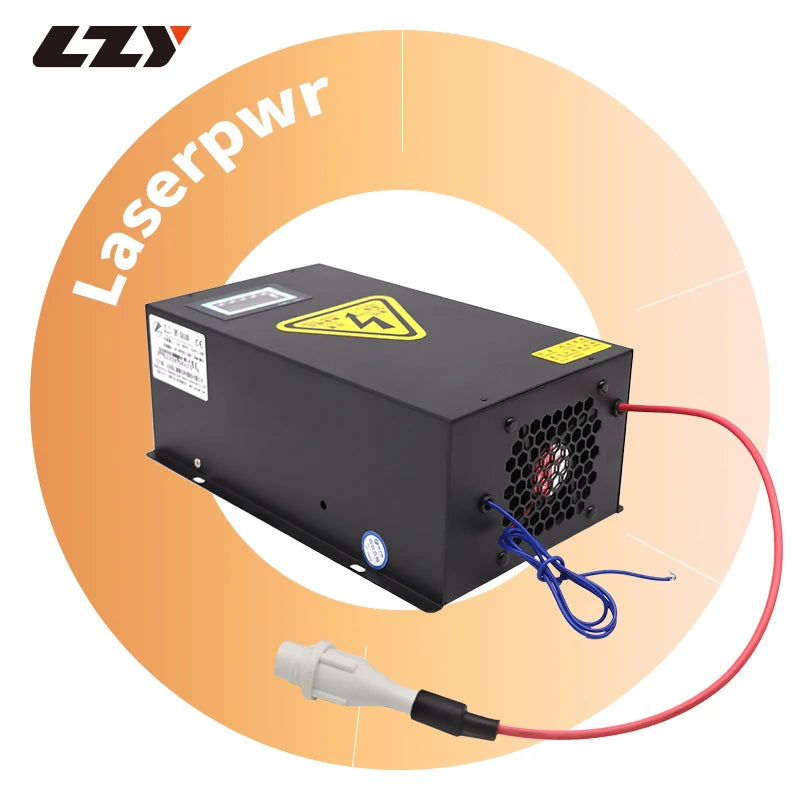

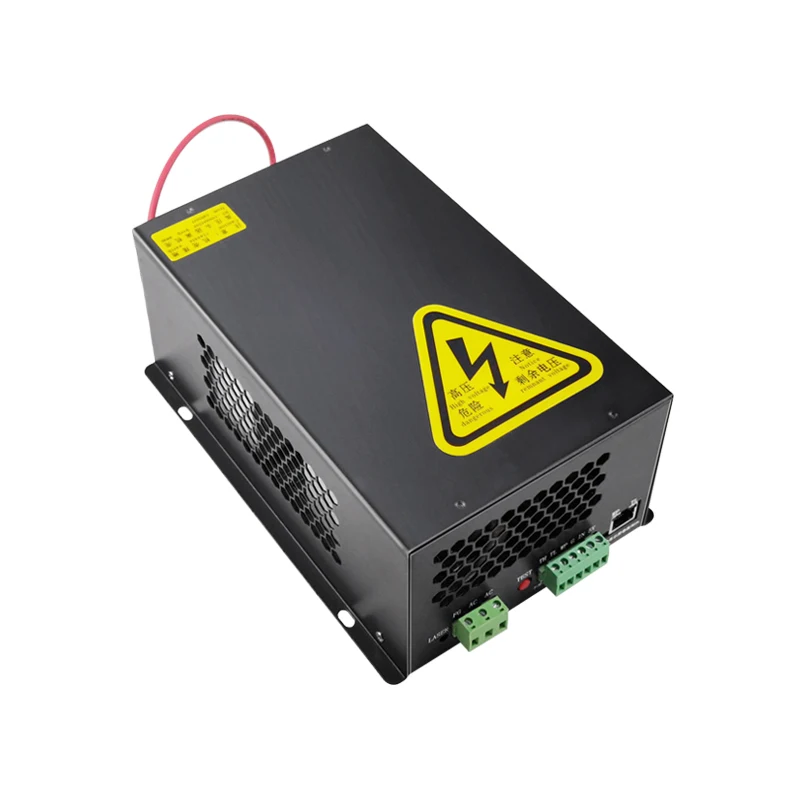

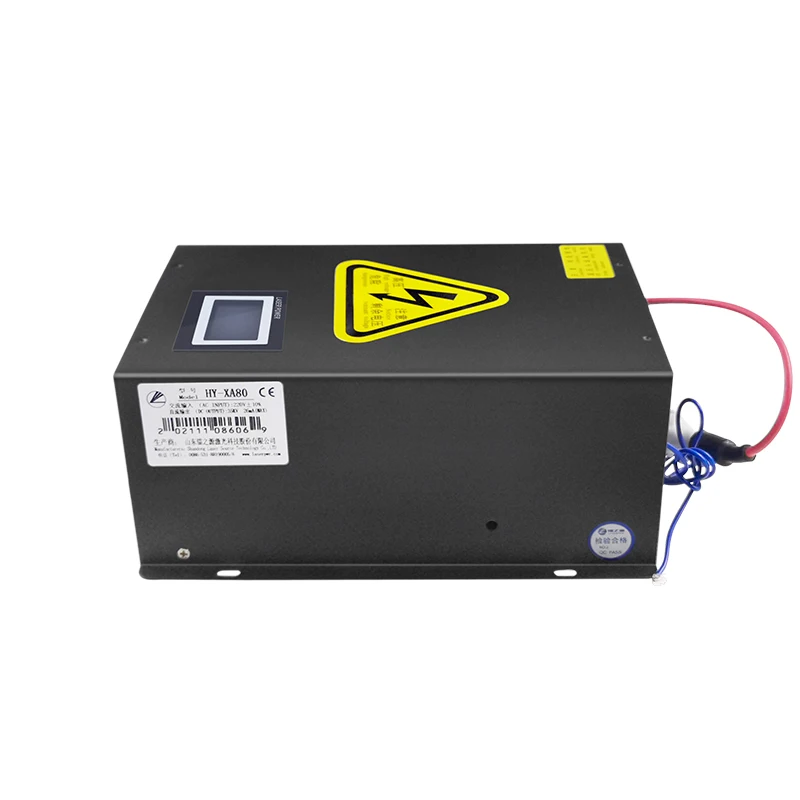

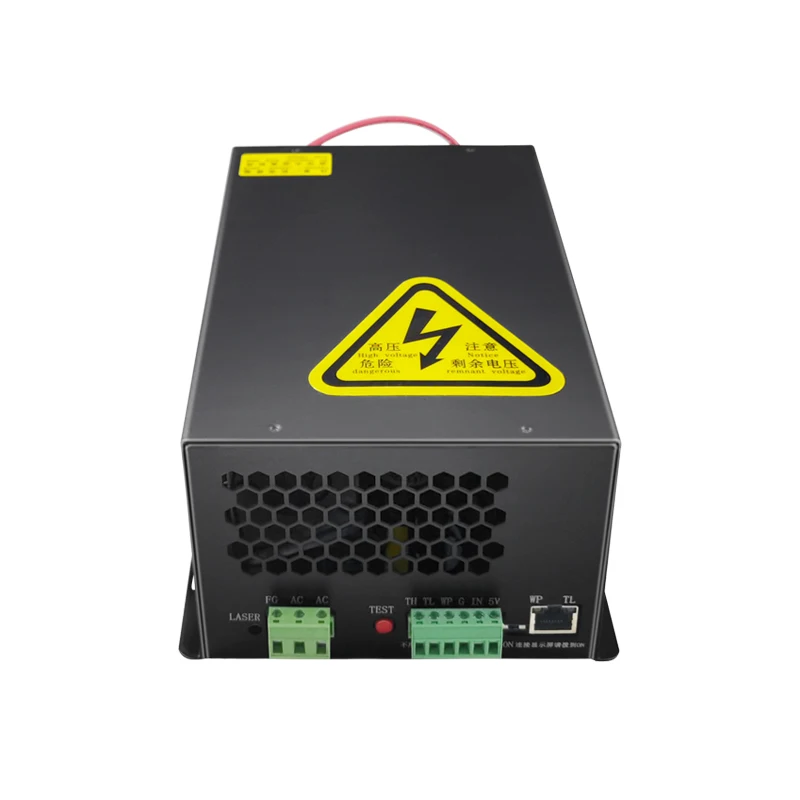

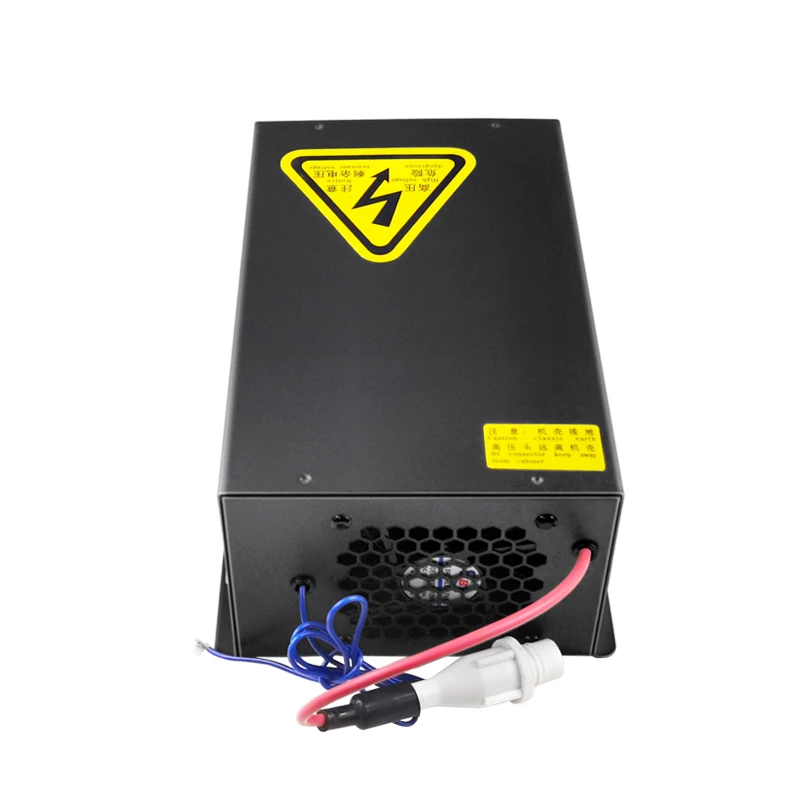

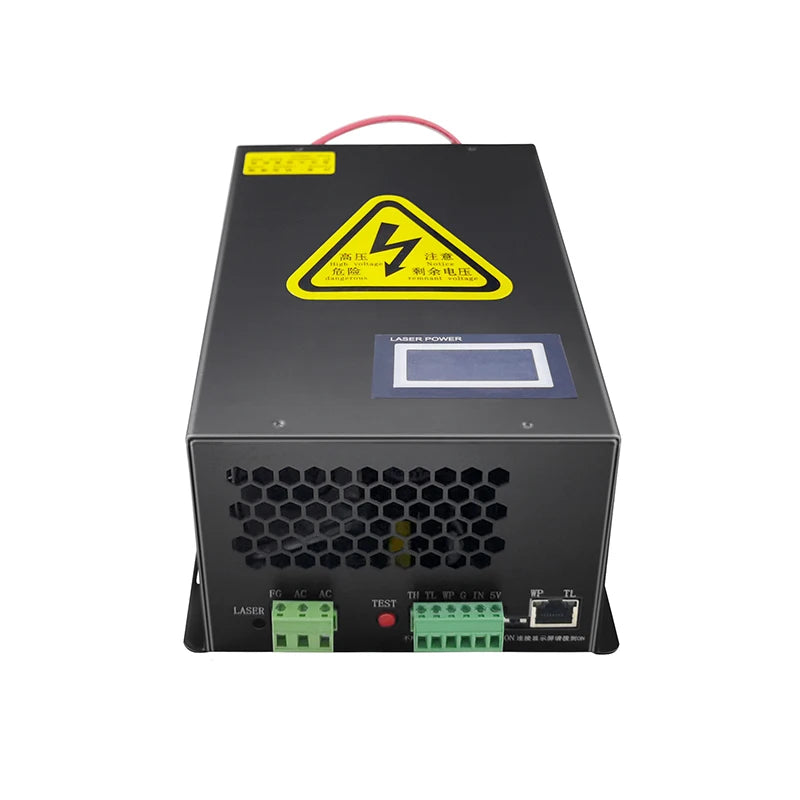

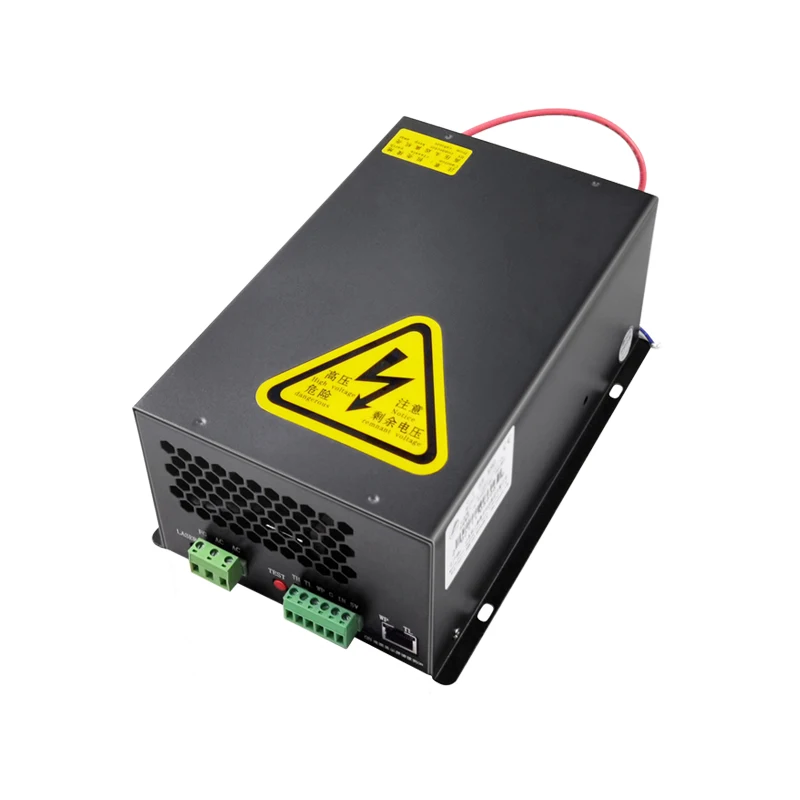

Product Pictures

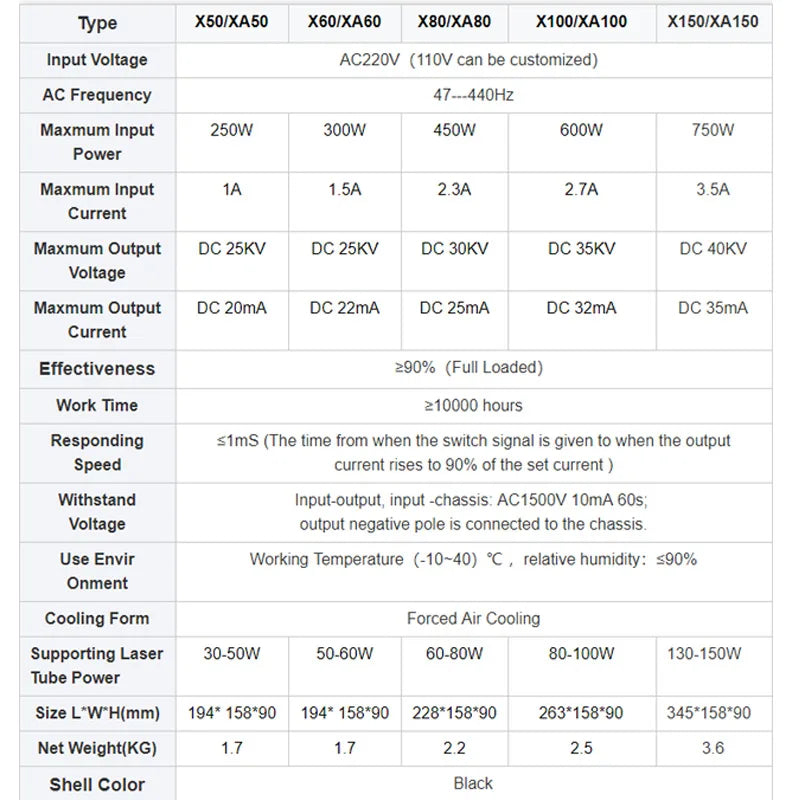

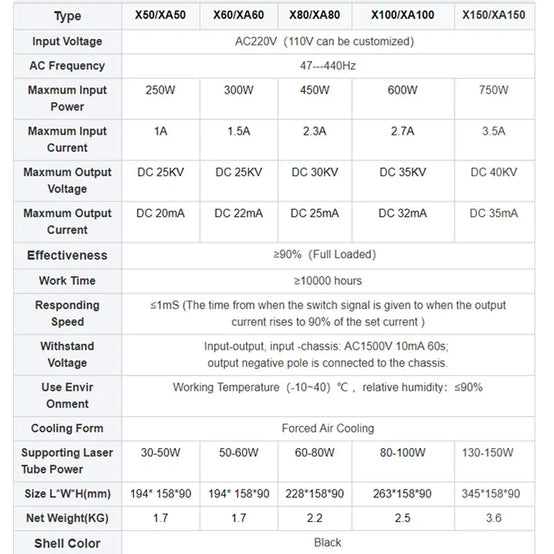

Product Parameter
|
Type
|
X50/XA50
|
X60/XA60
|
X80/XA80
|
X100/XA100
|
X150/XA150
|
||||
|
Input Voltage
|
AC220V（110V can be customized）
|
||||||||
|
AC Frequency
|
47---440Hz
|
||||||||
|
Maxmum Input Power
|
250W
|
300W
|
450W
|
600W
|
750W
|
||||
|
Maxmum Input Current
|
1A
|
1.5A
|
2.3A
|
2.7A
|
3.5A
|
||||
|
Maxmum Output Voltage
|
DC 25KV
|
DC 25KV
|
DC 30KV
|
DC 35KV
|
DC 40KV
|
||||
|
Maxmum Output Current
|
DC 20mA
|
DC 22mA
|
DC 25mA
|
DC 32mA
|
DC 35mA
|
||||
|
Effectiveness
|
≥90%（Full Loaded）
|
||||||||
|
Work Time
|
≥10000 hours
|
||||||||
|
Responding Speed
|
≤1mS (The time from when the switch signal is given to when the output
current rises to 90% of the set current ) |
||||||||
|
Withstand Voltage
|
Input-output, input -chassis: AC1500V 10mA 60s;
output negative pole is connected to the chassis. |
||||||||
|
Use Envir Onment
|
Working Temperature（-10~40）℃ ，relative humidity：≤90%
|
||||||||
|
Cooling Form
|
Forced Air Cooling
|
||||||||
|
Supporting Laser Tube Power
|
30-50W
|
50-60W
|
60-80W
|
80-100W
|
130-150W
|
||||
|
Size L*W*H(mm)
|
194* 158*90
|
194* 158*90
|
228*158*90
|
263*158*90
|
345*158*90
|
||||
|
Net Weight(KG)
|
1.7
|
1.7
|
2.2
|
2.5
|
3.6
|
||||
|
Shell Color
|
Black
|
||||||||

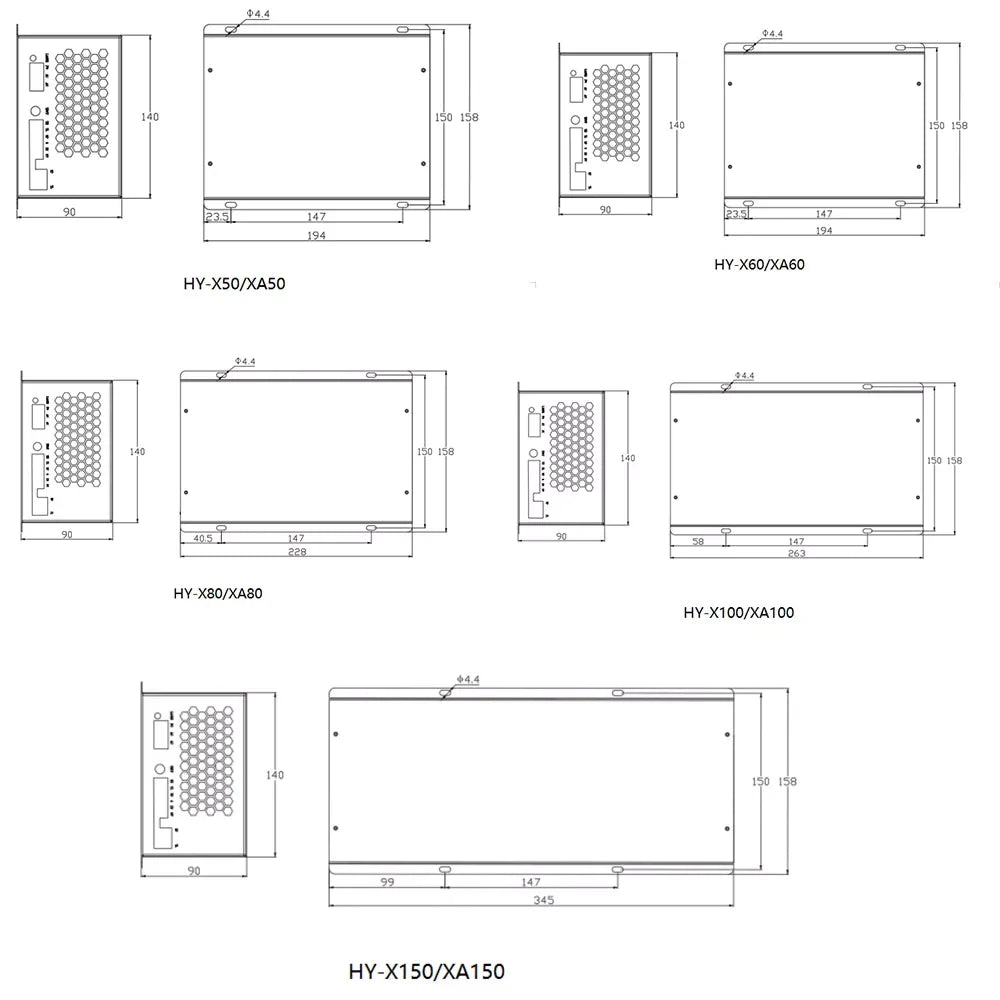

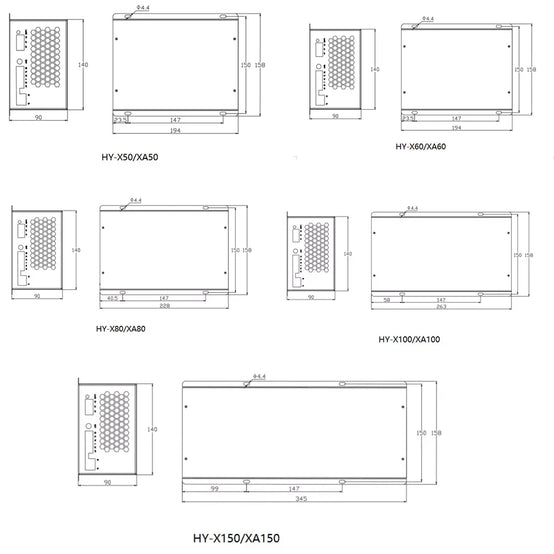

Install Dimension Drawing
