Hydroponics Vending Systems 12V 24V DC Small Mini Micro Peristaltic Pump for Food Grade Medical Honey Soap Water Liquid Dosing
Save -38%
Rs. 6,985.15
Rs. 11,334.40
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
3.Million sets of peristaltic pumps been sold.
|
Lilian He(Europe , North and South America) :
|
April Huang(Asia and Africa) :
|
|
WhatsApp:+8618983834629
|
WhatsApp:+8615703016080
|
|
Skype：+8618983834629
|
Skype：jihpump
|
|
Email：alan@jihpump.com
|
Email：april@jihpump.com
|
Product Discription
|
Features
|
||||||
|
Gear reduction
|
No slip, no backflow
|
Accurate and stable measurement
|
Small and exquisite
|
|||
|
Multiple flow rate configurations
|
Flexible exit direction
|
4 hose diameters
|

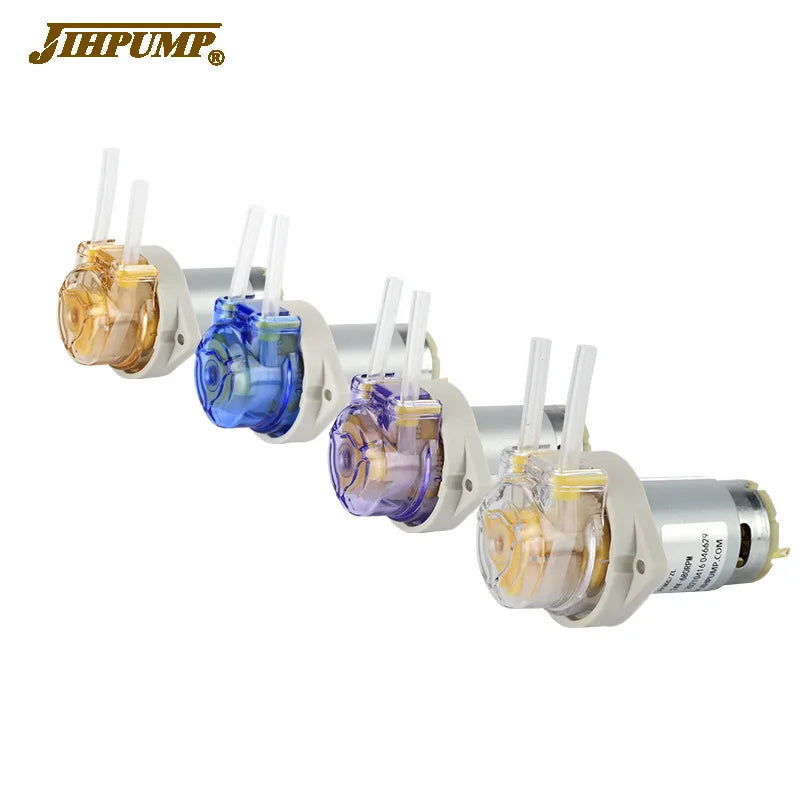

Multiple colors
|
|||
Hot Sale Products
|
Product Parameters
|
||||
|
Product name
|
JIHPUMP DC 12V 24V Volt Small Mini Micro OEM Peristaltic Pump for Food Grade Medical Honey Soap Water Liquid Dosing Pumps Price
|
|||
|
Motor type
|
Stepper motor
|
|||
|
Motor Features
|
Constant speed operation, forward rotation or reverse rotation, optional JZL-B speed control board to realize speed control
|
|||
|
Motor life
|
500-1000h
|
|||
|
Power supply
|
DC12V/24V，1A electricity
|
DC 12.6V,2A(overvoltage can not be charged)
|
||
|
Power:
|
15W
|
|||
|
Weight
|
145g
|
|||
|
Outlet pressure
|
≤0.1MPa
|
|||
|
Main material
|
Pump Cover: Polycarbonate Wheel Frame: Polyacetal Roller: Polyamide
|
|||
|
Reference flow： Unit(ml/min）
|
||||||||||
|
Hose type
|
Silicon hose
|
BPT hose
|
||||||||
|
Tube ID*δ
|
ID1.0*δ1.0
|
ID2.0*δ1.0
|
ID3.0*δ1.0
|
ID4.0*δ1.0
|
ID3.0*δ1.0
|
|||||
|
Voltage speed
|
/
|
/
|
/
|
/
|
/
|
|||||
|
12V 600rpm
|
23
|
81
|
151
|
225
|
150
|
|||||
|
24V 680rpm
|
29
|
114
|
182
|
270
|
175
|
|||||
|
Explain
|
1. The flow rate is measured with clean water at room temperature of 23°C and no pressure at the inlet and outlet.
2. The life of the DC motor is about 500-1000 hours, and it is recommended for short-time gap operation.
|
|||||||||

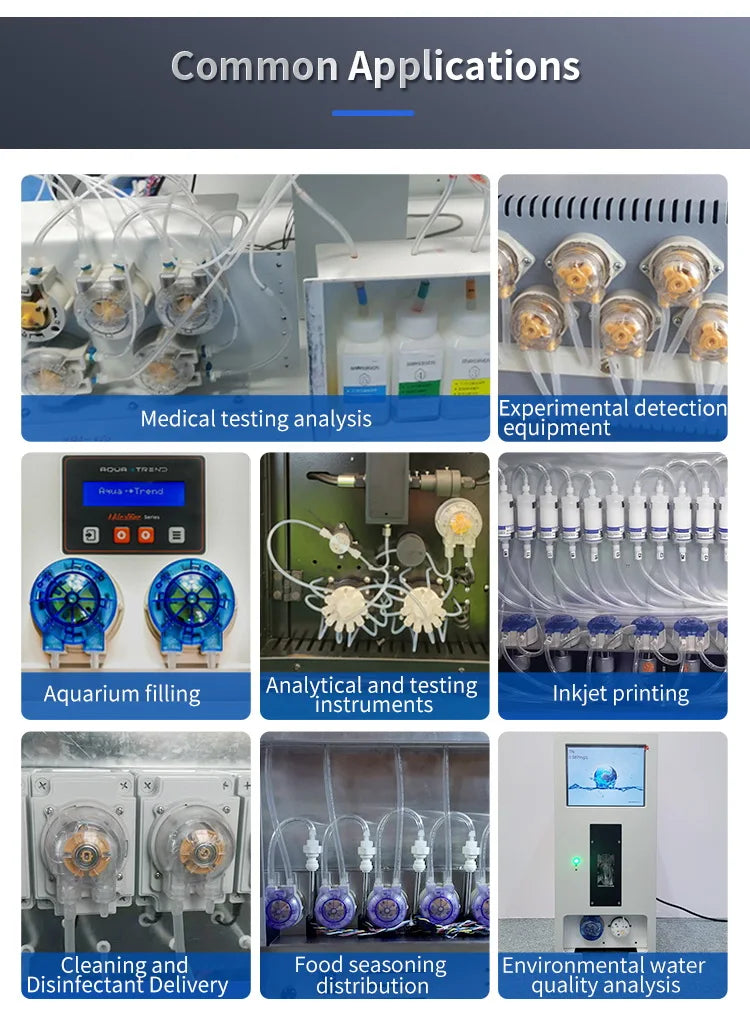

Common Applications: Medical testing analyzer, Experimental detection equipment, Aquarium filling, Inkjet printing equipment ，Cleaning disinfectant delivery，Food seasoning distribution ，Environmental protection water quality analysis etc.
Applications Industry: Pharmaceutical industry, Environmental protection instrument, Analytical Instruments, Inkjet Ink, Food and Drink industry, Experimental Research, Pharmaceutical Machinery, Industrial Machinery，Smart Home Appliances，.
|
①Pump head
|
Multiple color pump covers meet the matching of different colors, which is convenient for visual management.
|
|
②Hose
|
Four inner diameters Hose optional
|
|
③Base
|
Imported materials High performance and reliability
|
|
④Roller
|
3 Reduction of rotor and driving gear
|
|
⑤Motor
|
12V 600rpm, 24V 680rpm
|
DC motor control mode
1.Constant speed operation: Control the start and stop of the pump through the power on and off
1.Constant speed operation: Control the start and stop of the pump through the power on and off
2.Optional JZL-B Circuit board: Product functions: start and stop, forward and reverse rotation, speed regulation Power supply power: DC 12 ~ 24V, 2A Speed regulation mode 1: built in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Suitable motors: 28, 32, 36, 37, tt-555, rg50
