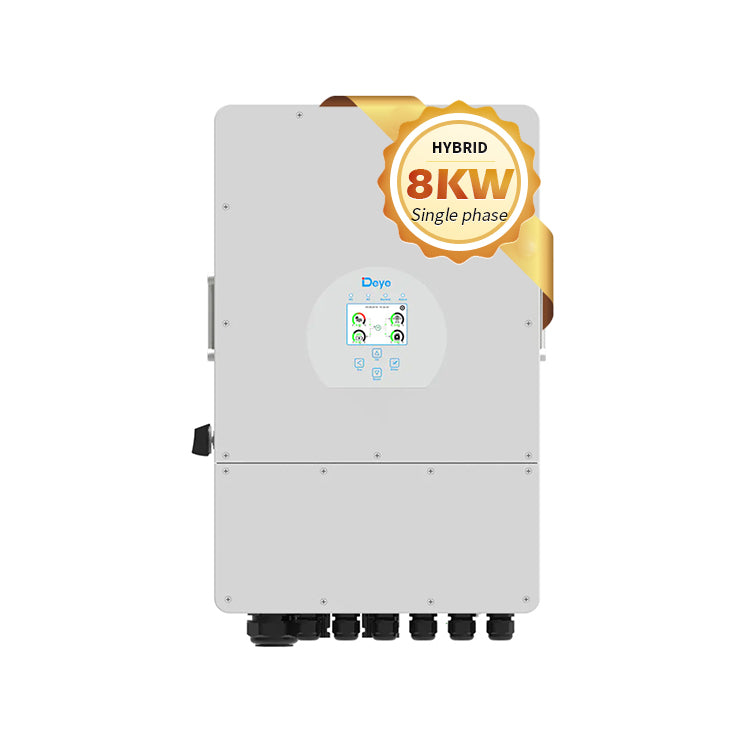

In stock hybrid inverter DEYE brand 8kw 6kw 5kw 5 years warranty 8000w solar inverter for solar energy storage system
182153466013089_91405601
9999 In Stock Sold Out 9999 9999 9999 9999 9999 9999 9999 9999 9999
Share
|
Technical Datasheet
|
||||
|
Model
|
SUN-7.6K-SG01LP1-EU
|
SUN-8K-SG01LP1-EU
|
||
|
Battery Input Data
|
||||
|
Battery Type
|
Lead-acid or Lithium-iron
|
|||
|
Battery Voltage Range (V)
|
40-60V
|
|||
|
Max.Charging Current (A)
|
190A
|
190A
|
||
|
Max.Discharging Current (A)
|
190A
|
190A
|
||
|
Charging Curve
|
3 Stages/Equalization
|
|||
|
External Temperature Sensor
|
Optional
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|||
|
PV Strings Input Data
|
||||
|
Max.DC Input Power (W)
|
9880W
|
10400W
|
||
|
PV Input Voltage (V)
|
370V(100V~500V)
|
|||
|
MPPT Range (V)
|
125-425V
|
|||
|
Full Load DC Voltage Range
|
240-425V
|
|||
|
Start-up Voltage (V)
|
150V
|
|||
|
PV Input Current (A)
|
18A+18A
|
|||
|
No.of MPPT Trackers
|
2
|
|||
|
No.of Strings Per MPPT Tracker
|
2+2
|
|||
|
AC Output Data
|
||||
|
Rated AC Output and UPS Power (W)
|
7600W
|
8000W
|
||
|
Max AC Output Power (W)
|
8360W
|
8800W
|
||
|
Peak Power(off grid)
|
2 times of rated power,10S
|
|||
|
AC Output Rated Current(A)
|
33A
|
35A
|
||
|
Max.AC Current(A)
|
38A
|
40A
|
||
|
Max Continuous AC Passthrough(A)
|
50A
|
|||
|
Power Factor
|
0.8 leading to 0.8 lagging.
|
|||
|
Output Frequency and Voltage
|
50/60Hz; 230(single phase)
|
|||
|
Grid Type
|
Single Phase
|
|||
|
Current Harmonic Distortion
|
THD<3%(Linear load<1.5%)
|
|||
|
Efficiency
|
||||
|
Max.Efficiency
|
97.60%
|
|||
|
Euro Efficiency
|
97.00%
|
|||
|
MPPT Efficiency
|
99.90%
|
|||
|
Certifications and Standards
|
||||
|
Grid Regulation
|
VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727
|
|||
|
Safety Regulation
|
IEC62109-1, IEC62109-2
|
|||
|
EMC
|
EN61000-6-1, EN61000-6-3
|
|||
|
General Data
|
||||
|
Operating Temperature Range (℃)
|
-25~60℃, >45℃ Derating
|
|||
|
Cooling
|
Fan
|
|||
|
Noise (dB)
|
<30
|
|||
|
Communication with BMS
|
RS485; CAN
|
|||
|
Weight (kg)
|
32
|
|||
|

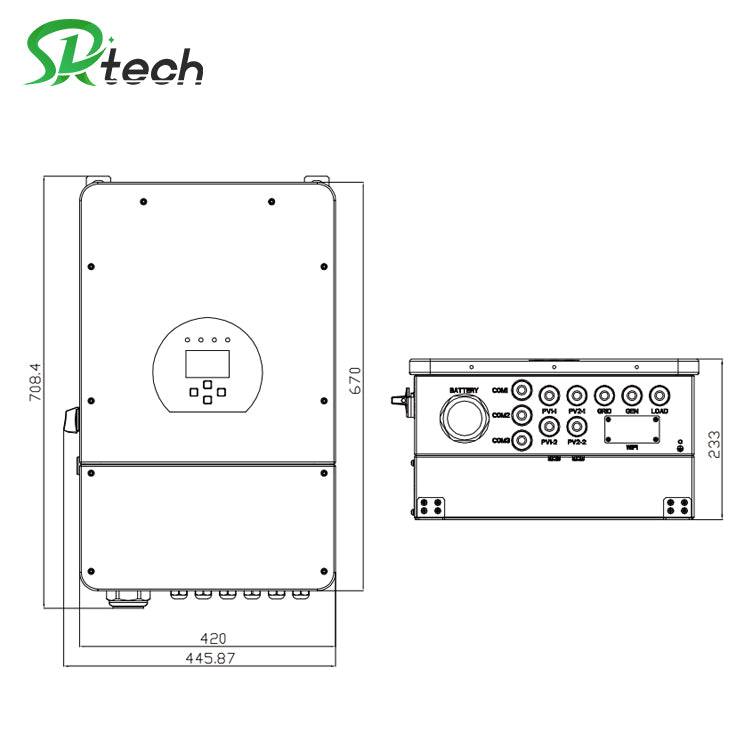

Size (Length*Width*Height mm)
|
670×420×233mm
|
|||
|
Protection Degree
|
IP65
|
|||
|
Installation Style
|
Wall-mounted
|
|||
|
Warranty
|
5 years
|
|||
