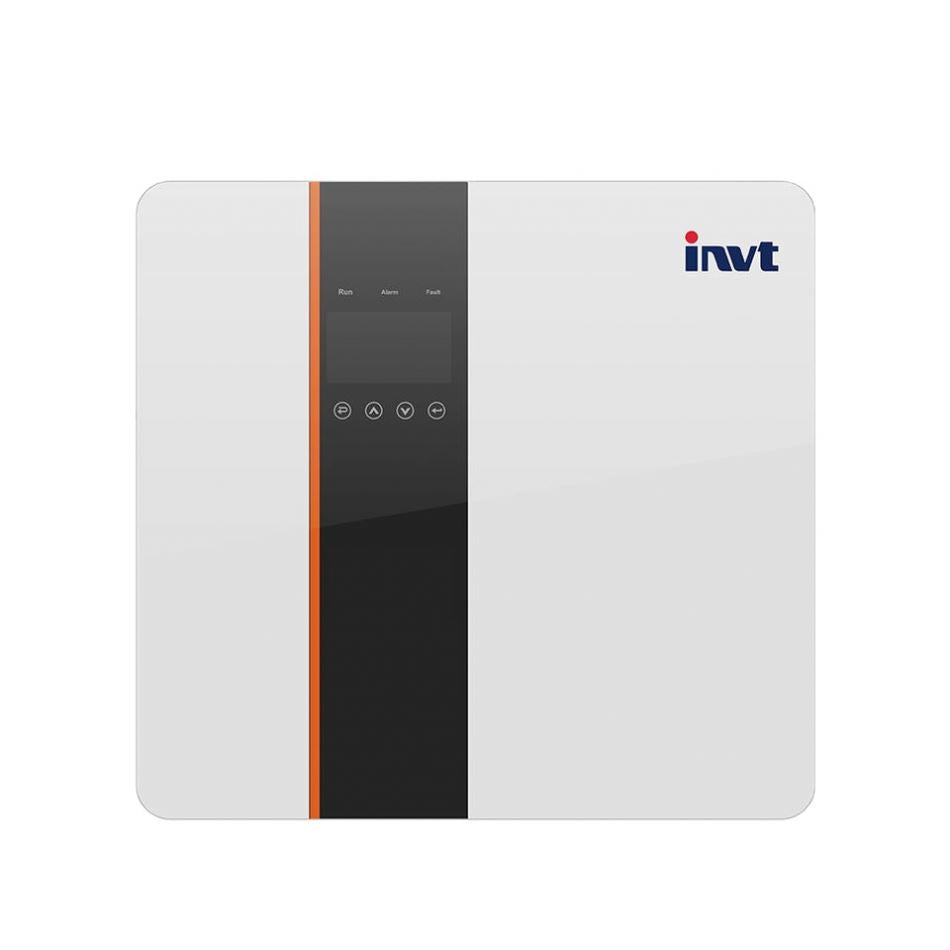

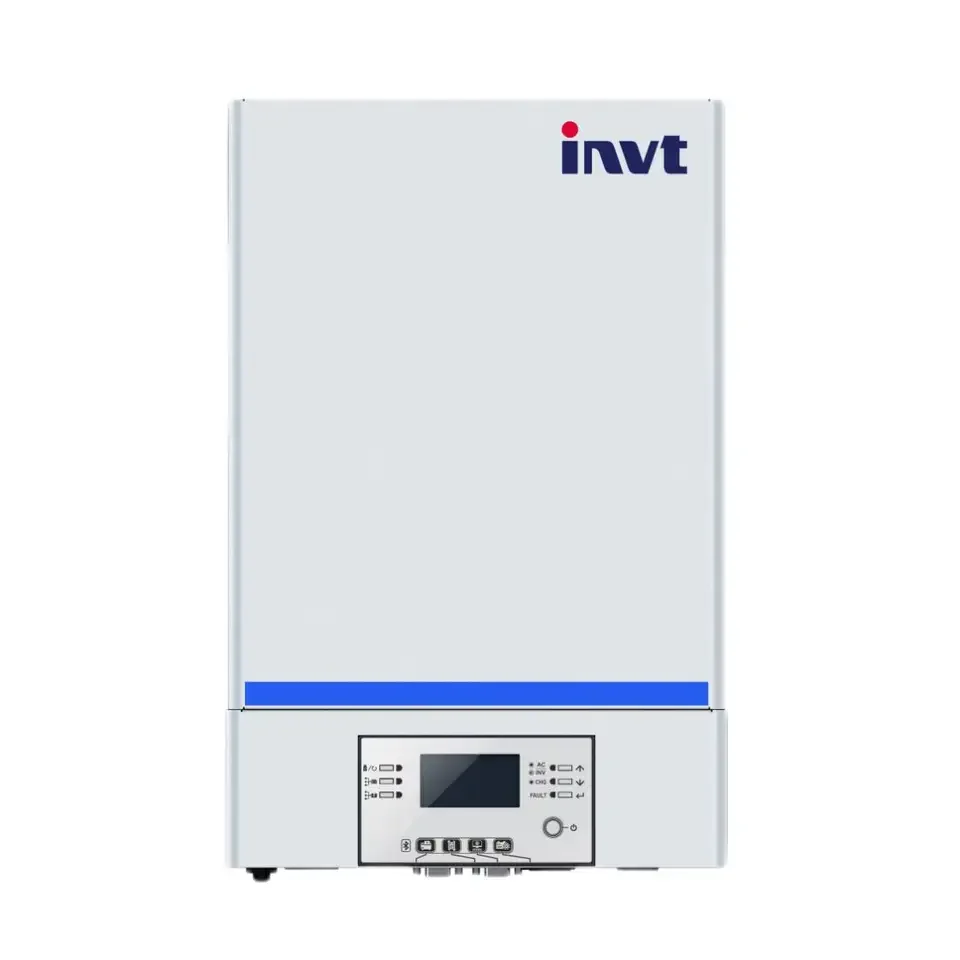

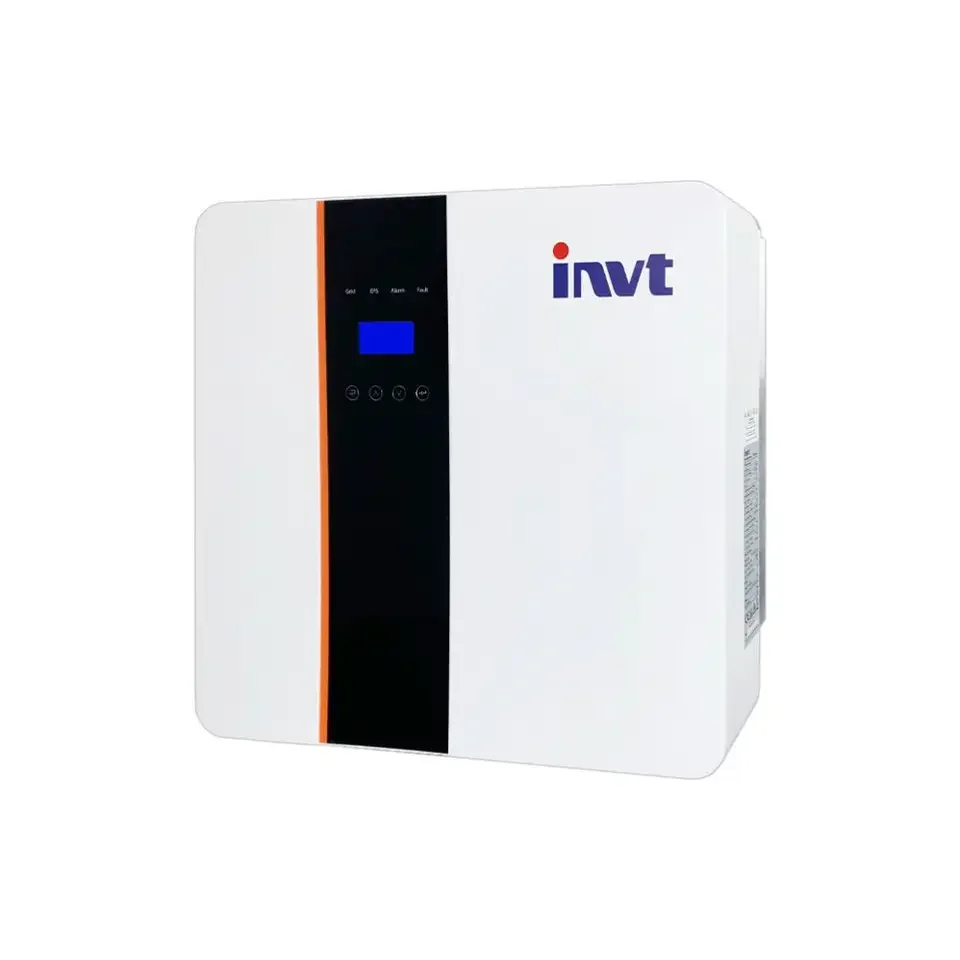

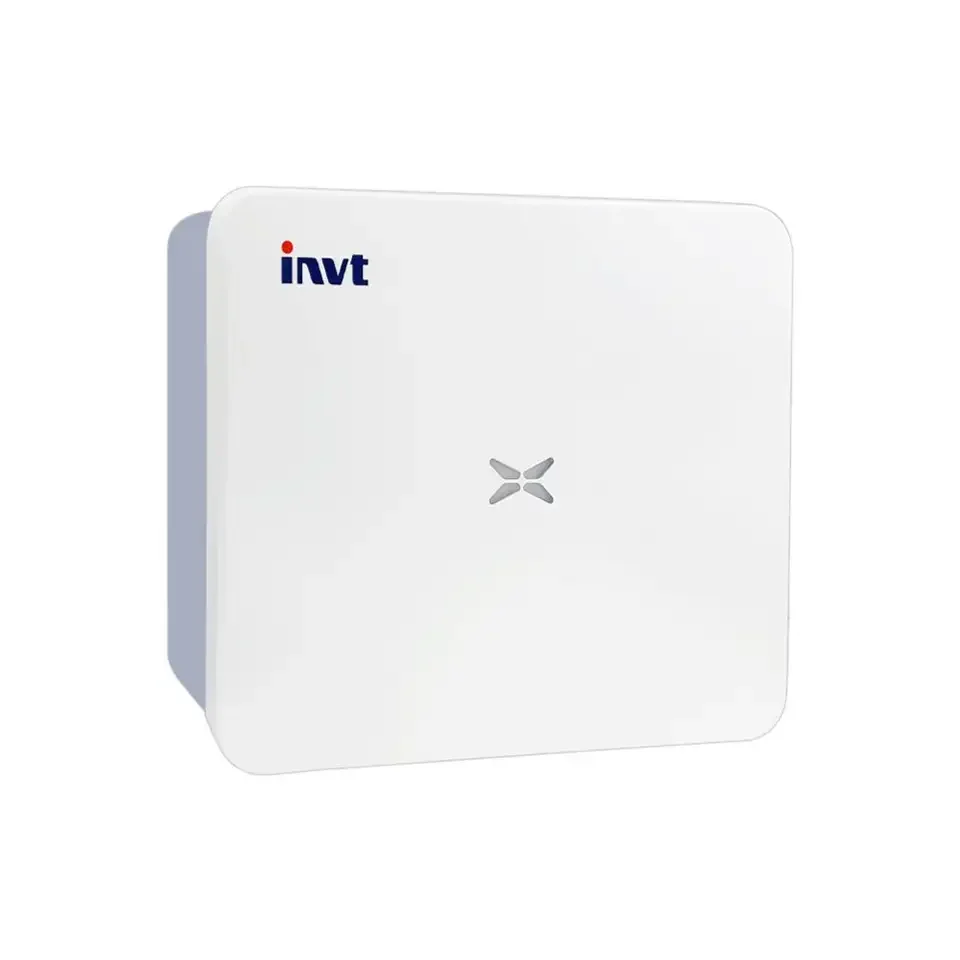

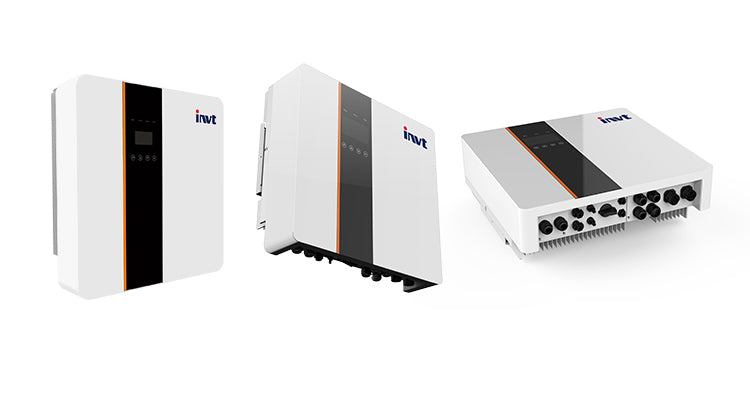

INVT BD3KTL-RL1 smart hybrid solar inverter IP65 3KVA 3KW 230V hybrid solar power inverter with mppt controller
Save -55%
Rs. 286,955.85
Rs. 634,515.79
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Paramenters
Energy Storage Hybrid Inverter (Low Battery Voltage)
1.Flexible
1.Flexible
* Wide input voltage range.
* Compatible with lead-acid or lithium-ion batteries or other battery.
2.Grace
* Fashion apperance,light weight,smart operation.
* Natural cooling, low noise.
* IP65, wall mounted design, saving space.
2.Grace
* Fashion apperance,light weight,smart operation.
* Natural cooling, low noise.
* IP65, wall mounted design, saving space.
*Touch screen LCD
3.Reliable
* Compatible anti counter flow function.
* Battery reverse connect protection.
4.Advanced
* Intelligent energy management system for home.
* Power dispatching and demand side response management.
* Distributed virtual power station management
3.Reliable
* Compatible anti counter flow function.
* Battery reverse connect protection.
4.Advanced
* Intelligent energy management system for home.
* Power dispatching and demand side response management.
* Distributed virtual power station management
|
Model
|
R5KLNA
|
R6KLNA
|
R7K6LNA
|
R8KLNA
|
|||
|
Battery Data
|
|||||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
||||||
|
Battery Voltage Range
|
48V
|
48V
|
48V
|
48V
|
|||
|
Max Charging/Discharging Current
|
120A/120A
|
135A/135A
|
190A/190A
|
190A/190A
|
|||
|
PV Input Data
|
|||||||
|
PV Input Power
|
7.5KW
|
9KW
|
12KW
|
12KW
|
|||
|
MPPT Number
|
4
|
||||||
|
PV Voltage Range
|
350V/85-500V
|
||||||
|
MPPT Voltage Range
|
120V-500V
|
||||||
|
Single MPPT Input Current
|
12A
|
12A
|
12A
|
12A
|
|||
|
On Grid AC Output
|
|||||||
|
Rate AC Output Power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|||
|
AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
|
||||||
|
AC Output Frequency
|
50/60Hz
|
||||||
|
Grid Type
|
Split phase; 2/3 phase; Single phase
|
||||||
|
Max Output Current
|
24A
|
28.8A
|
36.5A
|
38.3A
|
|||
|
AC Reverse Charging
|
Yes
|
||||||
|
Back-up AC Output
|
|||||||
|
Rated Backup Output Power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|||
|
Max Backup Output Power
|
6.25KVA 60S
|
7.5KVA 60S
|
9.5KVA 60S
|
10KVA 60S
|
|||
|
Backup AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
|
||||||
|
Efficiency
|
|||||||
|
Max Efficiency
|
≥98.2%
|
||||||
|
CEC Efficiency
|
≥97.2%
|
||||||
|
Protection
|
|||||||
|
Ground Protection
|
YES
|
||||||
|
Islanding Protection
|
YES
|
||||||
|
Battery Reverse Protection
|
YES
|
||||||
|
Output Overvoltage Protection
|
YES
|
||||||
|
AC&DC Over-current Protection
|
YES
|
||||||
|
Overheating Protection
|
YES
|
||||||
|
General Data
|
|||||||
|
Operation Temperature Range
|
-25~ +60℃
|
||||||
|
Environment Humidity
|
0-95%
|
||||||
|
Weight
|
32KG
|
||||||
|
Dimension(W*H*D)
|
430*710*210mm
|
||||||
|
Cooling
|
Fan Cooling
|
||||||
|
Noise(dB)
|
<25dB
|
<29dB
|
<29dB
|
<29dB
|
|||
|
Display
|
LCD
|
||||||
|
Communication
|
Modbus, RS485, WIFI, 4G
|
||||||
|
Safety
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
||||||
|
EMC
|
IEC62109-1, IEC62109-2
|
||||||
|
On Grid
|
UL1741,IEEE1547,RULE21,VDE 0126,AS4777,NRS2017,G98,G99
|
||||||
