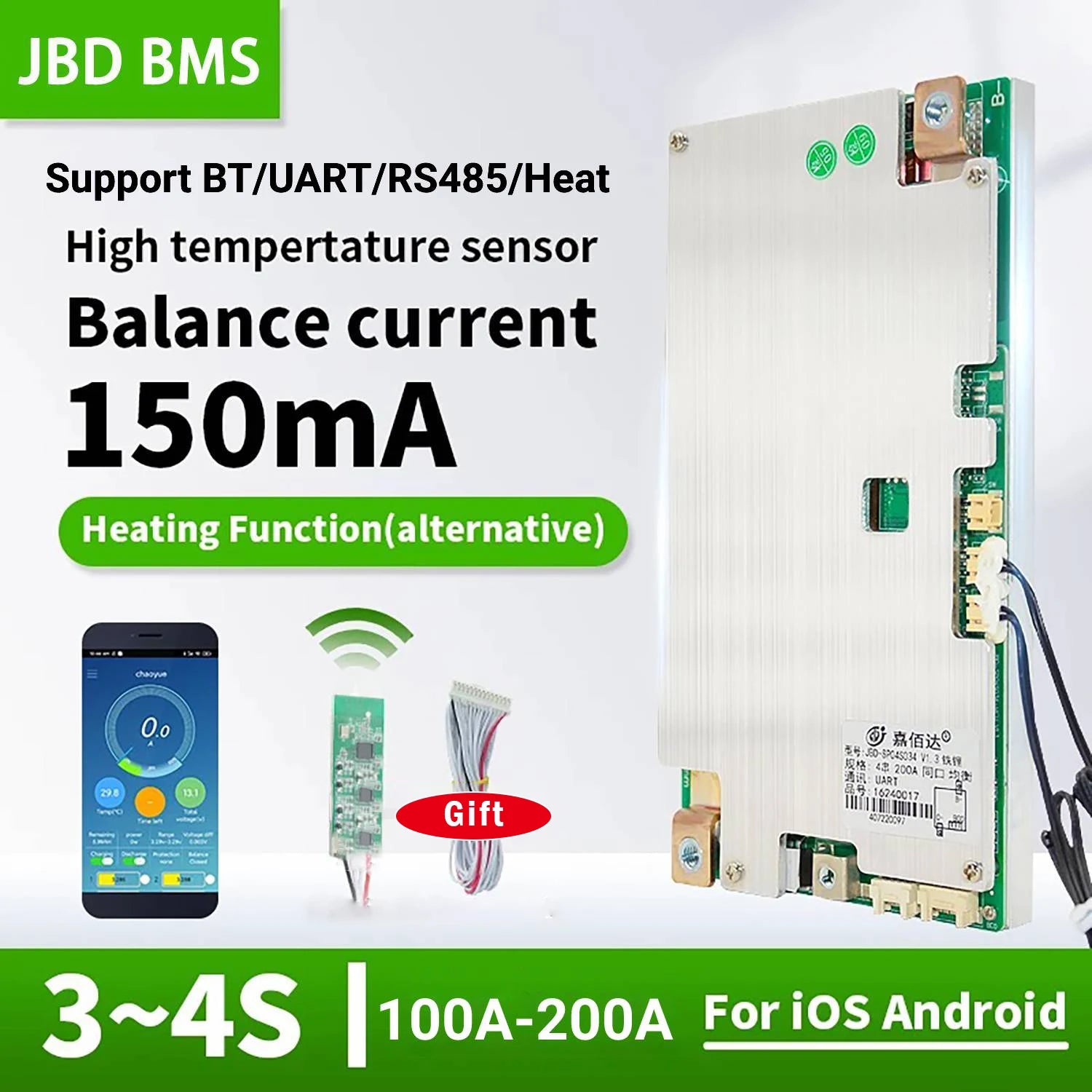

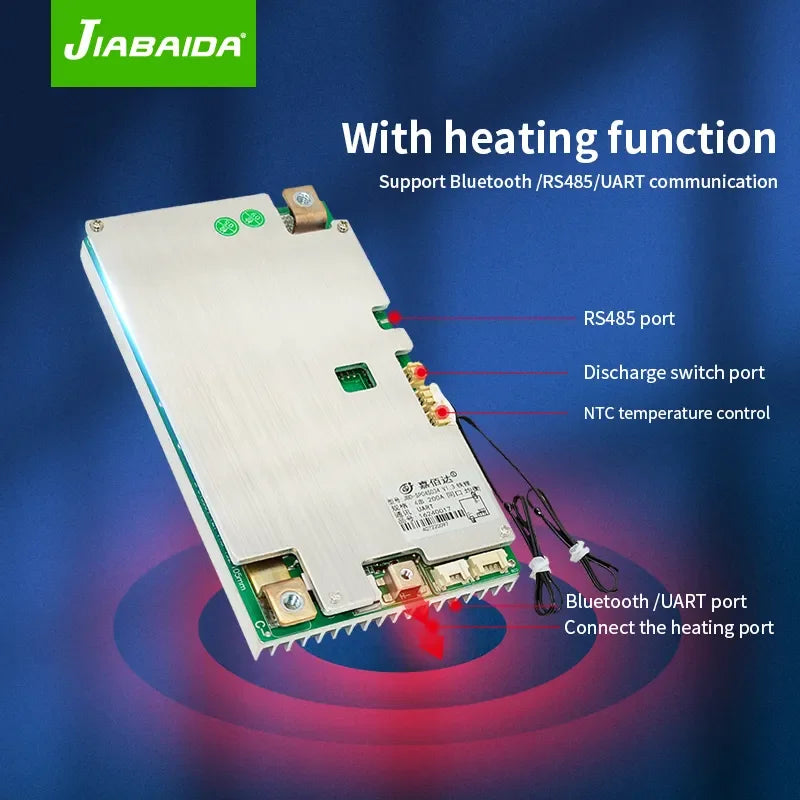

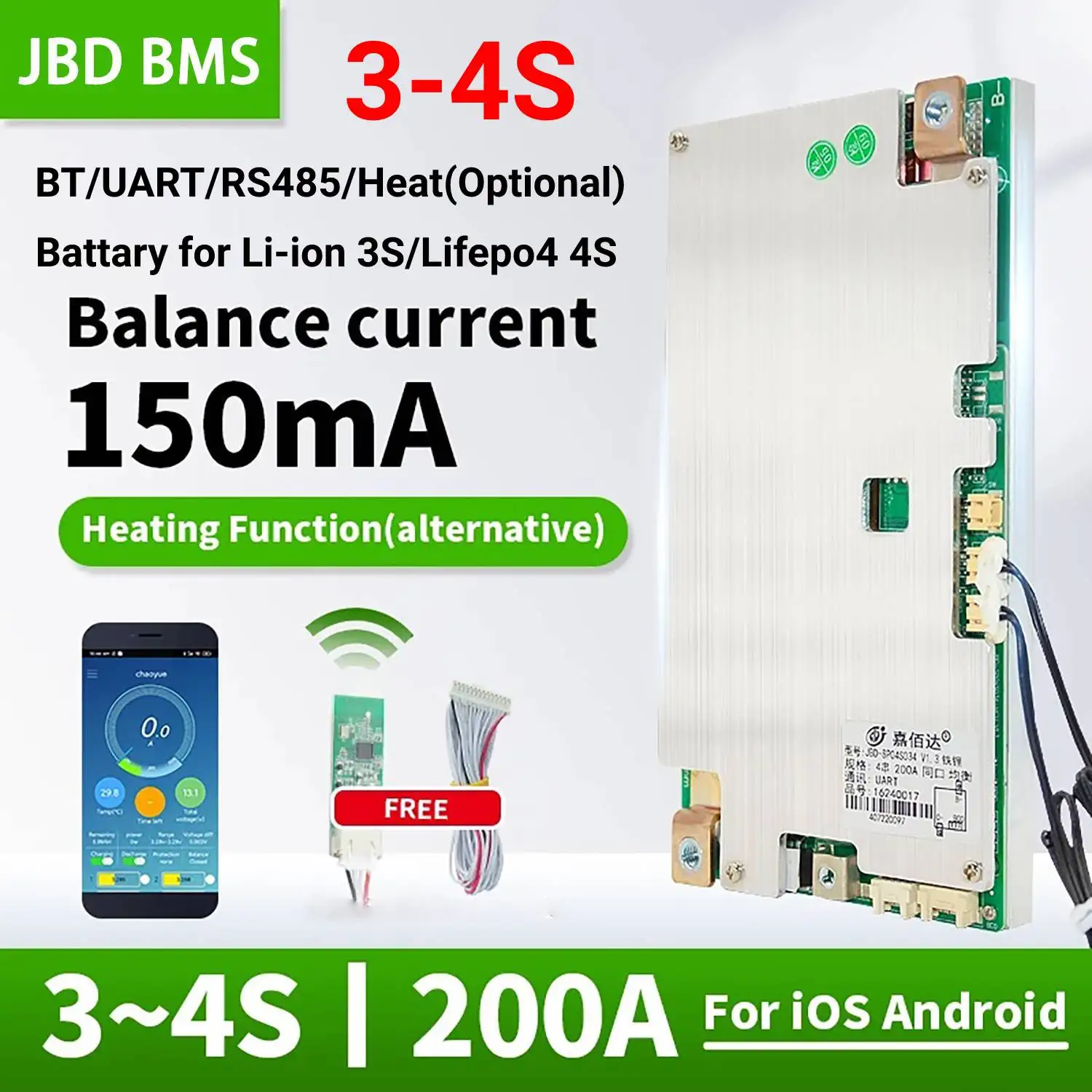

JBD Bluetooth Smart BMS 4S 12V 100A 150A 200A LiFePO4 Battery Management System with UART RS485 Heating
6805932013089_113239796
9999 In Stock Sold Out 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999
Share
|
Number of Strings
|
3S-4S SMART BMS
|
||||||
|
Working Current
|
100A/120A/
150A/200A
|
||||||
|
Voltage
|
12V
|
||||||
|
More Functions
|
Balance/Temp Sensor
BT/Heat sink
|
||||||
|
Applicable Battery
|
3.2V Lifepo4 Battery
3.6V /3.7V Li-ion Battery
|
||||||
|
Communication
|
UART/RS485
RS232/CANBUS
|
||||||
|
Balance Current
|
≤150mA
|
||||||
2.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on batterycapacity.
3.Whether my BMS damaged?
If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
4. Do you produce Hardware BMS or Smart BMS?
We produce both Hardware bms and smart bms.

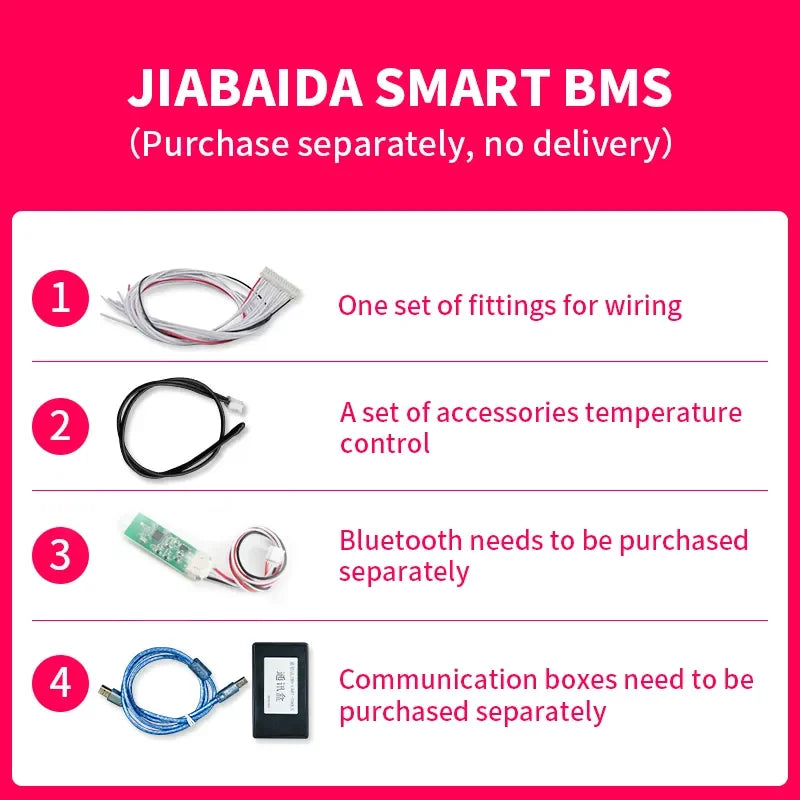

5. What accessories should i buy for smart BMS？

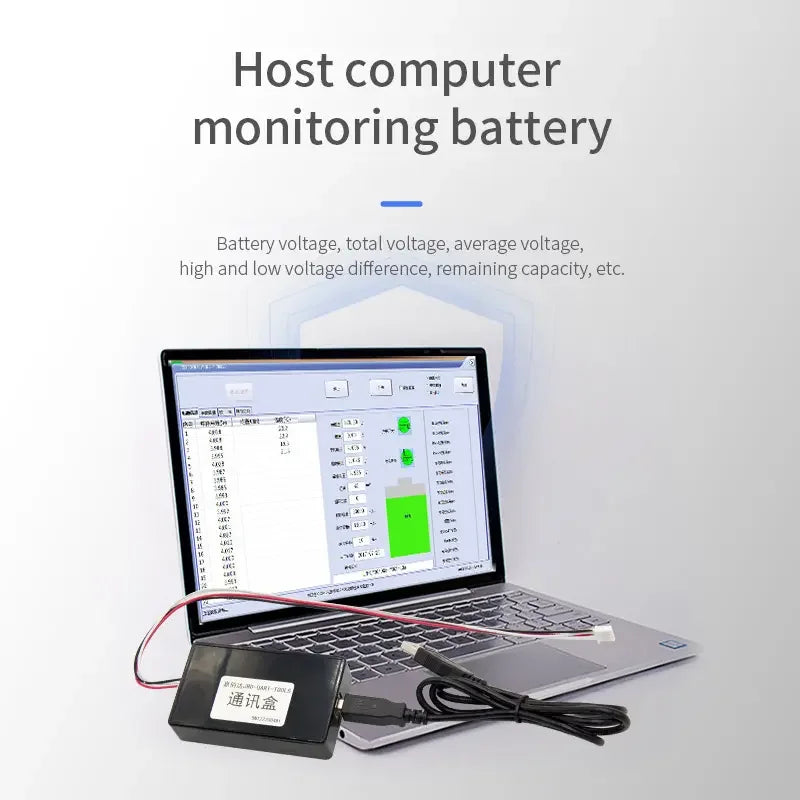

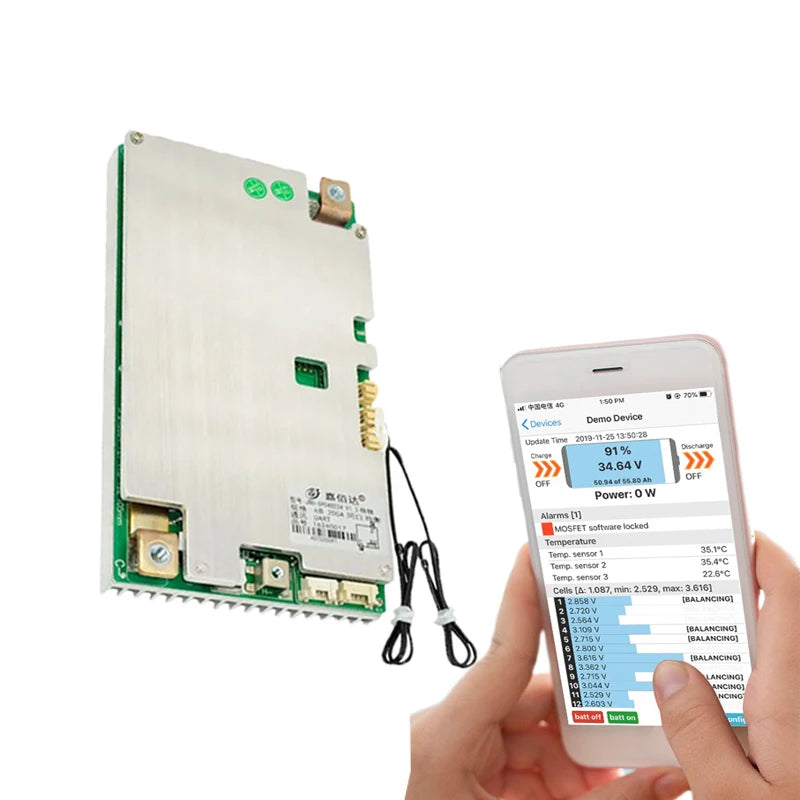

We have bluetooth module for App use, and communication box tool(UART/RS485) for PC use.
And LCD display (UART/RS485) available too. Further question, please contact our customer service.
