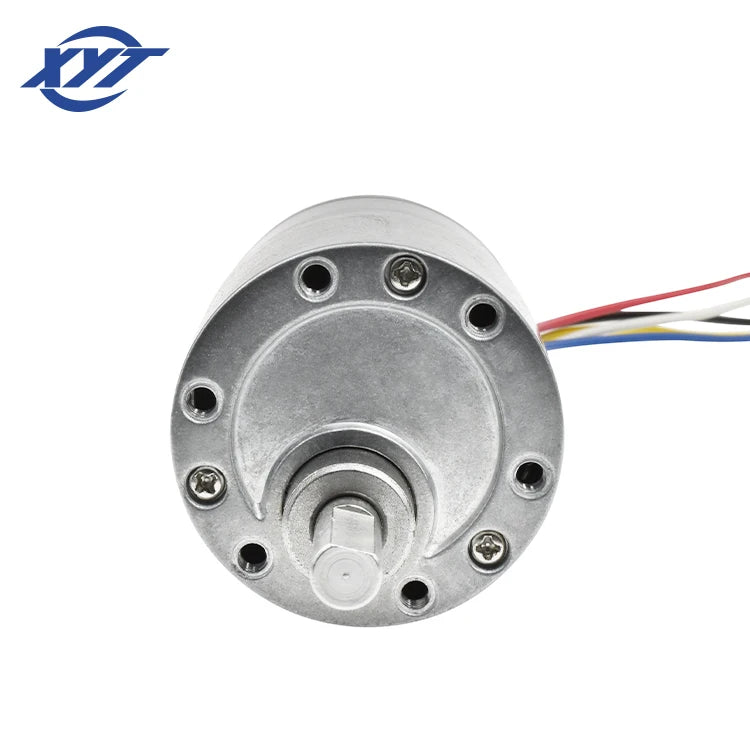

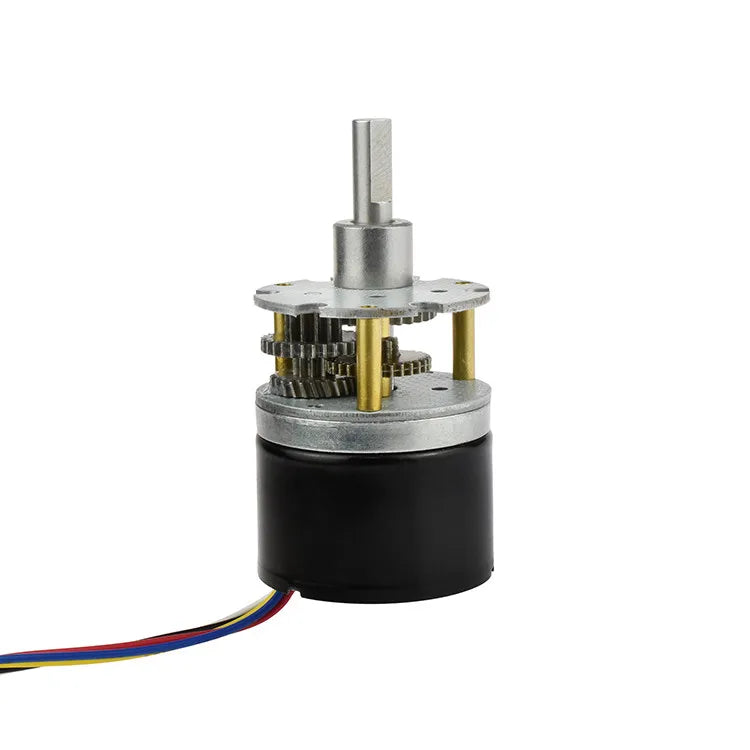

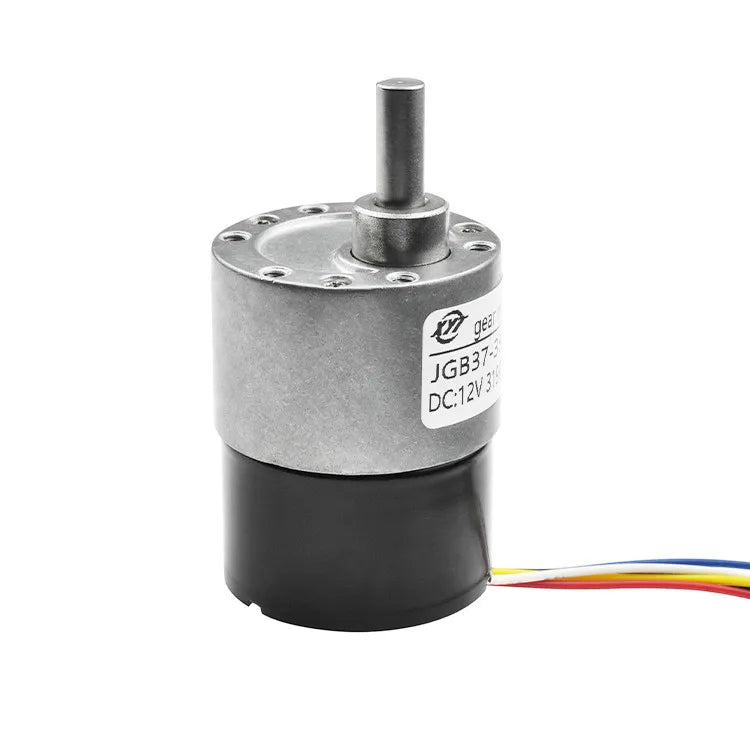

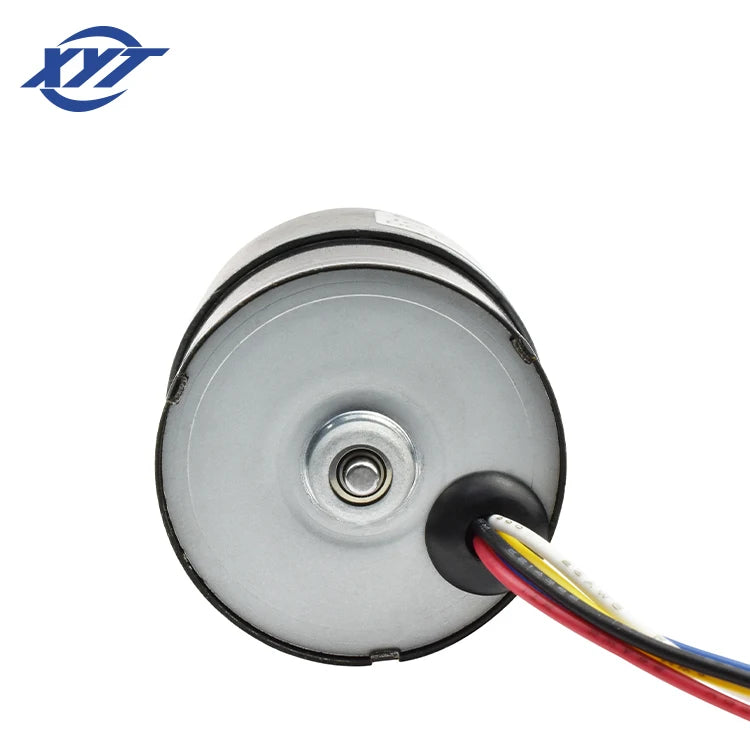

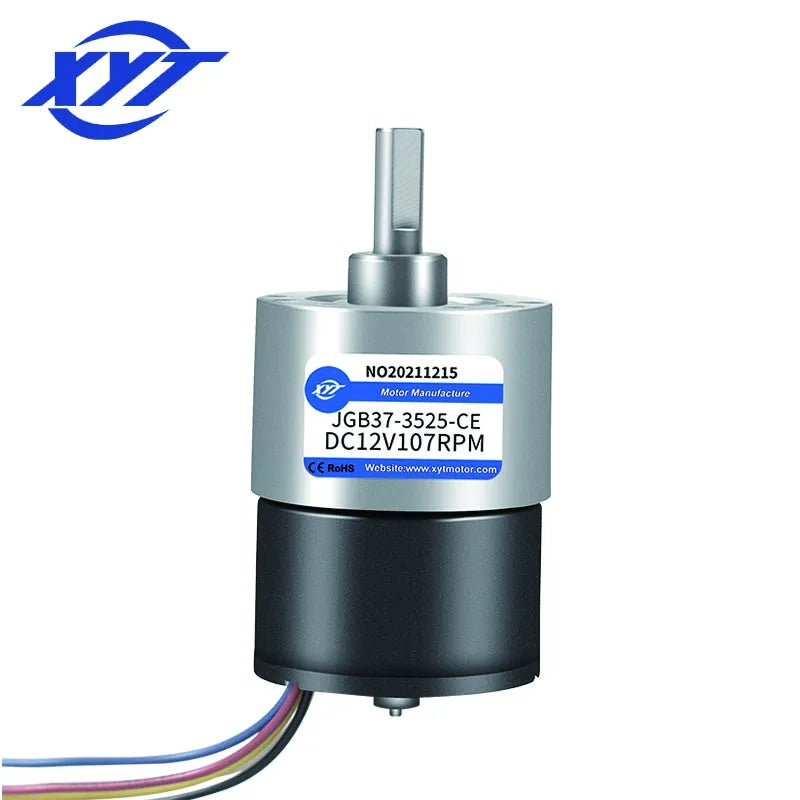

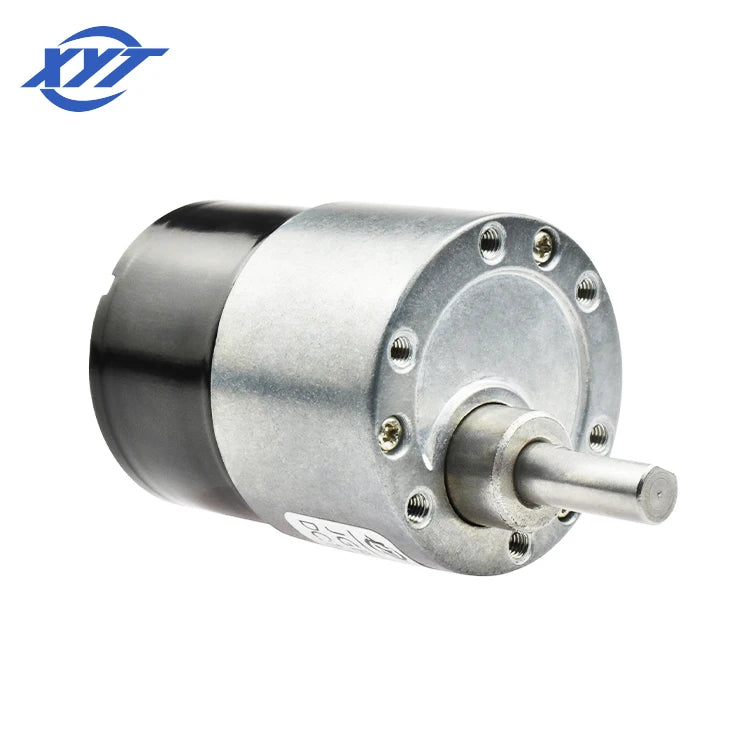

JGB37-3525 37mm 3525 DC 12V 24V Gearbox BLDC Motors Controller 5 wires out DC Brushless Motor
6015852013089_94181565
500 In Stock Sold Out 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500
Share
|
Model：XYT-JGB37-3525
|
||||||||||||||||||
|
Reduction ratio
|
No-Load
|
Rated Load
|
Stall
|
|||||||||||||||
|
Rated Voltage (V)
|
Speed (RPM ±10%)
|
Current (A)
|
Speed (RPM ±10%)
|
Current (A)
|
Torque (Kg,cm)
|
Power(W)
|
Torque (Kg.cm)
|
Current (A)
|
||||||||||
|
6.25
|
12
|
960
|
0.07
|
685
|
0.8
|
0.80
|
5.74
|
1.5
|
1.8
|
|||||||||
|
10
|
12
|
600
|
0.07
|
428
|
0.8
|
1.20
|
5.38
|
2.5
|
1.8
|
|||||||||
|
18.8
|
12
|
320
|
0.07
|
228
|
0.8
|
2.35
|
5.61
|
4.7
|
1.8
|
|||||||||
|
30
|
12
|
200
|
0.07
|
142
|
0.8
|
3.60
|
5.35
|
7.5
|
1.8
|
|||||||||
|
56
|
12
|
107
|
0.07
|
76
|
0.8
|
6.80
|
5.41
|
12.5
|
1.8
|
|||||||||
|
90
|
12
|
66
|
0.07
|
50
|
0.8
|
10.90
|
5.71
|
22.5
|
1.8
|
|||||||||
|
131
|
12
|
45
|
0.07
|
32
|
0.8
|
15.90
|
5.33
|
32
|
1.8
|
|||||||||
|
169
|
12
|
35
|
0.07
|
25
|
0.8
|
20.40
|
5.34
|
35
|
1.3
|
|||||||||
|
270
|
12
|
22
|
0.07
|
16
|
0.8
|
32.70
|
5.48
|
35
|
1.3
|
|||||||||
|
506
|
12
|
12
|
0.07
|
9
|
0.8
|
35.00
|
3.30
|
35
|
1.3
|
|||||||||
|
810
|
12
|
7
|
0.07
|
6
|
0.8
|
35.00
|
2.20
|
35
|
1.3
|
|||||||||
|
6.25
|
24
|
960
|
0.13
|
685
|
0.4
|
0.45
|
3.23
|
1.5
|
1.8
|
|||||||||
|
10
|
24
|
600
|
0.13
|
428
|
0.4
|
0.75
|
3.36
|
2.5
|
1.8
|
|||||||||
|
18.8
|
24
|
320
|
0.13
|
228
|
0.4
|
1.30
|
3.10
|
4.7
|
1.8
|
|||||||||
|
30
|
24
|
200
|
0.13
|
142
|
0.4
|
1.80
|
2.68
|
7.5
|
1.8
|
|||||||||
|
56
|
24
|
107
|
0.13
|
76
|
0.4
|
4.00
|
3.18
|
12.5
|
1.8
|
|||||||||
|
90
|
24
|
66
|
0.13
|
50
|
0.4
|
6.40
|
3.35
|
22.5
|
1.8
|
|||||||||
|
131
|
24
|
45
|
0.13
|
32
|
0.4
|
9.30
|
3.12
|
32
|
1.8
|
|||||||||
|
169
|
24
|
35
|
0.13
|
25
|
0.4
|
12.00
|
3.14
|
35
|
1.3
|
|||||||||
|
270
|
24
|
22
|
0.13
|
16
|
0.4
|
19.00
|
3.18
|
35
|
1.3
|
|||||||||
|
506
|
24
|
12
|
0.13
|
9
|
0.4
|
35.00
|
3.30
|
35
|
1.3
|
|||||||||
|
810
|
24
|
7
|
0.13
|
6
|
0.4
|
35.00
|
2.20
|
35
|
1.3
|
|||||||||
|
The motor is forbidden to be locked
|
24
|
61
|
0.35
|
52
|
1.2
|
9.5
|
28.8
|
35
|
7.5
|
|||||||||
