JIHPUMP 8mm 2000ml 3000ml/min Small Mini Micro High Flow Peristaltic Pump Large Flow DC Water Liquid Dosing Hose Pumps
Save -38%
Rs. 31,776.38
Rs. 50,995.97
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Hot Sale Products
Product Discription
|

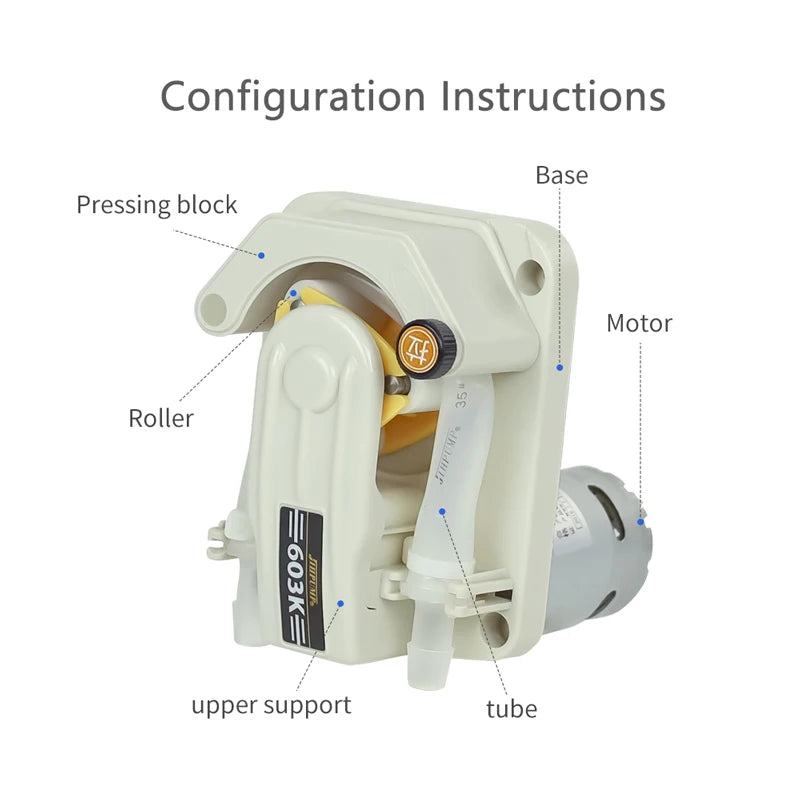

2.Roller: 3 Roller, stable transmission, low pulse.

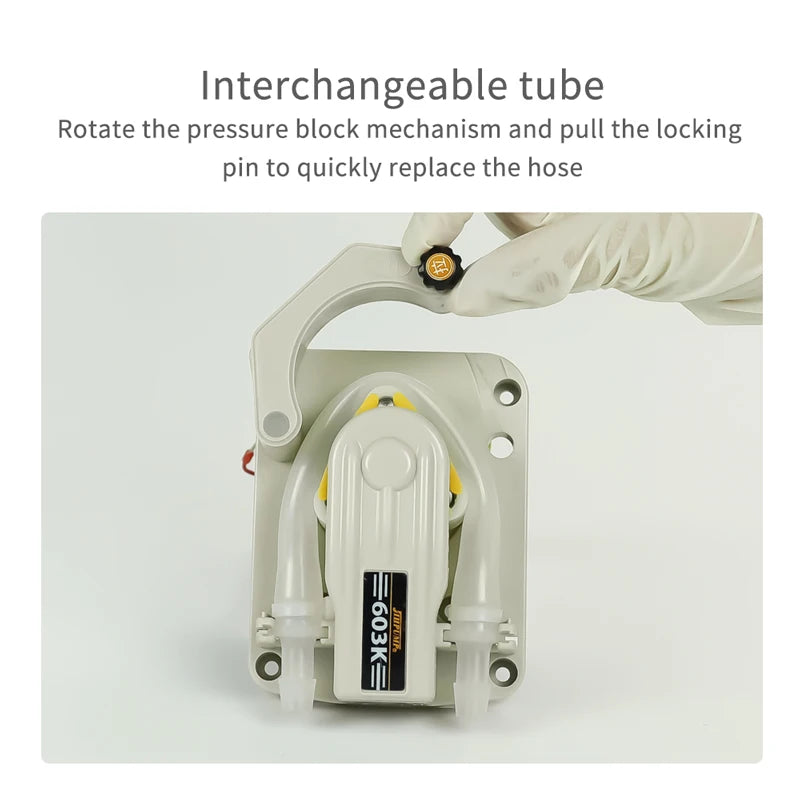

3.Pressing block: Rotary drawing block, easy tube change and easy maintenance.
4.Motor: DC geared motor/DC planetary motor/Stepper motor.
5.Tube: Wall thickness 2.4mm, optional 24#, 35#, 36#.
The 603K peristaltic pumps other main features: High efficiency of large suction, easy tube change and easy maintenance, U-shaped compact structure.
|
||||||||
|
Product Name
|

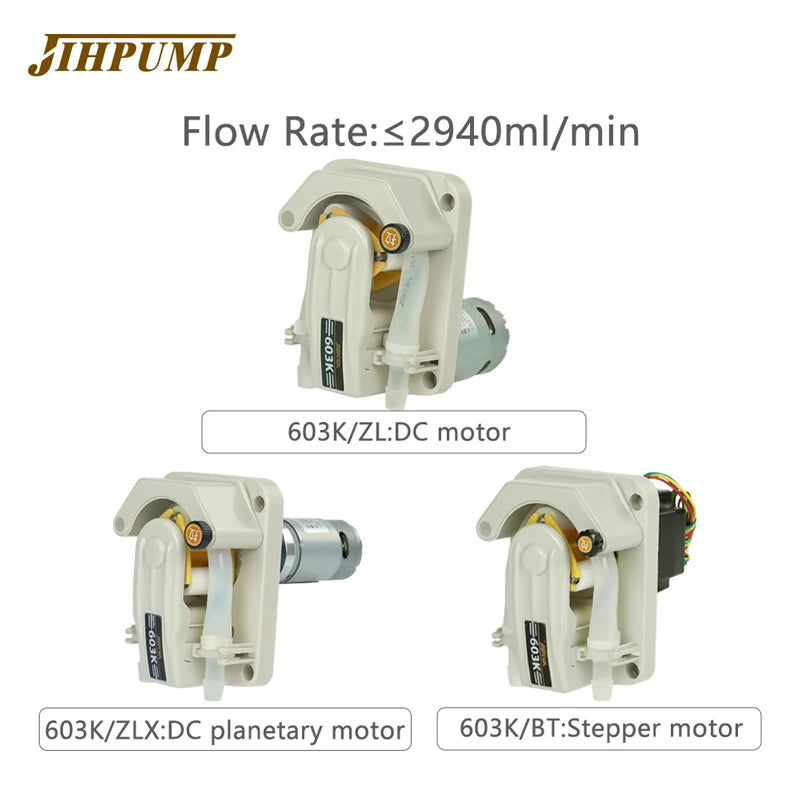

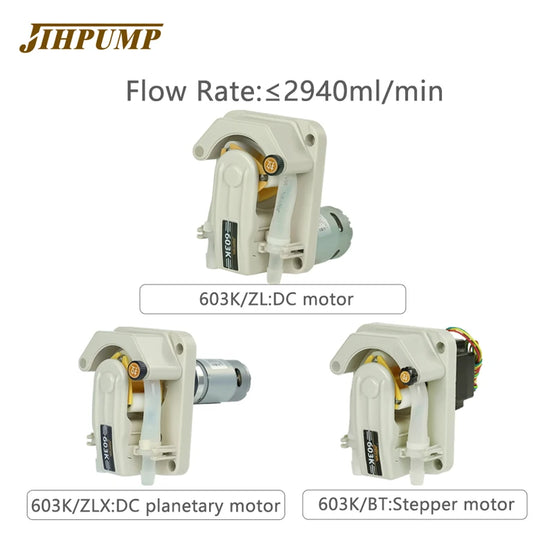

603K Quick Mounting Panel Peristaltic Pump
|
||||
|
Product Model
|
603K/ZL
|
603K/ZLX
|
603K/BT
|
||
|
Motor Type
|
DC geared motor
|
DC planetary motor
|
Stepper motor
|
||
|
Voltage and Current
|
DC 12V, 6A / 24V, 3A
|
DC 12V, 4A/24V, 2A
|
DC24V, 4A
|
||
|
Power
|
≤36W
|
≤24W
|
≤60W
|
||
|
Motor Life
|
800~1500hours
|
1000~2000hours
|
5000~20000hours
|
||
|
Weight
|
750g
|
622g
|
922g
|
||
|
Work Environment
|
Temperature 0 (no icing) ~ 60℃, relative humidity < 85%RH
|
|
|
||
|
Outlet Pressure
|
≤0.17MPa
|
|
|
||
|
Noise
|
≤73dB
|
≤66dB
|
≤58dB
|
||
|
Main Material
|
Upper brace: polyamide, wheel set: polyformaldehyde, base: polyamide
|
|
|
||

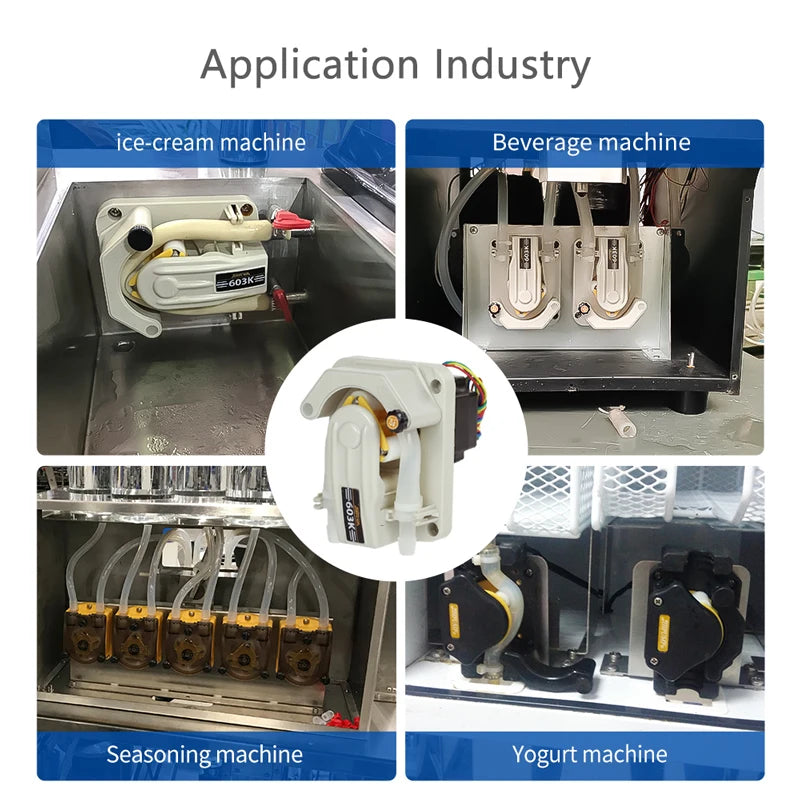

Common Applications: Chemical industry: sewage treatment, food process: food and beverage transportation, kitchen application, experimental equipment, printing and dyeing industry: dye transportation, environmental protection instruments: water quality sampling, construction industry: coating transportation etc.
Applications Industry: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.
|
Joint Name
|
Inner tube size
|
Connect Size
|
Connection Description
|
|
Direct joint
|
internal diameter:
6.4mm/7.9mm/9.7mm
|
internal diameter:
6.4mm/7.9mm/9.7mm
|
Connect the hose
|
|
Adjustable joint
|
internal diameter:
6.4mm to 7.9mm
|
internal diameter:
7.9 mm to 6.4mm
|
|
|
Right angle joint
|
internal diameter: 6.4mm/7.9mm
|
internal diameter: 6.4mm/7.9mm
|

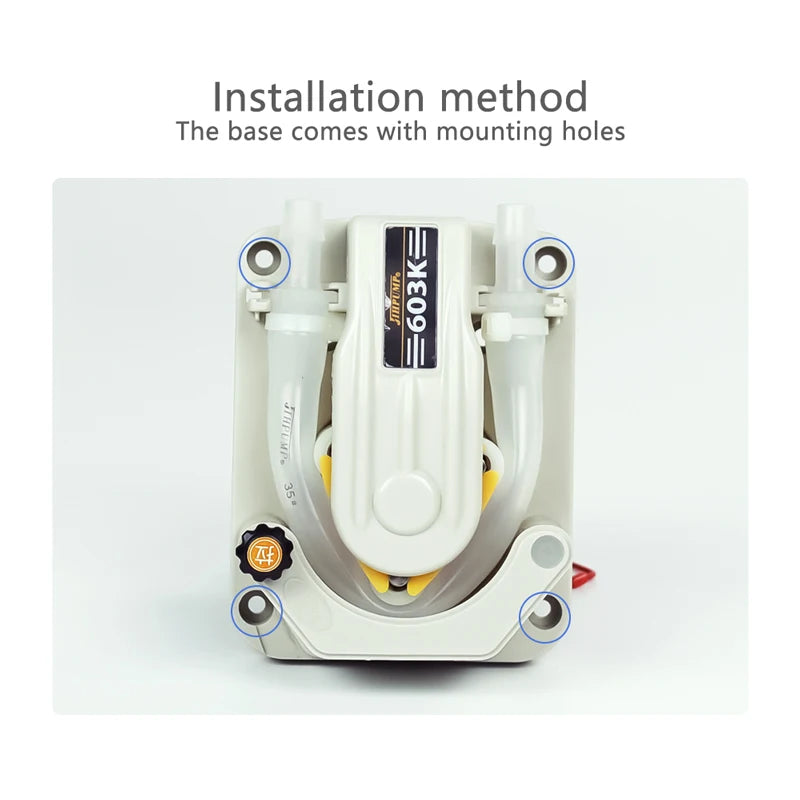

Installation mode:
Panel installation, base with mounting holes.
We are the largest OEM peristaltic pump manufacturer in China and can meet all your peristaltic pump needs. Please contact us now : for product information, parameters, prices and application advice.
