Product Discription
|

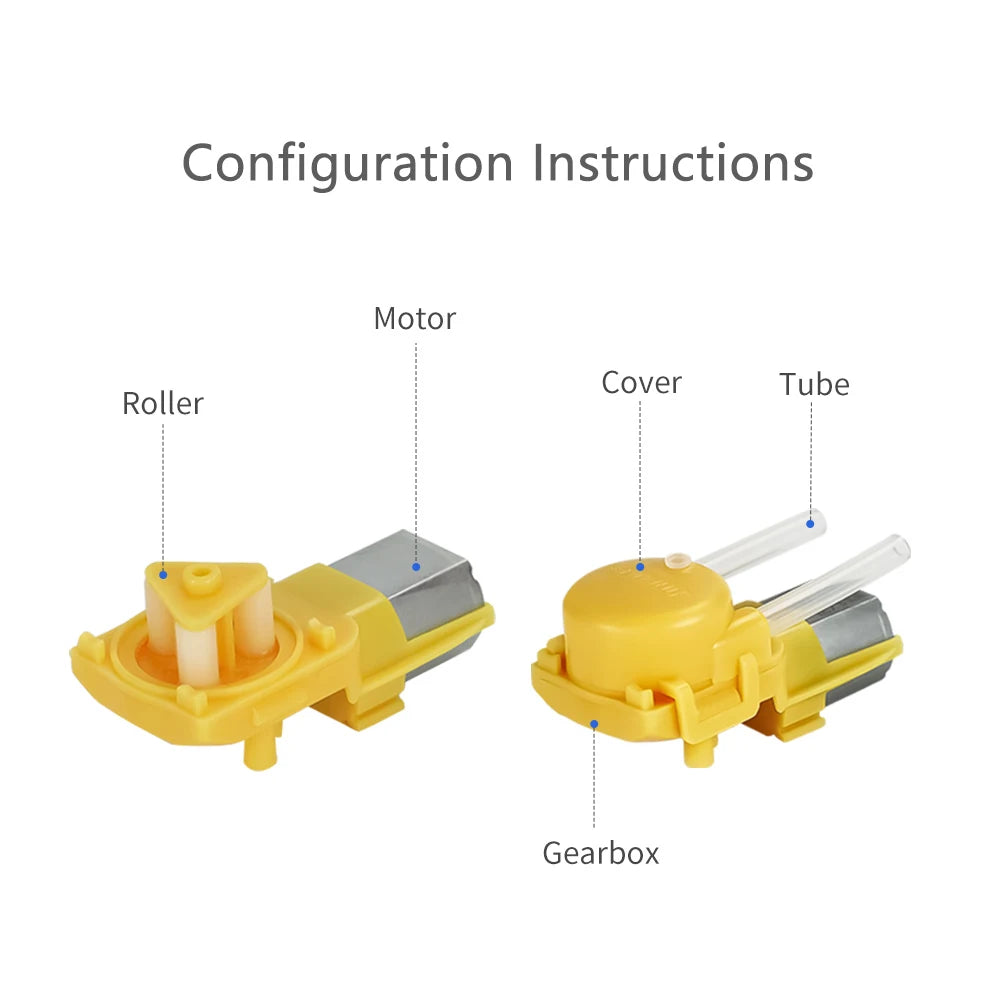

1.Pump cover:Tool-free installation, optional in both positive and negative directions.
2.Tube: 3 types of hoses available.
3.Roller: 3 roller, conveying smooth pulse low.
4.Gearbox: Precision gear reduction, smooth operation.
5.Motor: DC geared motor.

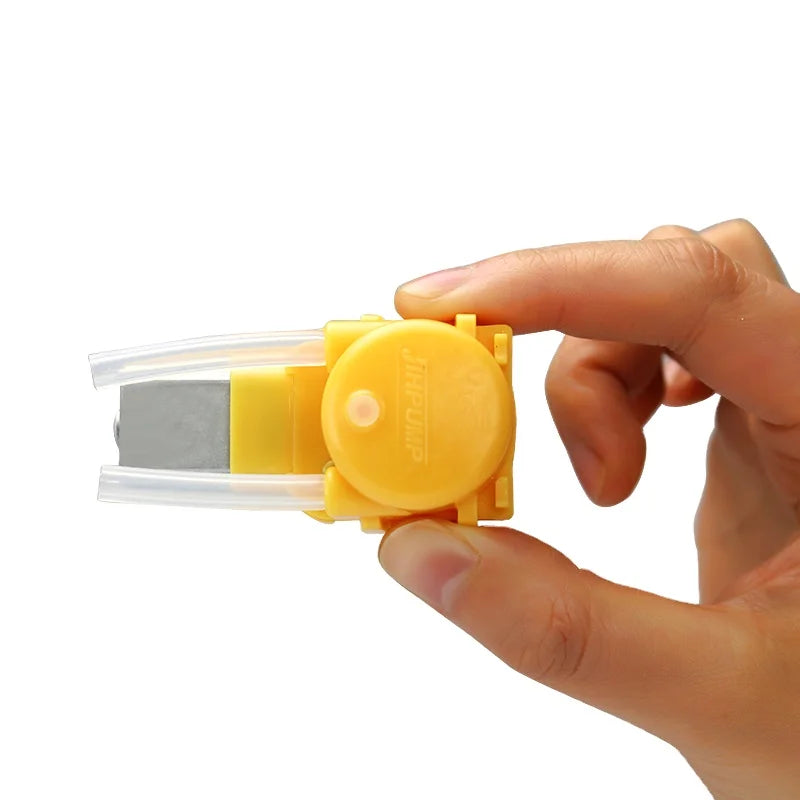

The WX1 peristaltic pumps other main features: Miniature and compact, Width only 32mm, The outlet pipe can be reversed, Precise metering and conveying.
|
||||||||
|
Product Name
|

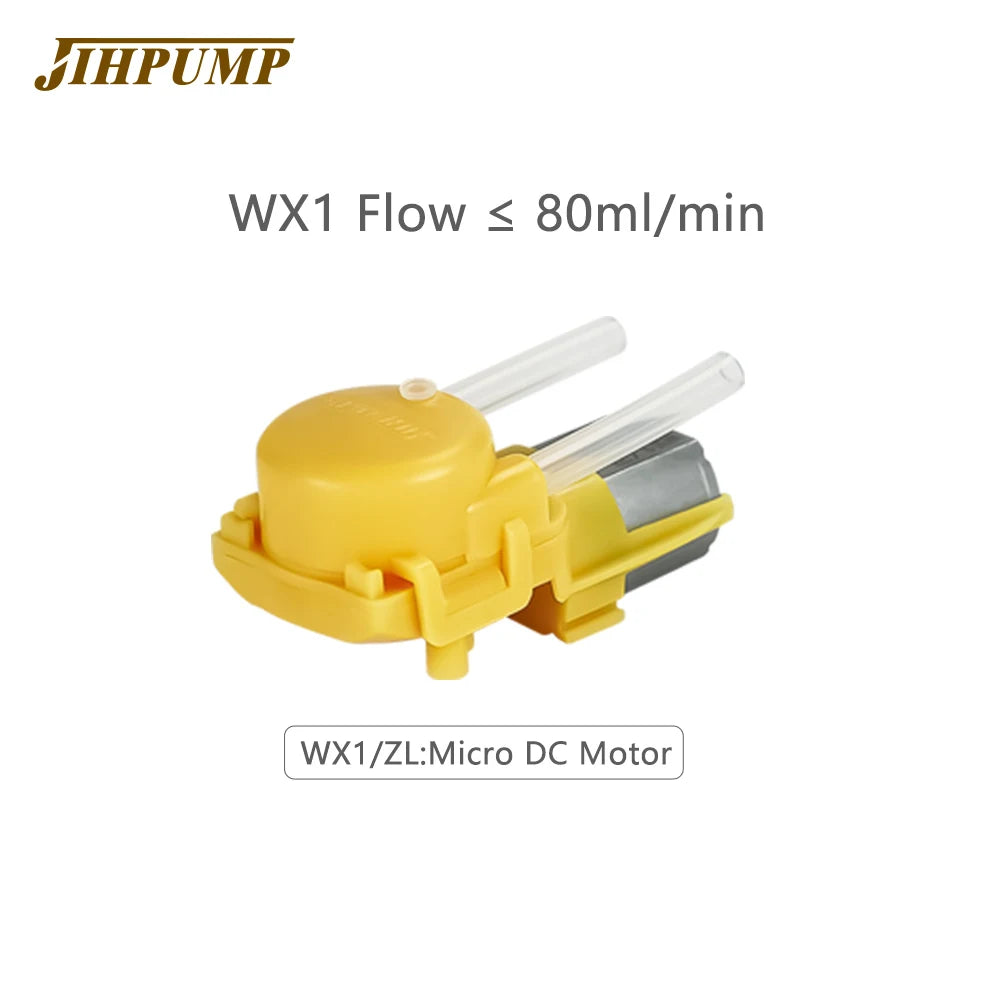

WX1 Micro Peristaltic Pump
|
|
Product Model
|
WX1/ZL
|
|
Motor Type
|
DC Geared motor
|
|
Voltage and Current
|
DC3～6V,1A / 6～12V,1A
|
|
Power
|
≤4W / ≤6W
|
|
Motor Life
|
≥150 hours
|
|
Weight
|
41g
|
|
Work Environment
|
Temperature: 0~60℃ Humidity:＜85%RH
|
|
Outlet Pressure
|
≤0.1MPa
|
|
Noise
|
≤55dB
|
|
Main Material
|
Pump Cover: Polyacetal, Wheel Frame: Polyacetal, Roller: Polyamide
|
Common Applications: Hand sanitizer machine,Aquarium,Sweeping robot,robot cleaner,Smart toilet seat,Automatic laundry detergent dispenser,Seasoning distributor of frying machine etc.
Applications Industry: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.
Pump head direction:
The direction of the hose inlet and outlet can be adjusted according to the customer's application (can be rotated 180°).

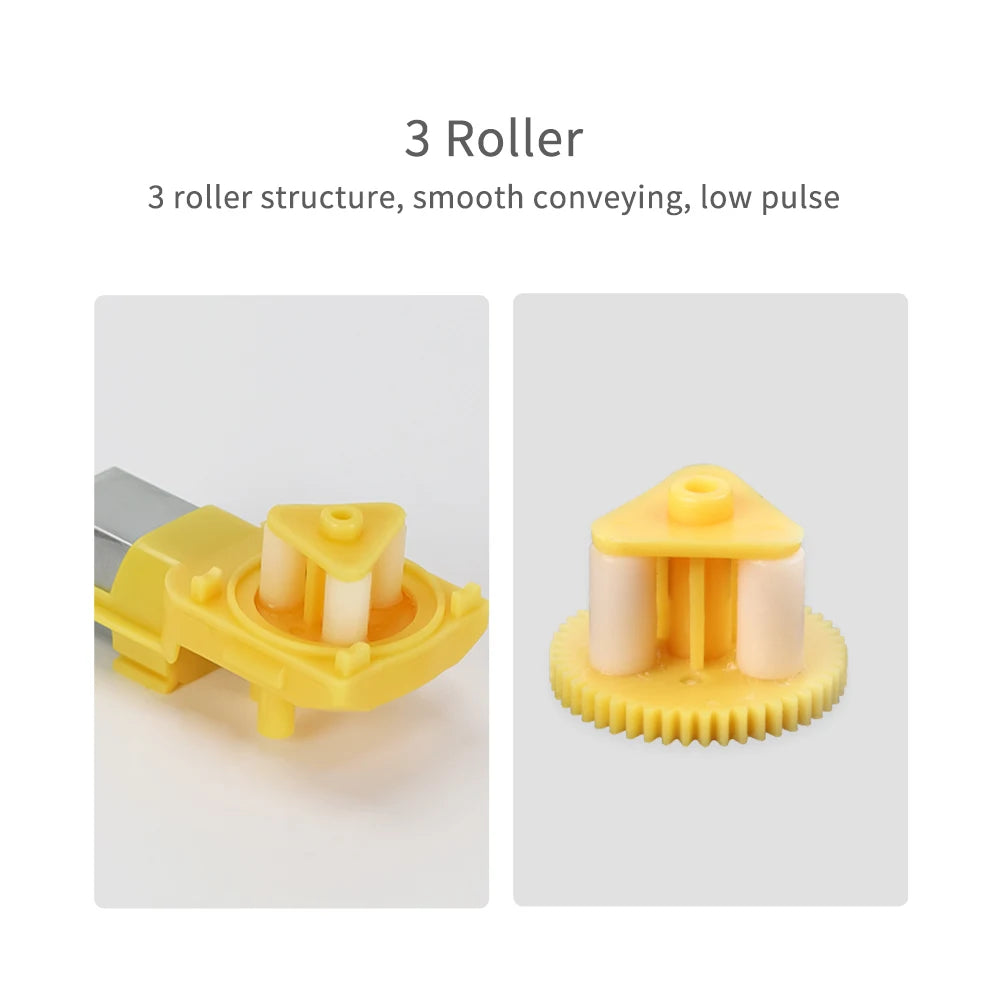

Number of rollers
:
3 runner structure, make the peristaltic pump deliver smooth and low pulse.
|
Joint Name
|
Inner tube size
|
Connect Size
|
Connection Description
|
|
Direct joint
|
internal diameter:3mm/4mm
|
internal diameter:3mm
|
Connect the hose
|
|
Hard tube joint
|
internal diameter:3mm/4mm
|
external diameter: 3.2mm
|
Hard tube
|

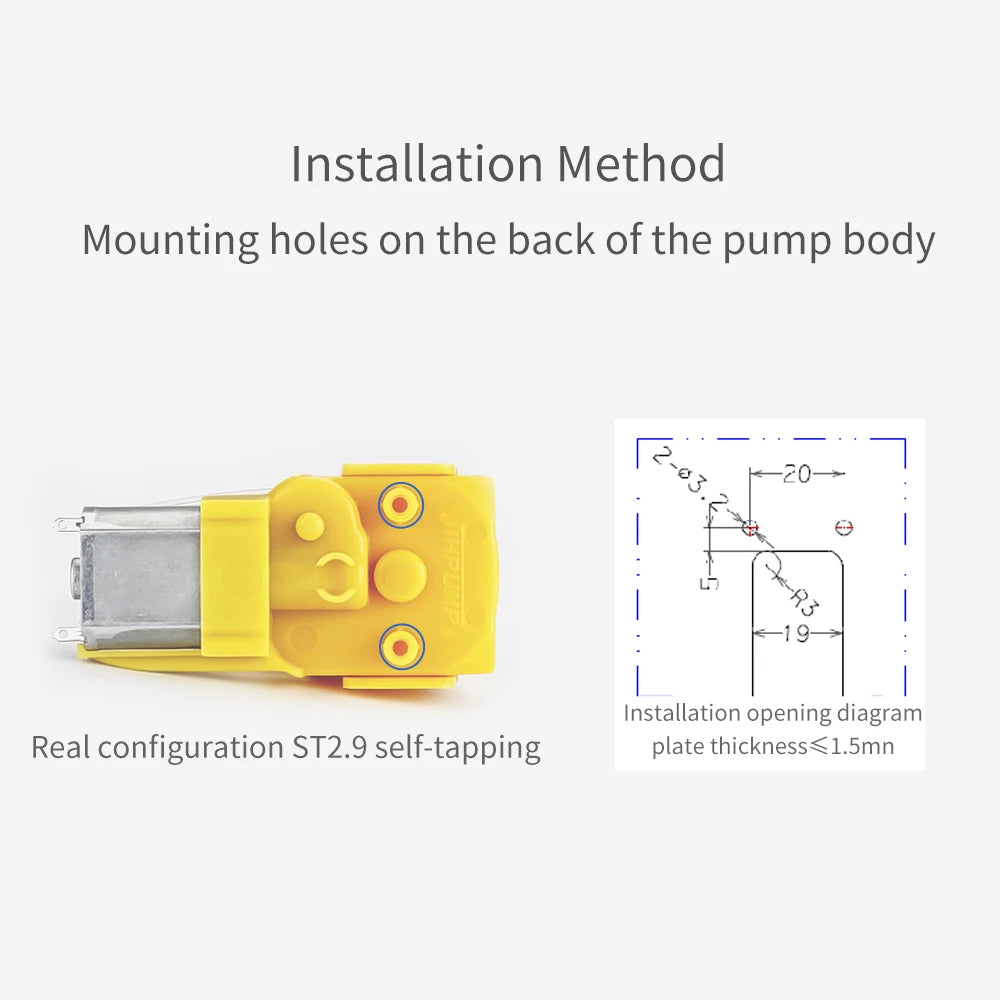

Installation method: The peristaltic pump has its own mounting holes on the back of the pump body.
