⚡ KDJB-802Y Microcomputer Secondary Injection Relay Protection Tester
DSP Control • Secondary Injection Testing • AC/DC Output • 3-Phase Testing • Substation Maintenance
KDJB-802Y — Relay Protection / Secondary Injection Tester
UTE 403 — CT/PT Analyzer

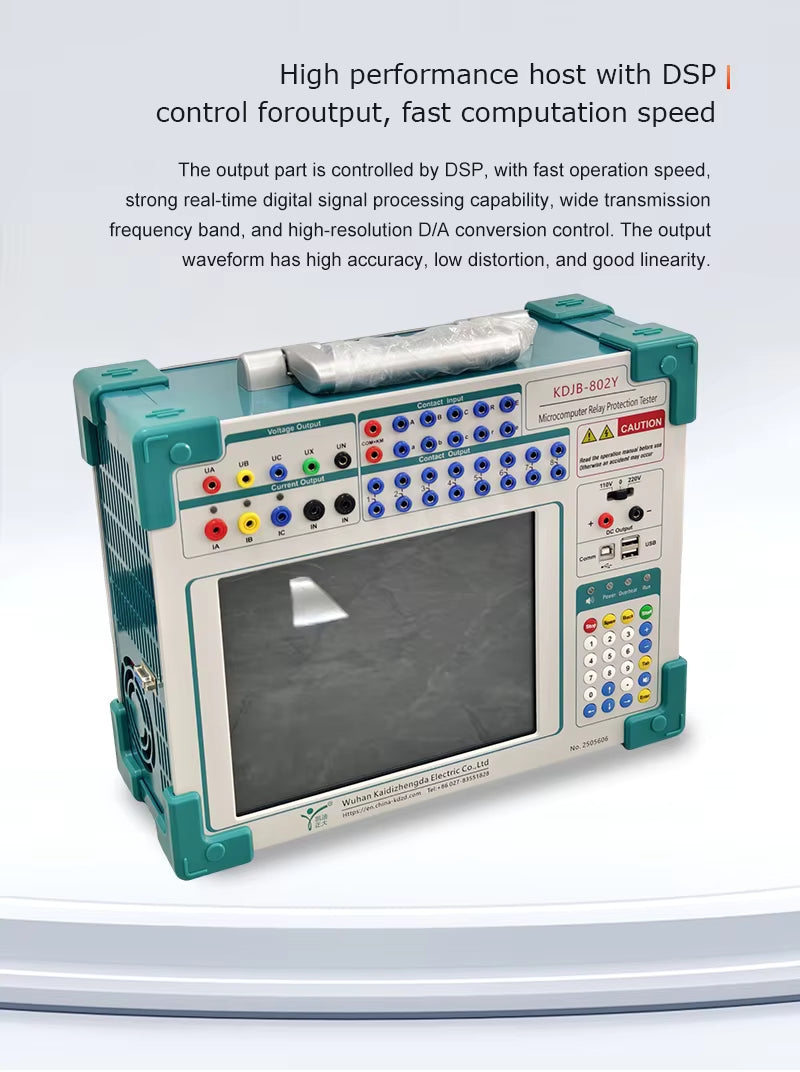

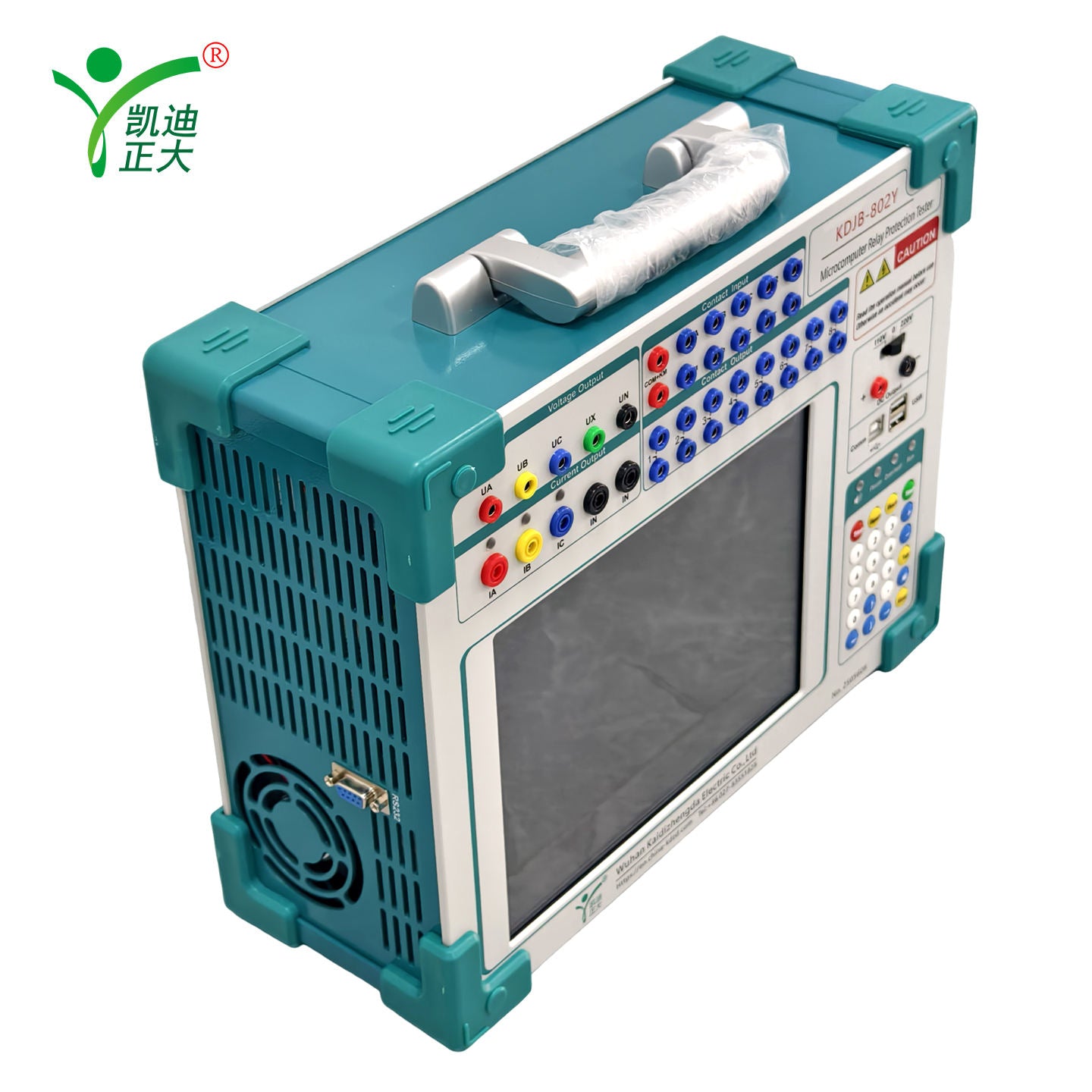

The KDJB-802Y is a professional microcomputer-controlled relay protection testing system designed for electrical protection testing, secondary injection testing, commissioning, maintenance and laboratory applications.
With controlled AC and DC current and voltage outputs, adjustable frequency capability and DSP-based control, the system provides engineers and technicians with a practical platform for testing protection relays and associated secondary circuits.

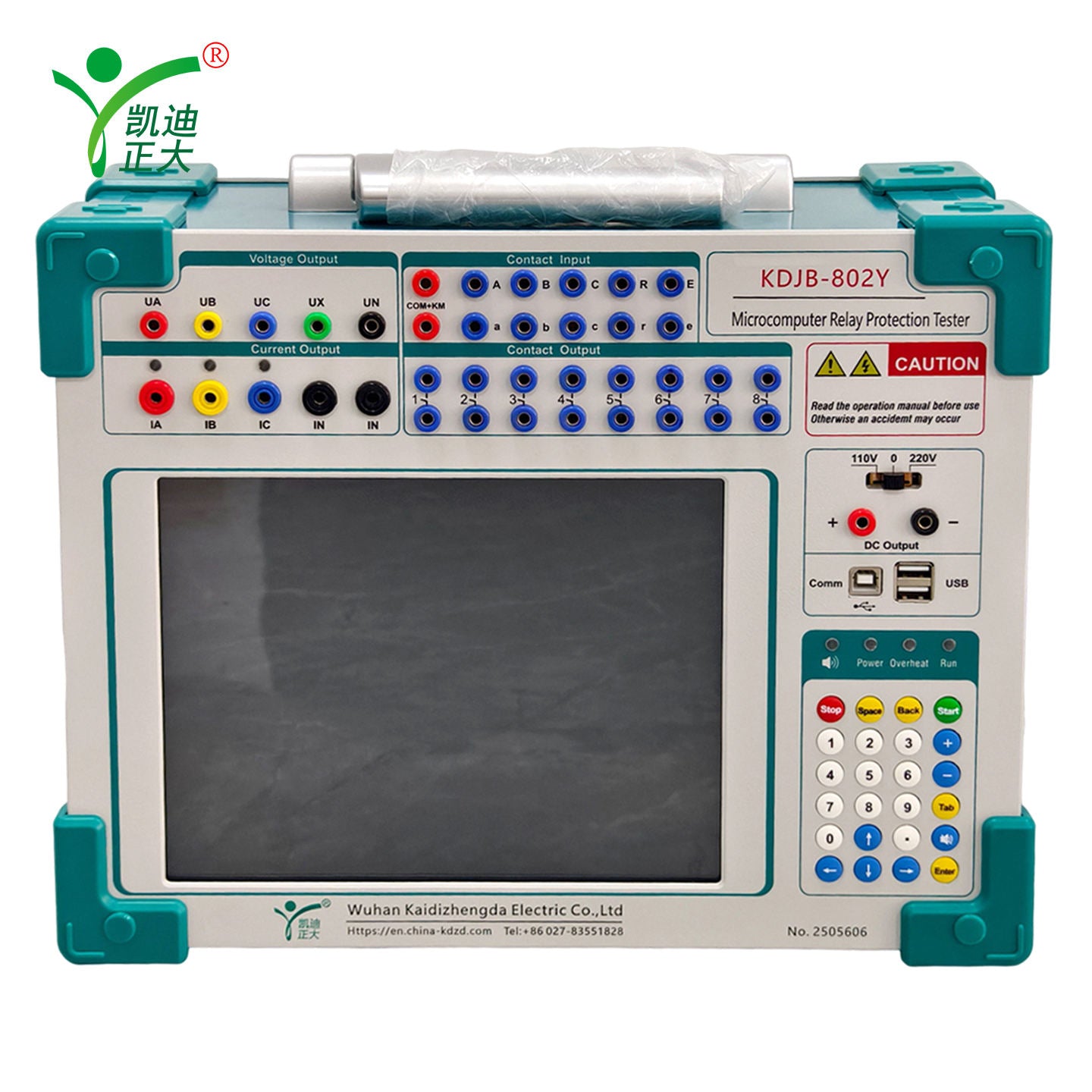

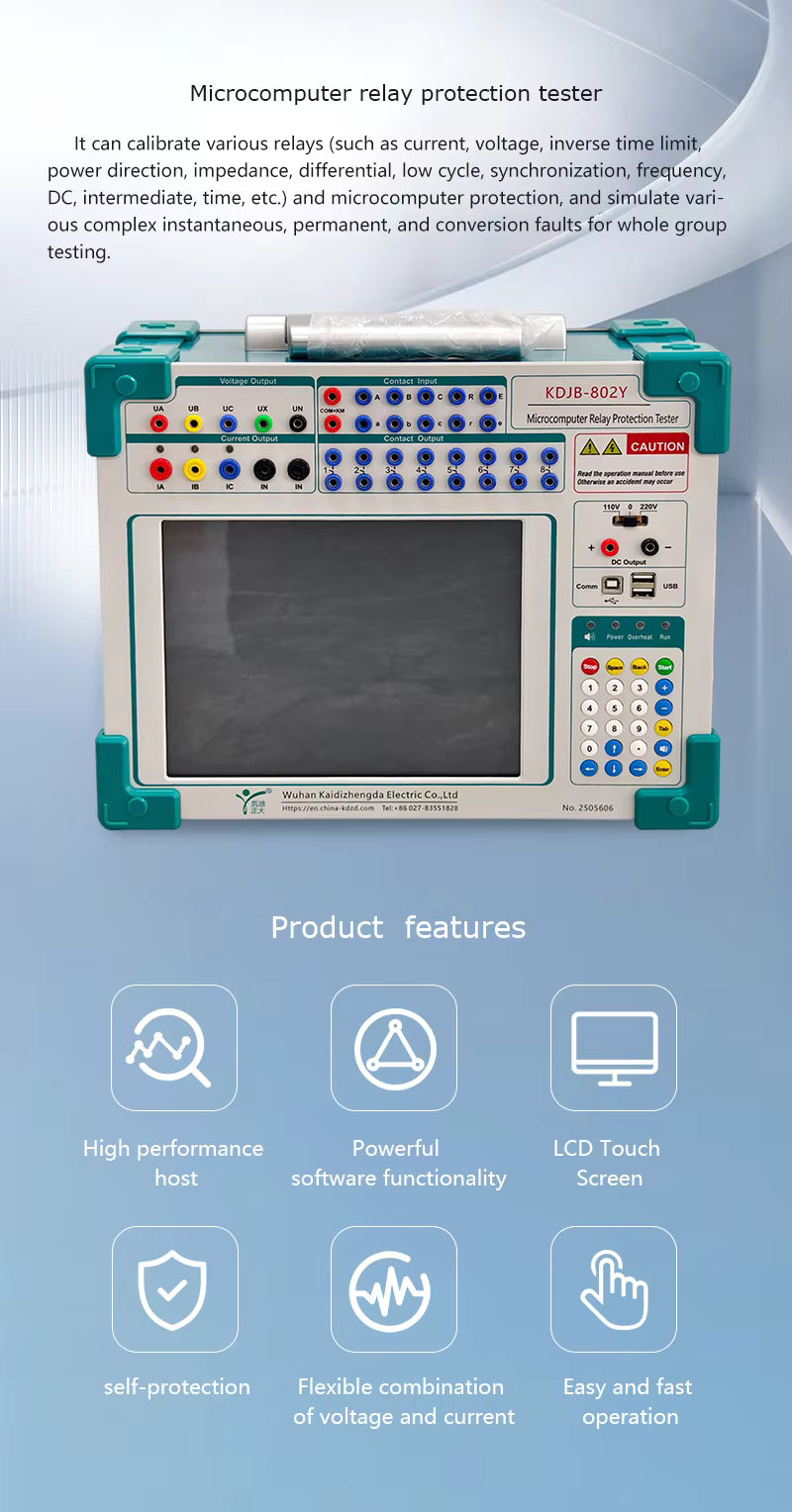

🚀 Key Features
🧠 DSP Control
Microcomputer and DSP-based control architecture for controlled electrical test outputs.
⚡ AC Current Output
Up to 40 A per phase with up to 120 A three-phase parallel current output.
🔋 DC Testing
DC current and voltage output capability for applicable protection-testing procedures.
🎯 High Accuracy
Approximately 0.2 accuracy class according to the supplied specification.

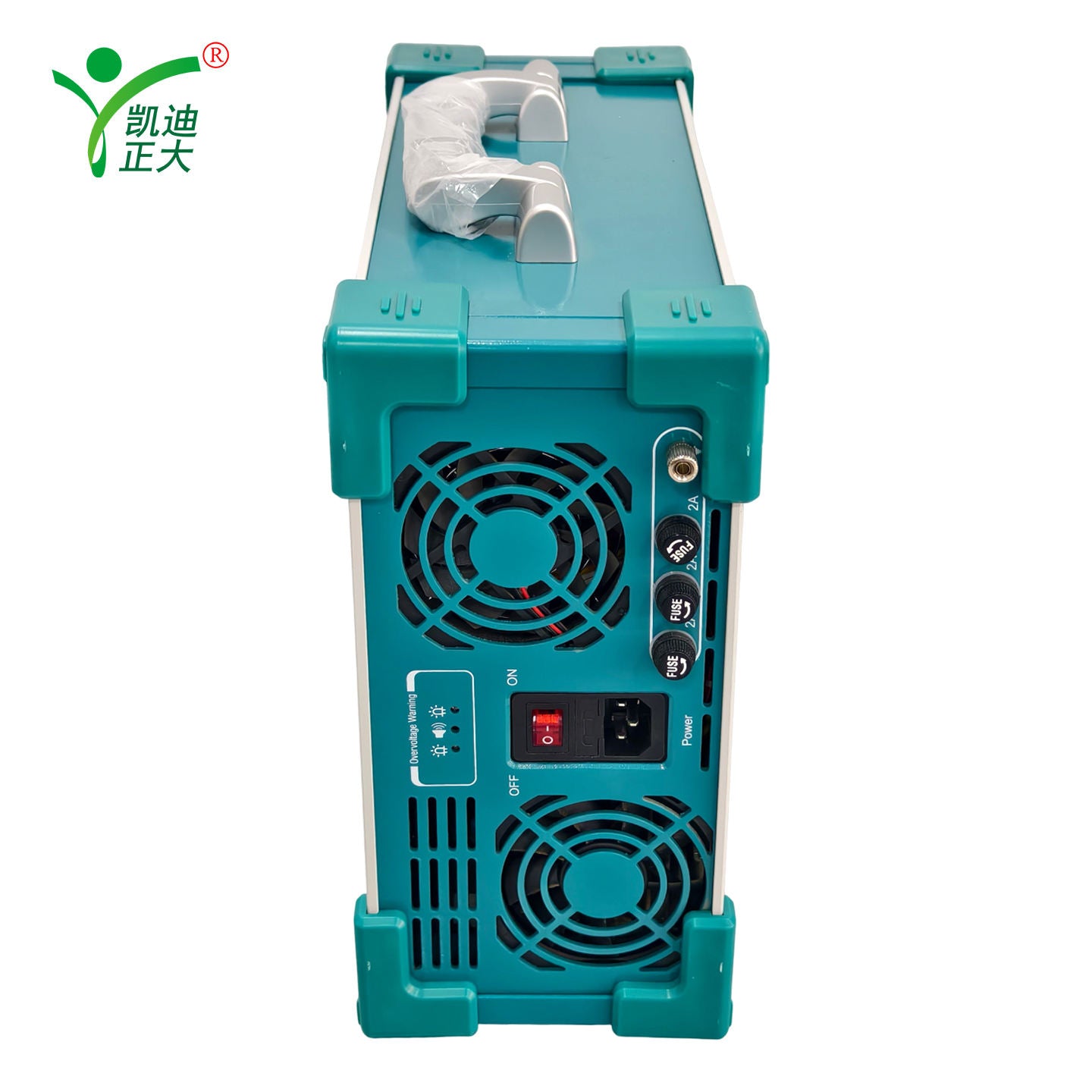

⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Model | KDJB-802Y |
| Product Type | Microcomputer Relay Protection Tester |
| Control | Microcomputer / DSP Control System |
| Accuracy | Approximately 0.2 Class |
| AC Phase Current | 0-40 A |
| AC 3-Phase Parallel Current | 0-120 A |
| DC Current | 0 to ±10 A per phase |
| DC 3-Phase Parallel Current | 0 to ±30 A |
| AC Phase Voltage | 0-120 V |
| AC Line Voltage | 0-240 V |
| DC Phase Voltage | 0 to ±160 V |
| DC Line Voltage | 0 to ±320 V |
| Frequency | 20-1000 Hz Fundamental |
| Maximum DC Output Load Voltage | 20 V |
| Power | Approx. 420 VA |
| Power Supply | AC 220 V |

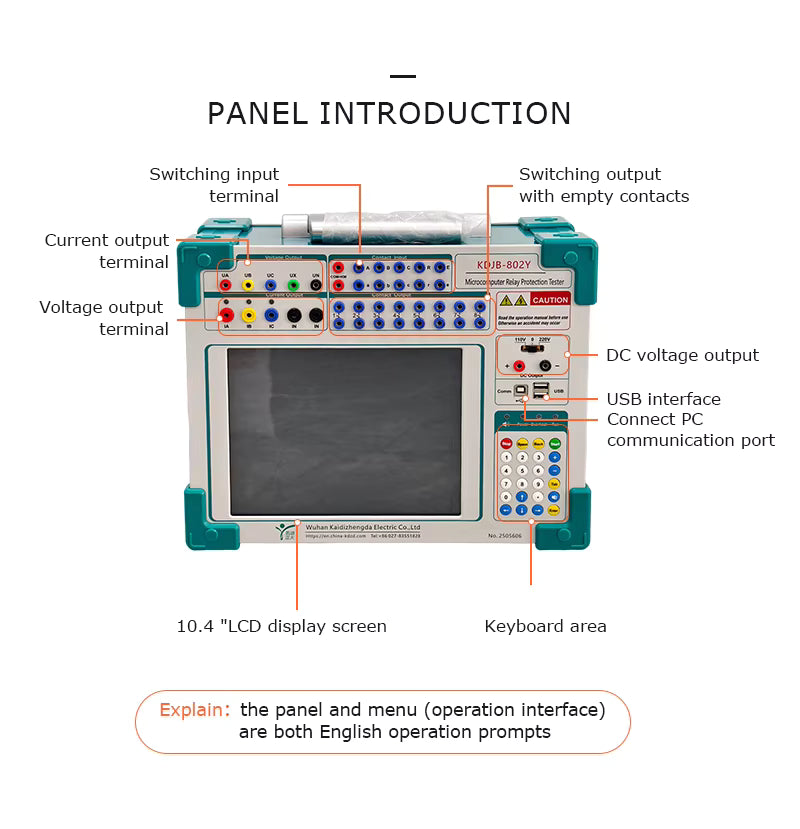

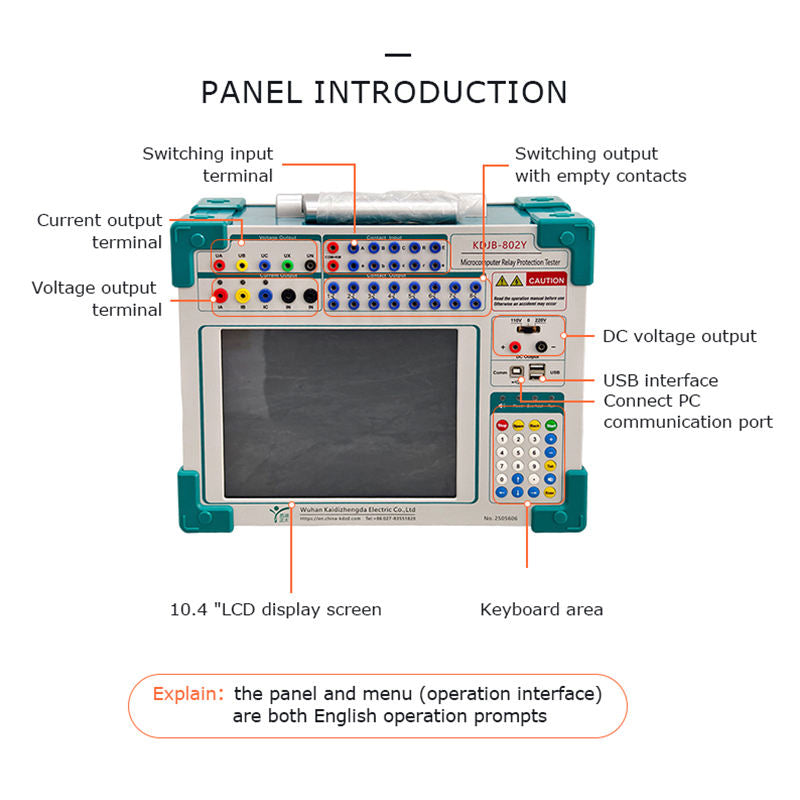

🔬 Secondary Injection Testing
Secondary injection testing is used to apply controlled electrical quantities to protection-relay circuits in order to verify relay response and protection-system behaviour.

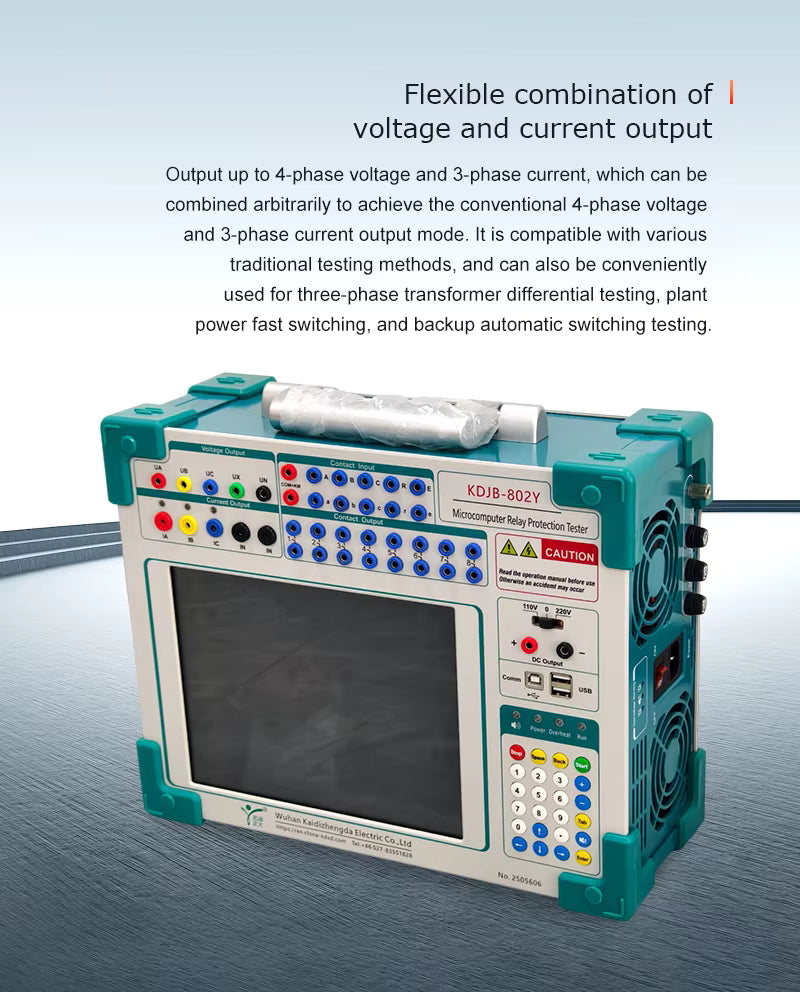

The KDJB-802Y provides controlled AC/DC current and voltage outputs suitable for applicable protection-relay testing procedures.
- ⚡ AC current injection
- ⚡ DC current testing
- 🔌 AC voltage testing
- 🔋 DC voltage testing
- 📈 Frequency adjustment
- 🎯 Protection relay verification
- 🏭 Commissioning and maintenance applications
🏭 Application Areas
Protection-system testing and maintenance.
Relay commissioning and maintenance applications.
Testing during electrical commissioning projects.
Electrical protection testing and technical training.
Electrical protection maintenance applications.
Suitable for advanced electrical testing laboratories subject to curriculum requirements.
📊 Output Capability at a Glance
| AC Current | Up to 40 A / phase |
| 3-Phase Parallel AC Current | Up to 120 A |
| DC Current | Up to ±10 A / phase |
| AC Phase Voltage | Up to 120 V |
| AC Line Voltage | Up to 240 V |
| Frequency | 20-1000 Hz |
🧰 Professional Use
The KDJB-802Y is intended for use by appropriately trained electrical professionals. Protection relay testing involves hazardous electrical voltages and currents, and testing should be performed only according to applicable safety procedures and the manufacturer's operating instructions.
The equipment should not be treated as a general-purpose consumer electrical tester.
⚠️ Specification Confirmation

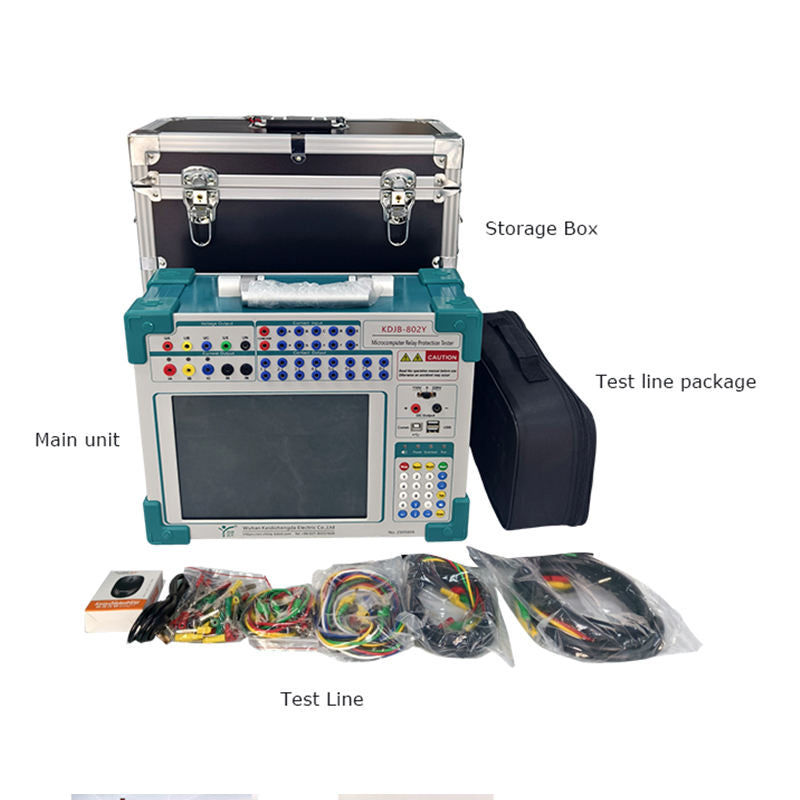

Specifications may vary according to final factory configuration. Before placing an order, confirm the exact output configuration, software functions, protection-test modules, accessories, calibration documentation and communication interfaces with the supplier.
Important: The KDJB-802Y relay protection tester should not be automatically represented as a CT/PT analyzer unless the manufacturer specifically confirms CT/PT analysis functions for the supplied configuration.
🚚 Domestic & International DDP Shipping Available
We offer door-to-door shipping solutions for B2B orders across India and internationally. DDP shipping, where available, can include customs clearance, applicable duties and taxes.
🌎 International customers: Message us with your quantity + city + country + postal/ZIP code for a customized DDP shipping quotation.
🇮🇳 India customers: Door delivery available across India, subject to destination and shipment requirements.
Final shipping cost and DDP availability are confirmed before order processing.
❓ Frequently Asked Questions
What is the KDJB-802Y?
The KDJB-802Y is a microcomputer-controlled secondary injection relay protection tester designed for electrical protection testing, commissioning and maintenance.
What is secondary injection testing?
Secondary injection testing applies controlled electrical current and voltage signals to protection-relay circuits to verify relay operation and protection-system response.
What is the maximum AC current output?
The supplied specification indicates up to 40 A per phase and up to 120 A for three-phase parallel output.
What is the frequency range?
The specified fundamental frequency range is 20-1000 Hz.
Can this equipment be used in substations?
Yes, it is positioned for relay protection testing, commissioning and maintenance applications associated with substations and electrical power systems.
Is KDJB-802Y the same as a UTE 403 CT/PT Analyzer?
They should not be treated as the same product without manufacturer confirmation. KDJB-802Y is described as a relay protection tester, while UTE 403 CT/PT Analyzer specifications concern CT/PT analysis. Confirm the exact model before ordering.
Who should operate this tester?
Qualified electrical engineers, protection technicians, commissioning personnel and appropriately trained laboratory operators should operate the equipment.
⚡ Need a Relay Protection Testing Solution?
Contact Shanvis Store for current configuration, pricing, technical documentation, delivery options and India import support.
