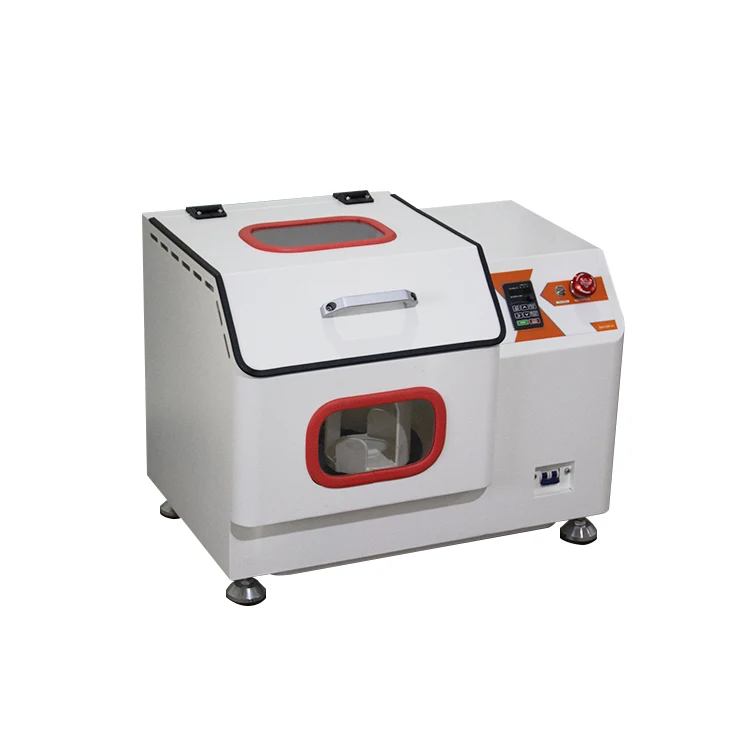

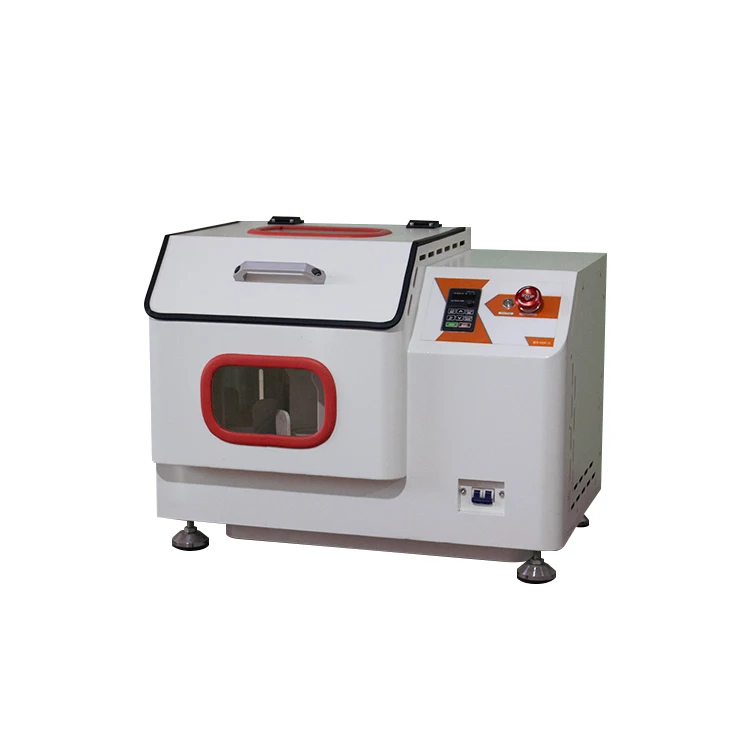

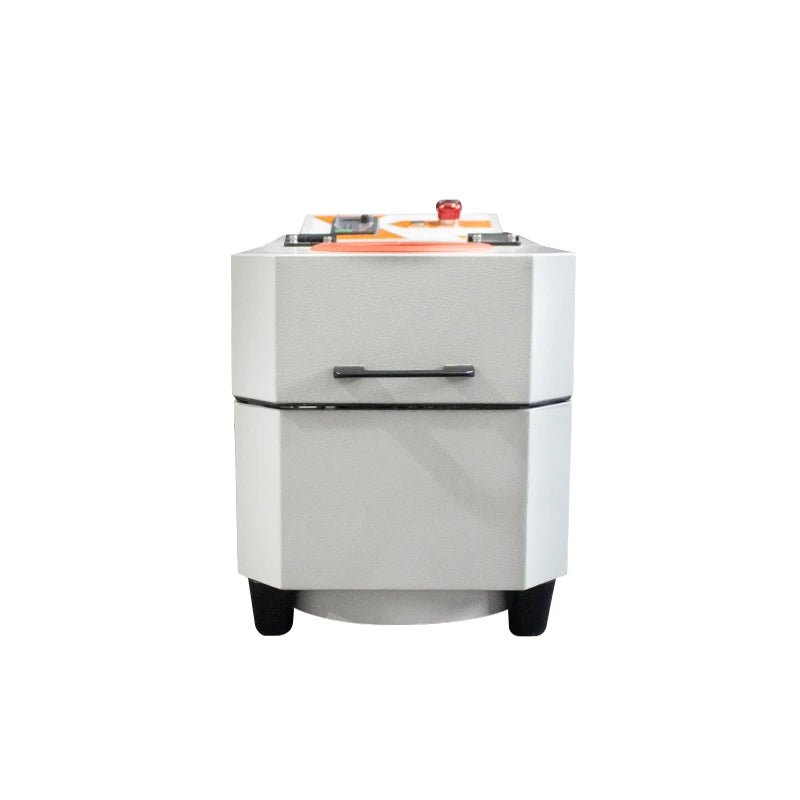

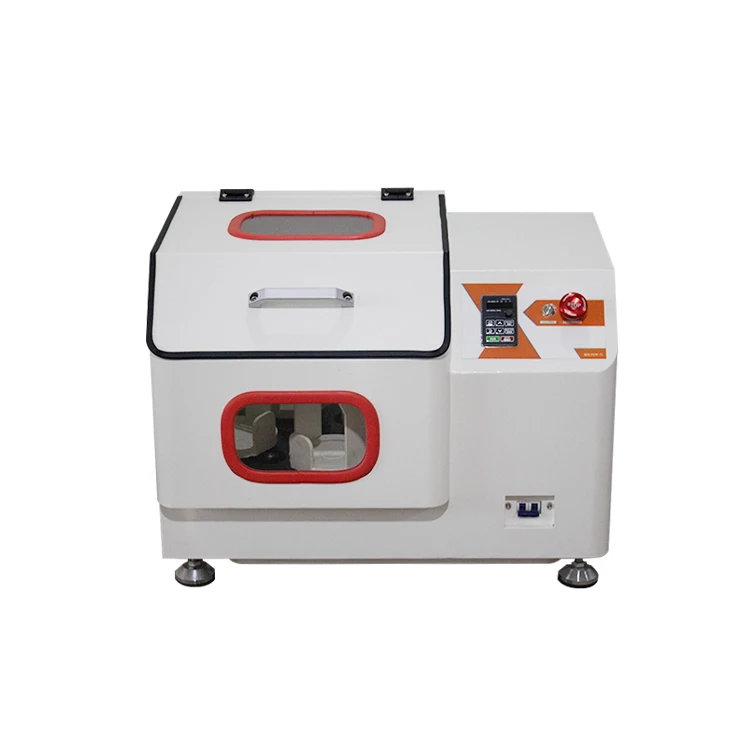

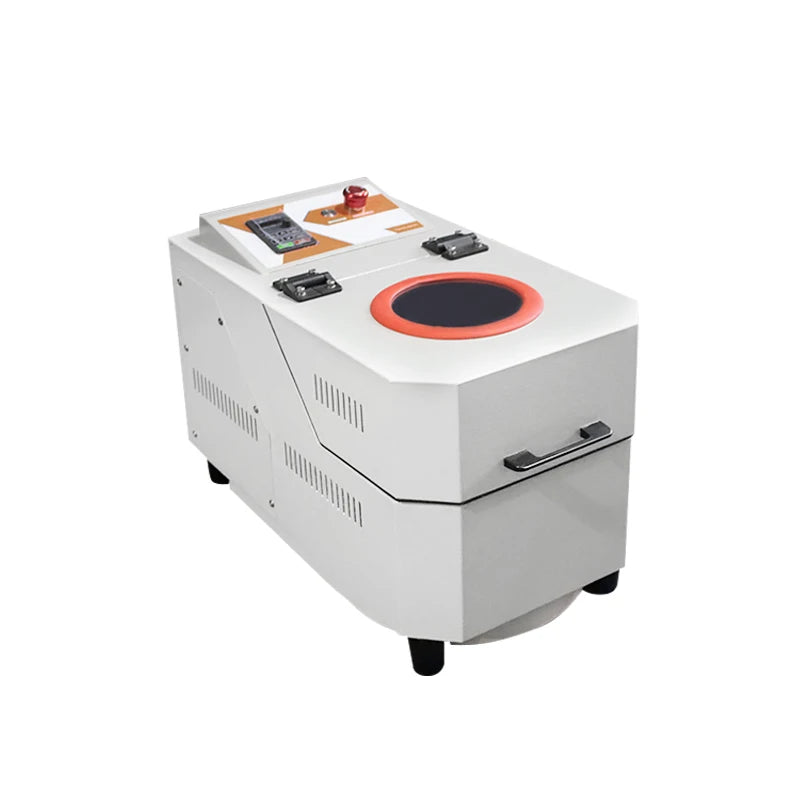

Lab type SQM-1L Ultrafine Grinding Bench Top Planetary Ball Mill Grinder Machine with zirconium ball
Introduction
1. SQM-1L oil-sealed planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials. This product is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research institutions, universities and enterprise laboratories to obtain micro-particle research samples (four samples can be obtained at the same time in each experiment). With the vacuum ball milling tank, the samples can be ground under vacuum.

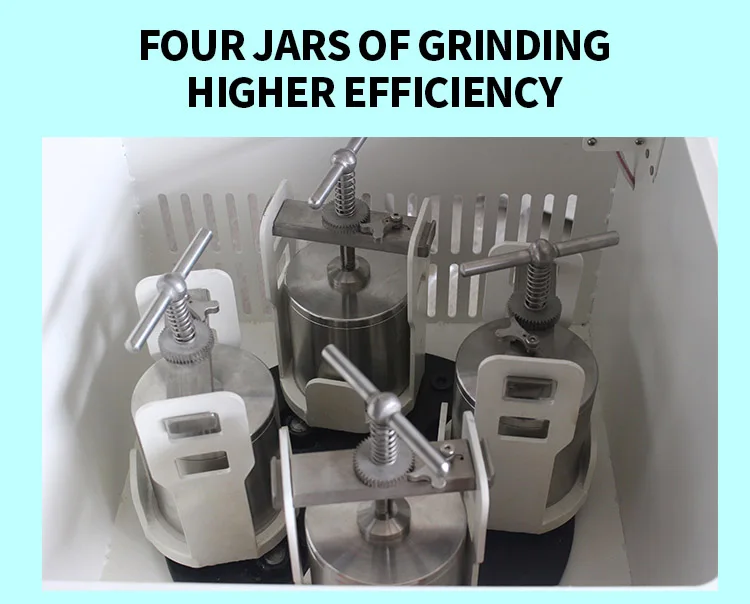

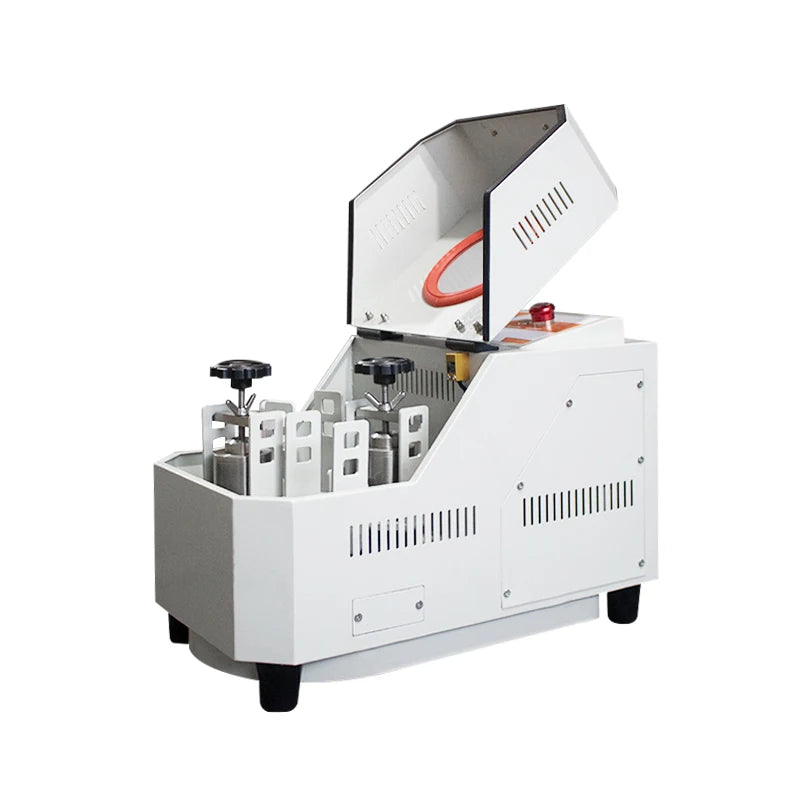

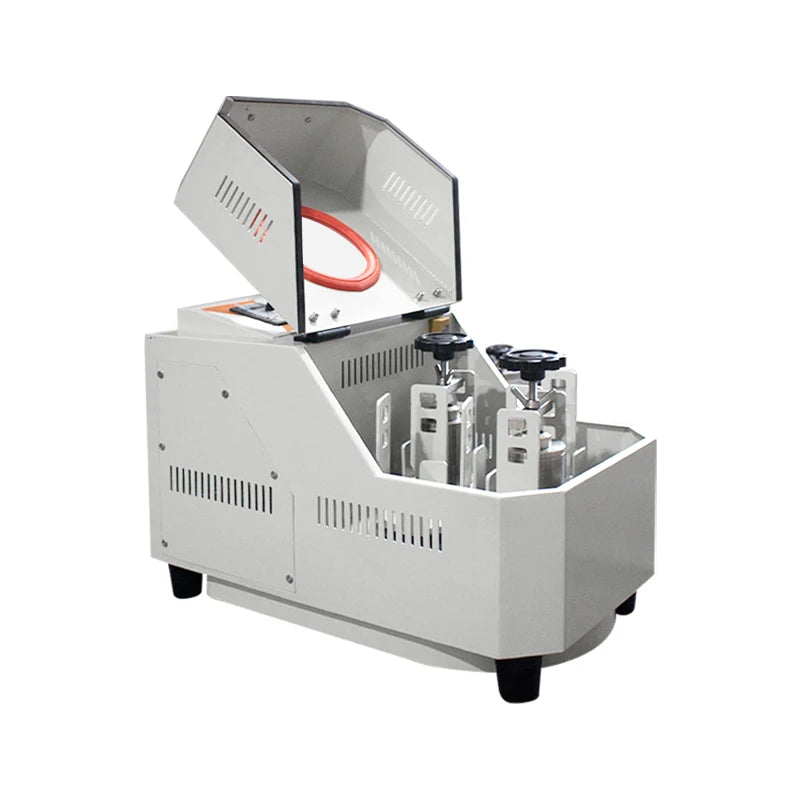

2. The SQM-1L oil-sealed planetary ball mill is equipped with four ball milling tanks on the same turntable. When the turntable rotates, the ball milling tanks revolve around the turntable axis and rotate around their own axis, making planetary motion. Grinding balls in the tank collide with each other in high-speed motion, grinding and mixing samples. This product can grind and mix products with different particle sizes and materials by dry and wet methods. The minimum particle size of ground products can reach 0.1 micron (i.e. 1.0 × 10 mm-4).

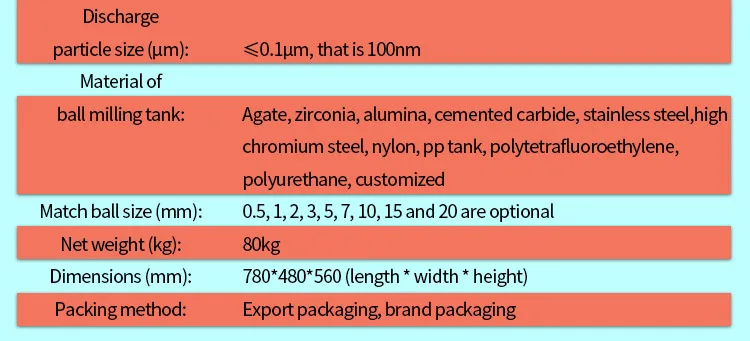

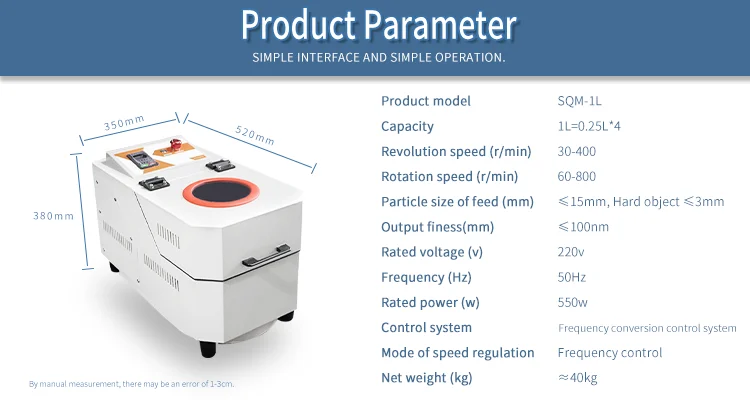

3. Working mode: two or four ball milling tanks work at the same time Maximum sample loading: two-thirds of the volume of ball milling tanks. Feed tension: soil material ≤10 mm. Other materials ≤3 mm. Discharge particle size: the minimum can reach 0.1 um (i.e. 1.0 x 10 mm-4).
New design Planetary ball mill machine Feature

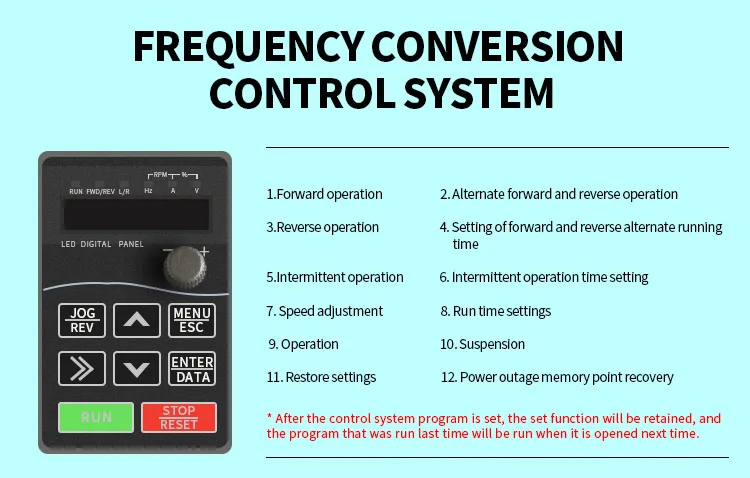

1. The main functions of the planetary ball mill frequency conversion control system are as follows:
Natural cooling air duct design, effectively reduce the system and sample temperature.

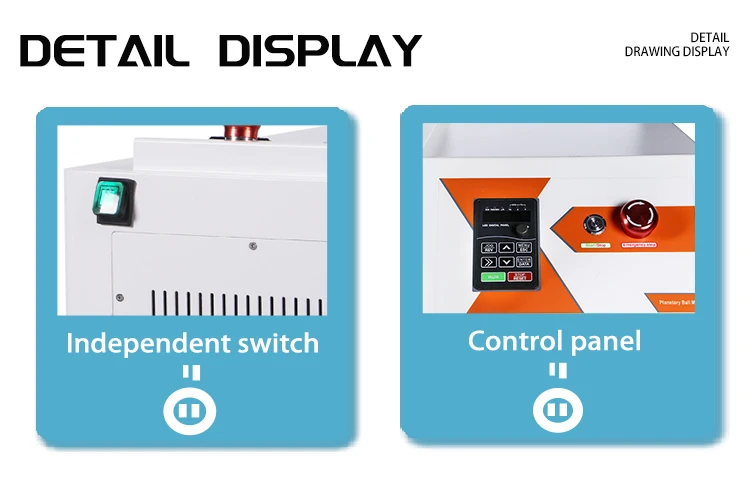

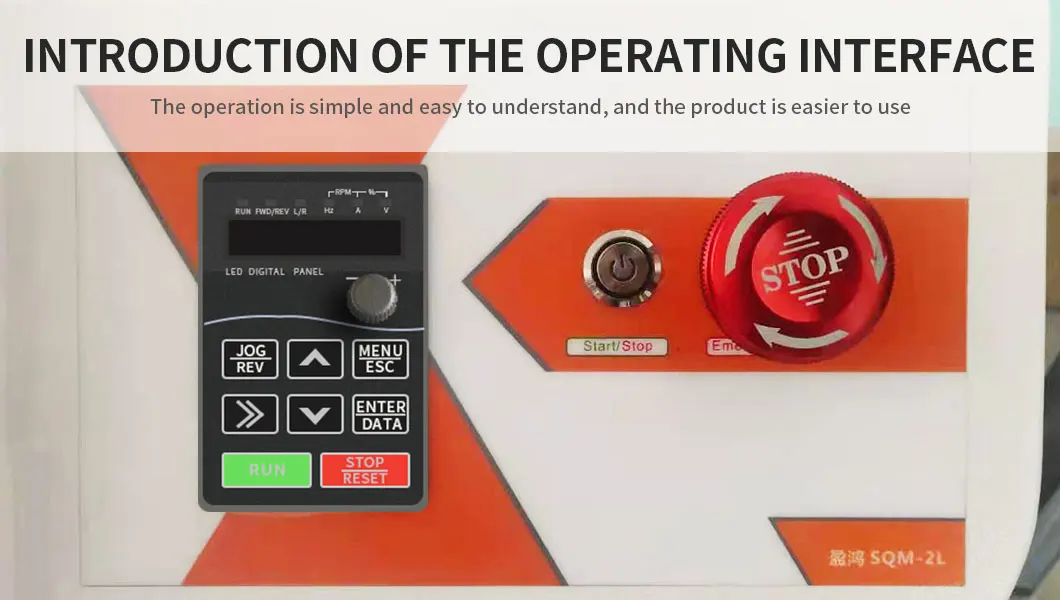

2. Adopt high quality three-phase variable frequency motor, PLC microcomputer frequency converter to control and adjust the belt, run stably and reliably, operate conveniently.
3. The surface adopts high strength baking paint, which is not easy to change color and drop the paint.
4. The compression rod assembly adopts 304 stainless steel, which is anti corrosive and durable.
5. Safety door design. Open the door cover and automatically stop the machine.
6. Select industrial grade high quality accessories, safe and reliable.

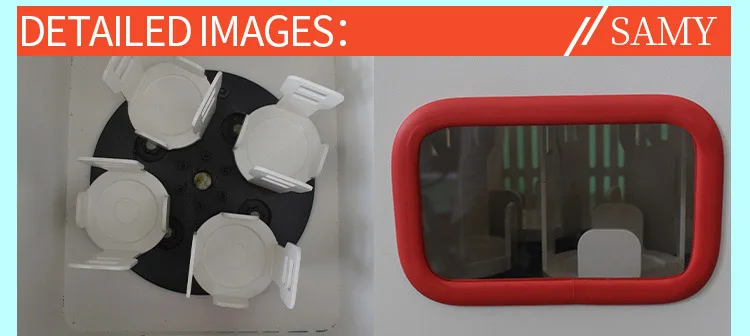

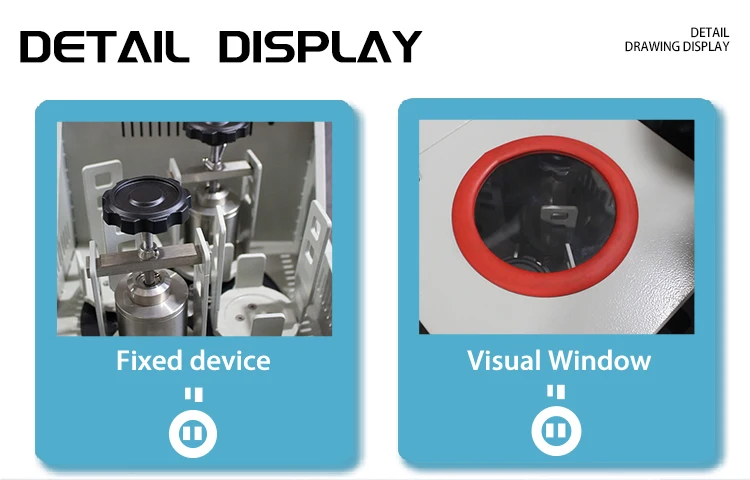

7. Double window design for easy observation of machine operation.

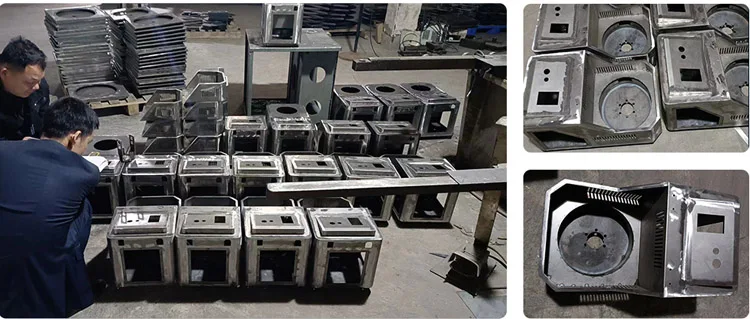

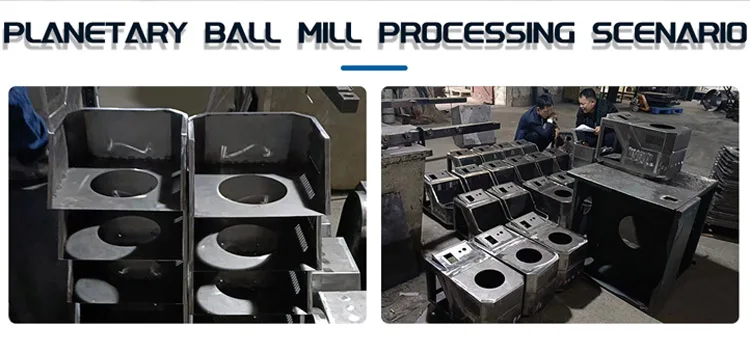

8. The important parts adopt CNC machining center, laser, CNC, and other advanced processing technology, as well as special technology, to ensure the same product quality and stable operation.

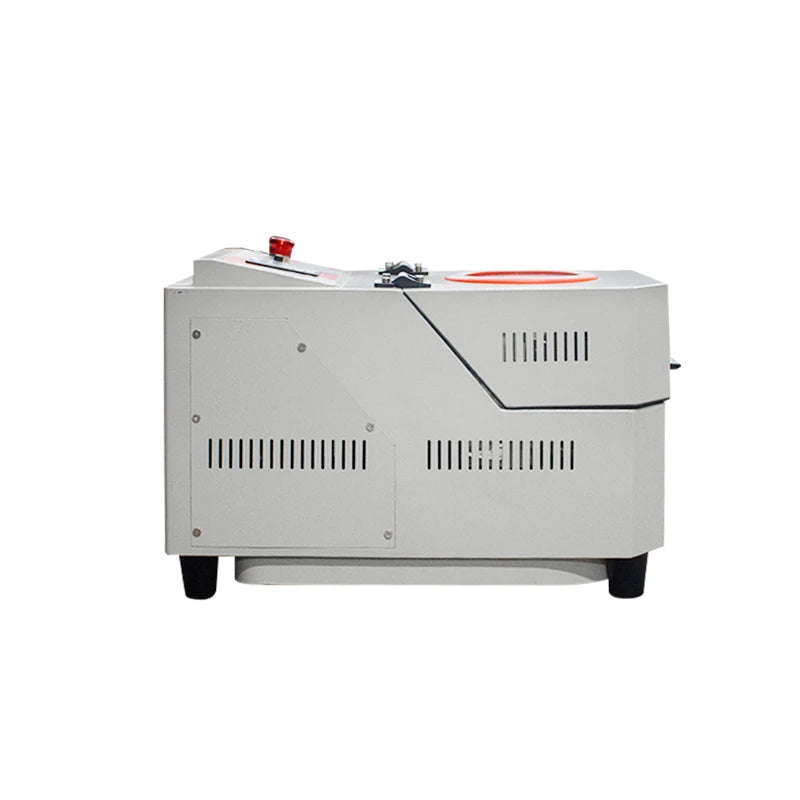

9. The machine adopts ergonomics and aesthetic design.Beautiful, compact structure, small footprint and easy to operate.

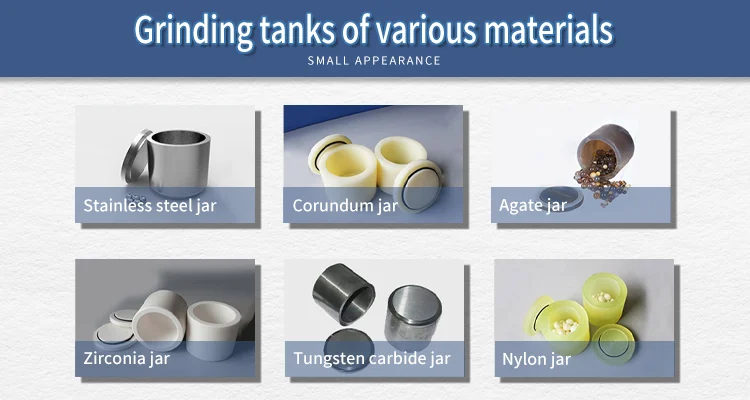

The grinding jars for your optional, we have stainless steel jars, zirconium jars, agate jars, ceramic jars, nylon jars, tungsten carbide jars, PU jars, etc.. The SQM-2L planetary ball mill jars suitable for the capacity from 100 ml to 1000 ml,so you can select the correct jars capacity before confirm the order.

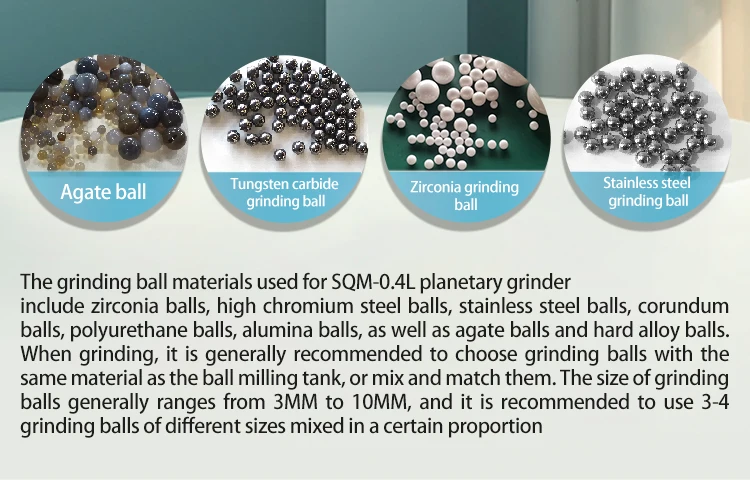

Different grinding jars and balls for your optional.

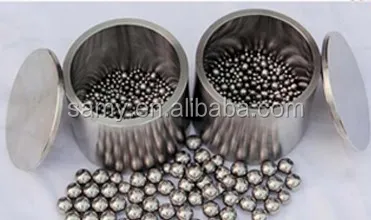

Like stainless steel grinding jars and balls.
Zirconia grinding jars and balls.
Agate grinding jars and balls.
Tungsten carbide grinding jars and balls.
Our service
Warranty
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical Support
1. Technical support by phone, email or WhatsApp or Wechat or Skype around the clock.
2. Friendly English version manual and operation video.
After sales services
Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately. You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Our Company
Changsha Samy Instrument & Equipment Co., Ltd. is a professional high-tech company, engaged in the research & development, manufacturing and marketing of laboratory instruments. We have centrifuge, planetary ball mill, vacuum glove box, vacuum furnace, plasma nitriding furnace, pill make machine and others relative medical and hospital products. We have strong sales group and network in all of the word.welcome to visit our factory and sent inquire to our factory. Our sales group will be respond all of your message within 3 hrs.
With the tenet of "Quality is Life", our company has established an impeccable quality management system, and taken the lead of our industry passing ISO 9001:2008 quality management system certification, CE compliant and ISO 13485 medical apparatus and instruments quality management system certification.
Products of our company are widely applied in the fields of manufacturing and scientific research, such as military industry, science research institutions, institutions of higher education, central blood banks, hospitals, biological products, pharmacy, bio-chemical examination, agricultural science, environmental protection, petrifaction, etc.
Package
Related Products
We are attend the fair and customer visit our factory
FAQ
1. Q: What's the zirconium ball used for?
A: Samy zirconium balls work with zirconium jar or others raw material jar for grinding, the grinding jars and grinding balls used for ball mill machine.
2. Q: What's the zirconium balls main features?
A: The inner wall has high smoothness and not easy to be stained. Has strong oxidation resistance, acid resistance and excellent corrosion resistance
3. Q: Do you have MOQ request?
A: MOQ is 1 kg.
4. Q: What kind of package for the balls?
A: We have special bubble bags for inside package base for on 1-5 kgs, and then with carton box for outside packed bulk qty like more than 10 kgs, we will use plastic tank or wooden box.
5. Q: How many days will you deliver?
A: The common size like 3-15 mm we have enough stock in warehouse, the delivery time around 3-10 days after we get the payment.
