Mini Spray Dryer Machine Price for Coffee Tea and Milk Powder
Save -55%
Rs. 1,042,234.91
Rs. 2,291,176.29
HURRY ! ONLY
10000 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description

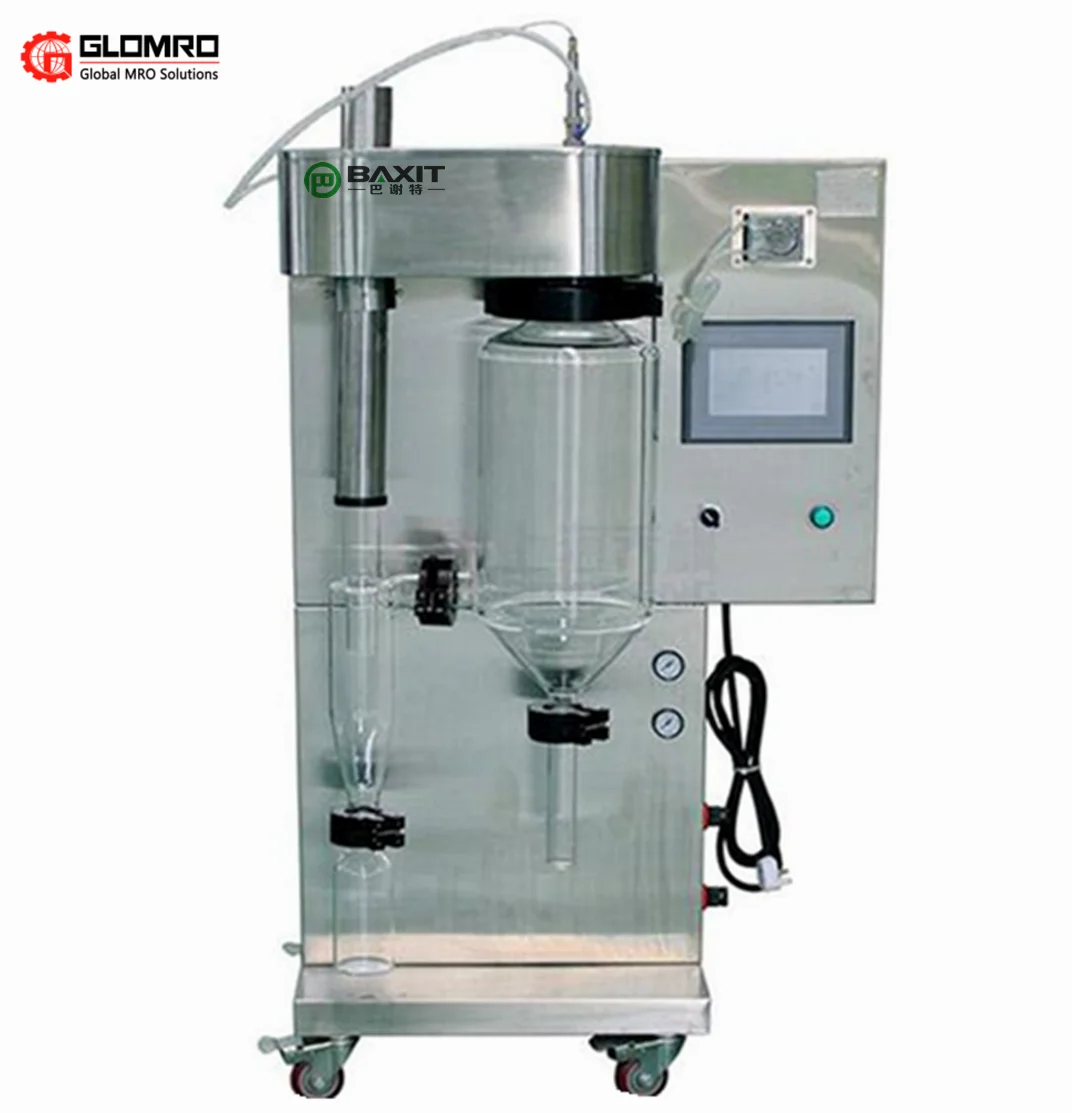

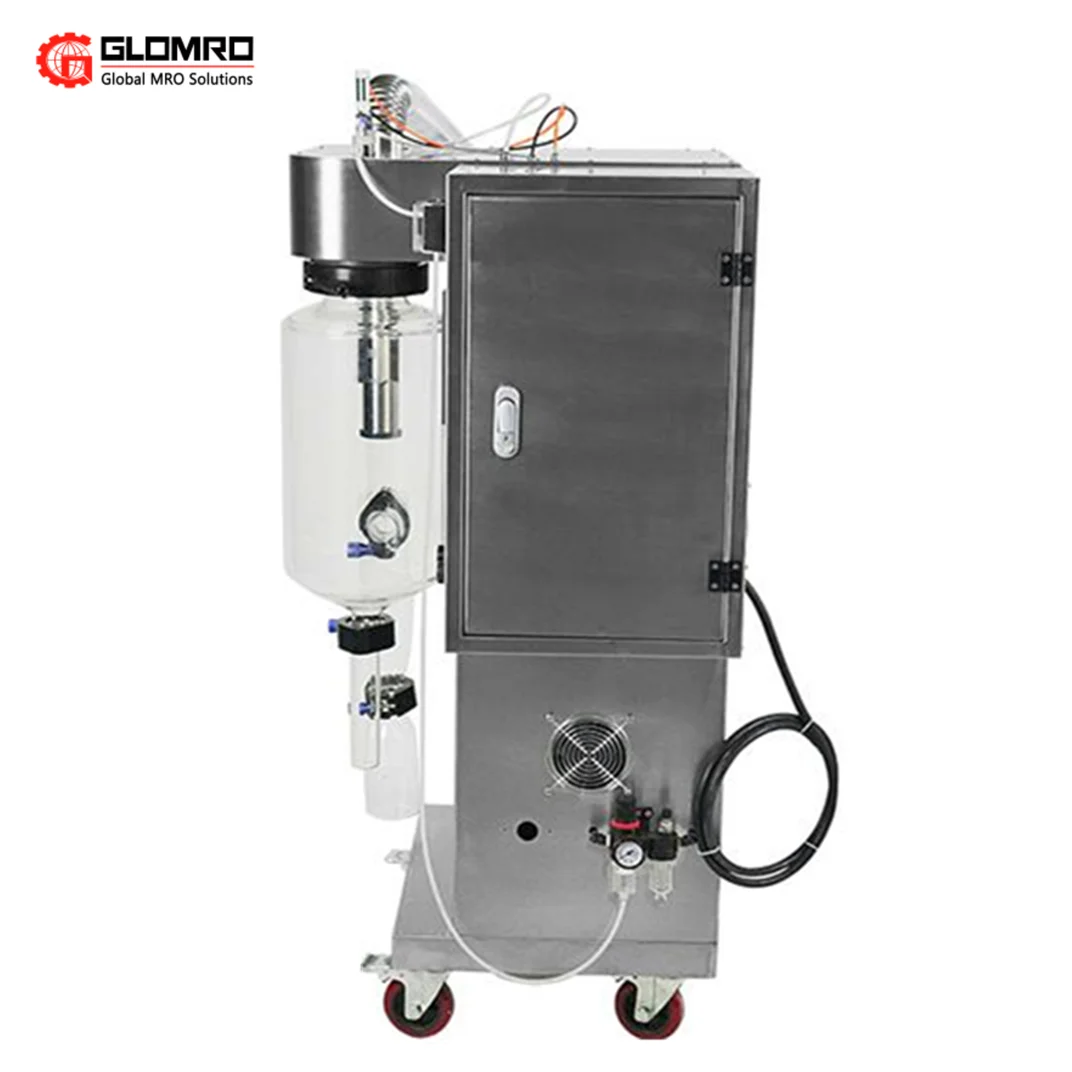

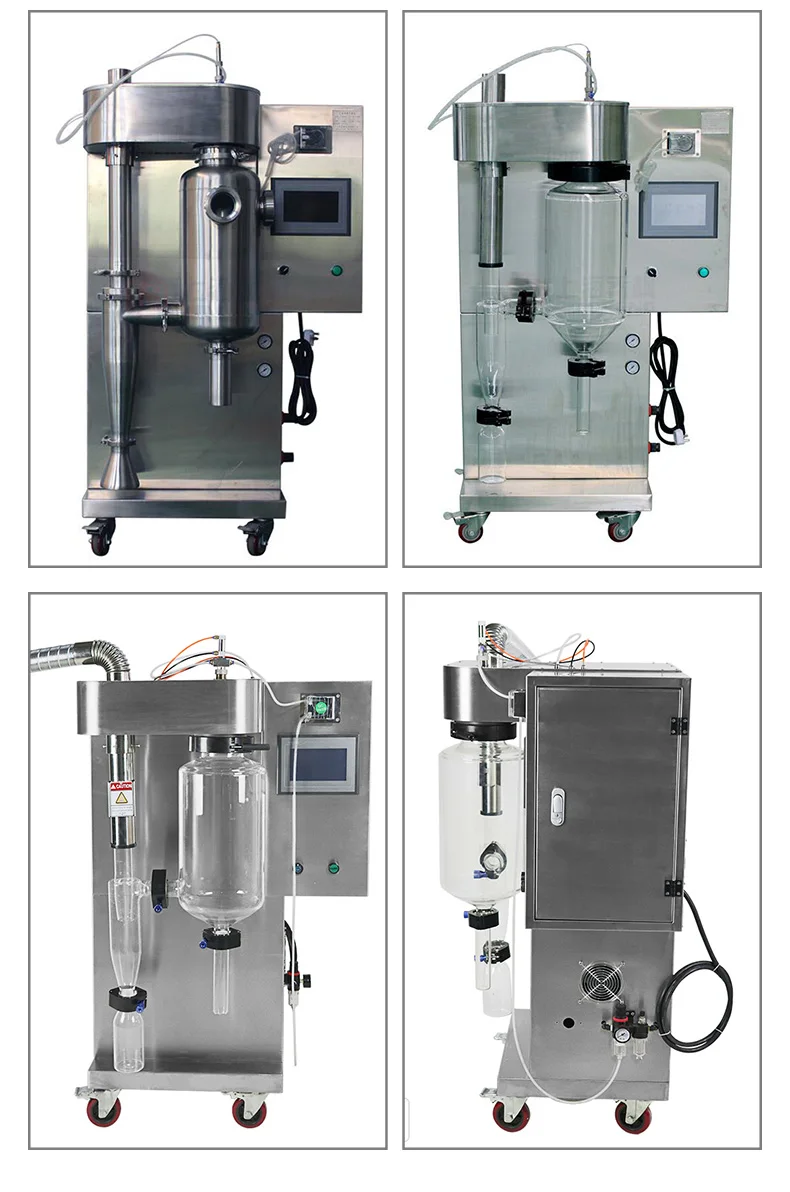

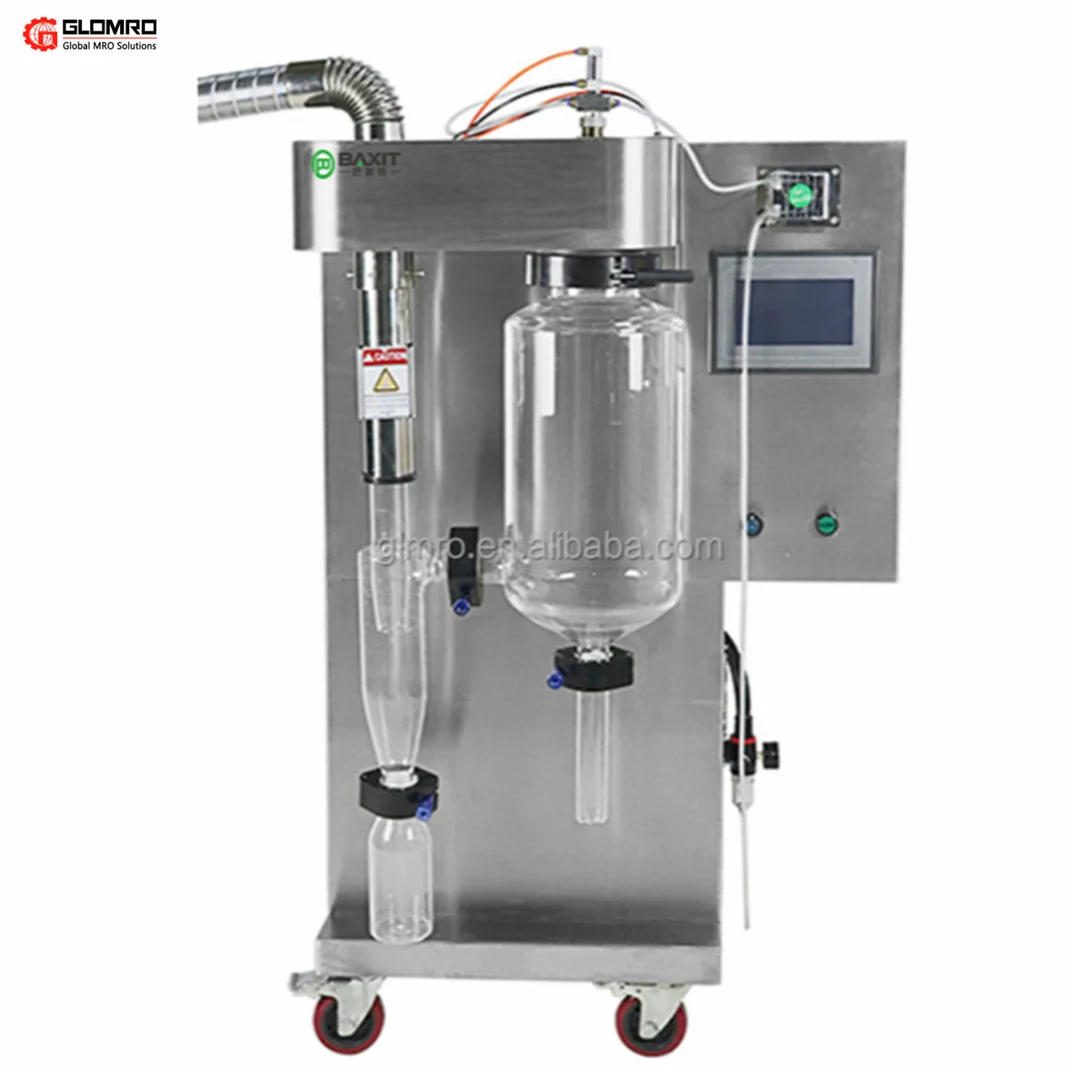

2L 5L 10L Small Mini Centrifugal Spray Dryer Laboratory Milk Coffee Spray Drying Equipment
Instrument introduction:
Mini laboratory spray dryer (small spray dryer) has a compact design and can be independently placed in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated without other facilities. One-button start-up, large color LCD touch screen operation, fully automatic or manual monitoring can be used for two operation modes, convenient operation and monitoring of the experimental process. It is the spray dryer with the smallest volume, the lowest noise and the excellent drying effect. Domestic Tsinghua University, Peking University, Shanghai Jiaotong University, Hong Kong University of Science and Technology, Nanjing University, Wuhan University, Huazhong University of Science and Technology, Chinese Academy of Sciences, Zhejiang University, Tongji University, South China University of Technology, Jinan University, Nankai University, Southeast University, China Agricultural University, Selected by more than 1,500 colleges and universities, such as General Electric.
Mini laboratory spray dryer (small spray dryer) has a compact design and can be independently placed in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated without other facilities. One-button start-up, large color LCD touch screen operation, fully automatic or manual monitoring can be used for two operation modes, convenient operation and monitoring of the experimental process. It is the spray dryer with the smallest volume, the lowest noise and the excellent drying effect. Domestic Tsinghua University, Peking University, Shanghai Jiaotong University, Hong Kong University of Science and Technology, Nanjing University, Wuhan University, Huazhong University of Science and Technology, Chinese Academy of Sciences, Zhejiang University, Tongji University, South China University of Technology, Jinan University, Nankai University, Southeast University, China Agricultural University, Selected by more than 1,500 colleges and universities, such as General Electric.

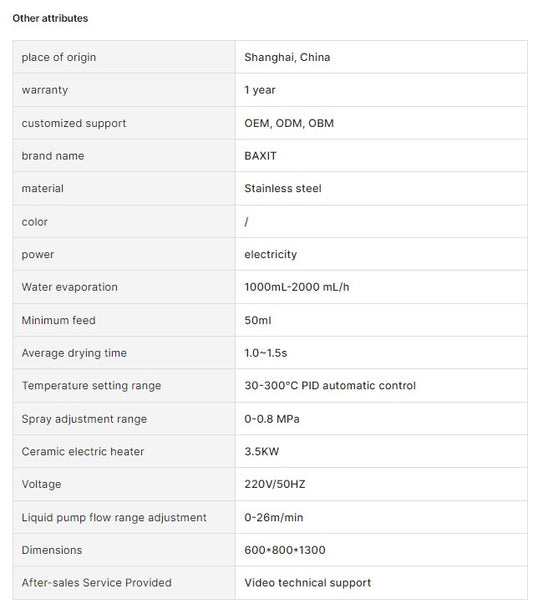

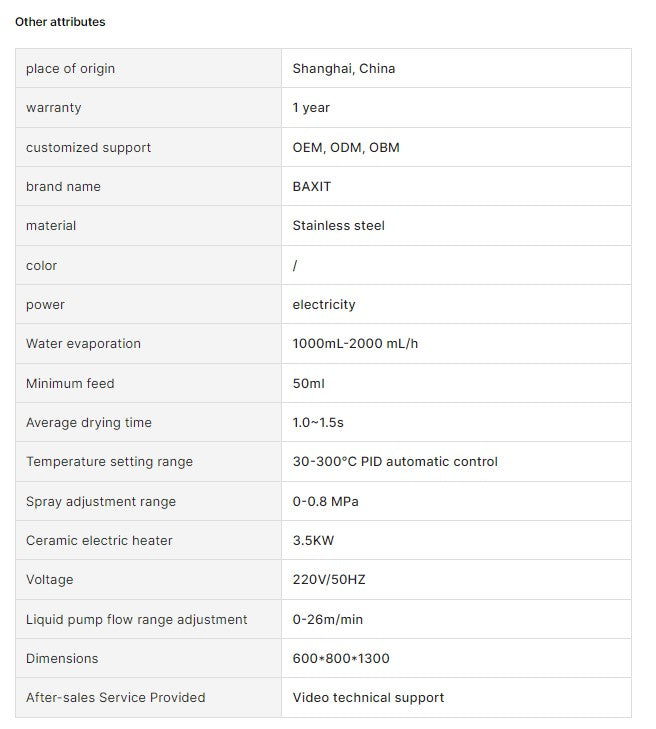

Specification
The Main Features：
3. Fully automatic control: One-click start-up, after setting the spraying process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the touch screen, and the running process is clearly displayed; when the machine is shut down, just press the stop button, and the machine is automatically safe. Shut down.
3. Manual control: If the process parameters need to be adjusted during the experiment, it can be easily switched to the manual state, and the color touch screen is dynamically displayed (animated) throughout the experiment.
4. Nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be automatically cleared and the frequency of through needle can be adjusted automatically.
5. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except the fan to ensure that the equipment will not burn out due to misoperation (forcibly turning off the fan).
6. The spraying, drying and collecting system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process is performed in a pollution-free environment.
7.Built-in imported oil-free air compressor, the particle diameter of the powder spray is normally distributed, the fluidity is very good, and the noise is very low, less than 60db.
8. Two-fluid spray atomization structure, the whole machine is made of high-quality stainless steel material, compact design, no auxiliary equipment is needed.
9. The design of dry temperature control uses real-time control PID constant temperature control technology to make the temperature control in the whole temperature area accurate and the heating temperature control accuracy ± 1 ℃.
10. In order to maintain the purity of the sample, an air inlet filter is equipped.
11. The feed volume can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.
12. The dried powder has a uniform particle size after drying, and more than 95% of the dry powder is in the same particle size range.
13. For viscous materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be automatically cleared and the frequency of the through needle can be adjusted automatically.
14. Innovative tower wall purging device, higher material recovery rate.
1. Original imported nozzle, high efficiency.

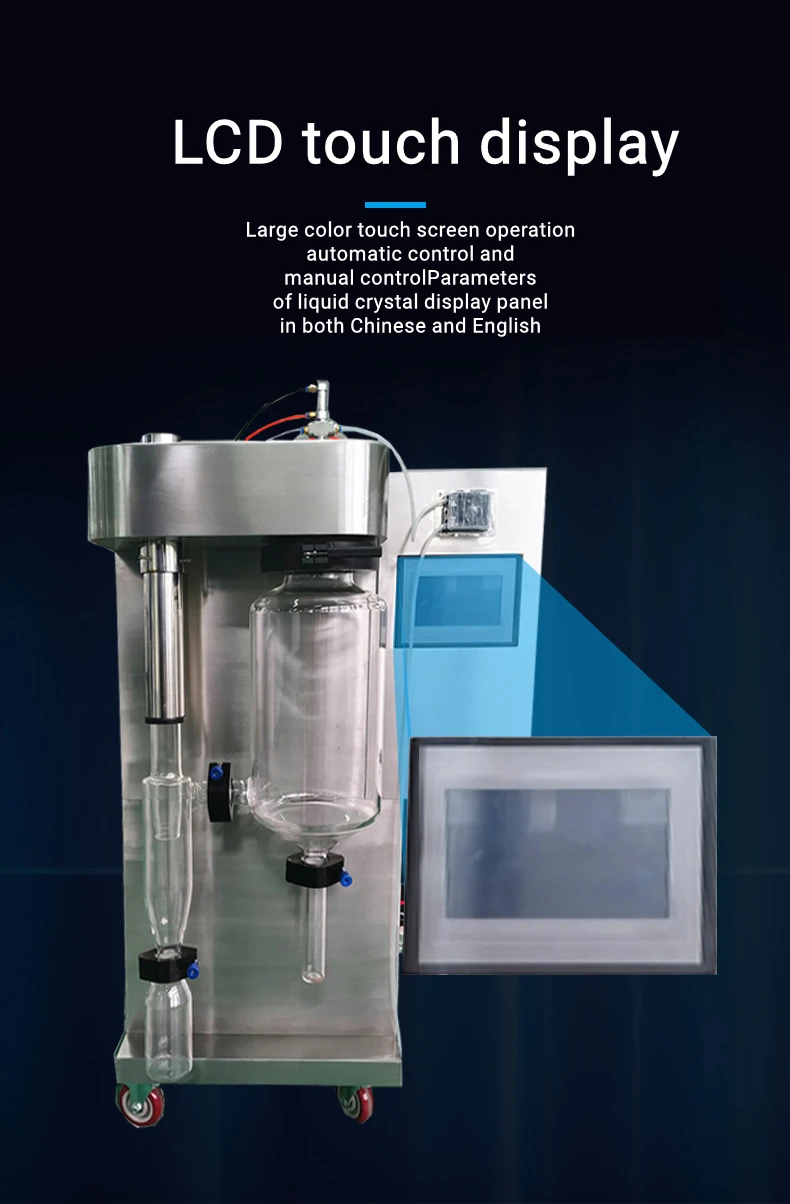

2.Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / pass needle frequency.3. Fully automatic control: One-click start-up, after setting the spraying process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the touch screen, and the running process is clearly displayed; when the machine is shut down, just press the stop button, and the machine is automatically safe. Shut down.
3. Manual control: If the process parameters need to be adjusted during the experiment, it can be easily switched to the manual state, and the color touch screen is dynamically displayed (animated) throughout the experiment.
4. Nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be automatically cleared and the frequency of through needle can be adjusted automatically.
5. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except the fan to ensure that the equipment will not burn out due to misoperation (forcibly turning off the fan).
6. The spraying, drying and collecting system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process is performed in a pollution-free environment.
7.Built-in imported oil-free air compressor, the particle diameter of the powder spray is normally distributed, the fluidity is very good, and the noise is very low, less than 60db.
8. Two-fluid spray atomization structure, the whole machine is made of high-quality stainless steel material, compact design, no auxiliary equipment is needed.
9. The design of dry temperature control uses real-time control PID constant temperature control technology to make the temperature control in the whole temperature area accurate and the heating temperature control accuracy ± 1 ℃.
10. In order to maintain the purity of the sample, an air inlet filter is equipped.
11. The feed volume can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.
12. The dried powder has a uniform particle size after drying, and more than 95% of the dry powder is in the same particle size range.
13. For viscous materials, a nozzle cleaner (through needle) is provided. When the nozzle is blocked, it will be automatically cleared and the frequency of the through needle can be adjusted automatically.
14. Innovative tower wall purging device, higher material recovery rate.

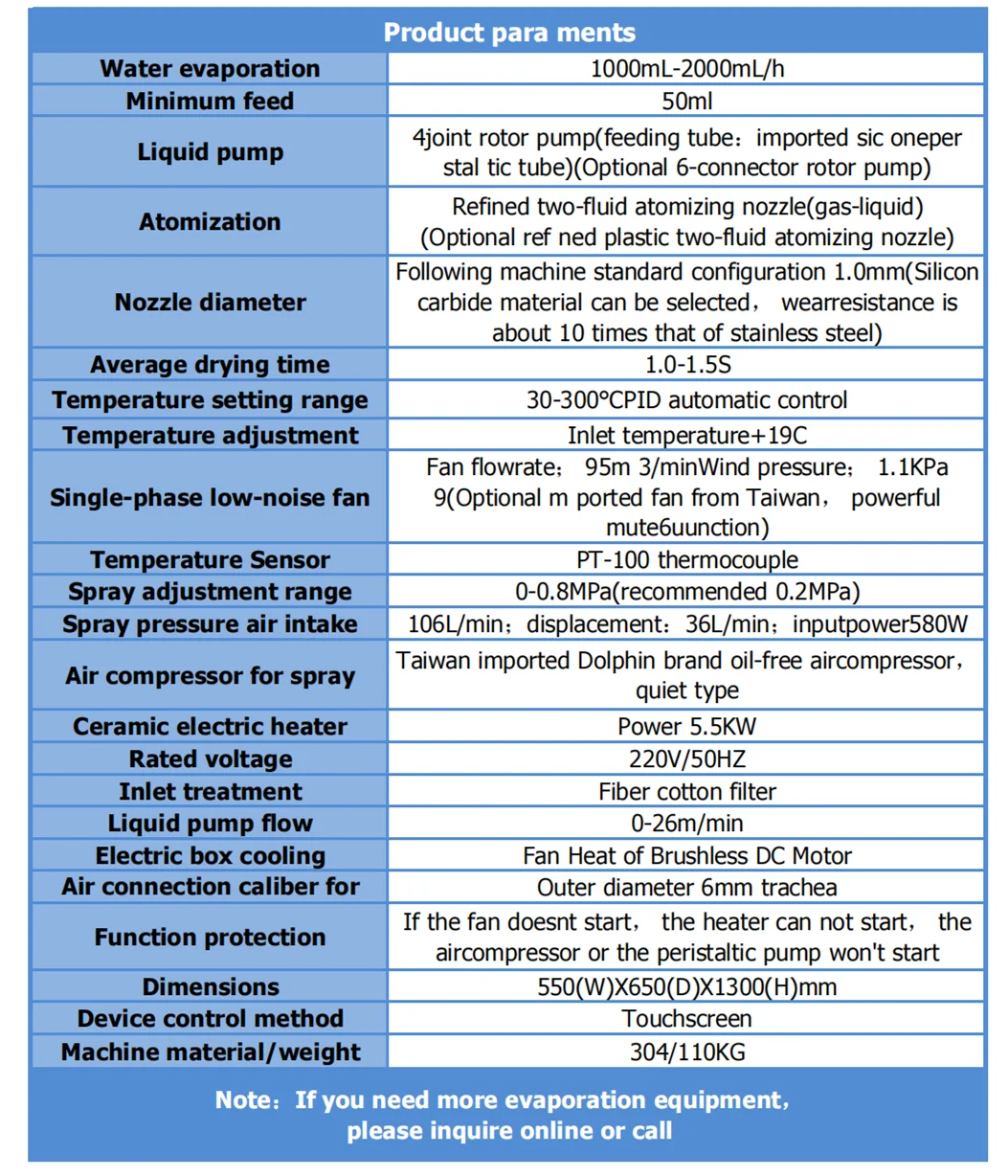

Technical Parameters：
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
