Product Description
Best seller Online Conductivity Test Controller Chemistry Laboratory Equipment Water Quality Ph Meter TDS

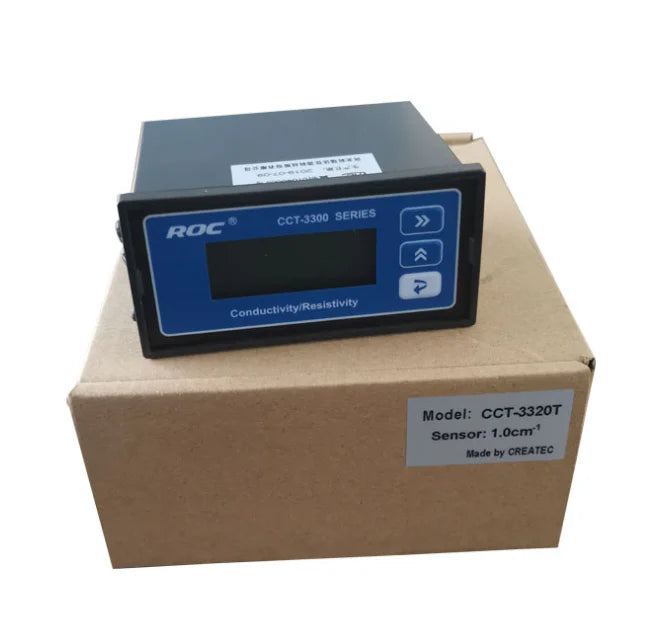

CCT-3320 series is a new developed conductivity/resistivity integration controller.
Conductivity sensor technology is a very important research field of engineering technology. It is used to measure the conductivity of liquid.
It is widely used in human production and life. It has become an indispensable detection and monitoring device in industrial production and technology development ,such as electric power, chemical industry, environmental protection, food, medicine and so on.
Attention
Please choose the suitable sensor to get accurate reading. If you choose the smaller cell constant, it will cause the bigger measurement value, or if you choose the bigger cell constant, it will sacrifice the controlling and transmitting resolution.
Product Parameter
|
Model
|
Power supply
|
Frequency(Hz)
|
Current loop modes
|
Control mode
|
Constant selection (cm-1)
|
|
CCT-3300E
CCT-5300E
|
DC24V
|
/
|
Instrument/ Transmitter
|
SPDT relay
|
0.01\0.1\1.0\10.0
|
|
CCT-3310E
|
AC110V
|
50/60
|
Instrument/ Transmitter
|
SPDT relay
|
0.01\0.1\1.0\10.0
|
|
CCT-3320
CCT-5320E
|
AC220V
|
50/60
|
Instrument/ Transmitter
|
SPDT relay
|
0.01\0.1\1.0\10.0
|
Measuring range：0~2000 mu S/cm, divided into 0 to 20 S/cm, 0 to 200 S/cm, 0~2000 S/cm three range.
Display mode：31/2 bit, 0.5 "LCD conductivity direct reading display (with backlit display)
Temperature compensation：Automatic temperature compensation, compensation base 25℃, compensation range 0~60 ℃
Measurement accuracy：±2%（F·S）
Electrode configuration：1.00cm-1 plastic foil gold electrode. 4'pipe thread connection, the length of wire is 5 meters
Signal output：4 ~ 20mA current signal (optional)
Ambient temperature : 0-40 C, relative humidity: less than 85%, medium temperature: 0~50 C
Product inspection basis : JB/T6855
Signal line length : 4.5
Display mode：31/2 bit, 0.5 "LCD conductivity direct reading display (with backlit display)
Temperature compensation：Automatic temperature compensation, compensation base 25℃, compensation range 0~60 ℃
Measurement accuracy：±2%（F·S）
Electrode configuration：1.00cm-1 plastic foil gold electrode. 4'pipe thread connection, the length of wire is 5 meters
Signal output：4 ~ 20mA current signal (optional)
Ambient temperature : 0-40 C, relative humidity: less than 85%, medium temperature: 0~50 C
Product inspection basis : JB/T6855
Signal line length : 4.5
