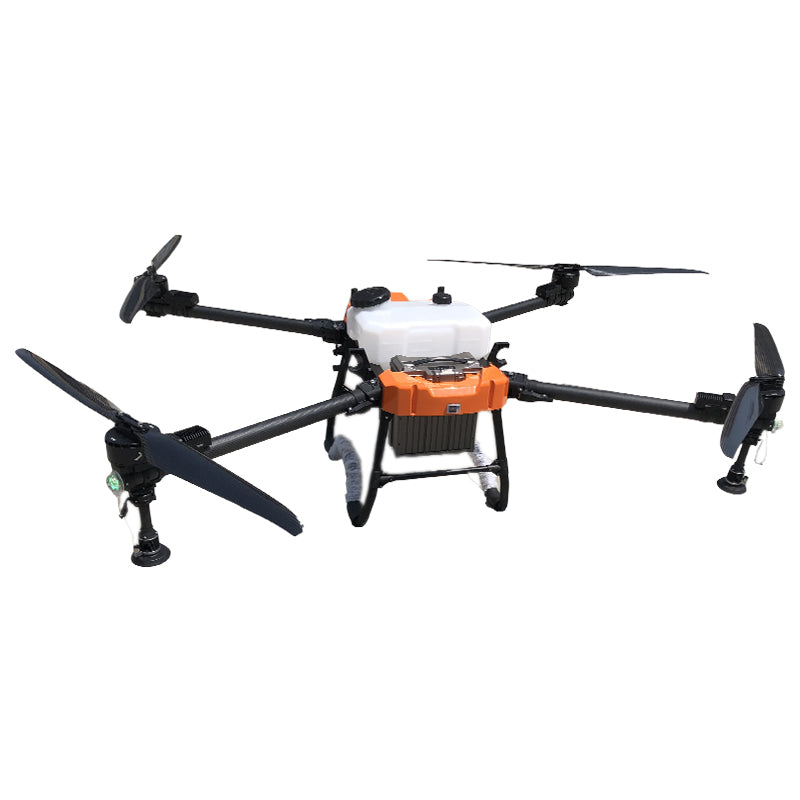

New type big drone agriculture/70L sowing sprayer drone/continuous action atomizer drone with obstacle avoidance radar

Write a review

Save -49% Rs. 2,532,068.28 ~~Rs. 4,948,811.28~~

Brand : Shanvis

Collection : Drones & Accessories

SKU : 5309661013089_77583922

Availability : 9999 In Stock Sold Out 9999

HURRY ! ONLY 9999 LEFT IN STOCK.

Capacity60L

Model NumberT60

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Products Description

60Liters Agricultural Drone

Basic Parameters
Model	T60
Pesticide Tank	60L
Spread Size	18901430750mm
Folded Size	11001100850mm
Weight(includ. battery)	40kg
Take-off Weight	98kg
Battery	18S 30000mAh
Power System
Motor	brushless
Motor KV	110 （r/min）·V
Power motor model	X11 MAX
Propeller	48inch(1234mm)
Flight Specs
Hover	35min(unloaded) 9min(loaded)
Positioning Accuracy with strong GNSS signal,RTK not enabled	Horizontal ±60cm Vertical ± 30cm
Type of satellite receiver	GPS
Obstacle Avoidance detection distance	1～40 m Forward or backward detection depending on the flight direction
Obstacle avoidance Sensing range	3m obstacle diameter>=2.5cm
Obstacle avoidance direction	Front
Spraying Specs
Pesticide tank	60L
Nozzle type & No	2 centrifugal nozzles
Spray Speed	27-33Ha/Hour
Spray flow rate	8-16L/Min
Spray Range	10 meters (Relative working height 2.5M)
Spreading Specs
Container Size	70L
Loading Speed	70-140L/min
Spread Range	7 meters (Relative operating height 4M)
Charger
Charger input voltage	AC110-240V or 380V
charging power	9000W
Charger output current	120A
Aluminum box size / weight	10210284,45KG

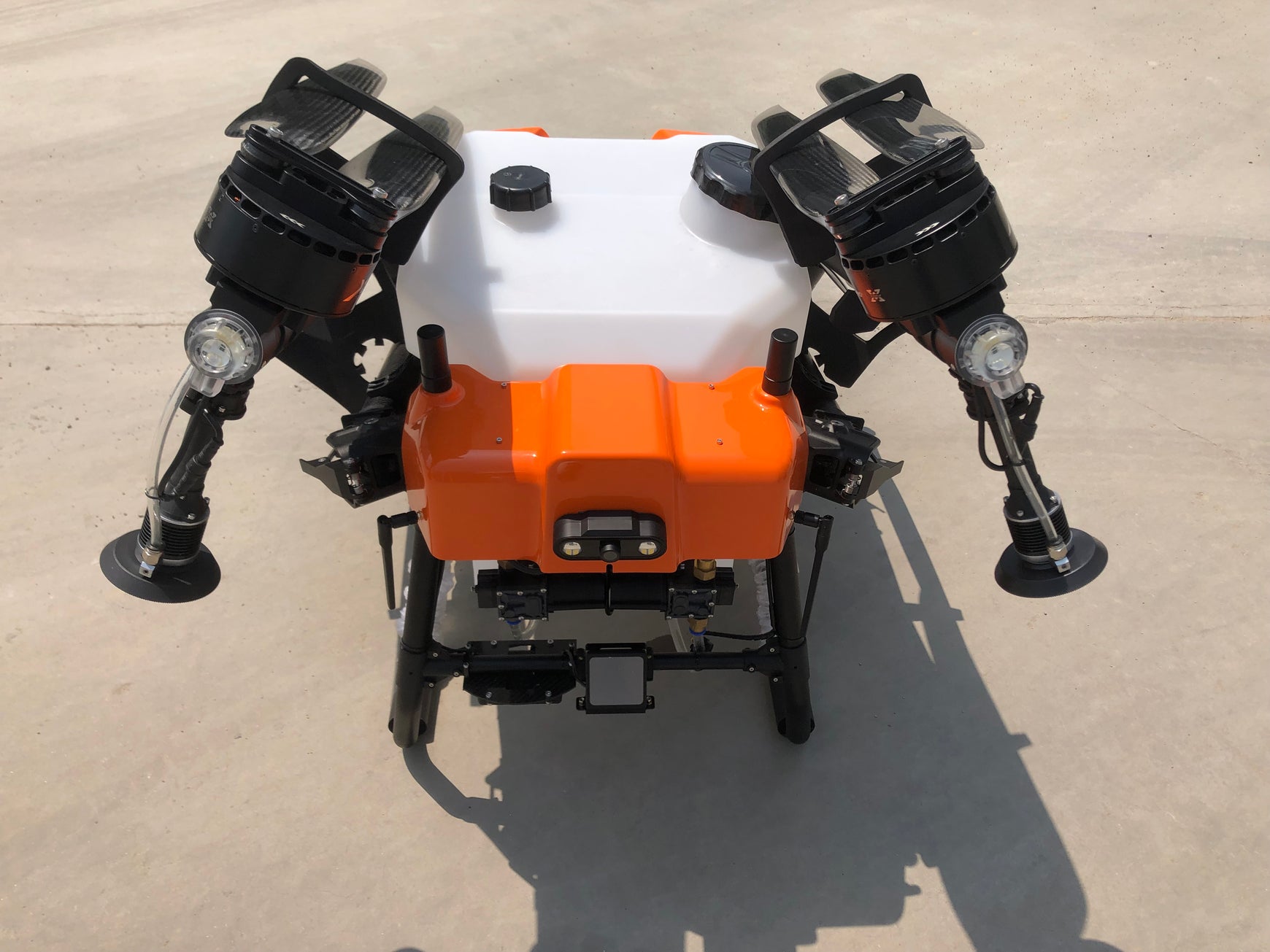

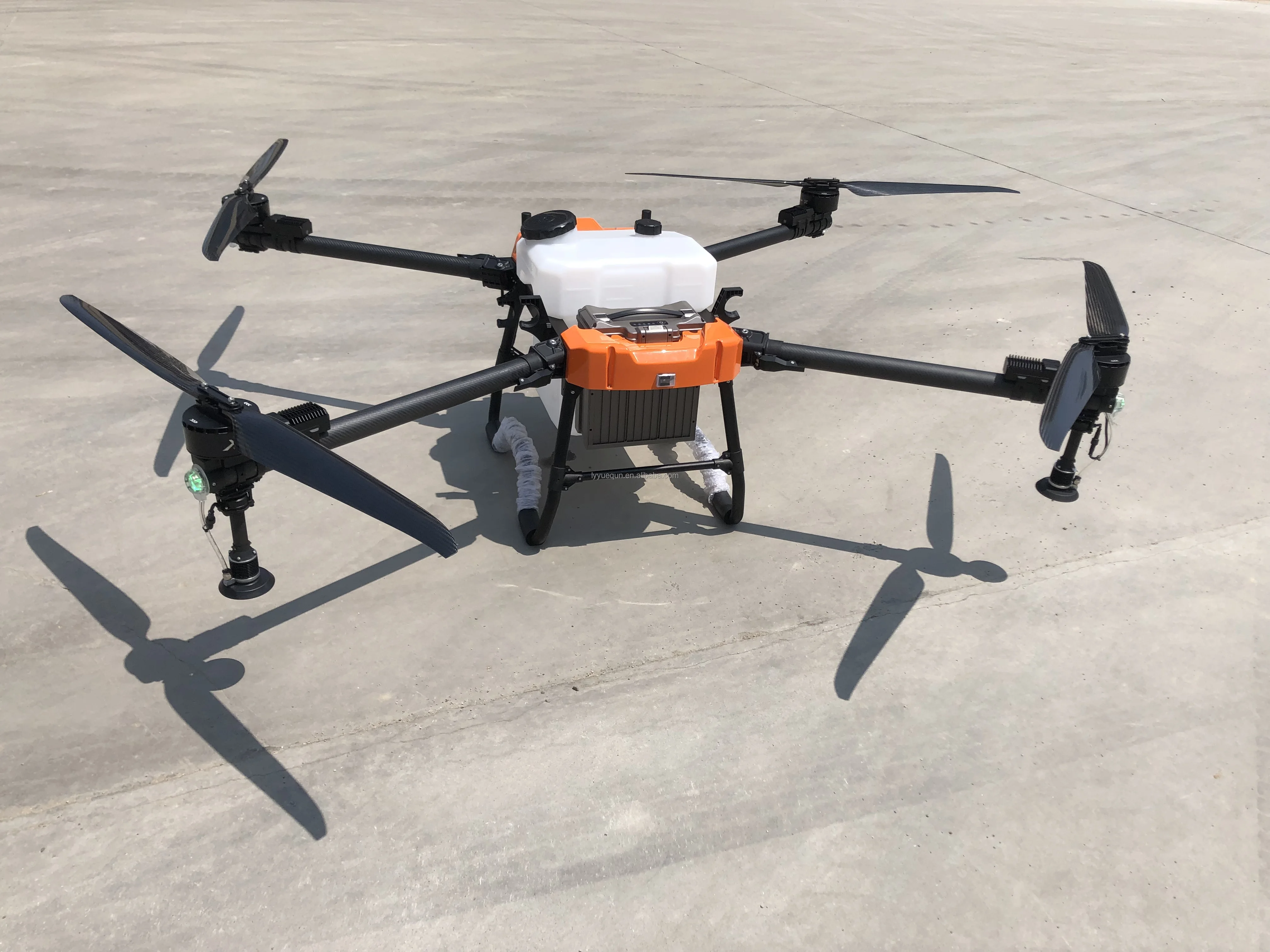

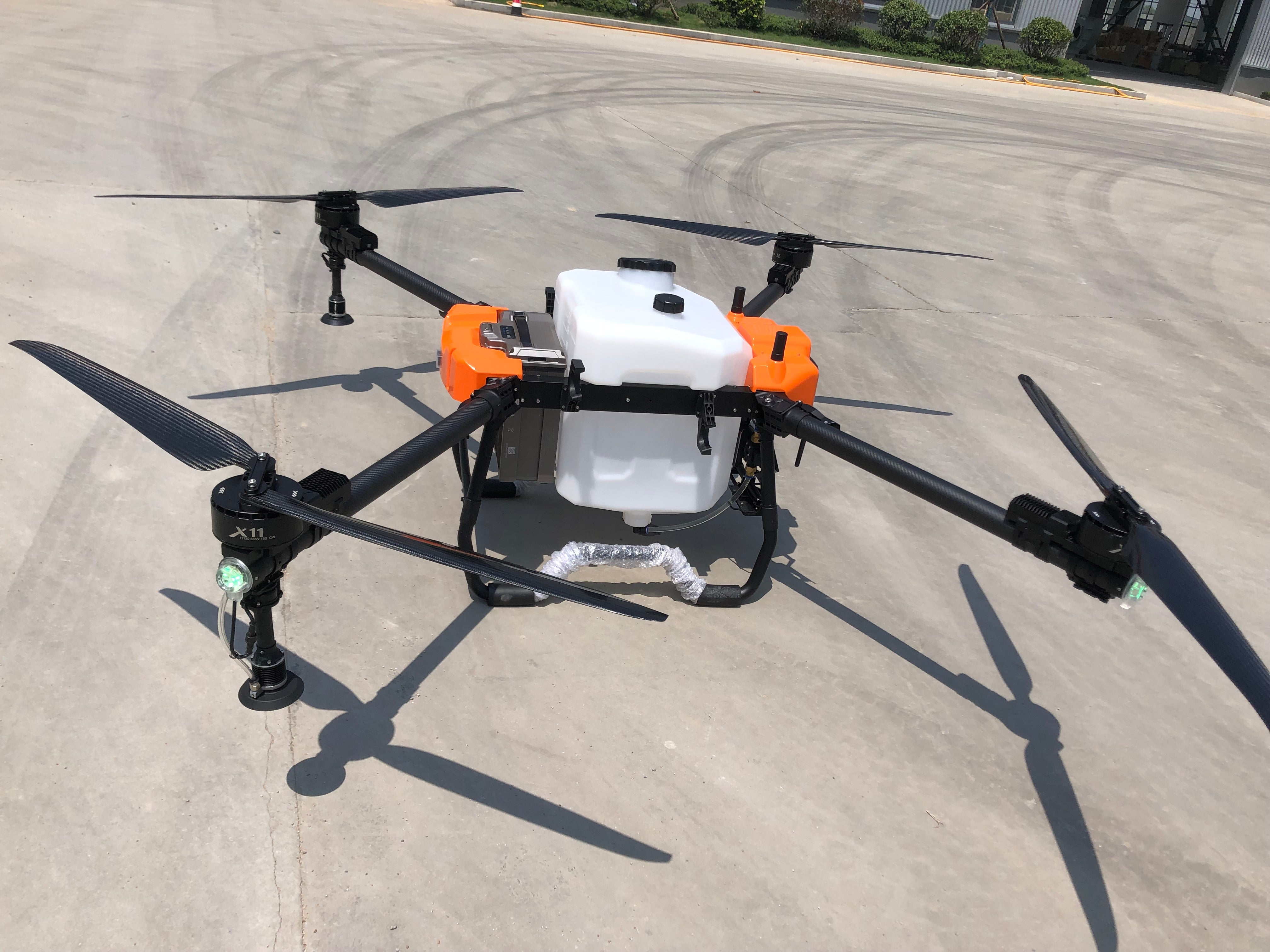

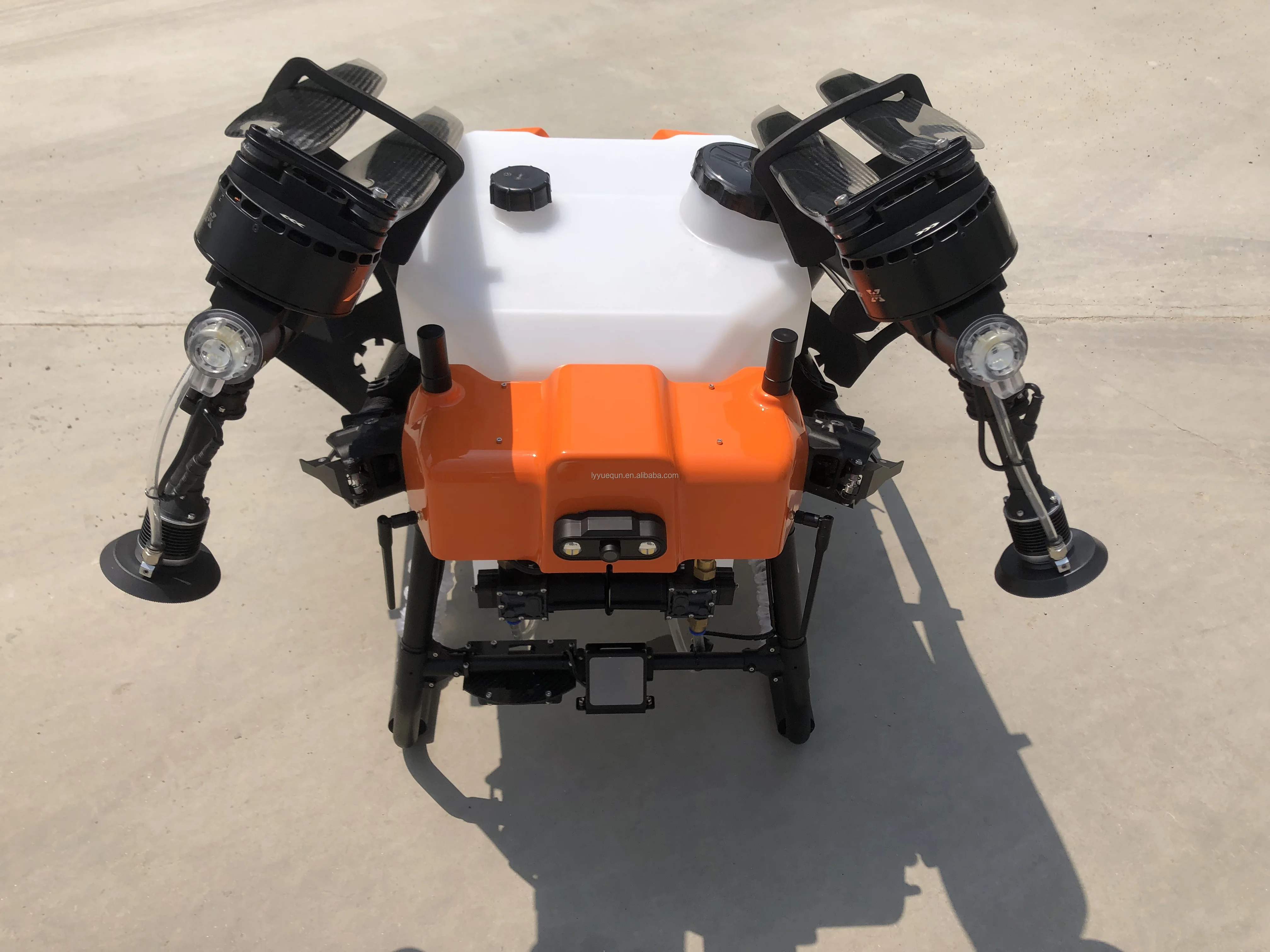

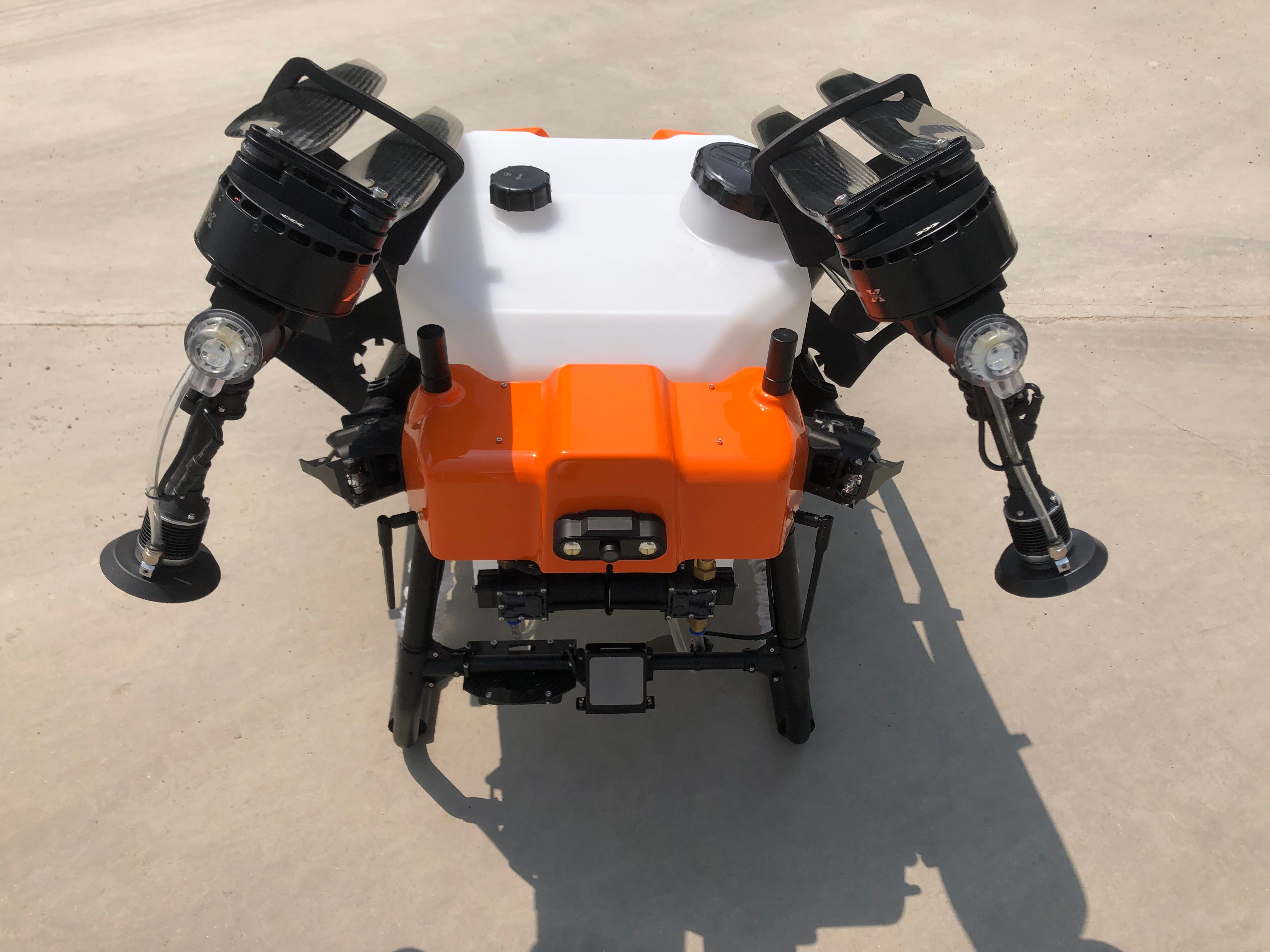

Details Images

Full set include: Drone*1 Remote Controller*1 Charger*1 Battery*1

Product Application and Details

* Independent Research and Development Product, Core Technology and Exclusive Design by YUEQUN

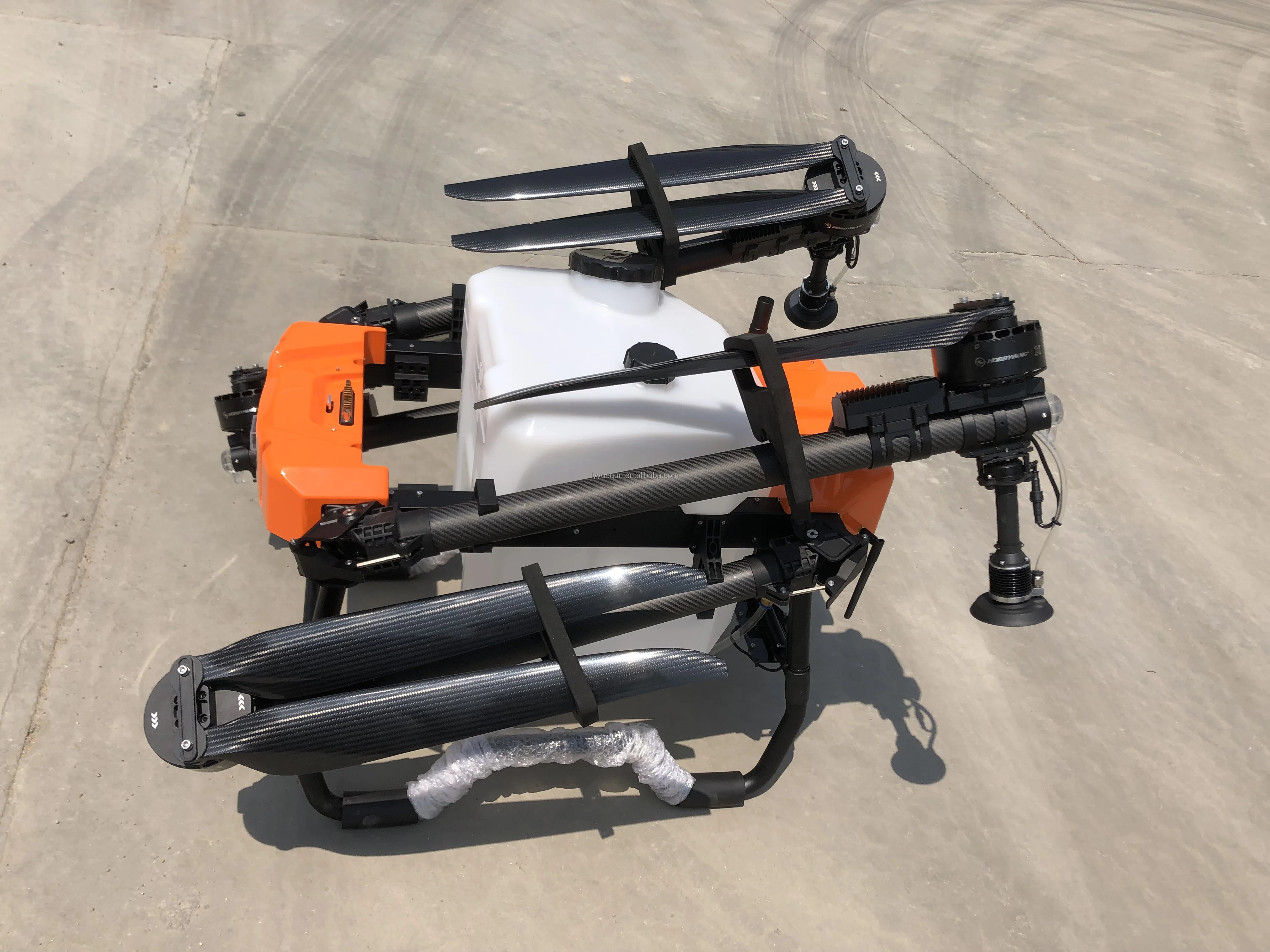

* Fold able arms, rapid transfer.

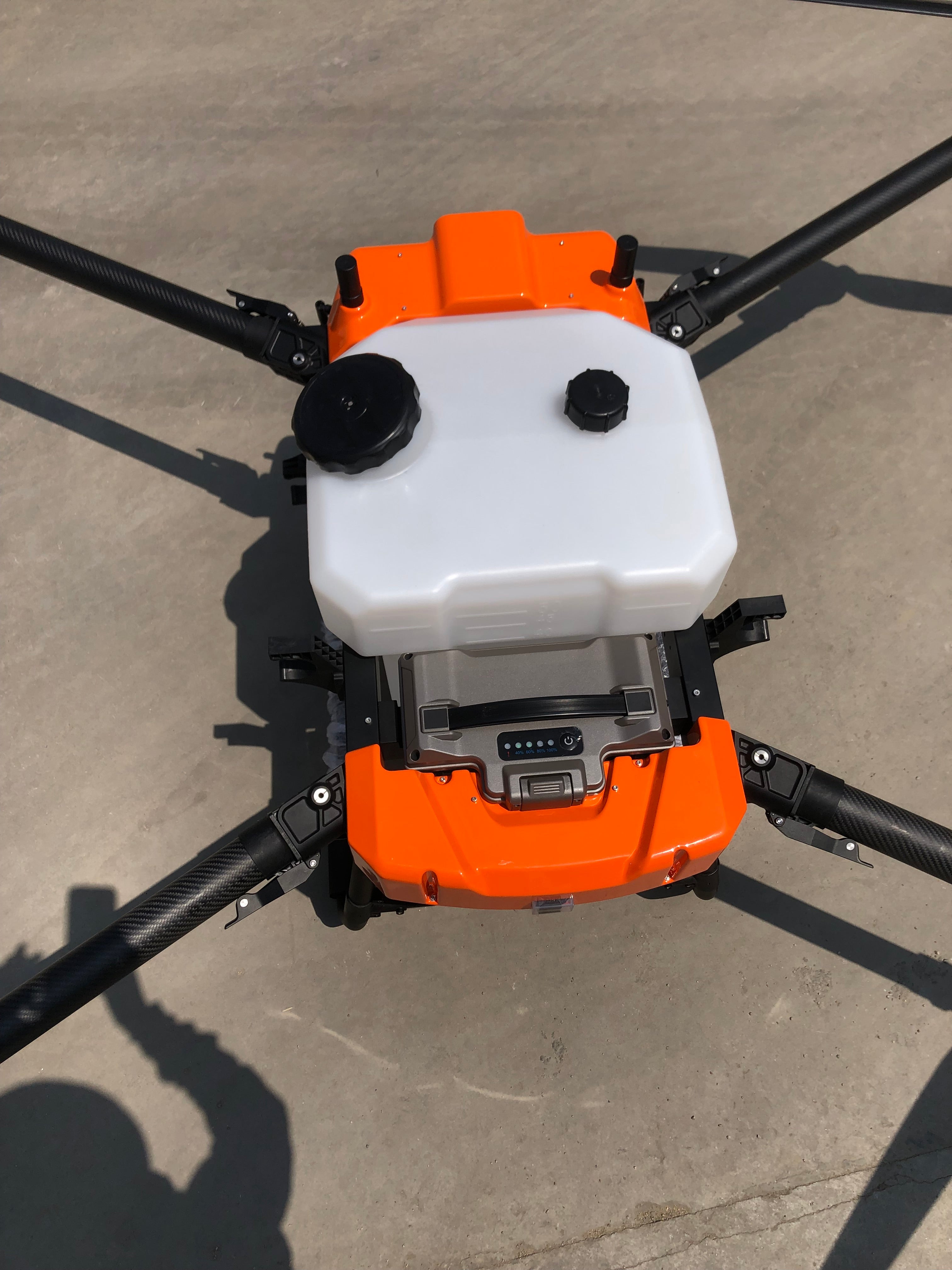

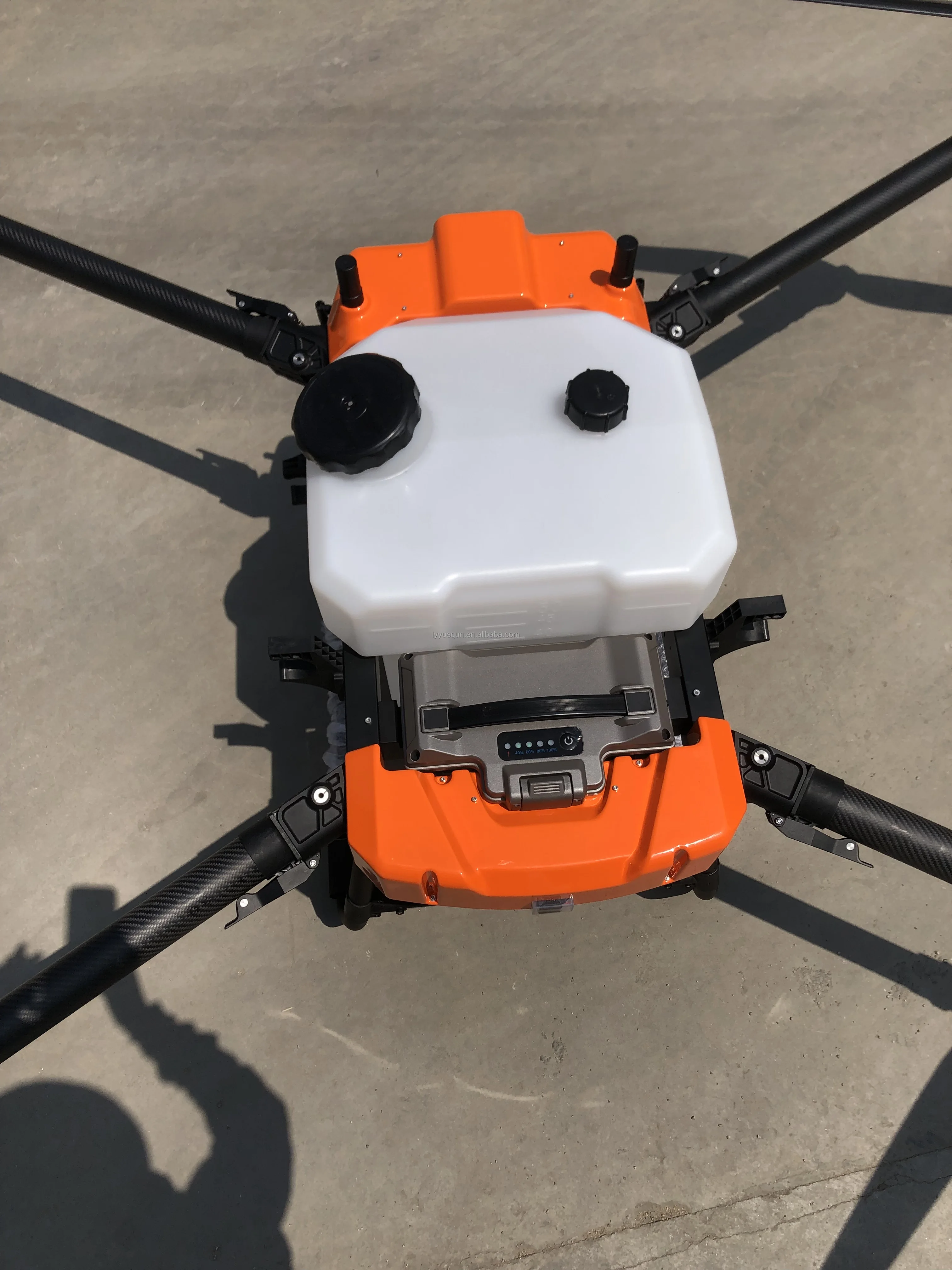

* Pluggable tank, convenient to recharge.
* Applicable crops species including rice, cotton, maize, wheat, grape, cherry, orange, eggplant, peanut, sunflower, etc.
* Suitable for farmers who possess 200-1000 acres of crop planting scales.
* Reduce working labor costs effectively and improve the working efficiency.

Our Advantages

1.Equipped with a 60L super large medicine tank, the operation efficiency is increased to 27-33 hectare/hour.

2.Equipped with 2 centrifugal nozzle, the liquid will not drift, and it can support high pressure nozzles, and the powder will not be blocked.

Meet your expectations for the durability of a drone sprayer

1. All aviation aluminum main frame, which reduces the dead weight and has high strength and impact resistance 2. The core components are closed to prevent dust from entering and corrosion of chemical-resistant fertilizers 3.New design plug-in battery, third-generation high-capacity smart battery, quickly charging just only about 15 minutes, two batteries and 1 charger are enough for non-stop daily operation.

1. Provide a variety of modes of operation, including fully autonomous, AB point, manual, etc . 2. A variety of enclosure methods: RTK hand-held inkers, planes, and maps 3. The bright screen remote control can be seen clearly under the hot sun, and has a long battery life of 6-8 hours 4. Automatically generate edge sweeping routes to prevent edge leakage 5. Equipped with searchlights and landing lights for safe operation at night 6. 10 minutes to fully charge a battery, 2 batteries can be cycled

HD camera

Equipped with the FPV HD camera and landing light to ensure night time operation safe and reach the real -time monitoring through the LCD Screen.

Smart assist features keep you flying safely

1.Ultra-far 40m automatic identification of obstacles, autonomous obstacle avoidance 2.Five beams imitate the ground, accurately follow the terrain 3.Front and rear 720P HD FPV, rear FPV can be flipped down to observe the ground
