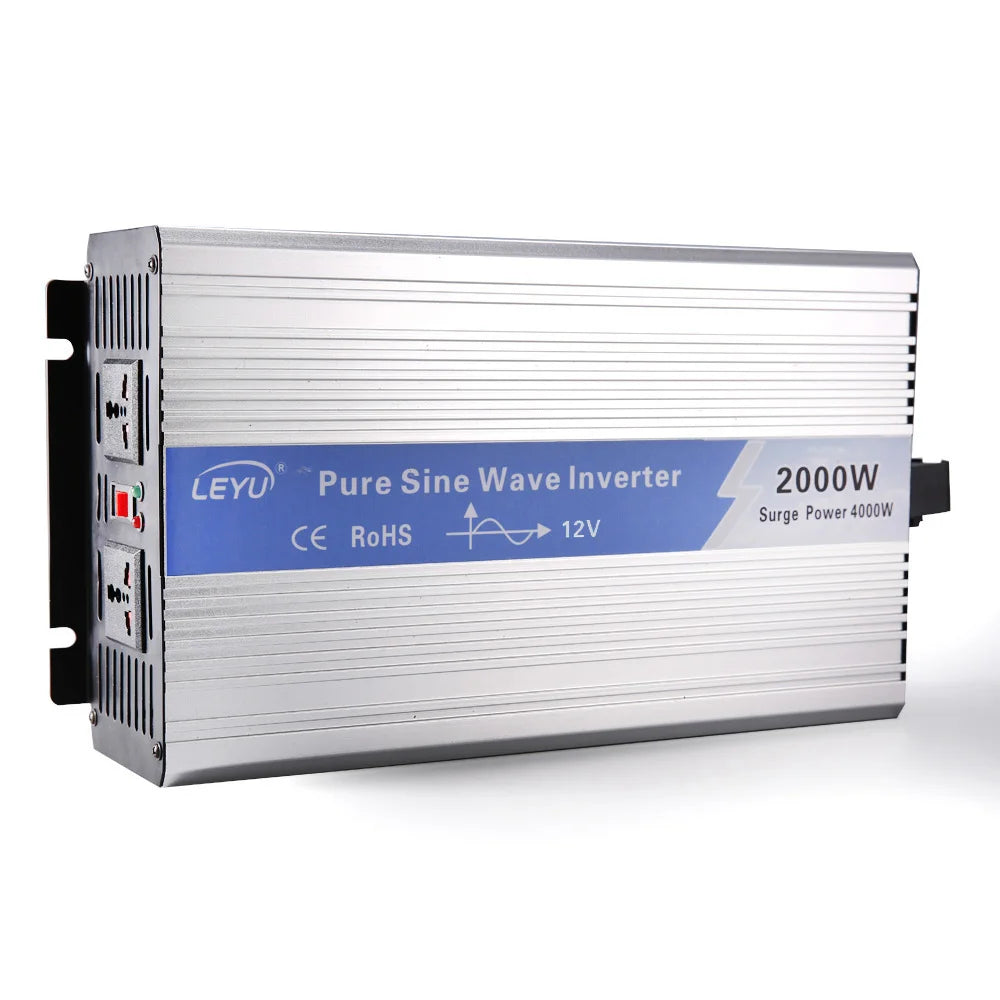

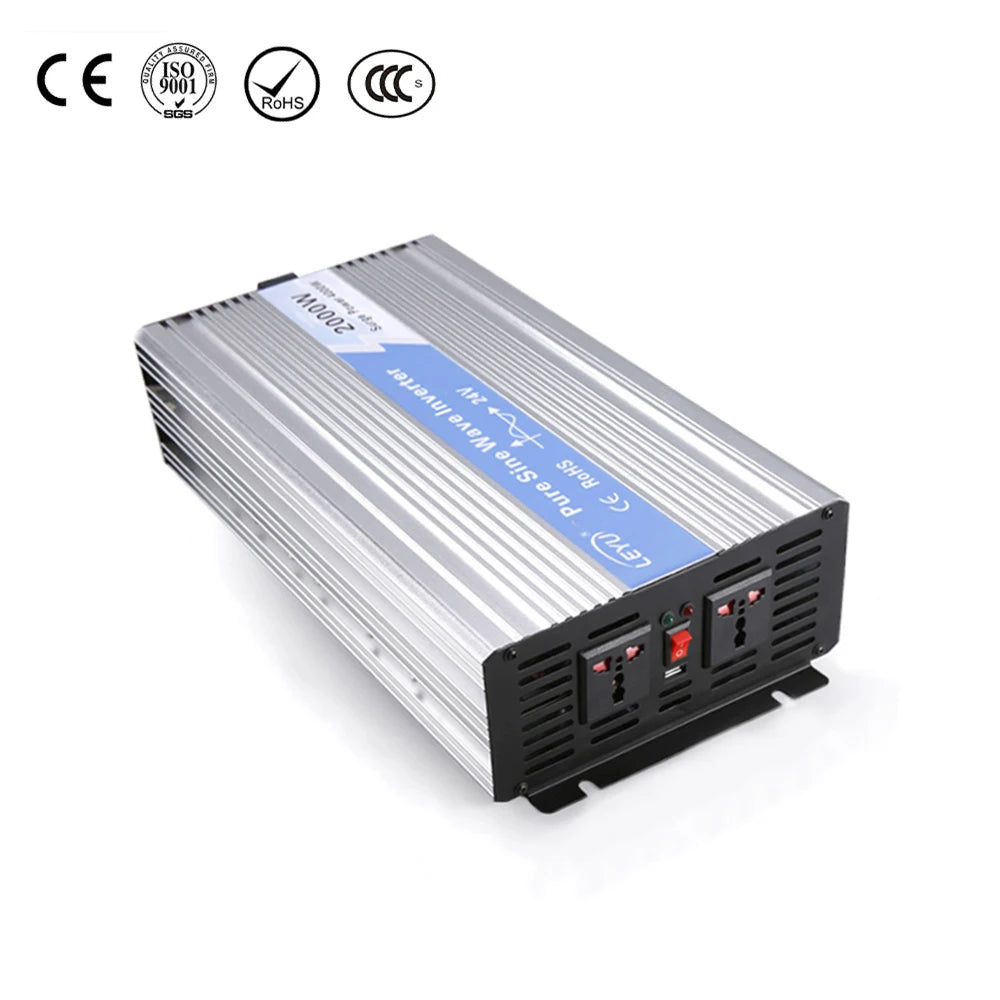

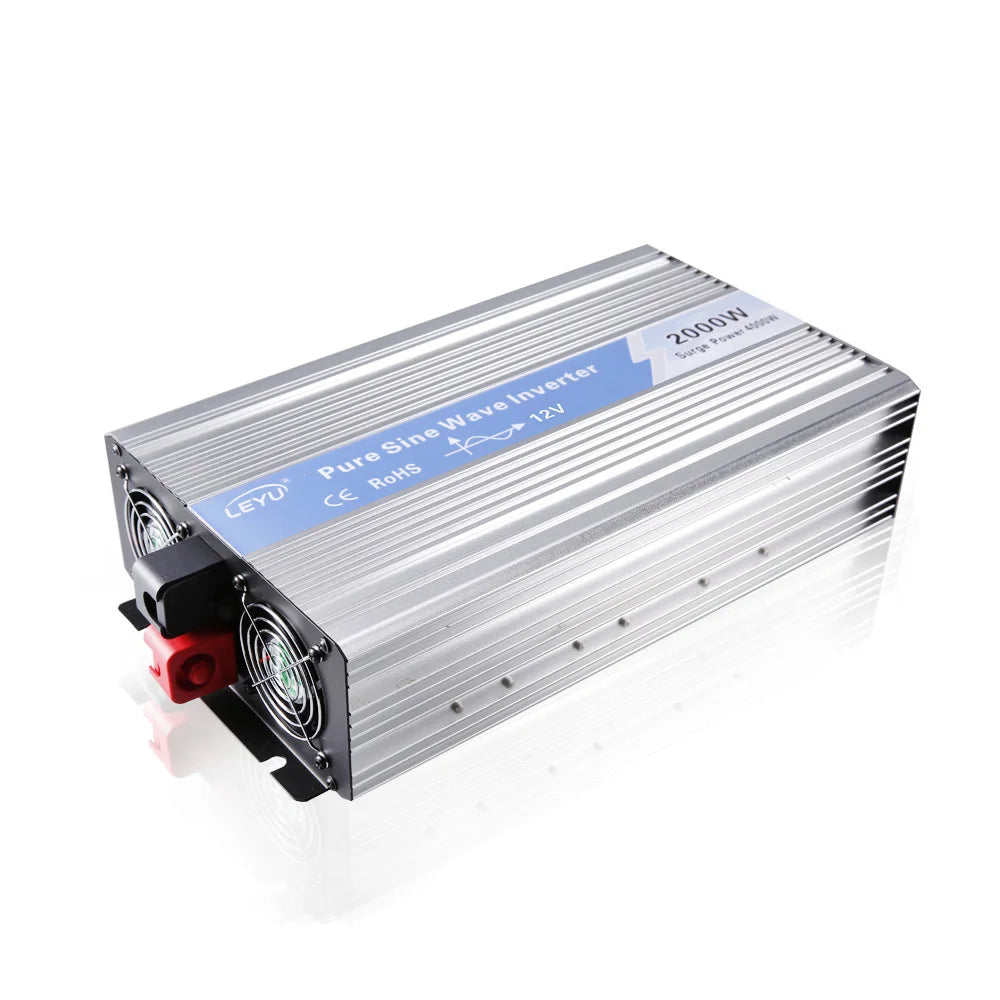

OEM 1000W 2000W 3000W 4000W 5000W power inverter 12V 24V 48V dc to 110V 220V ac off grid solar inverter 5000W
6735842013089_111575614
9999 In Stock Sold Out 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999
Share
|
Model
|
OPIP-2K-1
|
OPIP-2K-1
|
OPIP-2K-1
|
OPIP-2K-2
|
OPIP-2K-2
|
OPIP-2K-2
|
|||||
|
Rated power
|
2000W
|
||||||||||
|
Peak power
|
4000W
|
||||||||||
|
Input voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|||||
|
Output voltage
|
100VAC or 110VAC or 120VAC±5%
|
220VAC or 230VAC or 240VAC±5%
|
|||||||||
|
Unload current less than
|
1.1A
|
0.7A
|
0.5A
|
1.1A
|
0.7A
|
0.5A
|
|||||
|
Output frequency
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
||||||||||
|
Output waveform
|
Pure Sine Wave
|
||||||||||
|
Waveform distortion
|
THD<3%(Linear load)
|
||||||||||
|

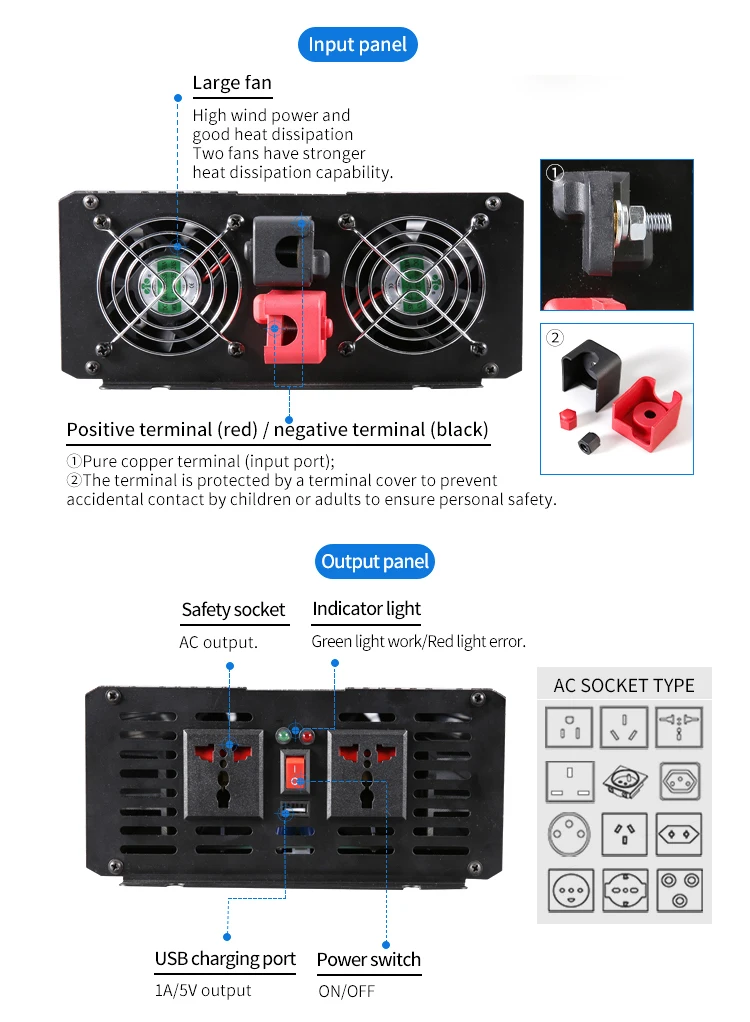

USB port
|
5V 1A
|
||||||||||
|

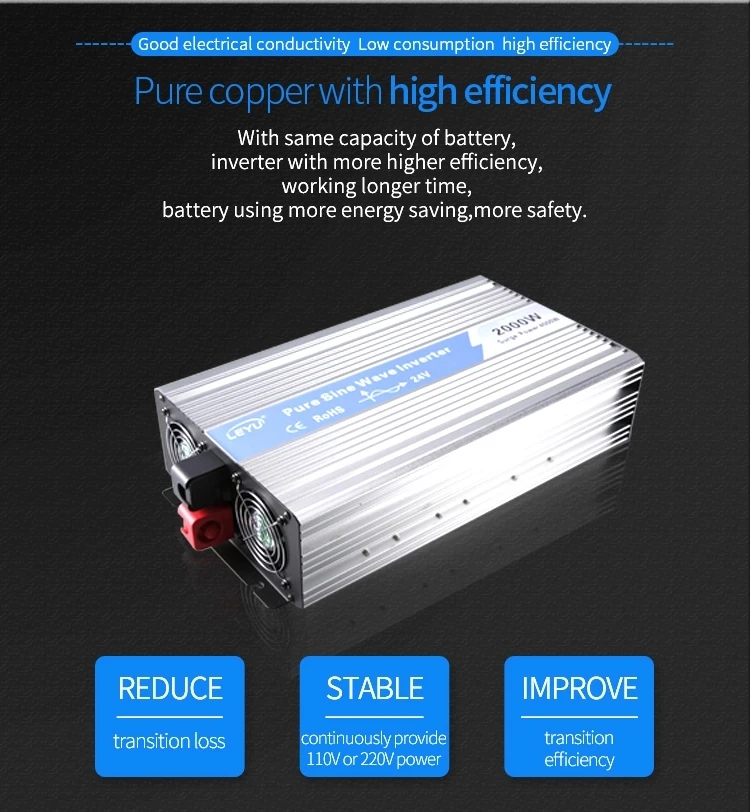

Max.efficiency
|
90%
|
||||||||||
|
Input voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|||||
|
Low voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|||||
|
Low voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
10±0.5V
|
20±0.5V
|
40±15V
|
|||||
|
Over voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|||||
|
Low voltage recover
|
13±0.5V
|
24±0.5V
|
48±1V
|
13±0.5V
|
24±0.5V
|
48±1V
|
|||||
|
Over voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
|||||
|
|

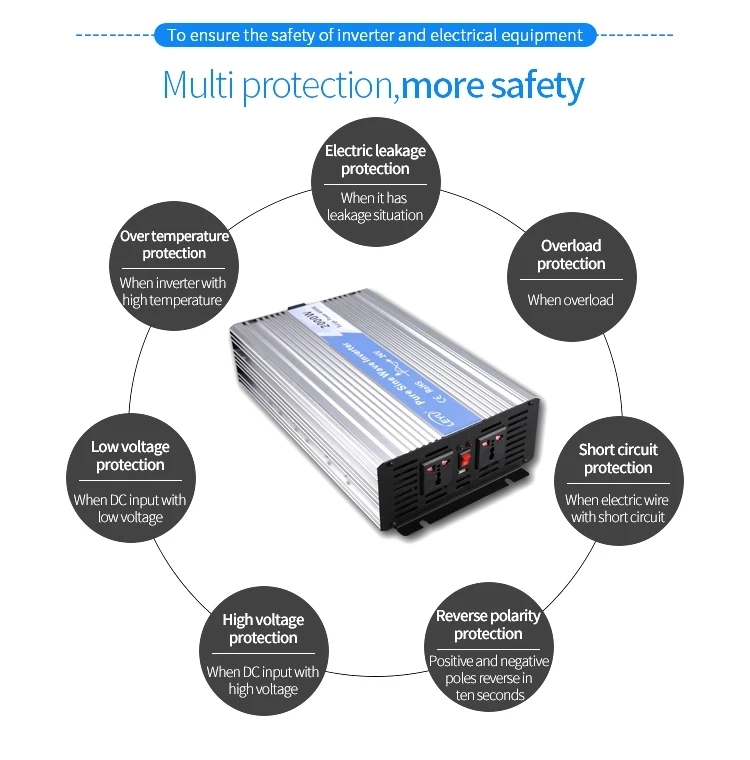

Low voltage
|
Alarm at first, voltage continously reduce. LED Red light on & shut sown.
|
|||||||||
|
Over voltage
|
LED Red light on, shut down
|
||||||||||
|
Over load
|
LED Red light on, shut down
|
||||||||||
|
Over temperature
|
Alarm at first, tempurature continously rise.LED Red light on & shut sown
|
||||||||||
|
Short circuit
|
LED Red light on
|
||||||||||
|
Input reverse polarity
|
Fuse burn-out
|
||||||||||
|
Working temperature
|
-10°- +50°
|
||||||||||
|
Storage temperature
|
-30°- +70°
|
||||||||||
|

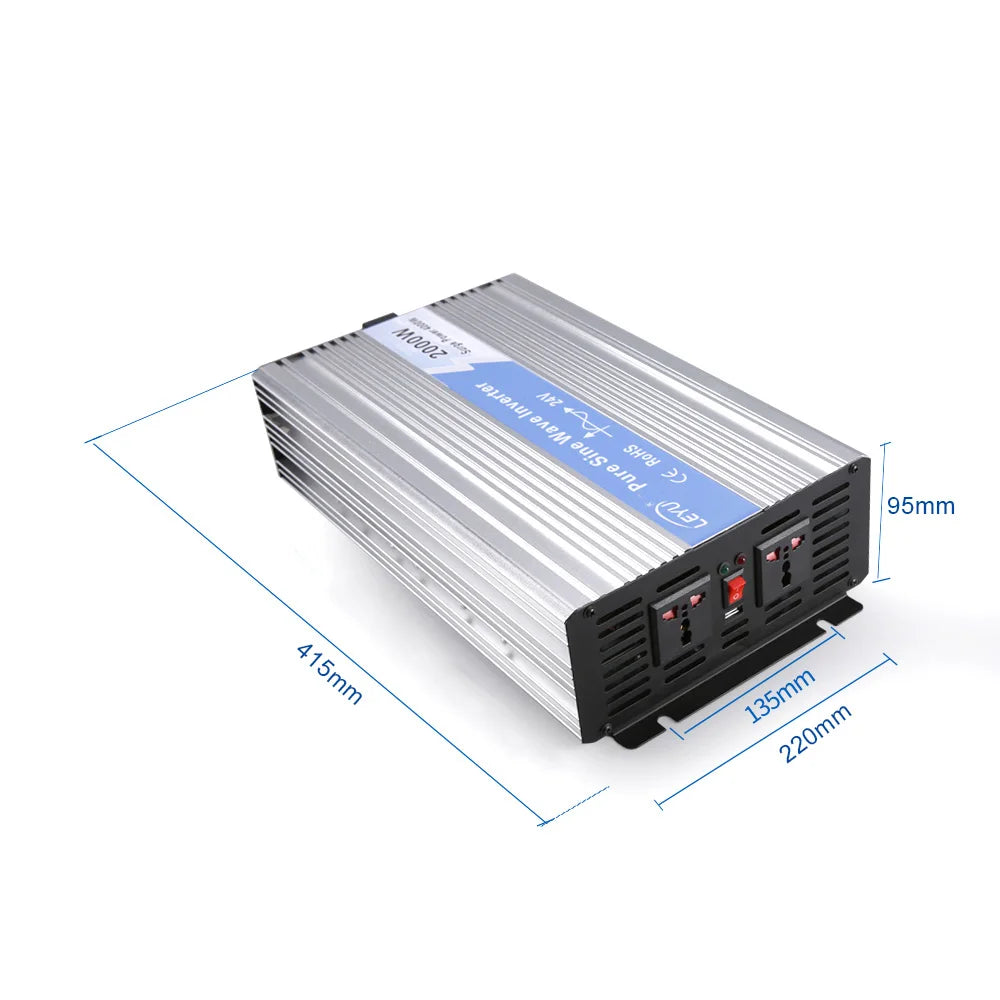

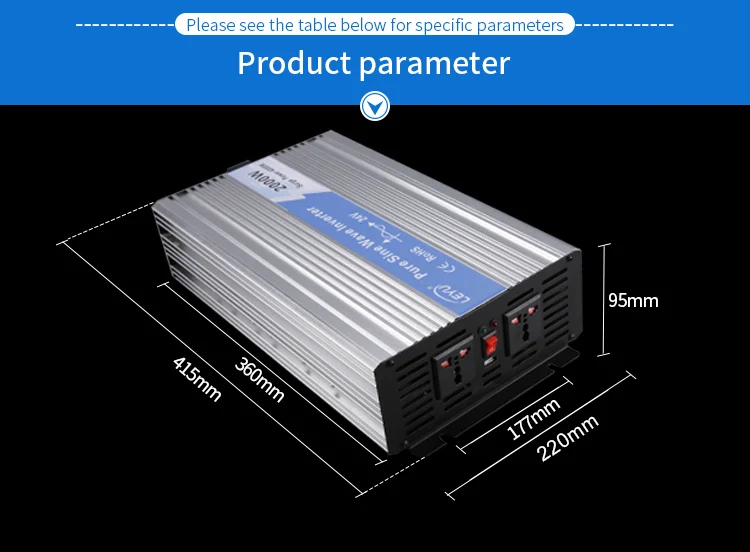

Dimension(mm)
|
415x220x95mm
|
||||||||||
|
Packing(mm)
|
440x260x105mm
|
||||||||||
|
Net./gross weight(g)
|
5200/5800g
|
||||||||||
|
QTY/Ctn
|
3 Pcs
|
||||||||||
|
Meas./Ctn(mm)
|
450x270x340mm
|
||||||||||
|
Gross weight/Ctn(g)
|
18300g
|
||||||||||
|
Warranty
|
18 months
|
||||||||||
|
Configuration
|
Standard
|
||||||||||
|
Cooling method
|
Intelligent air cooling
|
||||||||||
