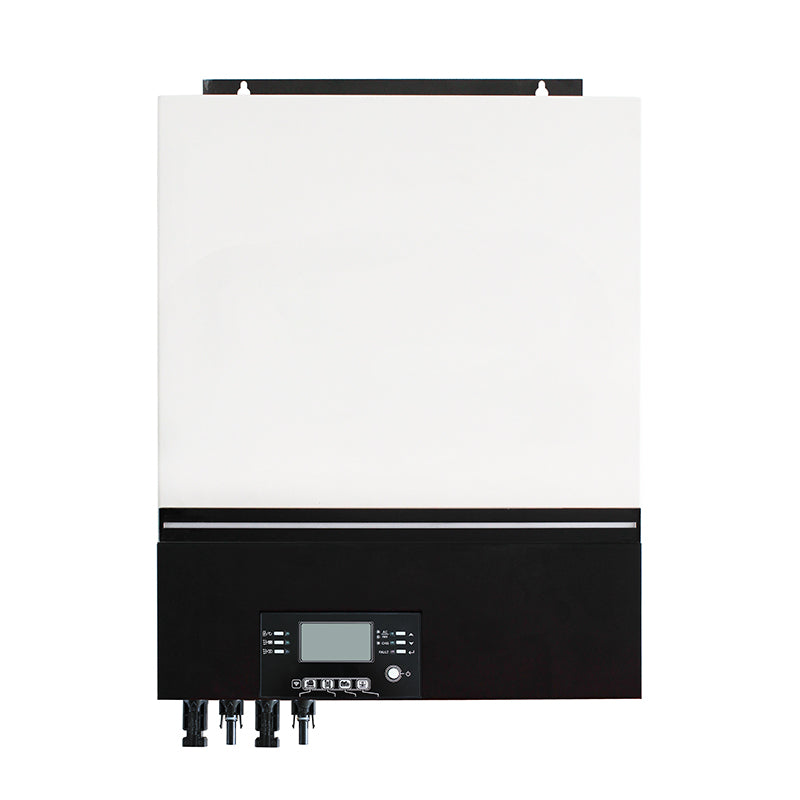

OEM factory 8kw 230v pure sinve wave wifi mppt sungrow hybrid inverter 48v
Save -35%
Rs. 493,197.97
Rs. 760,176.64
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
Hot sales 8kw solar inverter 48v PV power system mppt anti dust pure sine wave inverter

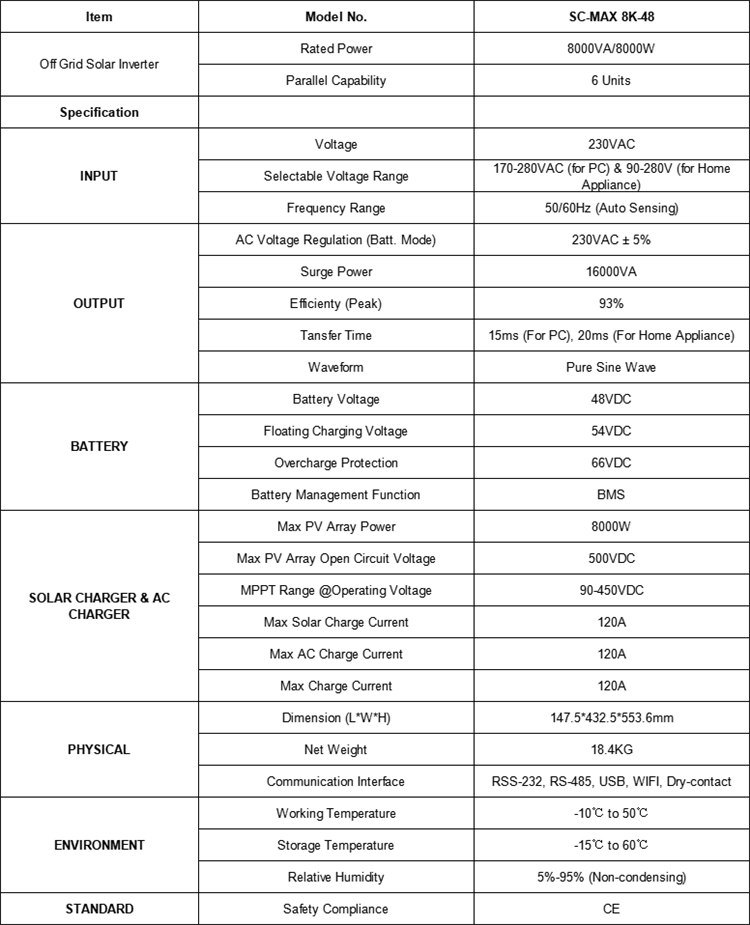

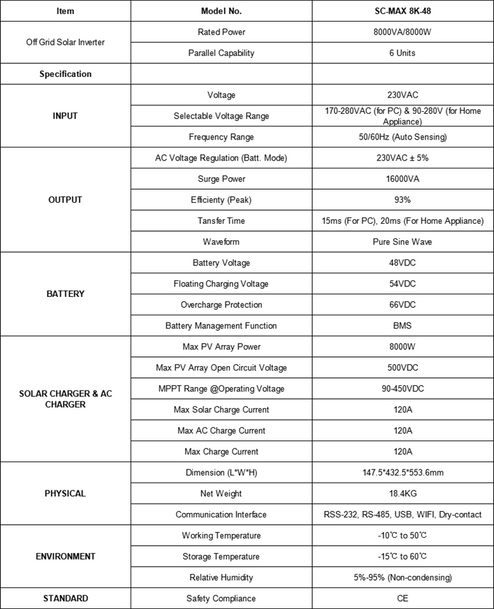

Technical Specification
|
Model Number
|
SC-MAX 8K-48
|
|
|

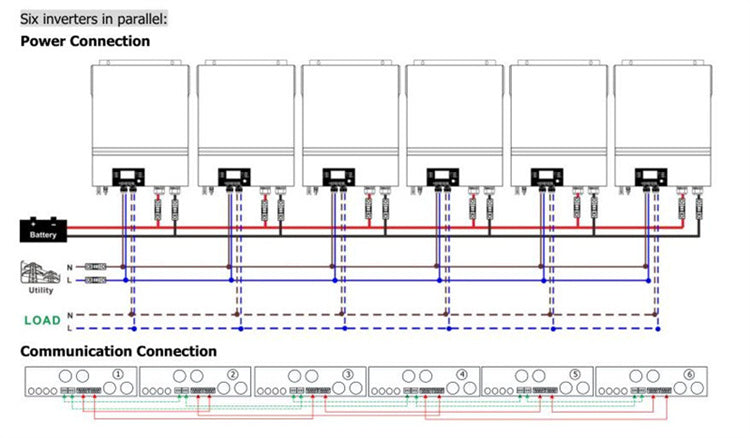

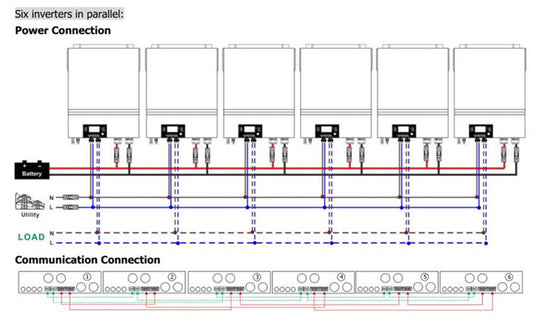

Parallel Capability
|
6 units
|
|
|
INPUT
|
||
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280VAC(for personal computers), 90-280VAC(For home appliances)
|
|
|
Frequency Range
|
50/60(Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation
|
230VAC±5%
|
|
|
Surge Power
|
1600VA
|
|
|
Efficiency
|
93%
|
|
|
Transfer Time
|
15ms(for personal computer); 20ms(for home appliances)
|
|
|
Wave form
|
Pure sine wave
|
|
|
No load power consumption
|
<70w
|
|
|
DC Voltage
|
12VDC±5, 100w
|
|
|
BATTERY
|
||
|
Battery Voltage
|
48VDC
|
|
|
Floating Charge Voltage
|
54VDC
|
|
|
Overcharge Voltage
|
66VDC
|
|
|
Solar charger&AC Charger
|
||
|
Solar charger type
|
MPPT
|
|
|
Maximum PV Array Power
|
8000W(4000w*2)
|
|
|
MPPT Range@operationg Voltage
|
90-450VDC
|
|
|
Maximum PV Array Open circuit voltage
|
500VDC
|
|
|
Maximum Solar Charge Current
|
120A
|
|
|
Maximum AC Charge current
|
120A
|
|
|
PHYSICAL
|
||
|
Dimension(mm)
|
147.4*432.5*553.6
|
|
|
Net weight(Kg)
|
18.4
|
|
|

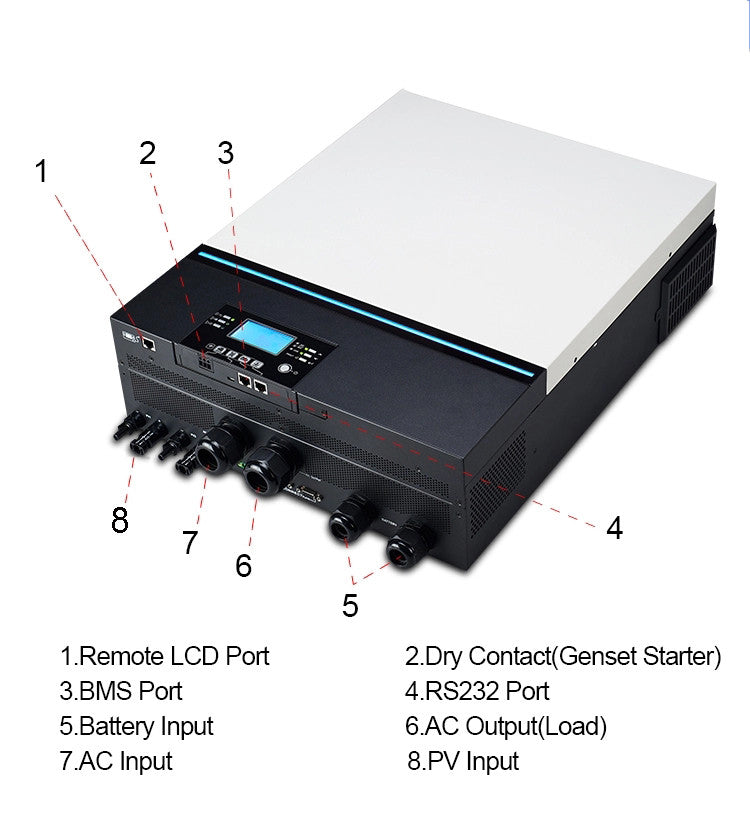

Communication interface
|
USB/RS232/RS485/Wifi/Dry contact
|
|
|
Environment
|
||
|
Humidity
|
5-95% relative humidity(no condensing)
|
|
|
Operating temperature
|
-10℃ to 50℃
|
|
|
Storage temperature
|
-15℃ to 60℃
|
|
|
STANDARD
|
||
|
Certificate
|
CE
|
|
