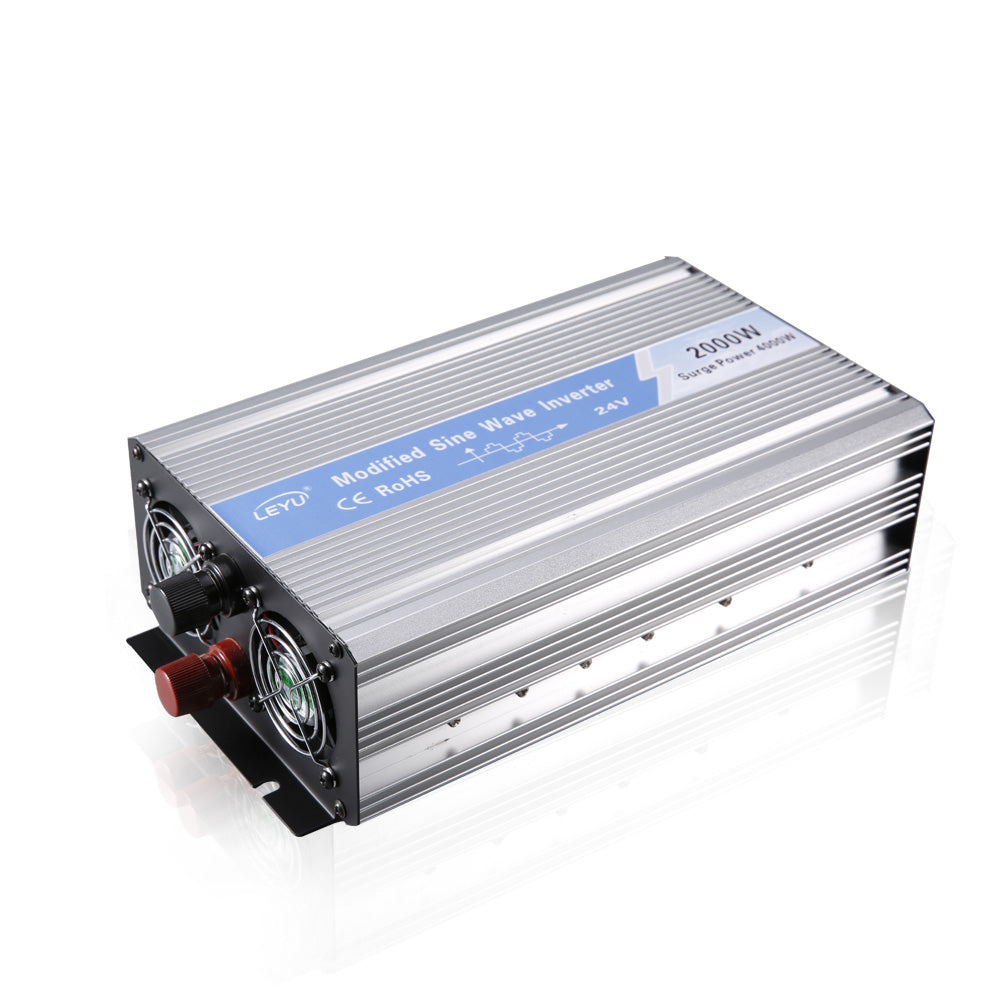

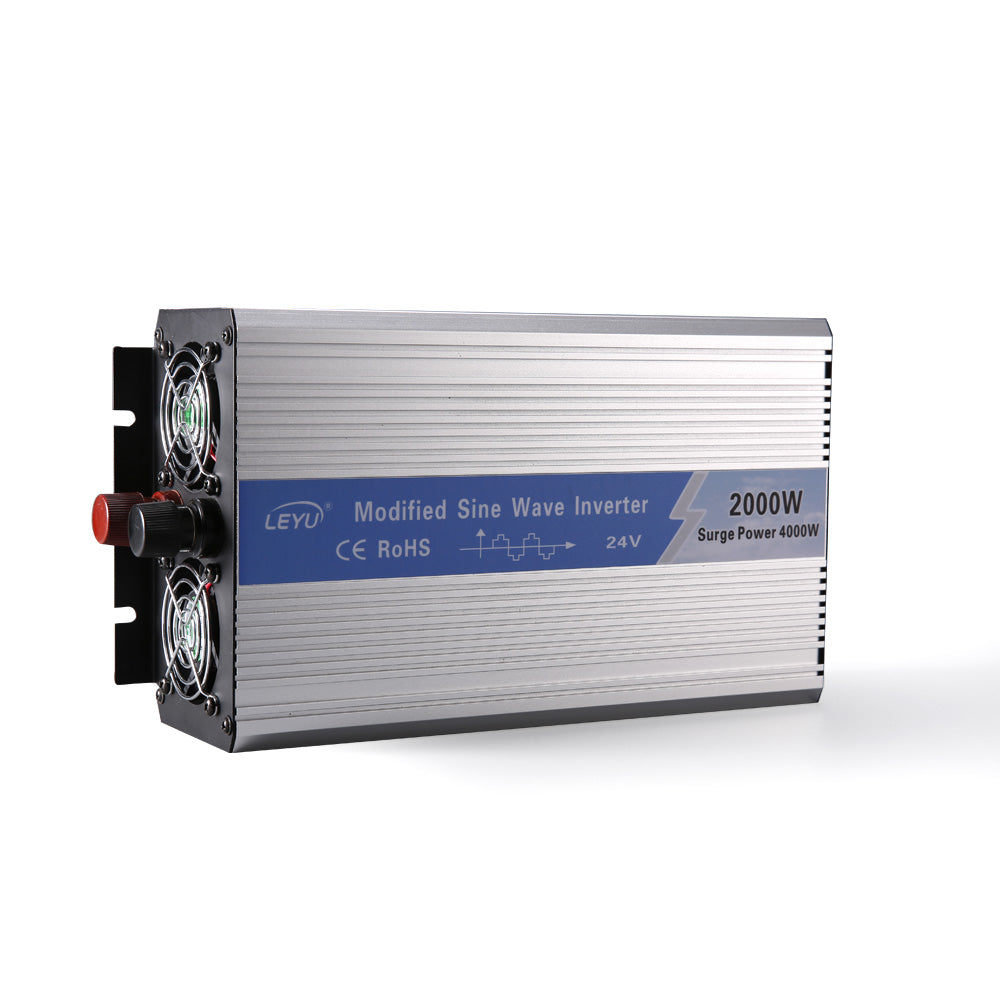

Power Inverter 2000W DC 12V 24V 48V to AC 110V 220VAC Modified sine wave power inverter
Save -44%
Rs. 24,755.28
Rs. 44,420.55
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
Specification
|
Model
|
OPIM-2K-1
|
OPIM-2K-1
|
OPIM-2K-1
|
OPIM-2K-2
|
OPIM-2K-2
|
OPIM-2K-2
|
|||||
|
Rated power
|
2000W
|
||||||||||
|
Peak power
|
4000W
|
||||||||||
|
Input voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|||||
|
Output voltage
|
100VAC or 110VAC or 120VAC±5%
|
220VAC or 230VAC or 240VAC±5%
|
|||||||||
|
Unload current less than
|
0.8A
|
0.5A
|
0.2A
|
0.8A
|
0.5A
|
0.2A
|
|||||
|
Output frequency
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
||||||||||
|
Output waveform
|
Modified Sine Wave
|
||||||||||
|
Waveform distortion
|
THD<3%(Linear load)
|
||||||||||
|
USB port
|
5V 1A
|
||||||||||
|
Max.efficiency
|
90%
|
||||||||||
|
Input voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|||||
|
Low voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|||||
|
Low voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
10±0.5V
|
20±0.5V
|
40±15V
|
|||||
|
Over voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|||||
|
Low voltage recover
|
13±0.5V
|
24±0.5V
|
48±1V
|
13±0.5V
|
24±0.5V
|
48±1V
|
|||||
|
Over voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
|||||
|
|

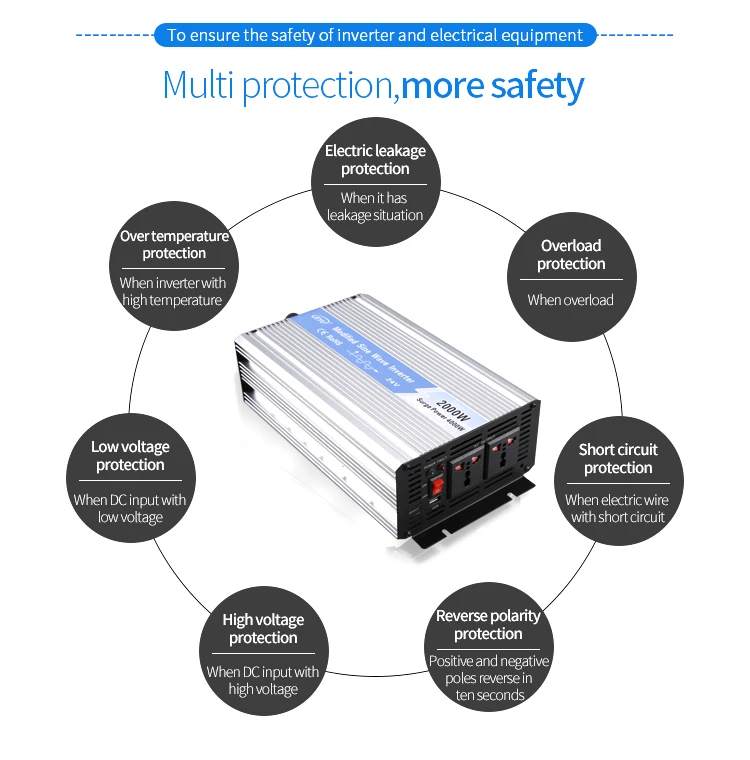

Low voltage
|
Alarm at first, voltage continously reduce. LED Red light on & shut sown.
|
|||||||||
|
Over voltage
|
LED Red light on, shut down
|
||||||||||
|
Over load
|
LED Red light on, shut down
|
||||||||||
|
Over temperature
|
Alarm at first, tempurature continously rise.LED Red light on & shut sown
|
||||||||||
|
Short circuit
|
LED Red light on
|
||||||||||
|
Input reverse polarity
|
Fuse burn-out
|
||||||||||
|
Working temperature
|
-10°- +50°
|
||||||||||
|
Storage temperature
|
-30°- +70°
|
||||||||||
|

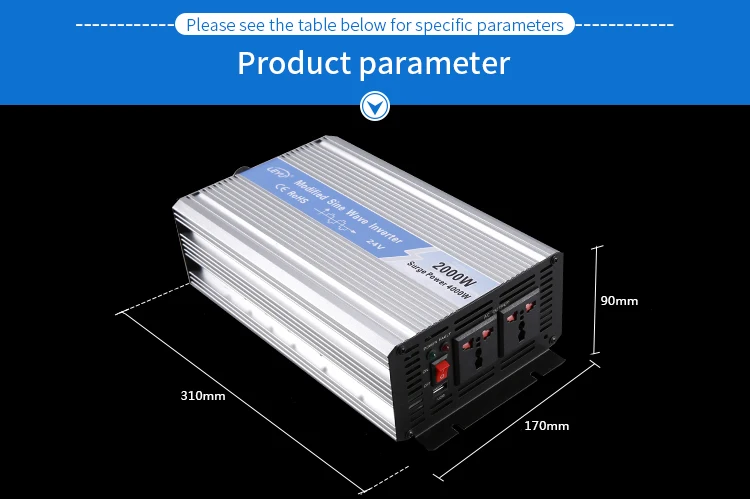

Dimension(mm)
|
310x170x90mm
|
||||||||||
|
Packing(mm)
|
335x220x105mm
|
||||||||||
|
Net./gross weight(g)
|
2600/3080g
|
||||||||||
|
QTY/Ctn
|
6 Pcs
|
||||||||||
|
Meas./Ctn(mm)
|
440x400x320mm
|
||||||||||
|
Gross weight/Ctn(g)
|
19640g
|
||||||||||
|
Warranty
|
18 months
|
||||||||||
|
Configuration
|
Standard
|
||||||||||
|
Cooling method
|
Intelligent air cooling
|
||||||||||

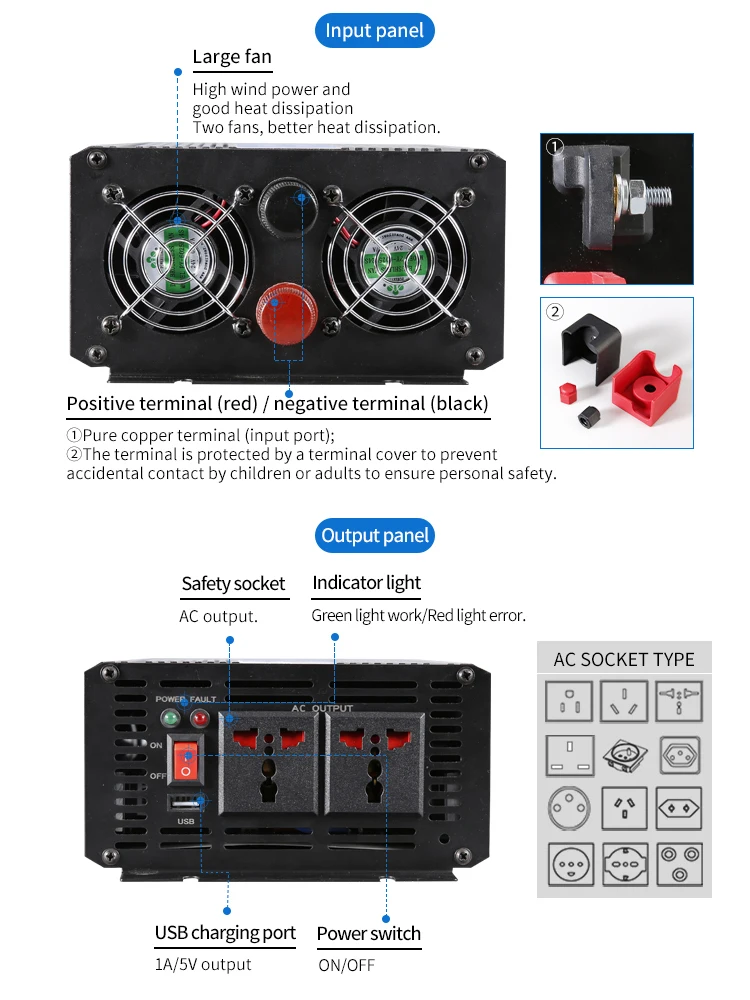

Details Images
