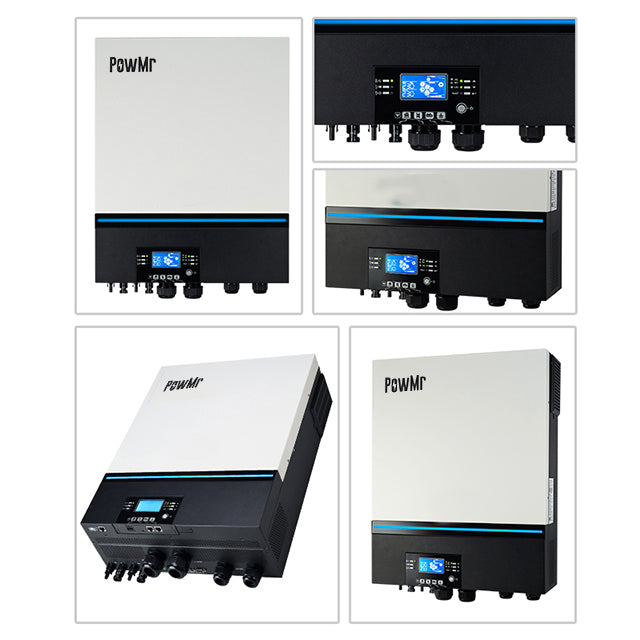

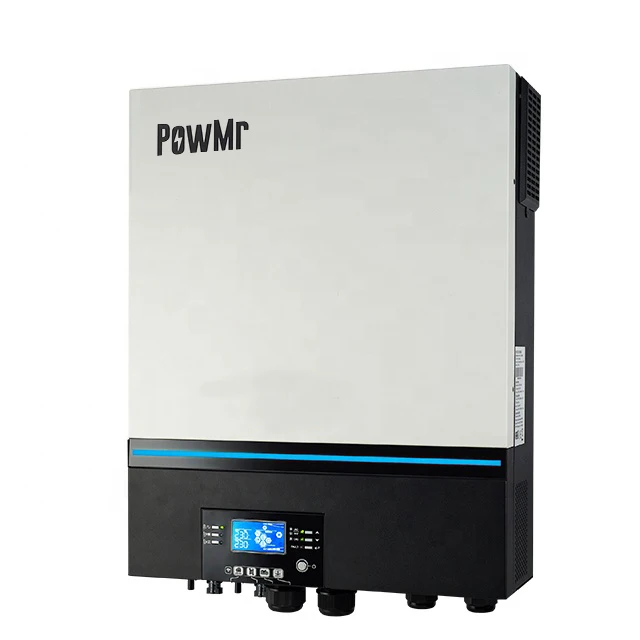

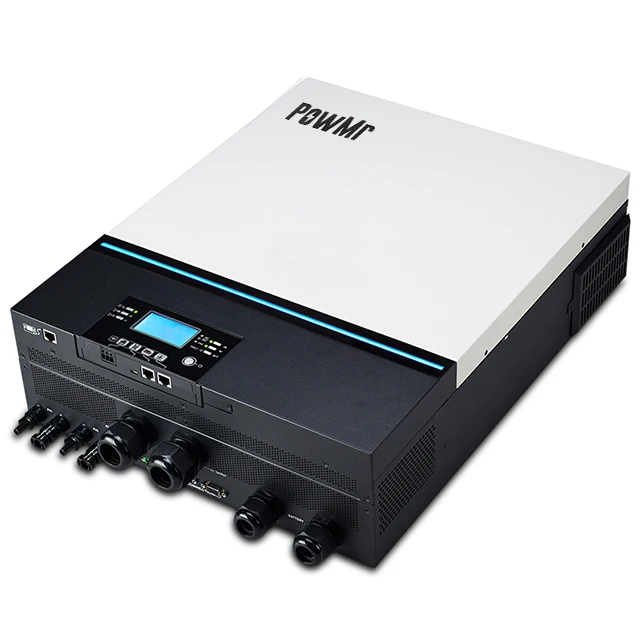

PowMr 16KW 230VAC 48V Solar Hybrid Inverter Inbuilt 80A MPPT Solar Charge Controller Max PV 500V Off Grid Inverter
Save -56%
Rs. 580,083.65
Rs. 1,325,905.49
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
Features:
● Pure sine wave inverter
● Configurable color with the built-in RGB LED bar
● Built-in Wi-Fi for mobile monitoring (APP is required)
● Supports USB On-the-Go function
● Built-in anti-dusk kit
● Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
● Configurable input voltage ranges for home appliances and personal computers via LCD control panel
● Configurable AC/PV output usage timer and prioritization
● Configurable AC/Solar charger priority via LCD control panel
● Configurable battery charging current based on applications via LCD control panel

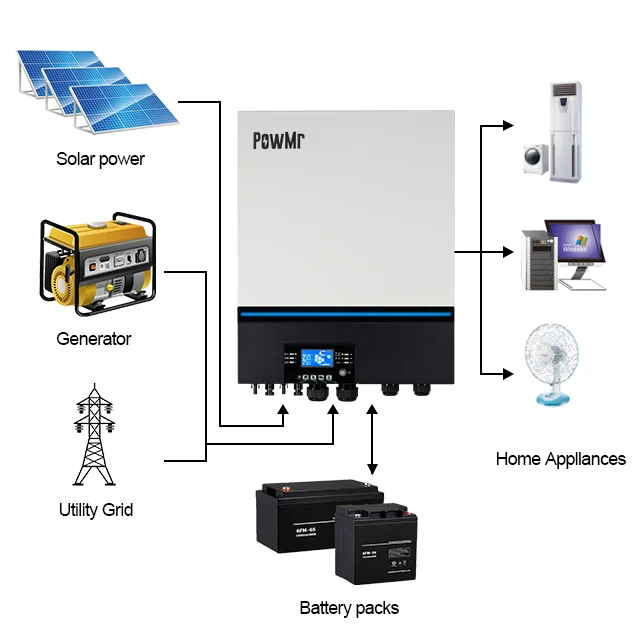

● Compatible to utility mains or generator power
● Auto restart while AC is recovering
● Overload / Over temperature / short circuit protection
● Smart battery charger design for optimized battery performance
● Cold start function
● Pure sine wave inverter
● Configurable color with the built-in RGB LED bar
● Built-in Wi-Fi for mobile monitoring (APP is required)
● Supports USB On-the-Go function
● Built-in anti-dusk kit
● Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
● Configurable input voltage ranges for home appliances and personal computers via LCD control panel
● Configurable AC/PV output usage timer and prioritization
● Configurable AC/Solar charger priority via LCD control panel
● Configurable battery charging current based on applications via LCD control panel
● Compatible to utility mains or generator power
● Auto restart while AC is recovering
● Overload / Over temperature / short circuit protection
● Smart battery charger design for optimized battery performance
● Cold start function
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
Specification
|
Model
|
POW-MAX 8KW
|
|
|
Rated power
|
8000VA/8000W
|
|
|

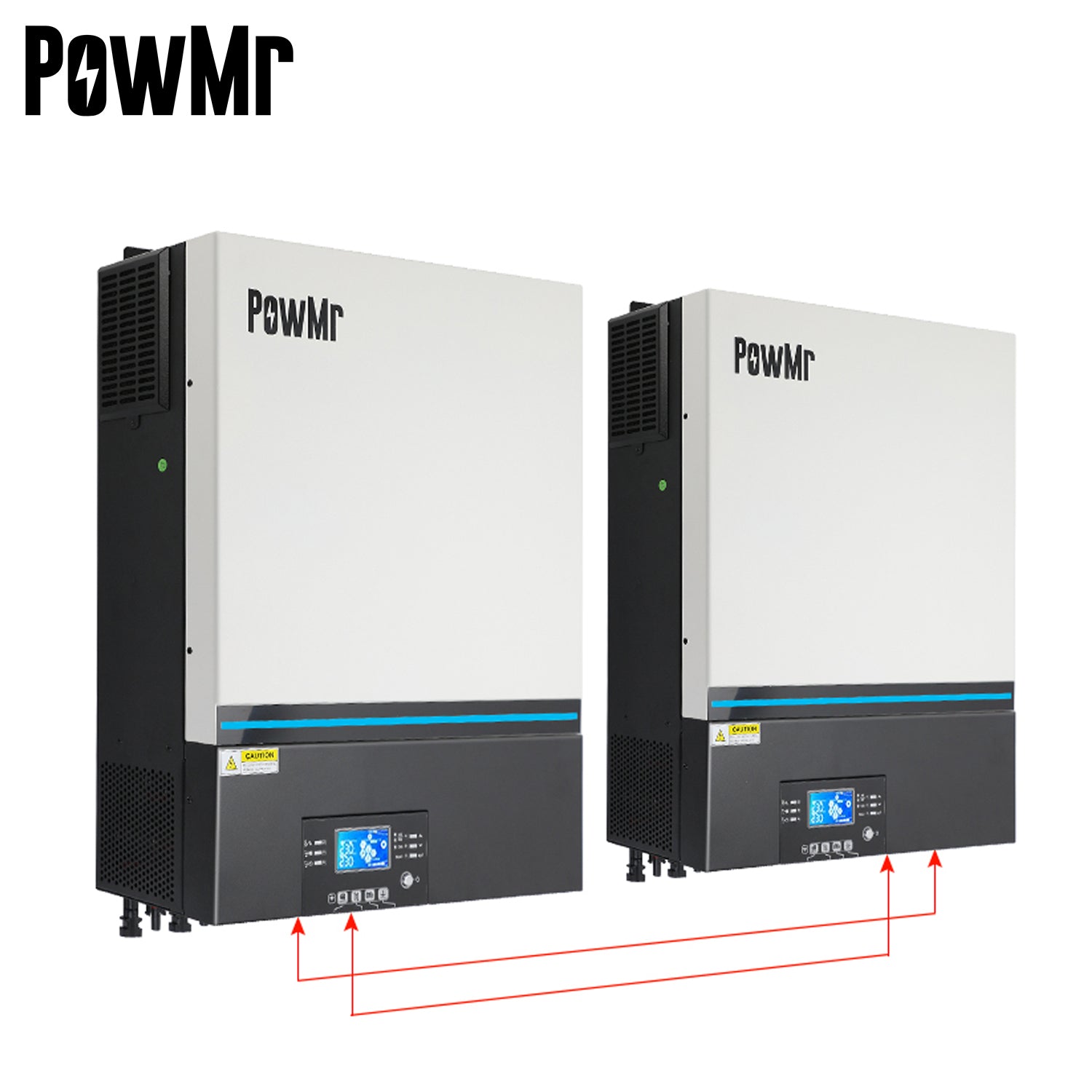

Parallel Capability
|
Yes, up to 6 units
|
|
|
Input
|
||
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280VAC(For Personal Computer); 90-280VAC(For Home Appliances)
|
|
|
Frequency Range
|
50/60 Hz (Auto sensing)
|
|
|
Output
|
||
|
AC Voltage Regulation (Batt. Mode)
|
230VAC± 5%
|
|
|
Surge Power
|
16000VA
|
|
|
Efficiency(Peak)
|
90% ~ 93%
|
|
|
Waveform
|
Pure Sine wave
|
|
|
Transfer Time
|
15ms(For personal Computer); 20ms(For Home Appliances)
|
|
|
No Load Power Consumption
|
< 70W
|
|
|
DC Voltage (Optional)
|
12 VDC ± 5%, 100W
|
|
|
Battery
|
||
|
Battery Voltage
|
48VDC
|
|
|
Floating Charge Voltage
|
54VDC
|
|
|
OverCharge Protection
|
66VDC
|
|
|
Solar Charger & AC Charger
|
||
|
Solar Charger Type
|
MPPT
|
|
|
Max.PV Array Power
|
8000W (4000Wx2)
|
|
|
MPPT Range @ Operating Voltage
|
90~450VDC
|
|
|
Maxmum Solar Charge Current
|
80A
|
|
|
Maximum AC Charge Current
|
80A
|
|
|
Maximum Charge Current
|
80A
|
|
|
Max. PV Array Open Circuit Voltage
|
500 VDC
|
|
|
Physical
|
||
|
Dimension, D x W x H(mm)
|
147.4 x 432.5 x 553.6
|
|
|
Net Weight (Kgs)
|
18.4
|
|
|
Communication Interface
|
USB/RS232/RS485/Wifi/Dry-contact
|
|
|
Operating Environment
|
||
|
Operating Temperature
|
-10°C to 50°C
|
|
|
Storage temperature
|
-15°C~ 60°C
|
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
|
Standard
|
||
|
Compliance Safety
|
CE
|
|
