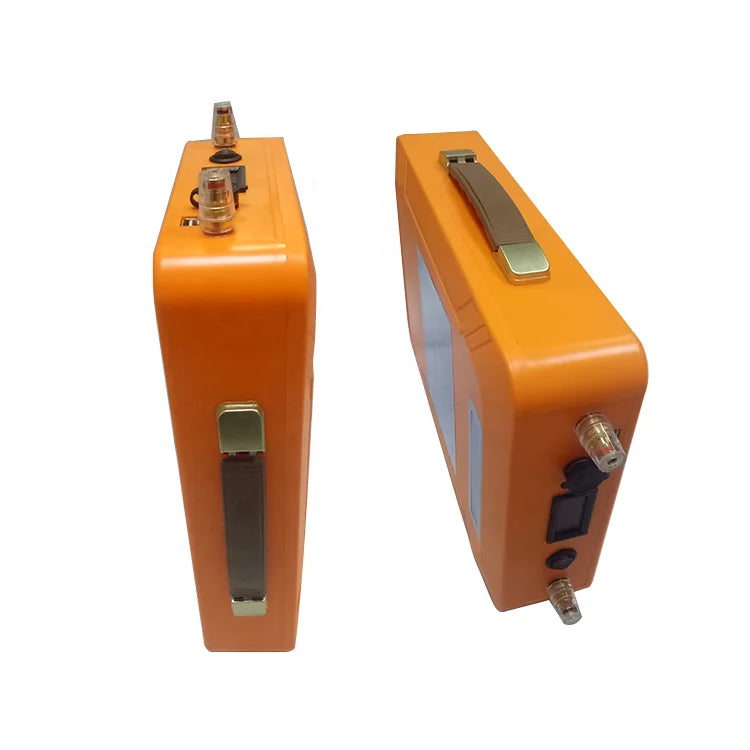

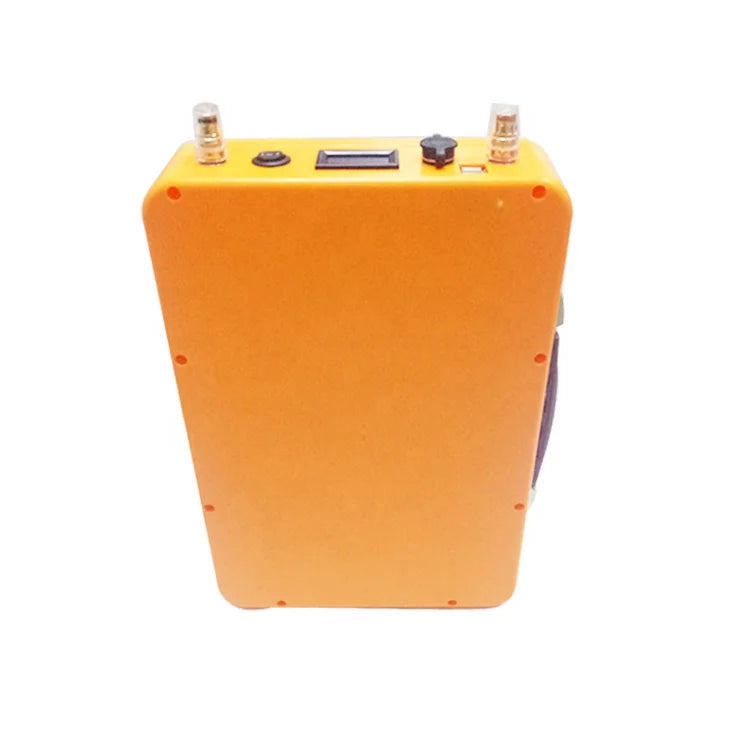

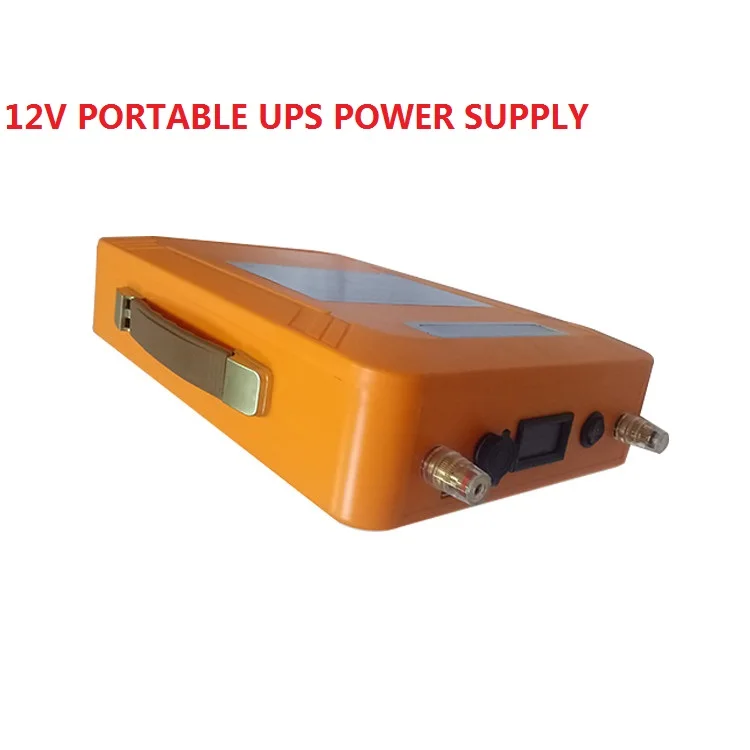

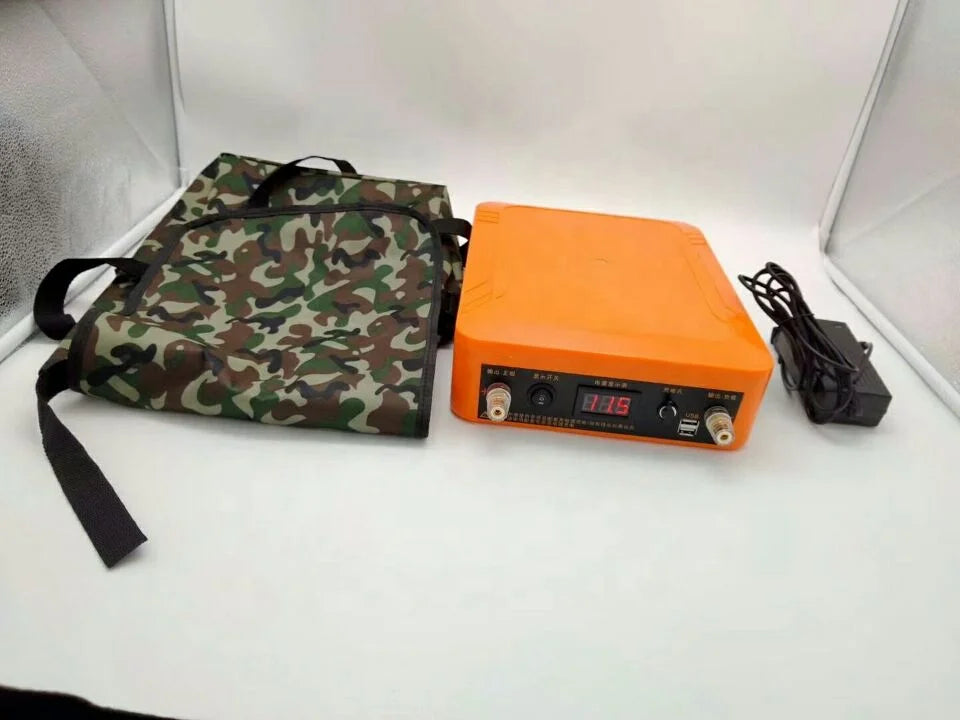

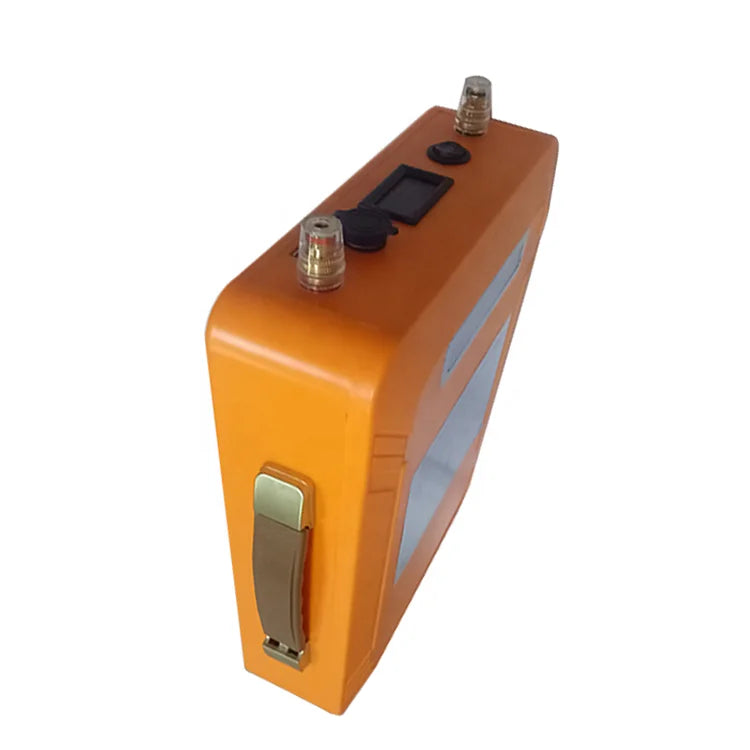

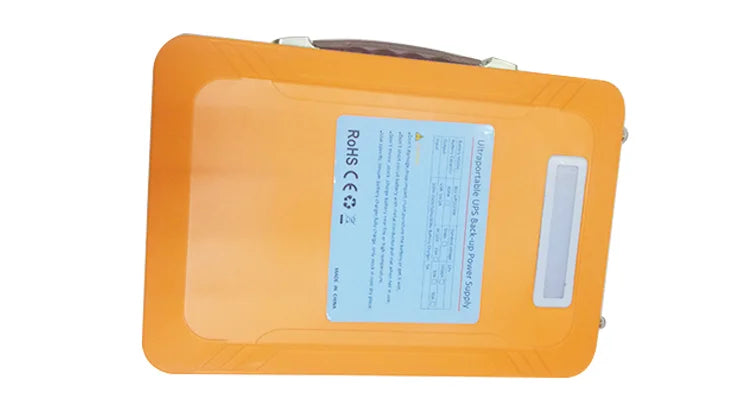

Rechargeable deep cycle UPS power supply 12v 120ah lithium ion electric battery
Share
|
No.
|
Item
|
Parameter&tech specification
|
|
1
|
Nominal Capacity
|
120Ah
|
|
2
|
Nominal Voltage (V):
|
12V
|
|
3
|
internal impedance
|
≤40mΩ
|
|
4
|
Discharge Cutoff Voltage (V)
|
9+-1V
|
|
5
|
Charge Cutoff Voltage (V)
|
12.6V
|
|
6
|
Maximum peak discharge current (A):
|
100A
|
|
7
|
Rated Discharge Current (A)
|
50A
|
|
8
|
Charge Time under Standard Charge Current
|
20h
|
|
9
|
Cell Specification
|
3.7V 2.6AH 18650 sam sung cell
|
|
10
|
Storage Temperature&Humidity
|
-5ºC--30ºC
not higher than 45ºC
Lower than85%RH
|
|
12
|
size
|
300*200*70mm
|
|
13
|
Weight
|
9kg
|

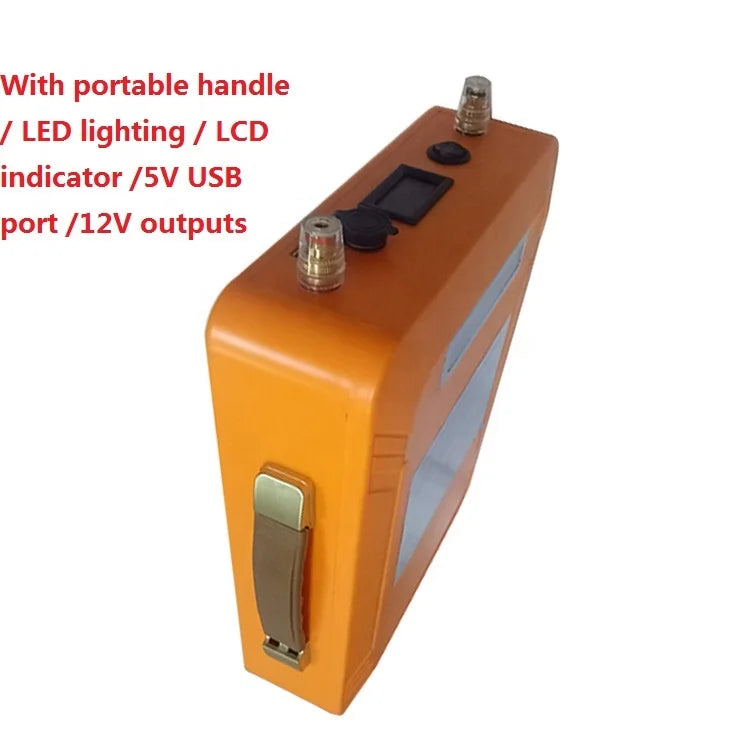

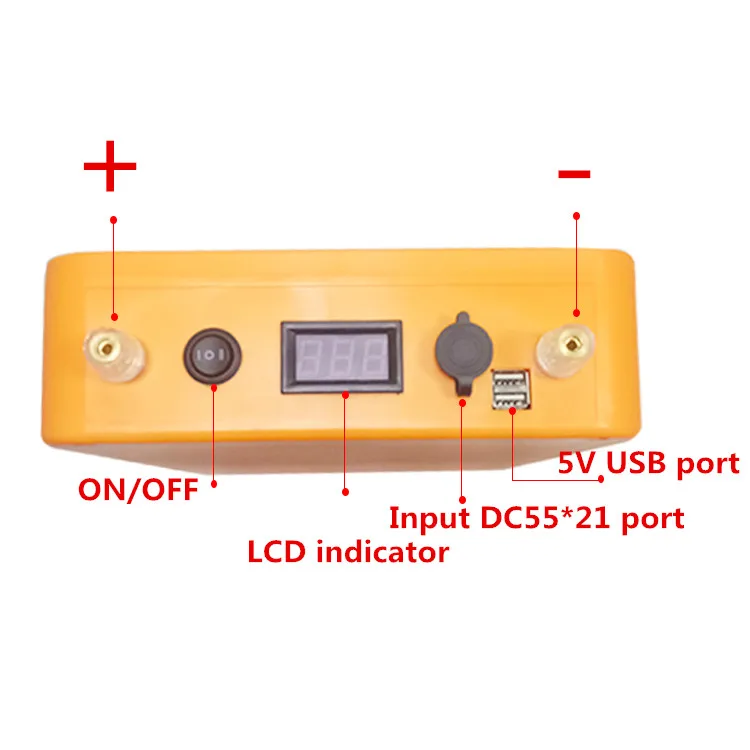

Light solution, multi power supply, more entertainment, 5V 12V multi outputs.
Working time :
Mobile full recharge 120times
Tablet full recharge 50times
12V LED light for 250hs
1-Use a specified charger,Fully charge the battery before first-time using.
2-Do not disassemble the battery and battery pack in any way.
3-Do not short circuit battery terminals,don't not reverse the positive and negative pole
4Do not throw the battery into fire or heat, do not put the battery into microwave oven or pressure vessel.
5-Do not immerse battery in water or allow it to get wet!
6-If the battery leaks or releases strange odor, pls remove it from place near fire place immediately.
7-Keep the battery in a cool dry surroundings if it stands by.
8-Do not place or storage this product under high temperature(or fire) or humid environment.
9-Using the product, a little hot is normal.
10-Stay away from children when charging or in storage.
