Products Description

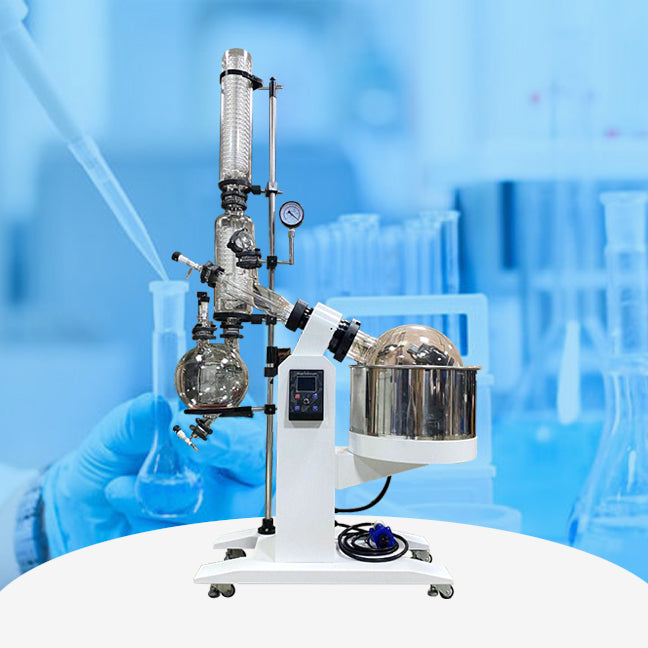

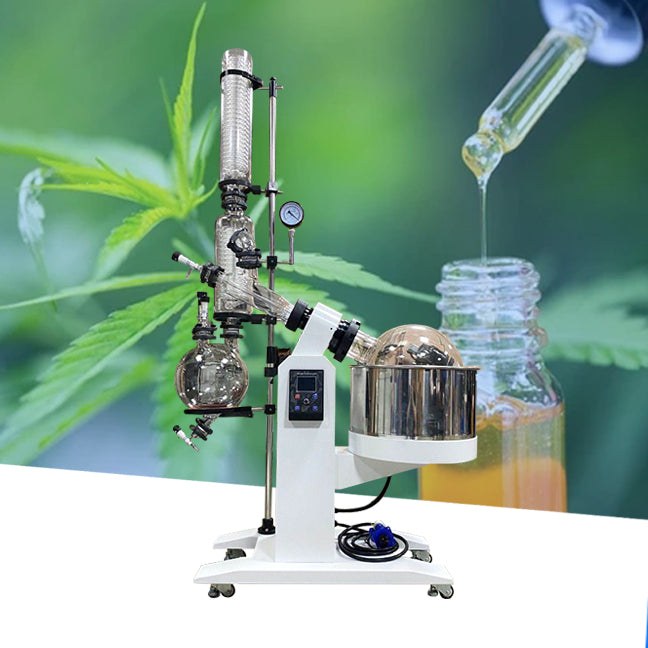

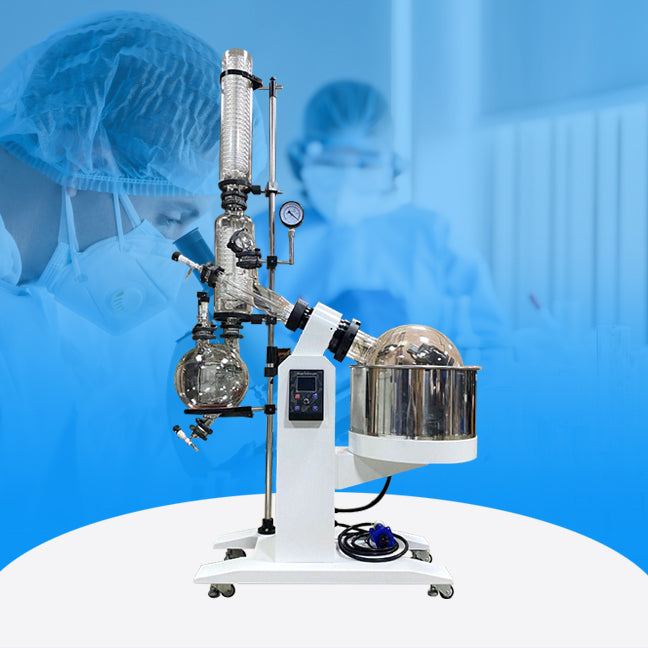

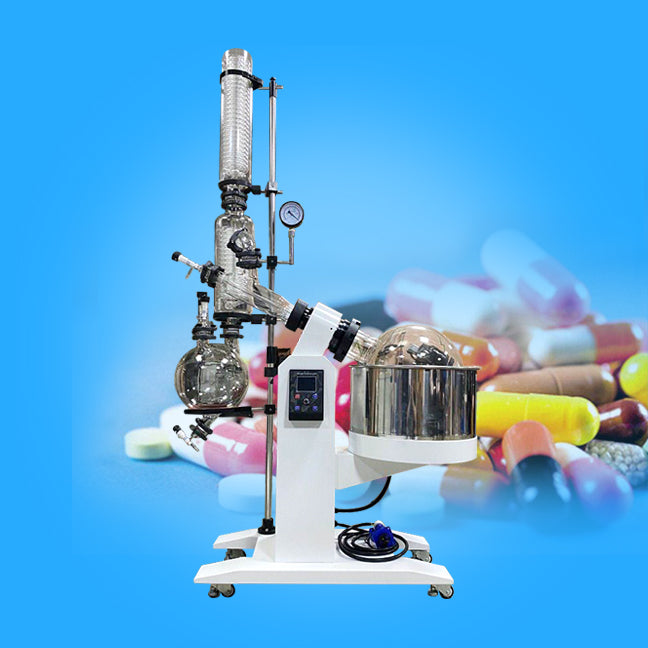

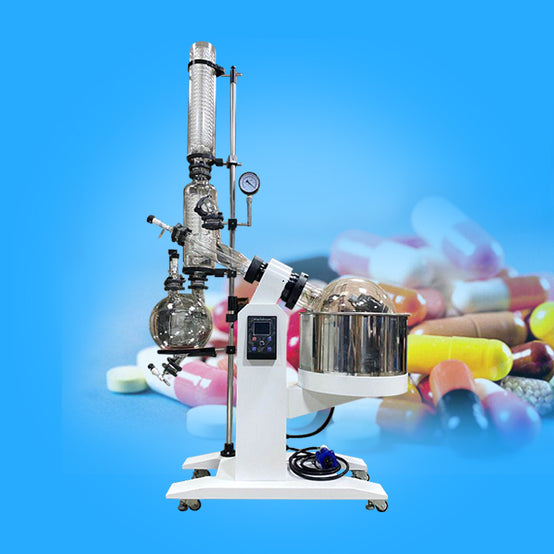

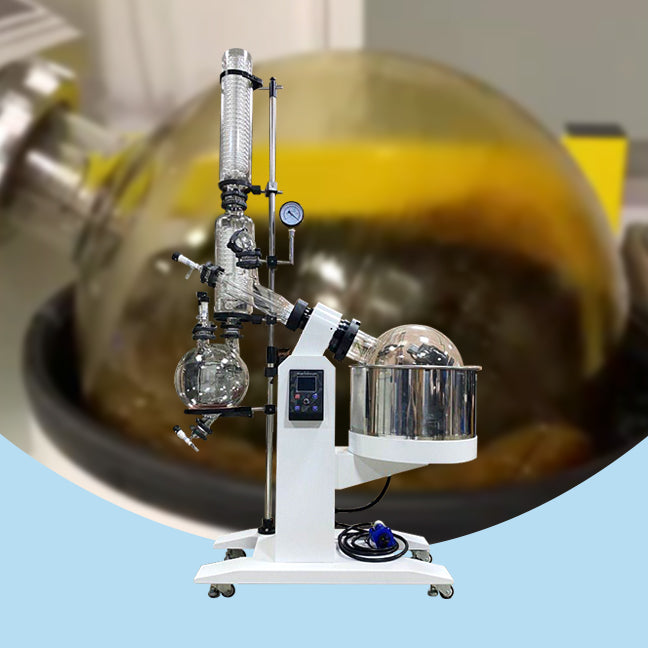

TOPTION Rotary Evaporator is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations. Rotary evaporator is mainly used for pharmaceutical, chemical and bio−pharmaceutical industry concentration, crystallization, drying, separation and dissolution of coal recovery.
|
Model
|
RE-52AA
|
RE-2000
|
RE-5000
|
RE-5210
|
|
Capacity
|
1L
|
2L
|
5L
|
10L
|
|
Rotating flask
|
0.5L ( 0.1L, 0.25L, 1L, 2L are optional)
|
2L + 1L (0.1L,0.25L,0.5L are optional)
|
5L ( 3L, 2L, 1L are optional)
|
10L / F95
|
|
Receiving flask
|
0.5L
|
1L
|
3L
|
5L, bottom discharge
|
|
Lifting type
|
Hand lifting / automatic lifting optional
|
Automatic lifting
|
Automatic lifting
|
Automatic lifting
|
|
Condenser
|
Vertical
|
Vertical
|
Vertical
|
0.57 m2 condensing surface
|
|
Rotation speed
|
0-150 rpm
|
20-200 rpm
|
0-110 rpm
|
3-100 rpm
|
|
Evaporation sped (H20)
|
1.2 L/H
|
1.2 L/H
|
2 L/H
|
3 L/H
|
|
Bath power
|
1100W
|
1500W
|
2200W
|
3000W
|
|
Static temp. control range & wave
|
RT-99±2 ℃
|
RT-99±2 ℃
|
RT-99 (150 ) ±0.2 ℃
|
RT-99 (150 ) ±0.2 ℃
|
|
Power
|
220V 50/60Hz
|
220V 50/60Hz
|
220V 50/60Hz
|
220V 50/60Hz
|
Function
Process flow
Working principle of rotary evaporator is under the vacuum condition, constant temperature heating, evaporation bottle be rotary by constant speed, material forming a large area film at the wall of bottle, efficient evaporation.Solvent vapors through the efficient glass condenser cooling, recycling in the collection bottle, improve the efficiency of evaporation.
Application
Rotary evaporator is mainly used in pharmaceutical, chemistry and bio-pharmaceuticals industries, for concentration, crystallization, drying, separation and solvent recovery. Especially suitable for the biological products concentration and purification which is easy to decompose deformation under high temperature.
